TOY HAULER
TH730
The Patriot Campers TH730 follows the same design cues as the TH610, but with more space, totalling 7.3 m (23.95 ft) in length from the hitch to the end of the deck. If you’re looking for more space to accommodate a larger, four-door side by side, or if you simply have more off-road toys to haul, the TH730 is a winning choice.
USD $87,900*
AVAILABLE IN USA ONLY (PRICING INCLUDES TARRIF AND SHIPPING, EX LAS VEGAS)
VIEW COLOUR OPTIONS
SLEEPS 0 - 4
2000KG DRY TARE (4410 lbs)
BASE MODEL WITHOUT OPTIONS
3400KG ATM (7496 lbs)
290KG DRAW BAR (640 lbs)
2400L STORAGE (635 Gals)
WATCH THE LAUNCH FILM
BRING ALL THE TOYS
DECK CAPACITY
With a massive 2.3 m (7.55 ft) wide × 4.15 m (13.62 ft) long deck, the TH730 accommodates all the toys you would want to take on your adventure.
DECK FEATURES:
- 8x TIE DOWN POINTS
- HIGH LIFT JACK HOLDER
- LED LIGHTS
- STEREO SPEAKERS
- SERVICE HATCH
TH730-SETUP-1
TH730-SETUP-2
TH730-SETUP-3
TH730-SETUP-4
TH730-SETUP-5
GO ANYWHERE, GET OFFROAD
offroadability
Just like Patriot’s X-Range of camper trailers; Patriot Campers Toy Haulers are built to be UNSTOPPABLE.

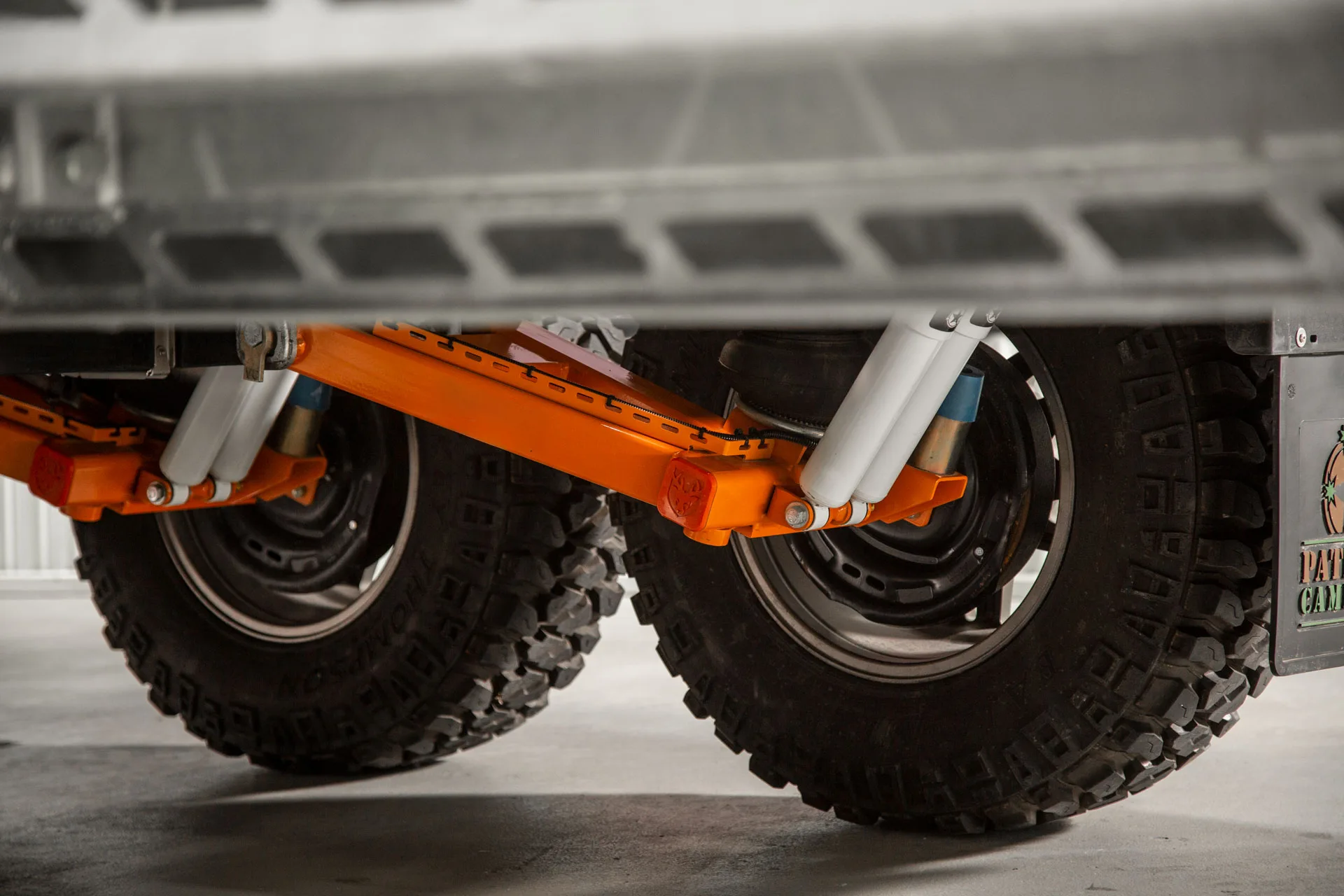

The dual shock suspension system with double convoluted Air Bags are made to withstand the weight of any gear in harsh offroad conditions, floating over uneven obstacles in a way that you would only expect from a Patriot Camper.
The DO35 hitch offers a seamless, drop on attachment, with 360 degree articulation to tackle the toughest tracks and avoid draw bar twisting.
TH730-OFFROAD-6
TH730-OFFROAD-5
TH730-SUSPENSION-OFFROAD
TH730-OFFROAD-2
TH730-OFFROAD-4
TH730-OFFROAD-3
TH730-OFFROAD

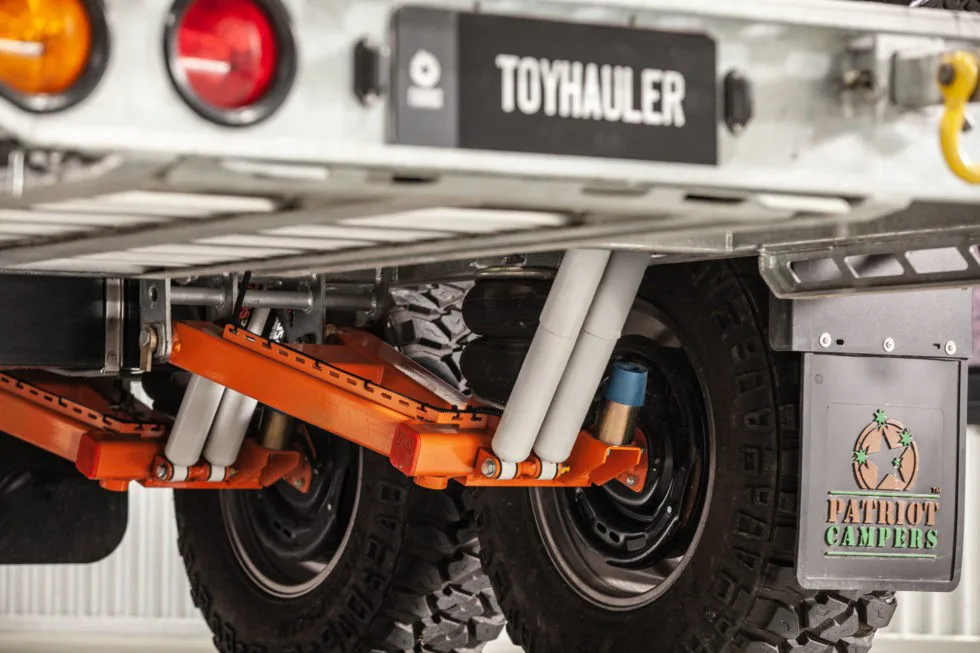

SUSPENSION SYSTEMS
self levelling

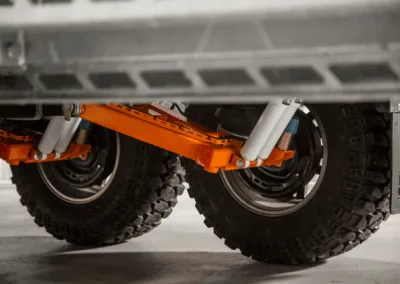

The airbag suspension system comes standard on the TH730 model, and is self levelling. Due to the load that is put on these rigs, we wouldn’t fit it with anything else. This gives you the ability to automatically level your toy hauler once you get to camp, using controls on the base camp module. Take the stress out of calculating carrying capacities, as the toy hauler does this for you.
TH730 2
TH730-UNLOADING-SUSPENSION
TH730-LOADING-SUSPENSION
TH730-AIRBAG-CONTROLS
TH610 DECK STUDIO
TH730-AIRBAG-CONTROL-2
TH730-CAMP-SUSPENSION
L-SHAPED KITCHEN
KITCHEN & FACILITIES
The TH730 kitchen has been designed with functionality in mind, mimicking your kitchen at home with it’s L-shaped design. All of the fold down benches are scratch proof stainless steel, so you can prepare food right from the bench.
Open the door and roll out your choice of portable fridge, a kitchen sink and cutlery compartments all in the one, sturdy slide, complete with a stabiliser leg for longer stays.
TH730-BBQ
TH730-KITCHEN
TH730-KITCHEN-2
TH730-KITCHEN-3
TH730-KITCHEN-4
TH730-KITCHEN-STORAGE
TH730-BENCH
TH730-FRIDGE
TH730-OFFROAD
TOYHAULER-CUTLERY-DRAWER
TOYHAULER-L-SHAPED-KITCHEN
PACK ENOUGH TO LAST
STORAGE
The base camp module includes plenty of storage, equipping you with the ability to stay off the grid for longer. Totalling over 2400 litres (635 Gals), these storage areas are accessible through anti-vibration latches to keep your gear secure and dust free, preventing compartments from shaking open on unruly tracks and corrugations.
STORAGE AREAS:
- SIDE STORAGE AREA
- CAMP OVEN SHELF
- ROOF TOP STORAGE
- SIDE DRAWER STORAGE
- HOT WATER SYSTEM
- FULLY CARPETED COMPARTMENTS
TH730-BULK-STORAGE_2
TH730-BULK-STORAGE
TH730-DRAWER
TH730-FRONT-BOX
TH730-SIDE-STORAGE
TH730-WET-STORAGE

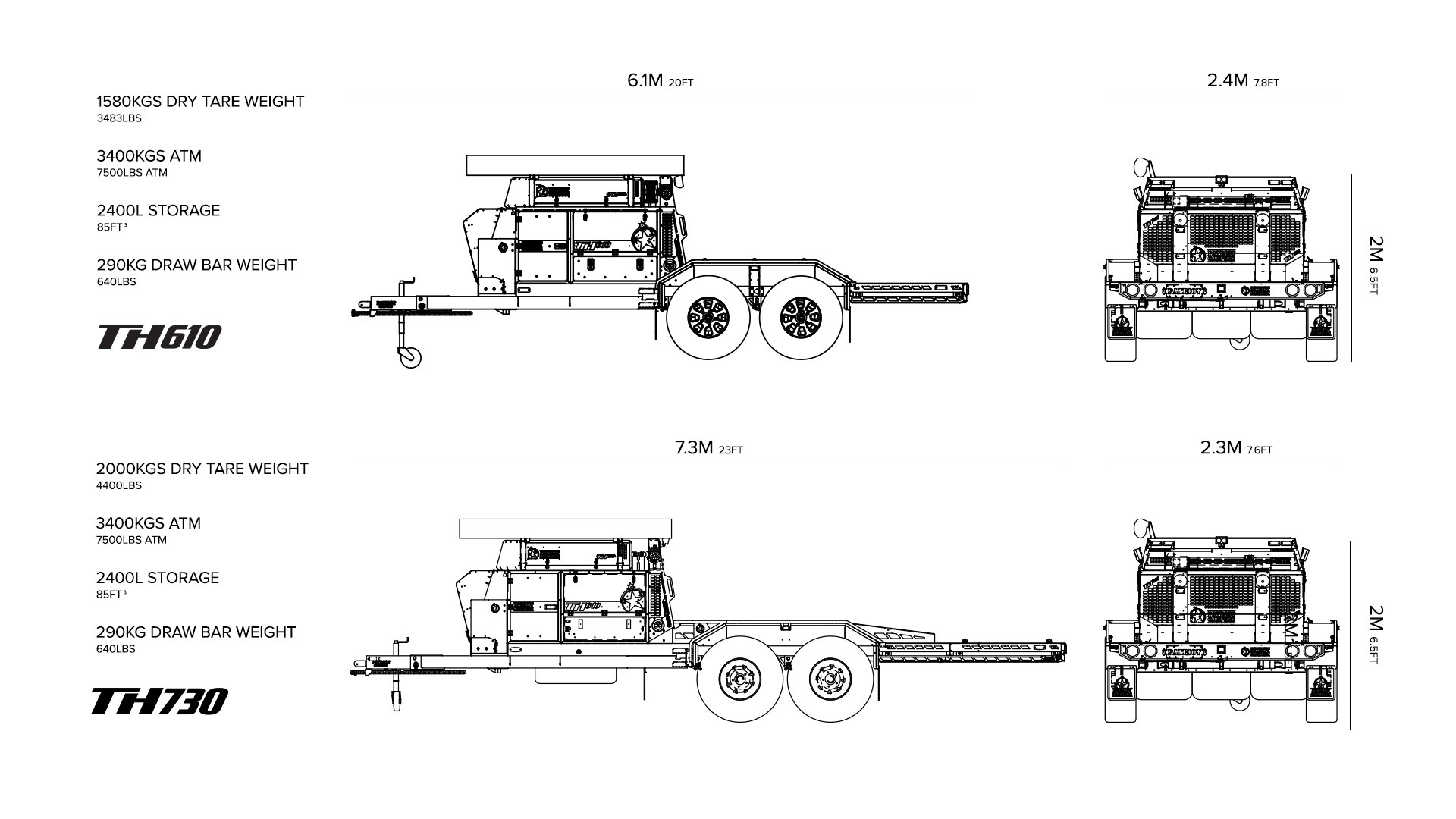

TH730 Tech Specs
DIMENSIONS & WEIGHTS
TOTAL LENGTH: 7.3M (23FT)
TOTAL WIDTH: 2.4M (7.8FT)
DECK LENGTH: 3.1M (10FT)
1500KG DRY TARE WEIGHT (3300LBS)
3400KGS ATM (7500LBS)
2400L STORAGE (85FT3)
290KG DRAW BAR WEIGHT (640LBS)
The following options and features are included in the build as standard.
-

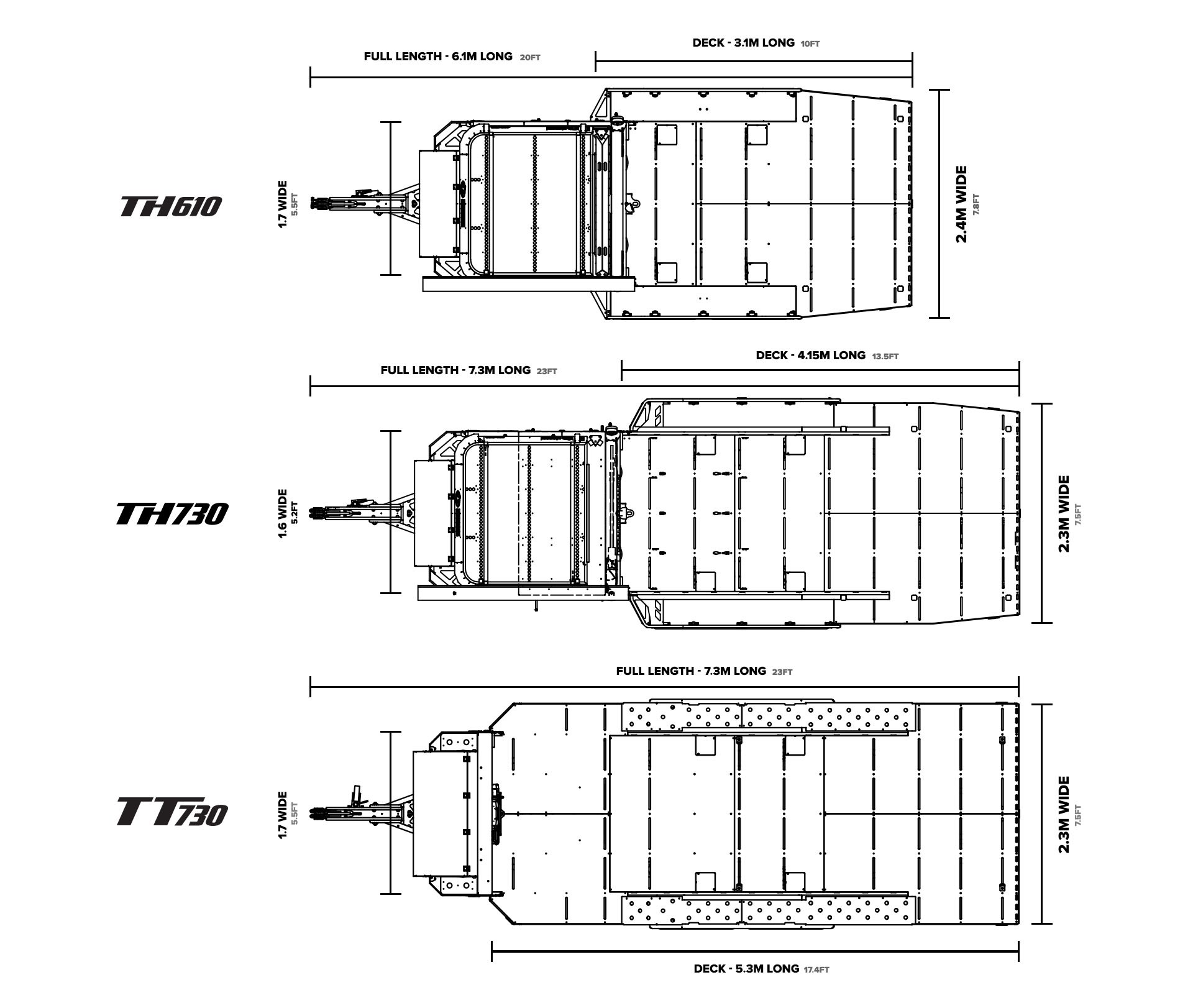

TH730 Deck – 2.3 m W (7.55 ft) × 4.15 m L (13.62 ft)
-
Standard Green or White Body Colour
-
Standard 5/150 Stud Pattern
-
17″ × 9″ N25 PCOR Wheels
-
285/70R17 Mud Terrain Tyres
-
Under Chassis Space Saver Spare Wheel & Tyre
-
12″ Electric Brakes
-
DO35 Hitch Coupling
-
Airbag Suspension
-
2x 150AH Gel Batteries
-
240v REDARC Manager 30 (BMS1230)
-
Fusion Stereo
-
180 Degree Awning
-

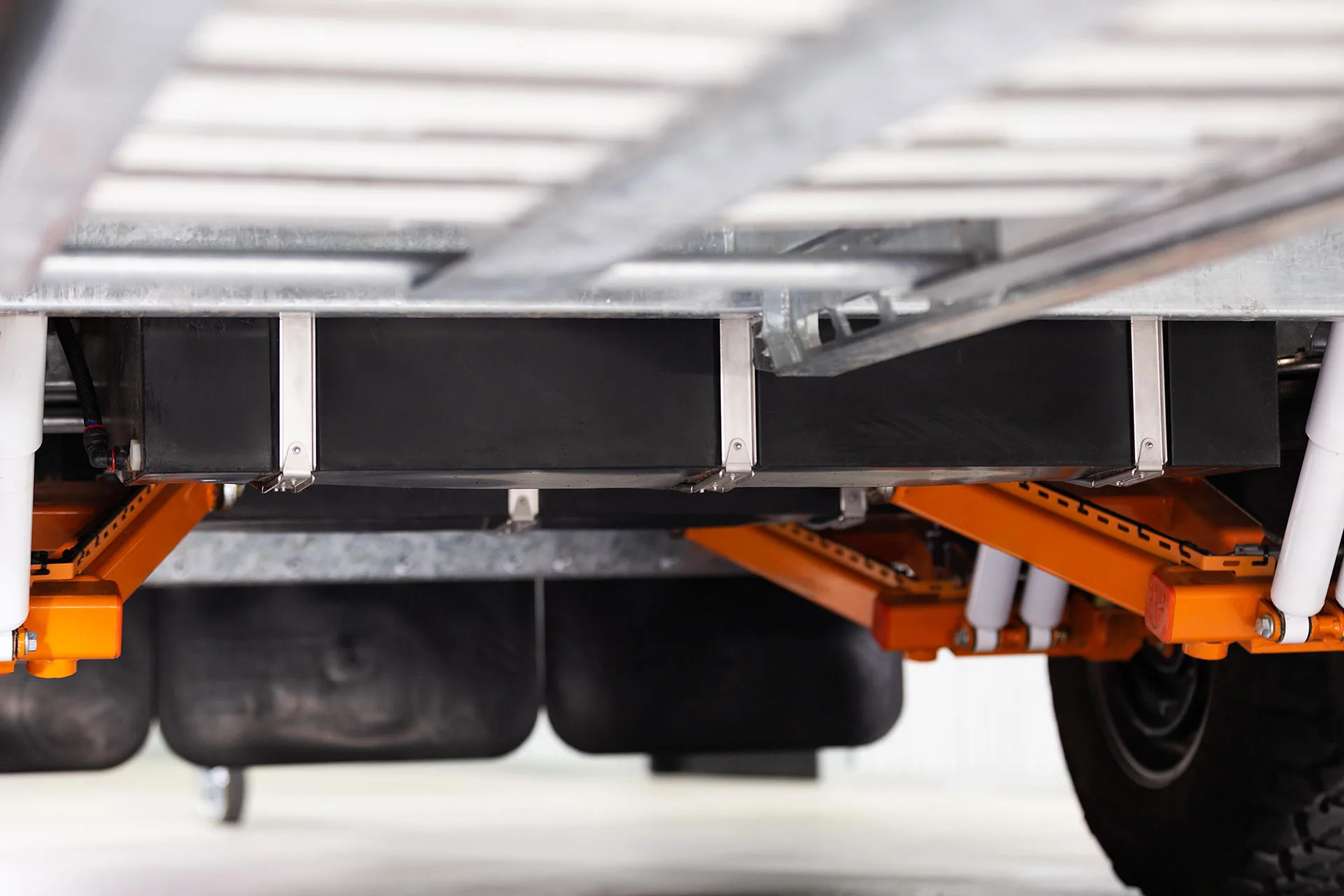

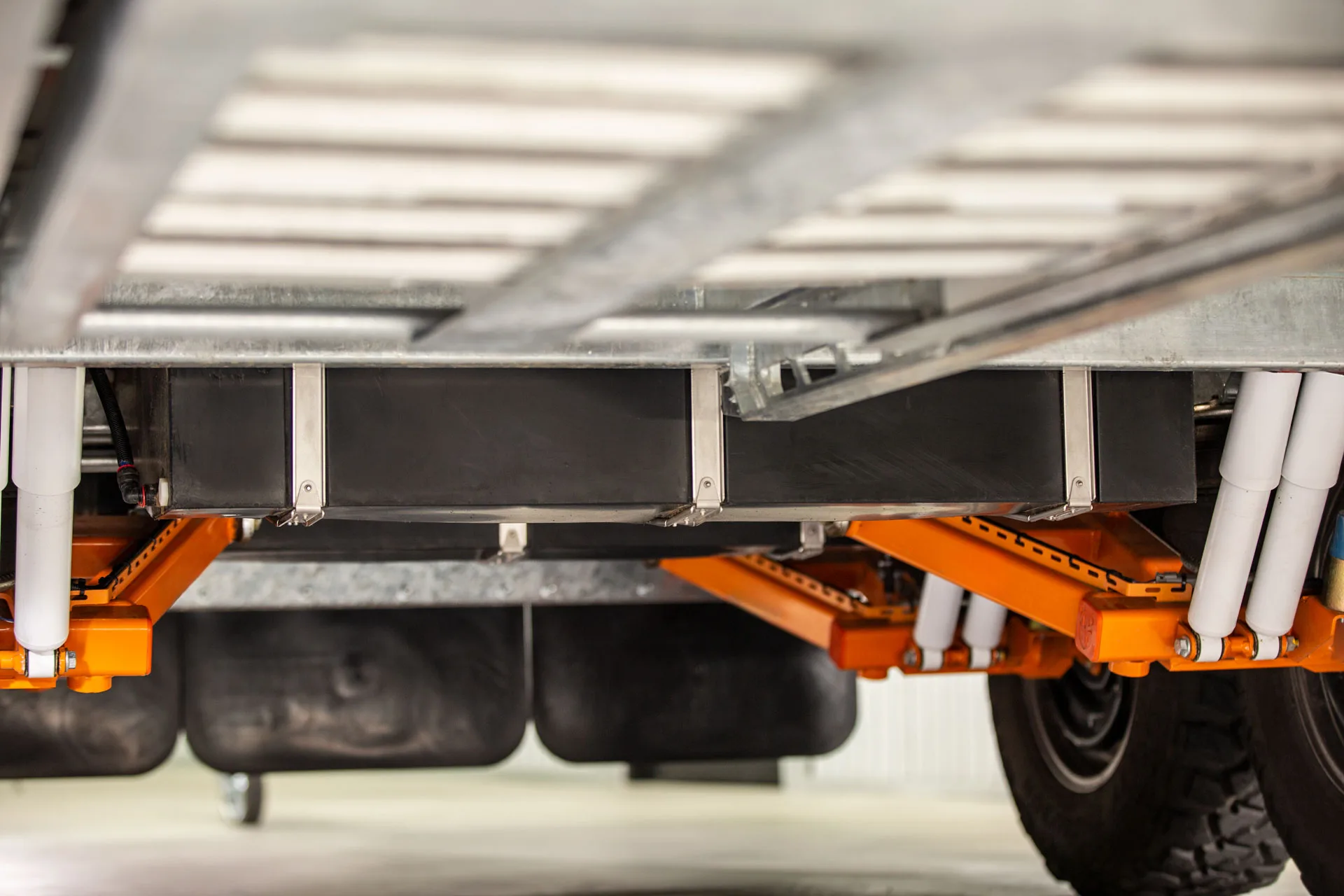

115 L Water Tank* (≈31 US gallons)
-
Gas Hot Water Unit
-

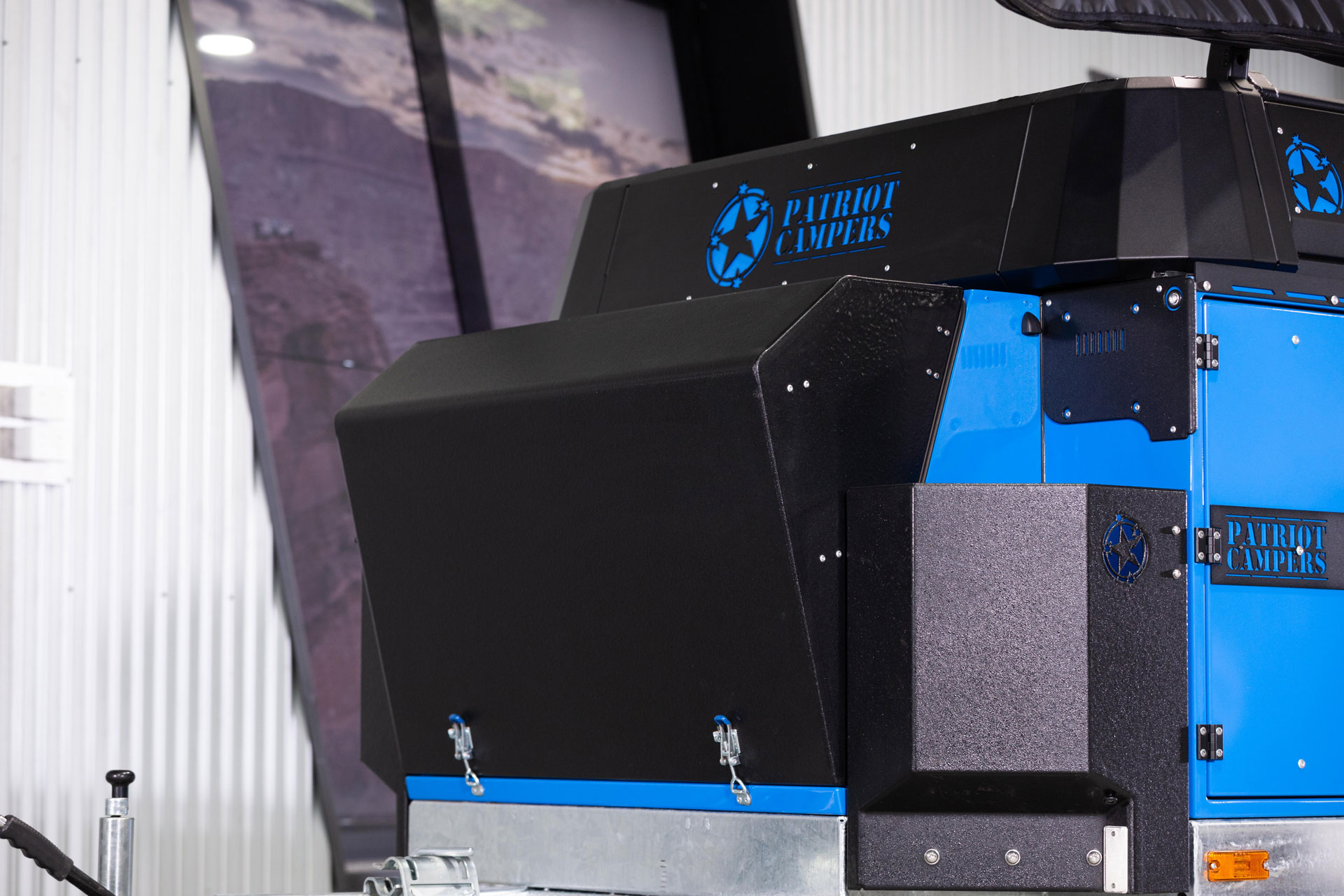

2x Gas Bottle Holders
-
High Lift Jack Mounts
*Water Tank Capacity may vary
-
Colour Change To Graphite or Blue
-
Dirt Bike Rack (3x Bikes)
-
Outboard Motor Mount – Short Shaft Only
-
Second Water Tank (230 L Total)* (≈61 gals)
-
Option Full Size Spare
-
Inverter, 350W
-

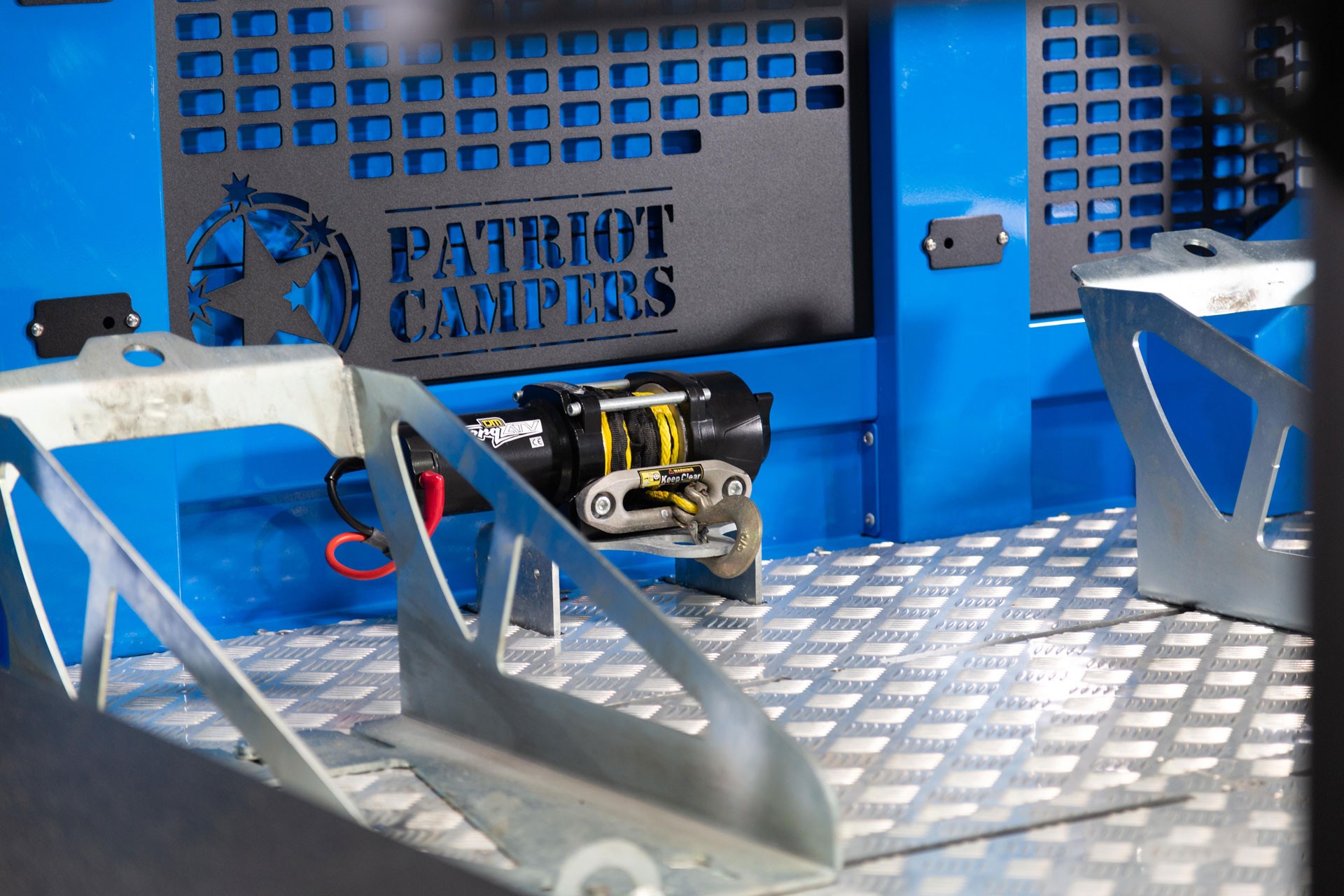

Deck Winch (ATV4000IB)
-
ATV/Dirt Bike Cradle (290 mm Wide) (≈11.4 in)
-
2x 100AH Lithium Upgrade
-
GME XRS-330CTP W/ 6.6 dBi Antenna & Foldable Mount
-
BBQ Swing Away
-
Utility Slide Out, Right Hand Side
-
Front Box Utility Shelf
-
PCOR Maxtrax (Yellow) Front Box Mount
-
Weber Baby Q (Including 4 Tie-Down Straps)
-
55 L Waeco Fridge/Freezer With Wifi & Ice Maker (Including Tie-Down & Anderson Plug) (≈14 gals)
-
Wind Break Walls (Per Panel)
*Water Tank Capacity may vary
STANDARD FEATURES
TOY DECK
2.3m W x 4.15m L
(7.55 ft W × 13.62 ft L)
– STANDARD –
STANDARD COLOUR
Green or White Body Colour
– STANDARD –

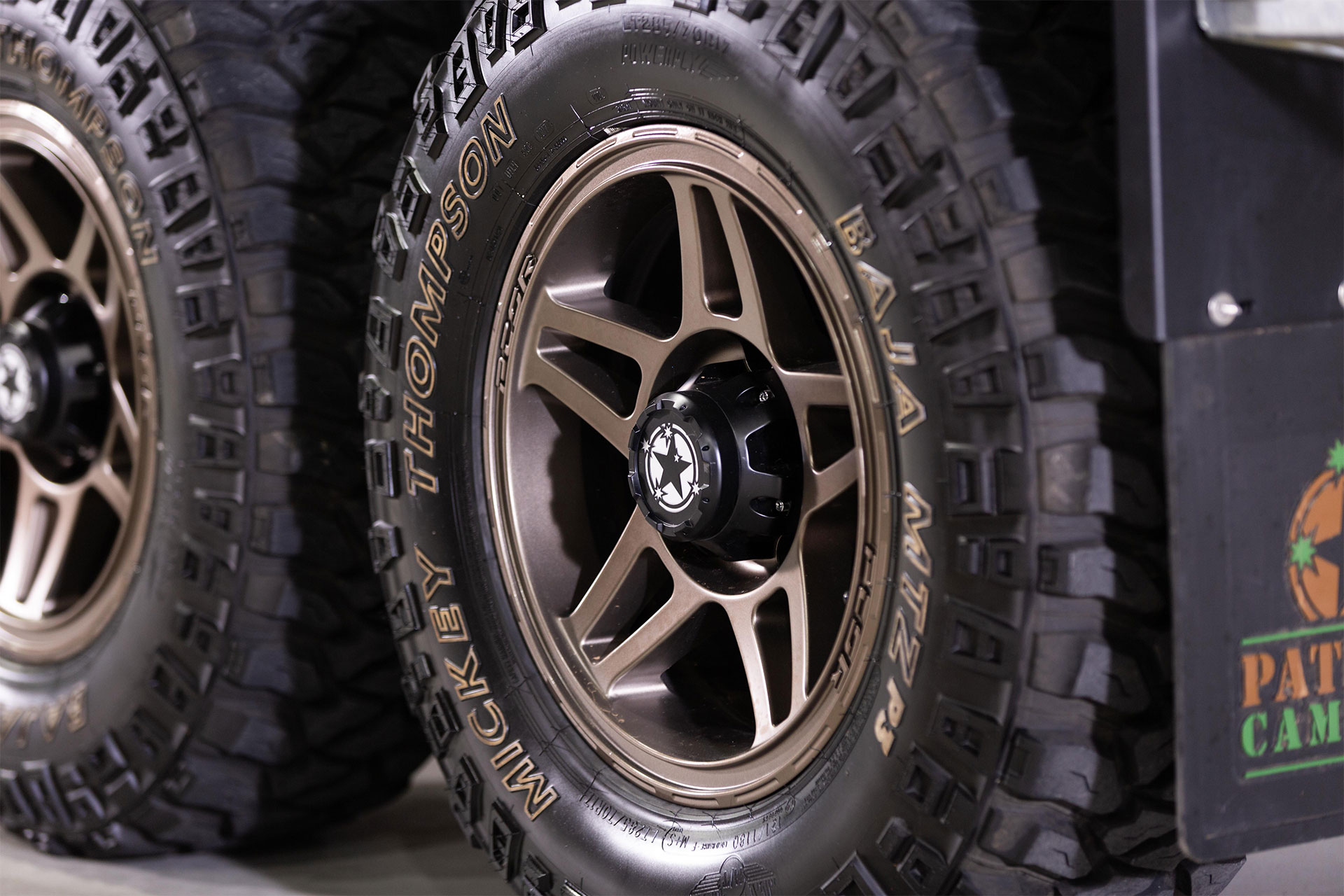

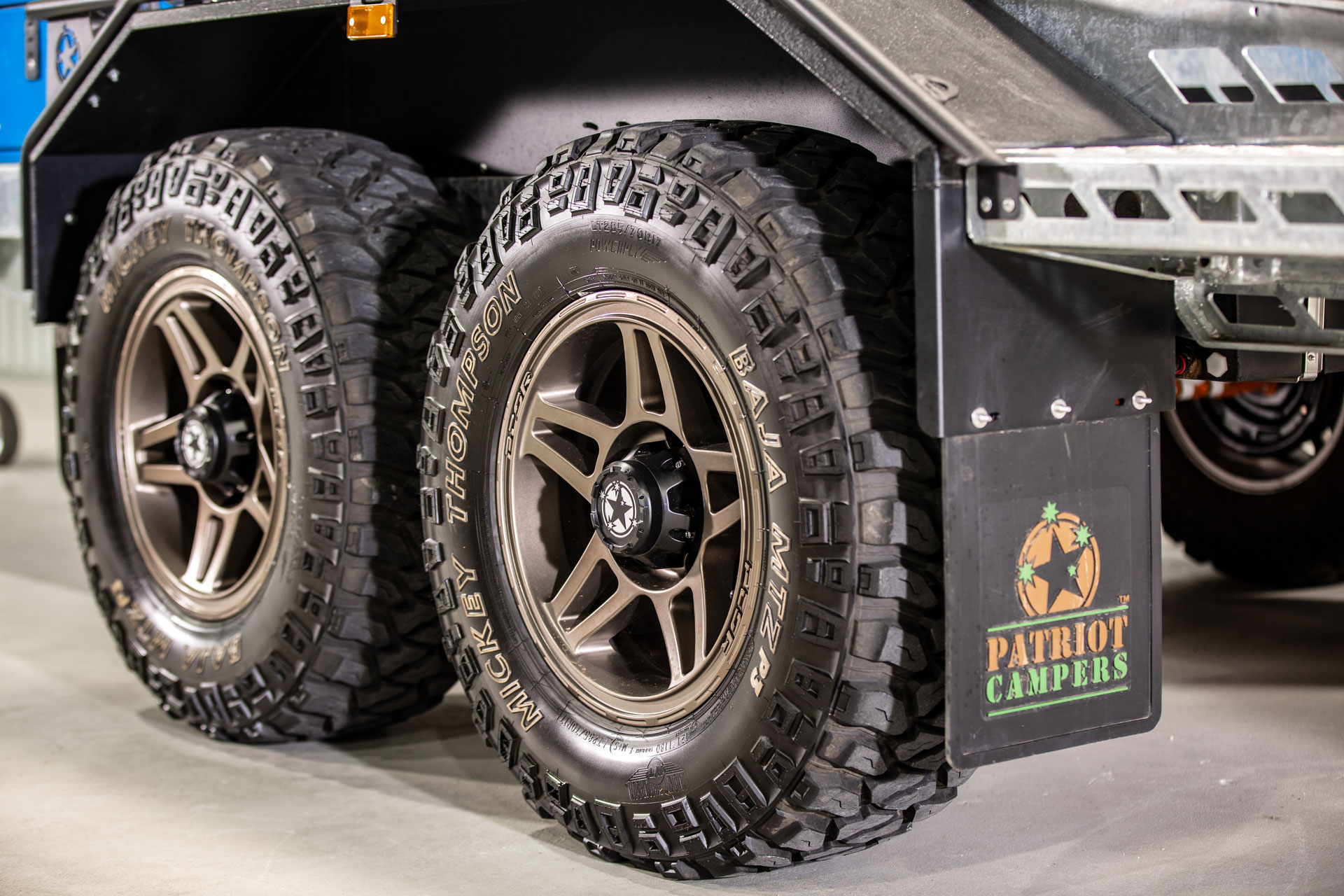

PCOR WHEELS
Exclusive alloy wheels
– STANDARD –
MUD TERRAIN TYRES
285/70R17 Mud Terrain Tyres
– STANDARD –
Spare Wheel & Tyre
Space Saver Spare Wheel & Tyre
– STANDARD –

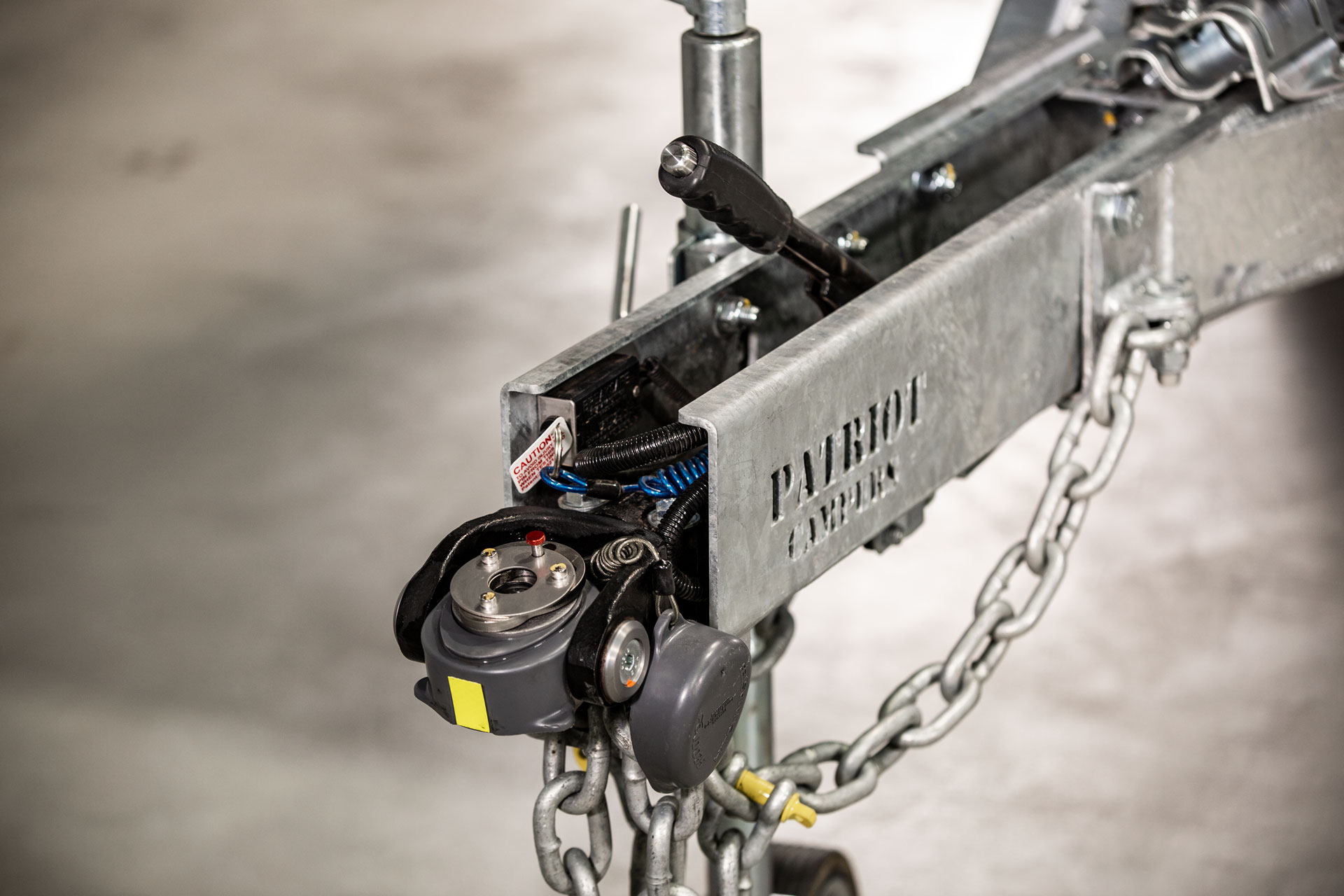

DO35 Hitch Coupling
360 Degree Articulating Hitch
– STANDARD –

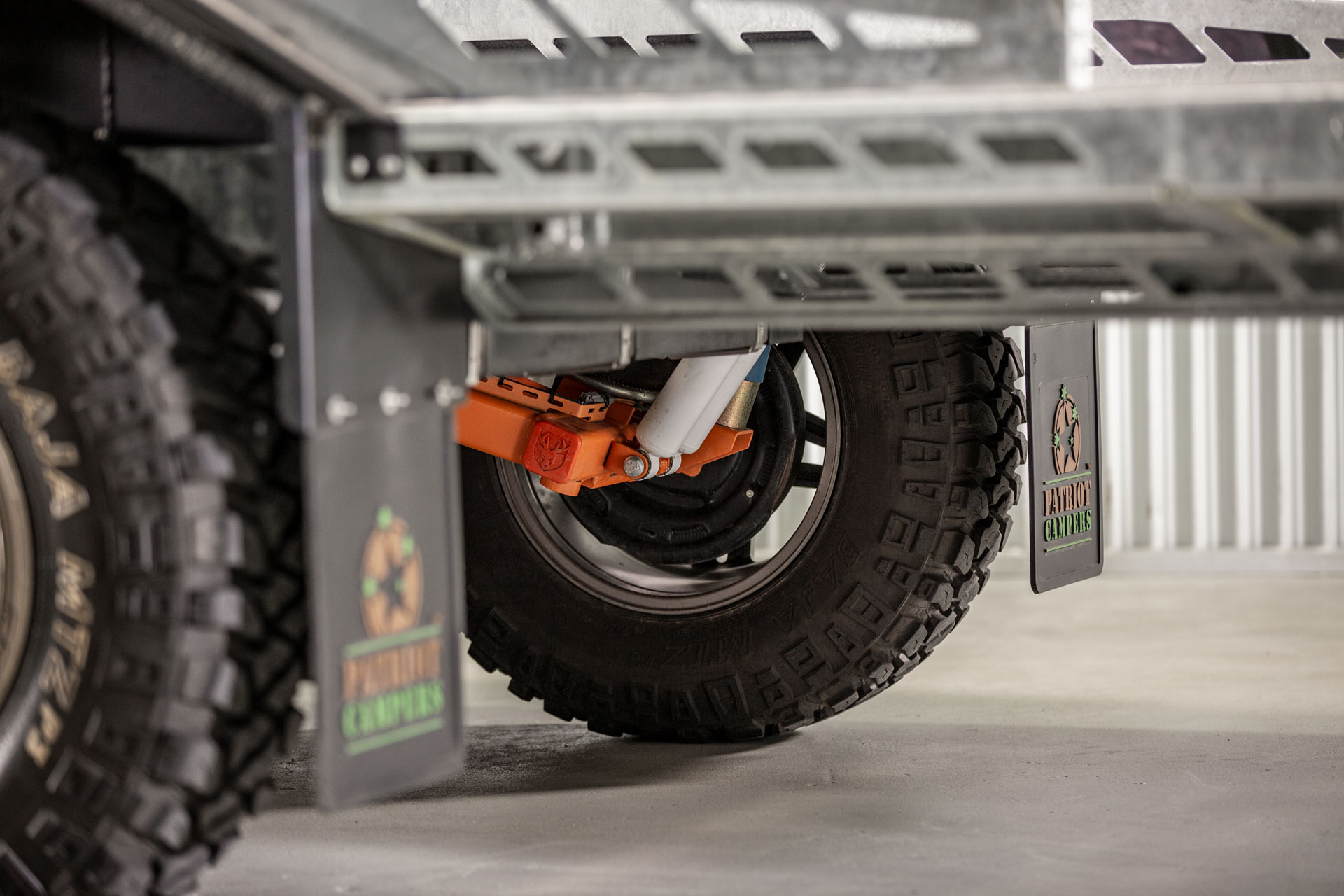

Braking System
12″ Electric Brakes
– STANDARD –
Suspension
Airbag Suspension
– STANDARD –

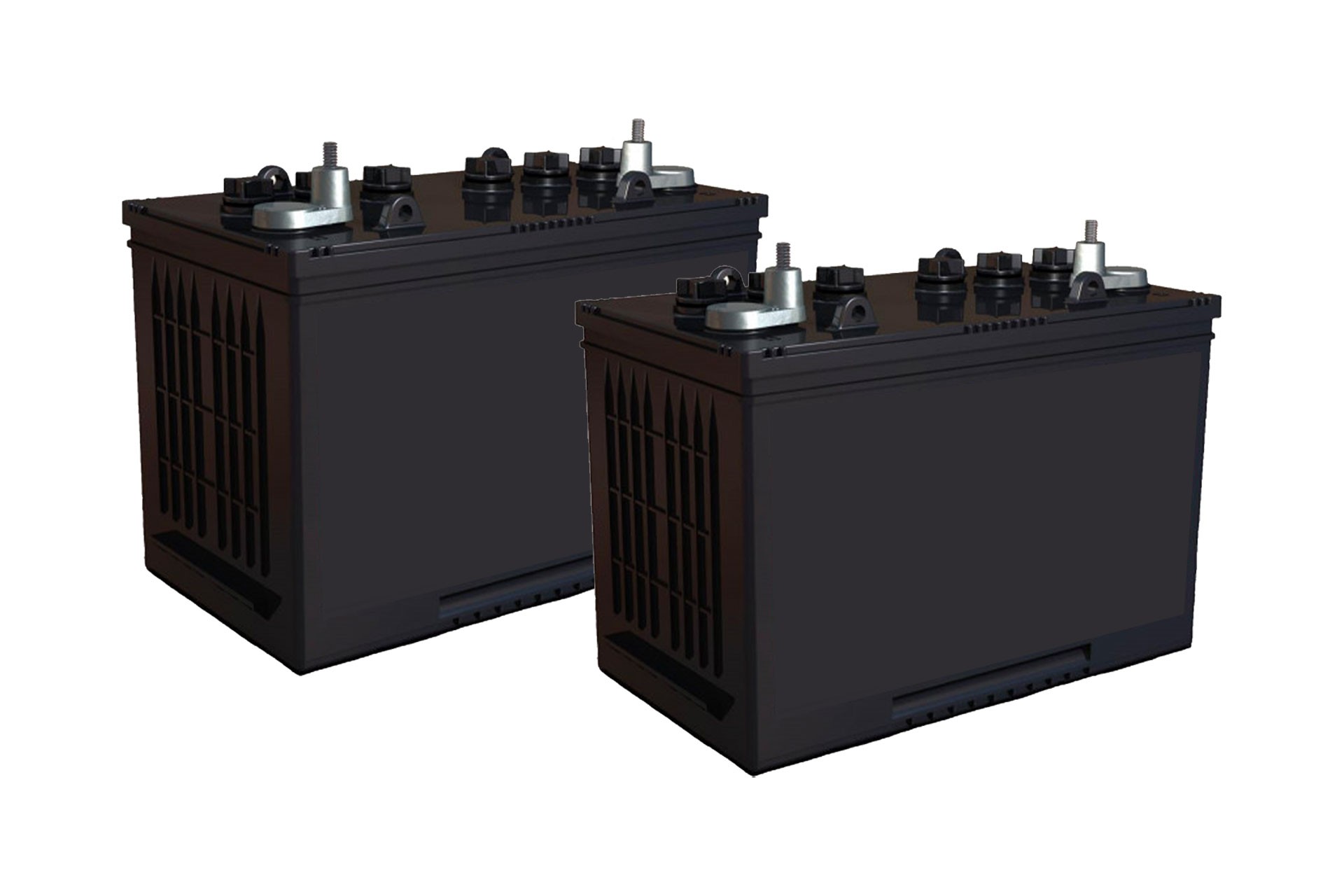

Twin Gel Batteries
2x 150AH Batteries
– STANDARD –
REDARC BMS
Manage battery inputs and outputs
– STANDARD –

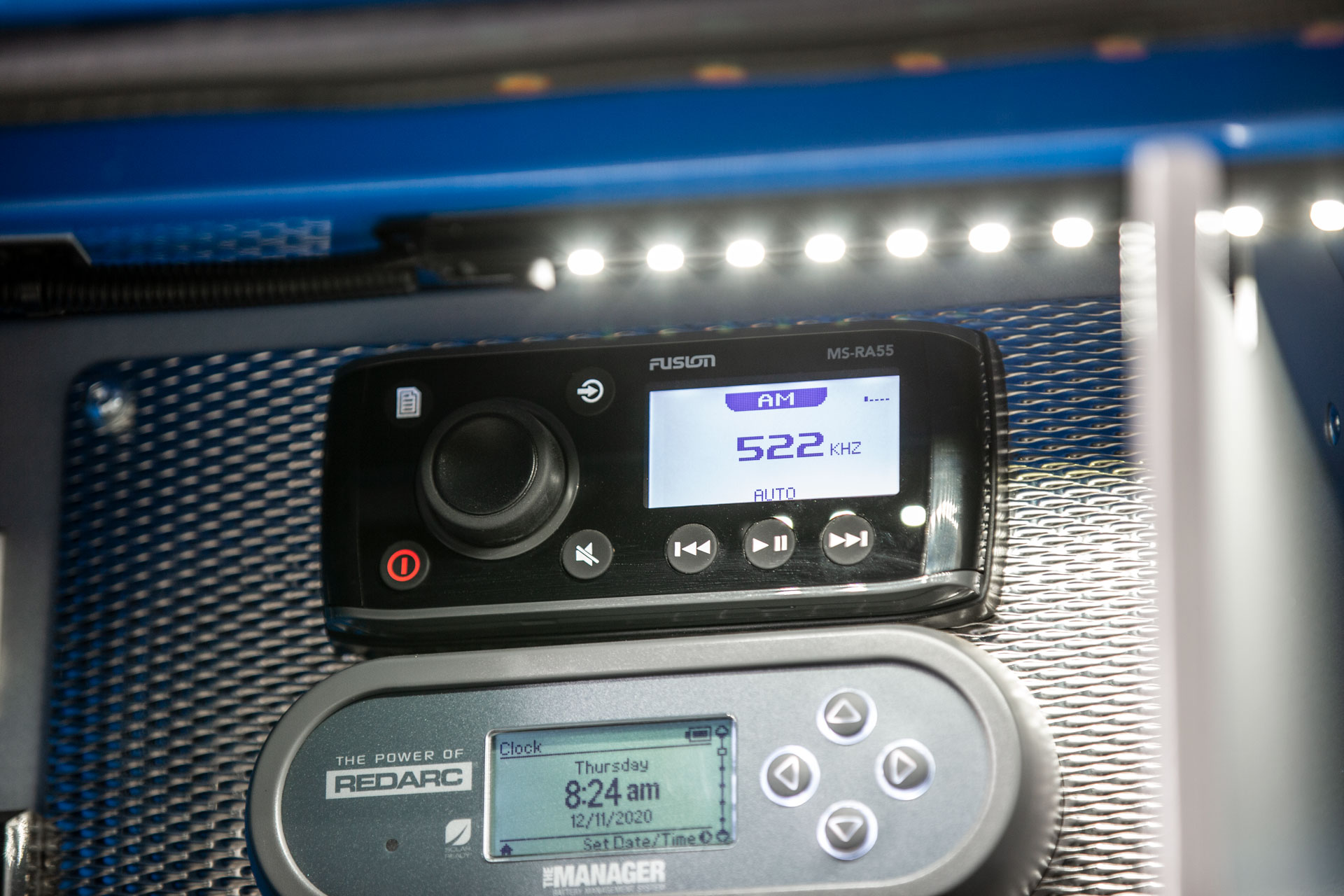

FUSION STEREO
In-built fusion stereo
– STANDARD –
180 DEGREE AWNING
Provides 180 degrees of coverage
– STANDARD –
WATER TANK
115L (31 Gals) water capacity
– STANDARD –

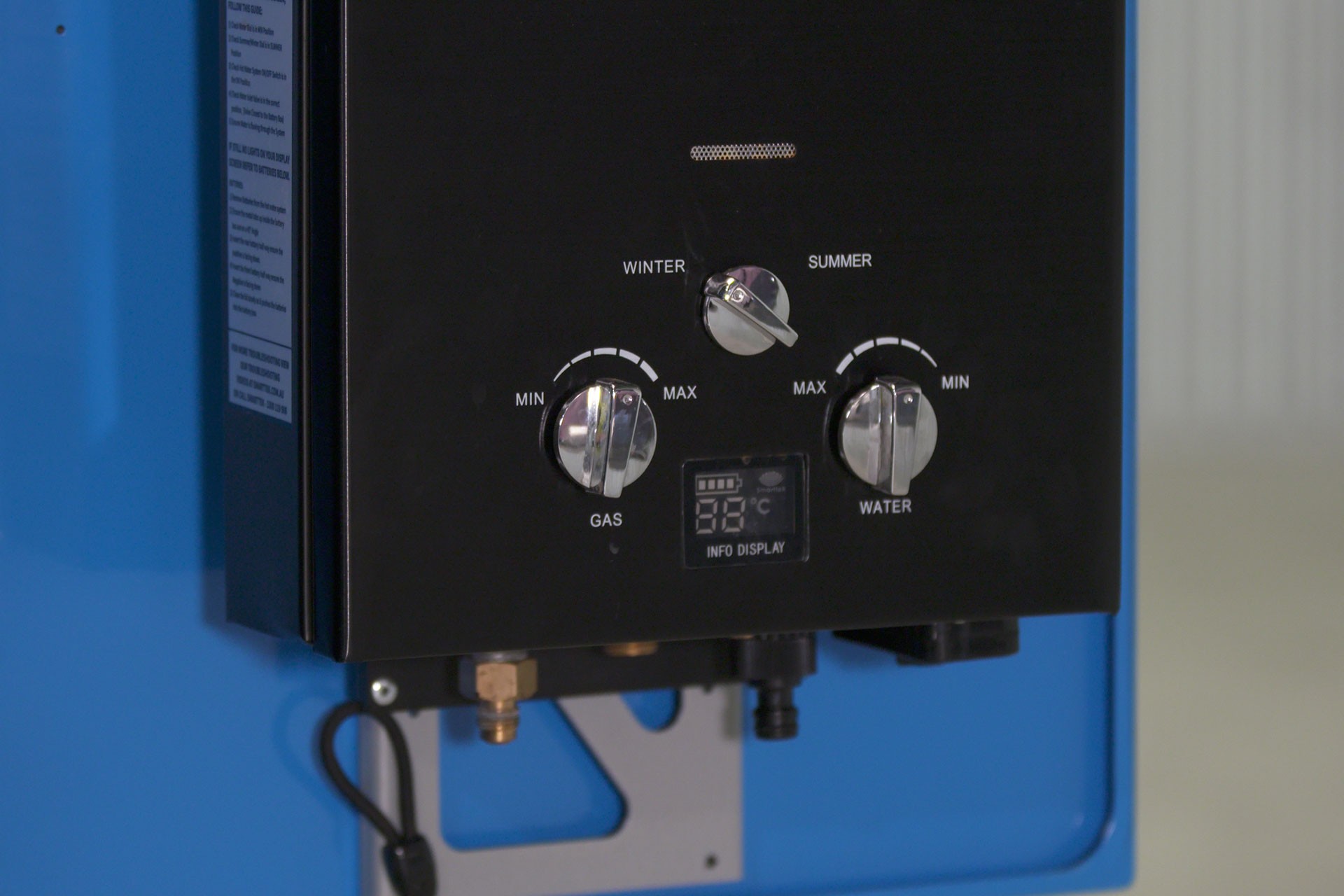

Hot Water On Demand
Gas Hot Water Unit
– STANDARD –
Gas Bottle Holder
Twin Gas Bottle Holders
– STANDARD –
Tie Down Points
8x Tie Down Points
– STANDARD –
High Lift Jack Mount
High Lift Jack Mount
– STANDARD –
OPTIONS
COLOUR CHANGE
Blue or Graphite
– OPTION –
Dirt Bike Mount
Mount Up To 3 Dirt Bike
– OPTION –

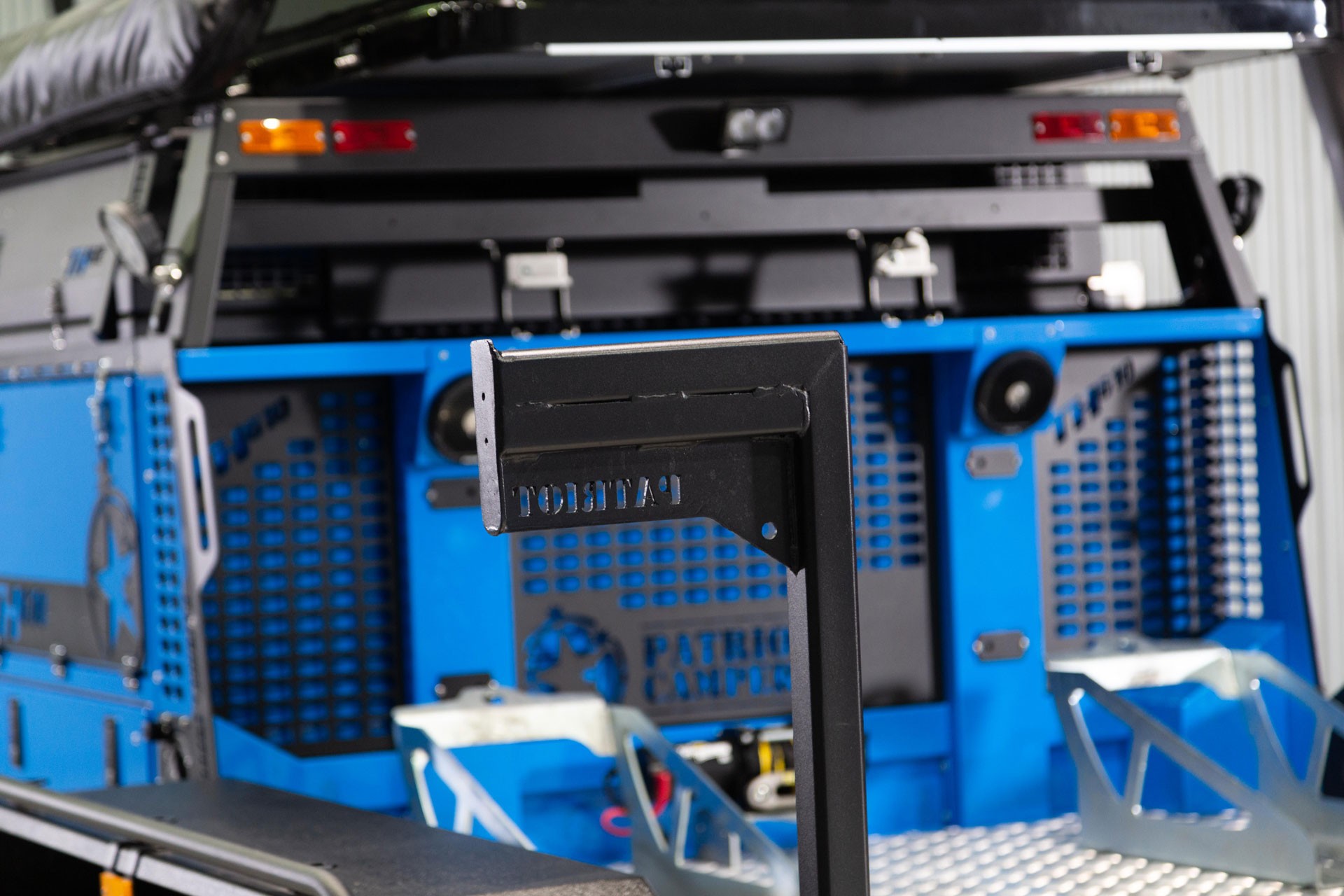

Boat Motor Mount
Outboard Motor Mount
– OPTION –

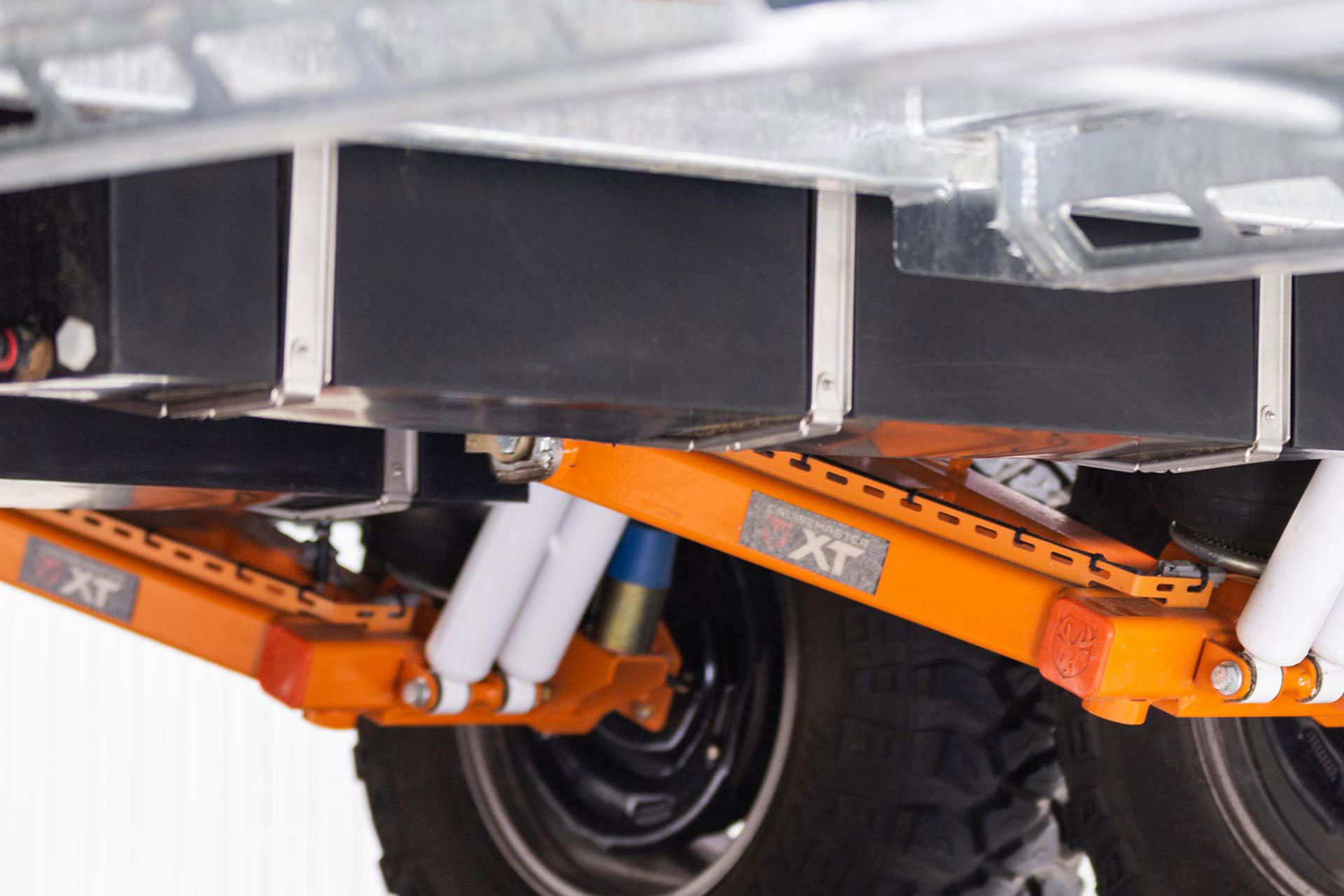

2ND Water tank*
115L Water Tank (31 Gals)
– OPTION –

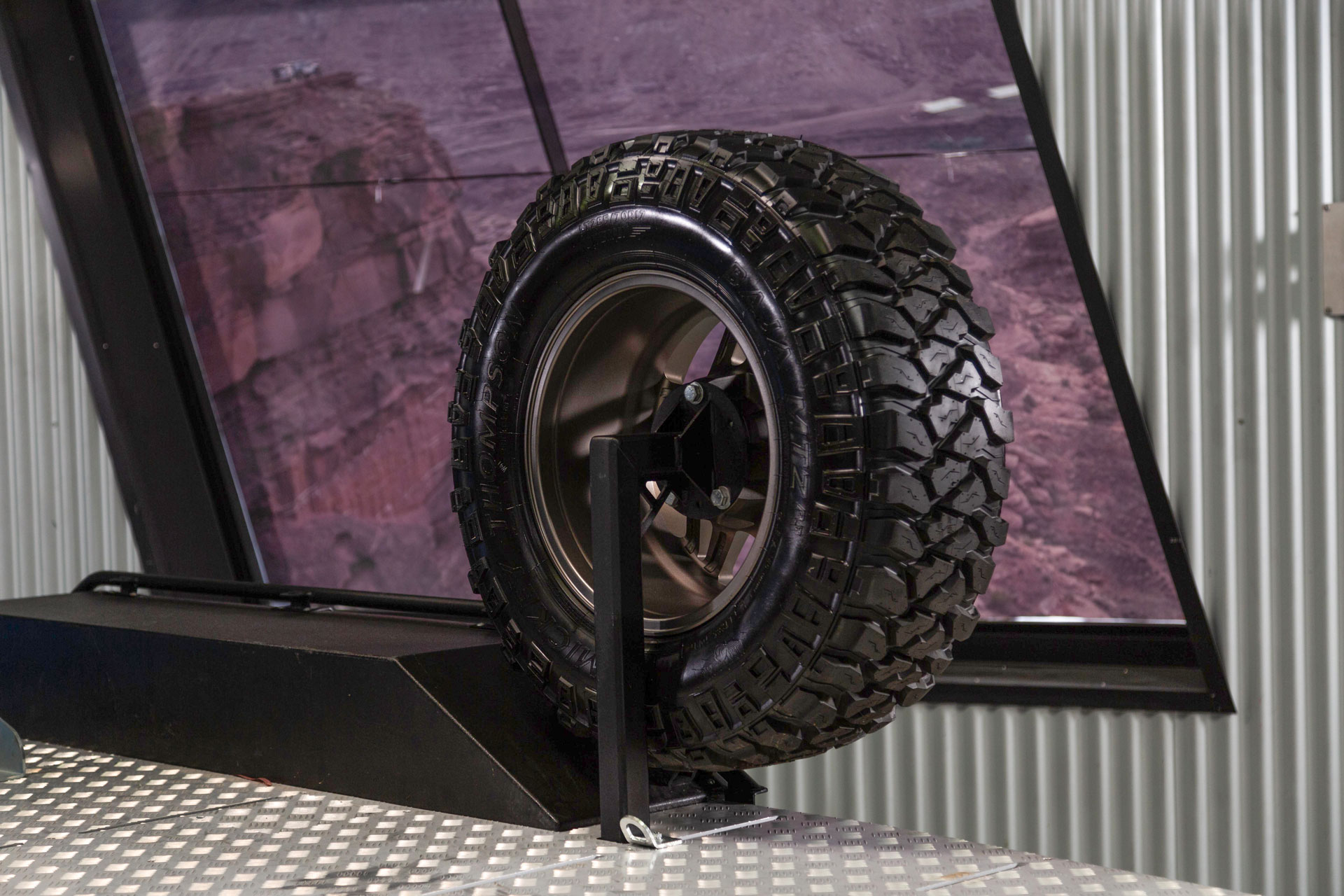

Full Size Spare
Full Size Spare Wheel & Tyre
– OPTION –

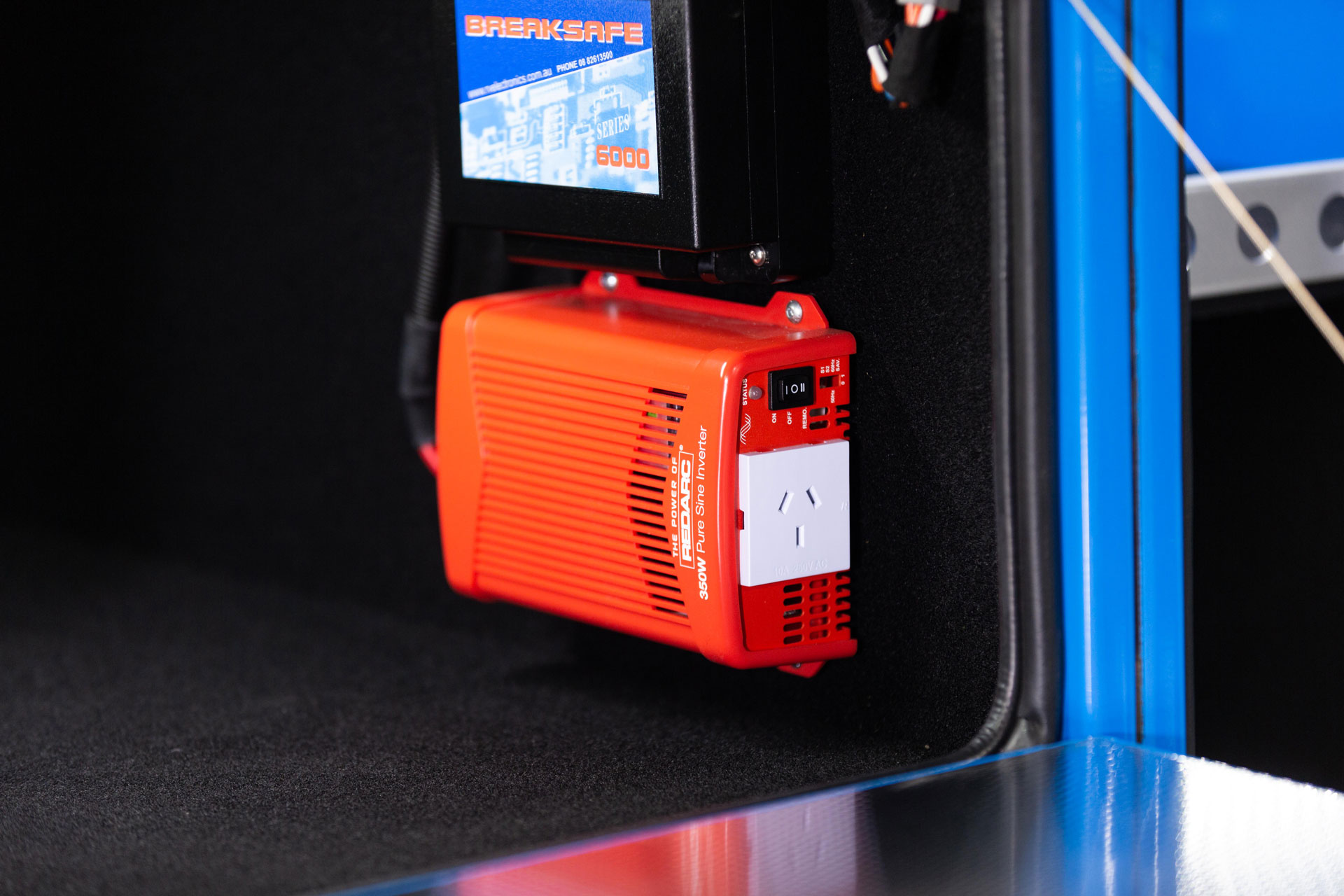

350 Watt Inverter
REDARC 350 Watt Inverter
– OPTION –
Deck Winch
Deck Winch
– OPTION –

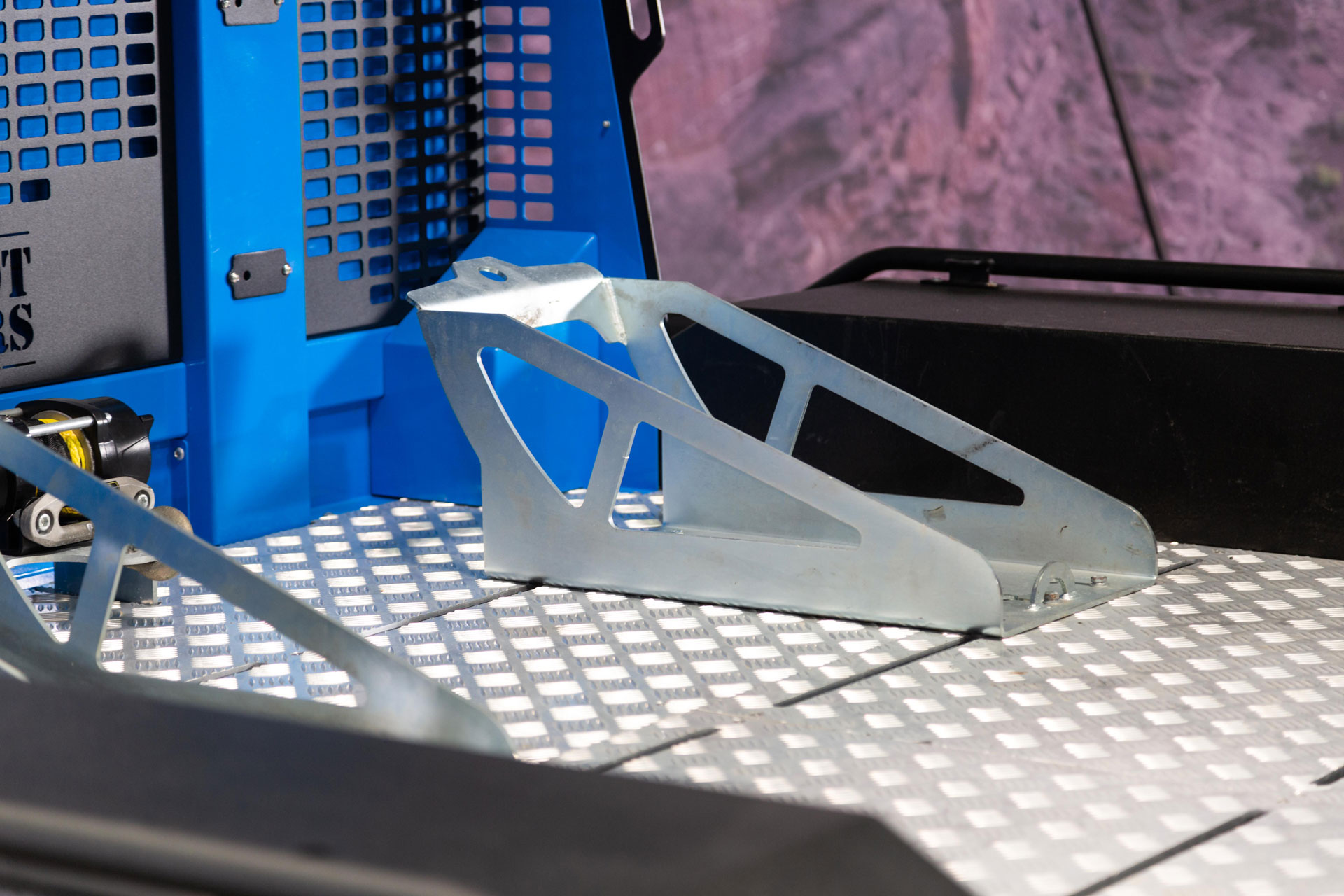

Wheel Cradle
ATV/Dirt Bike (290 mm / 11.4 in Wide)
– OPTION –

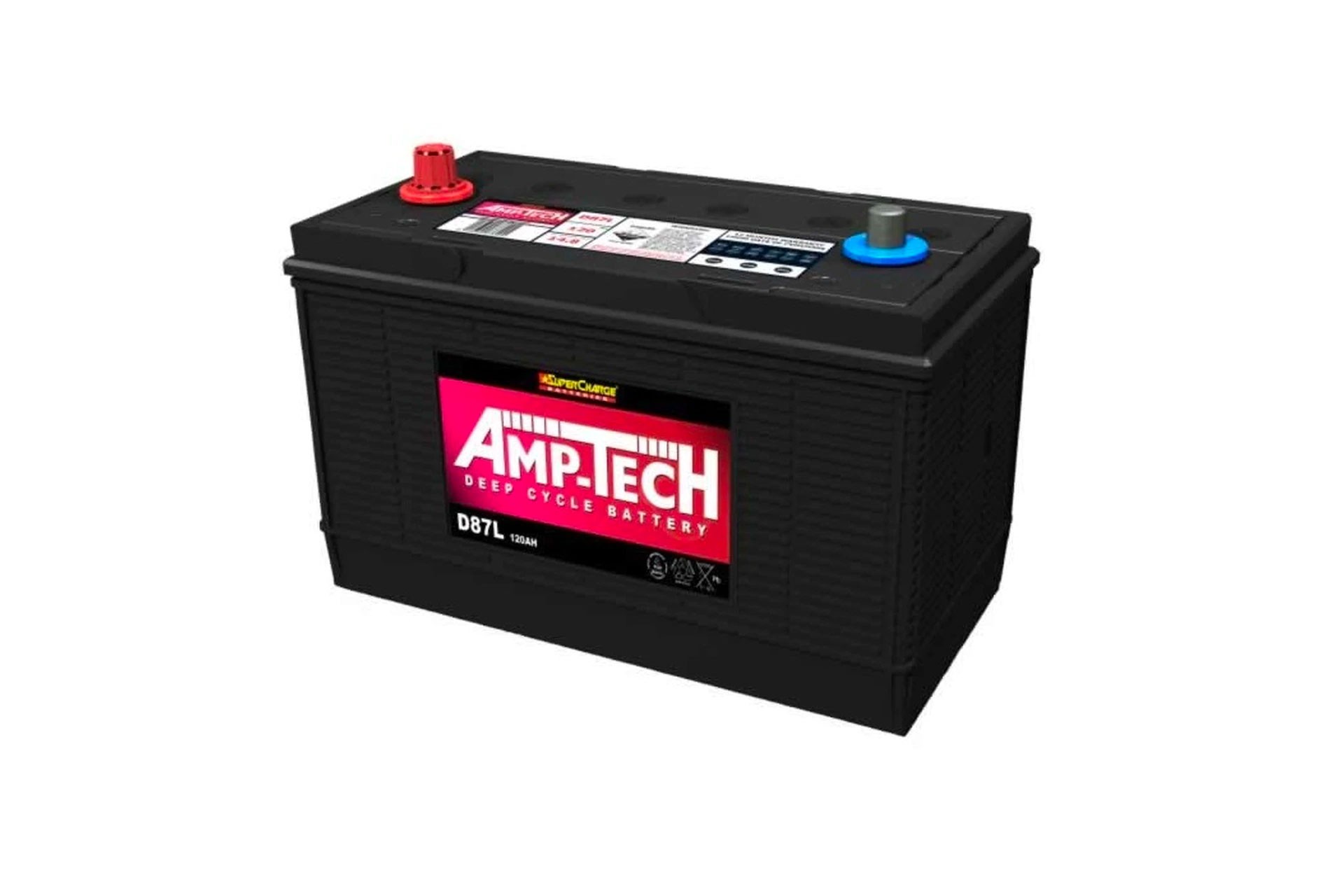

LITHIUM BATTERIES
Upgrade to lithium batteries
– OPTION –

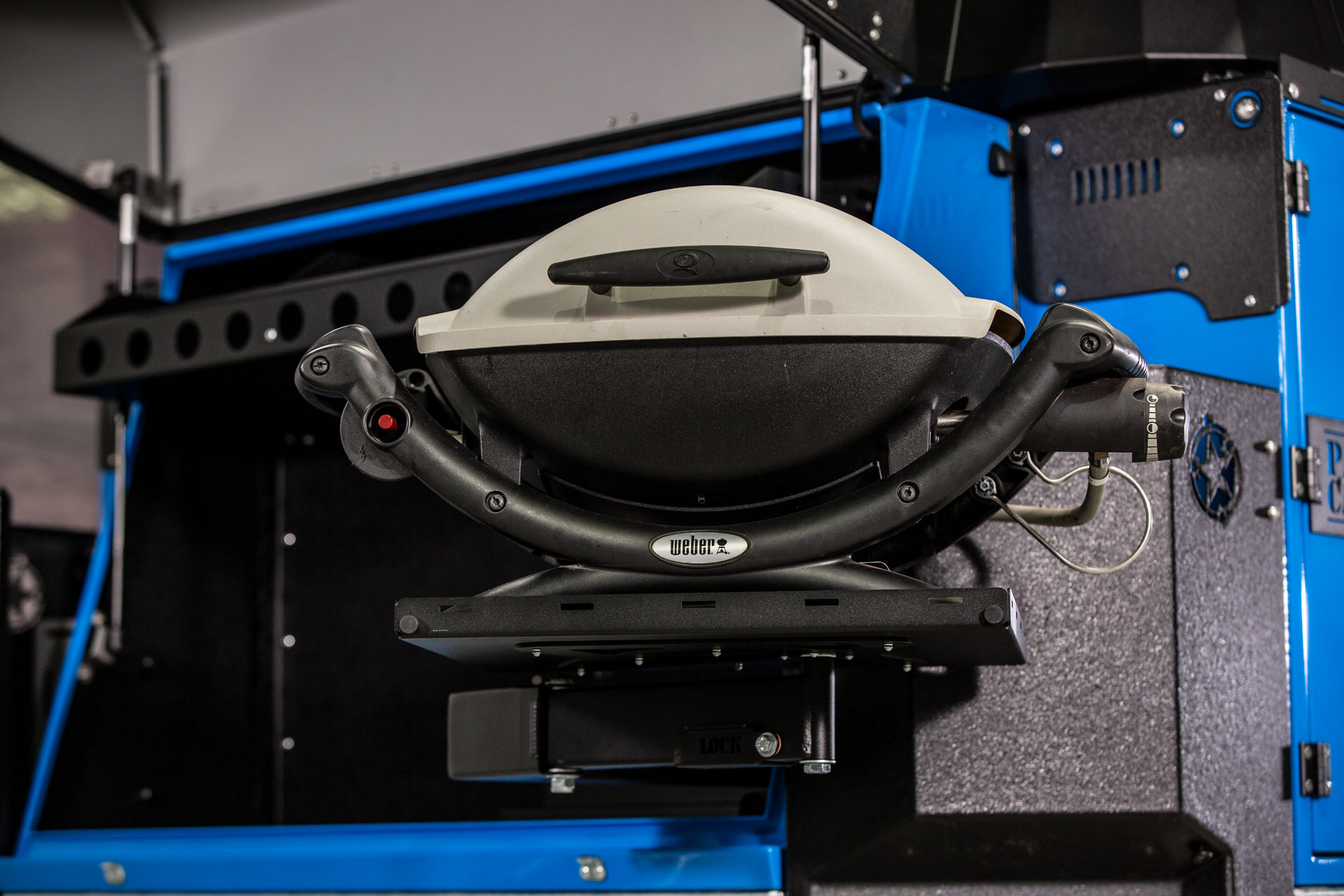

BBQ Swing Away
BBQ Swing Away
– OPTION –

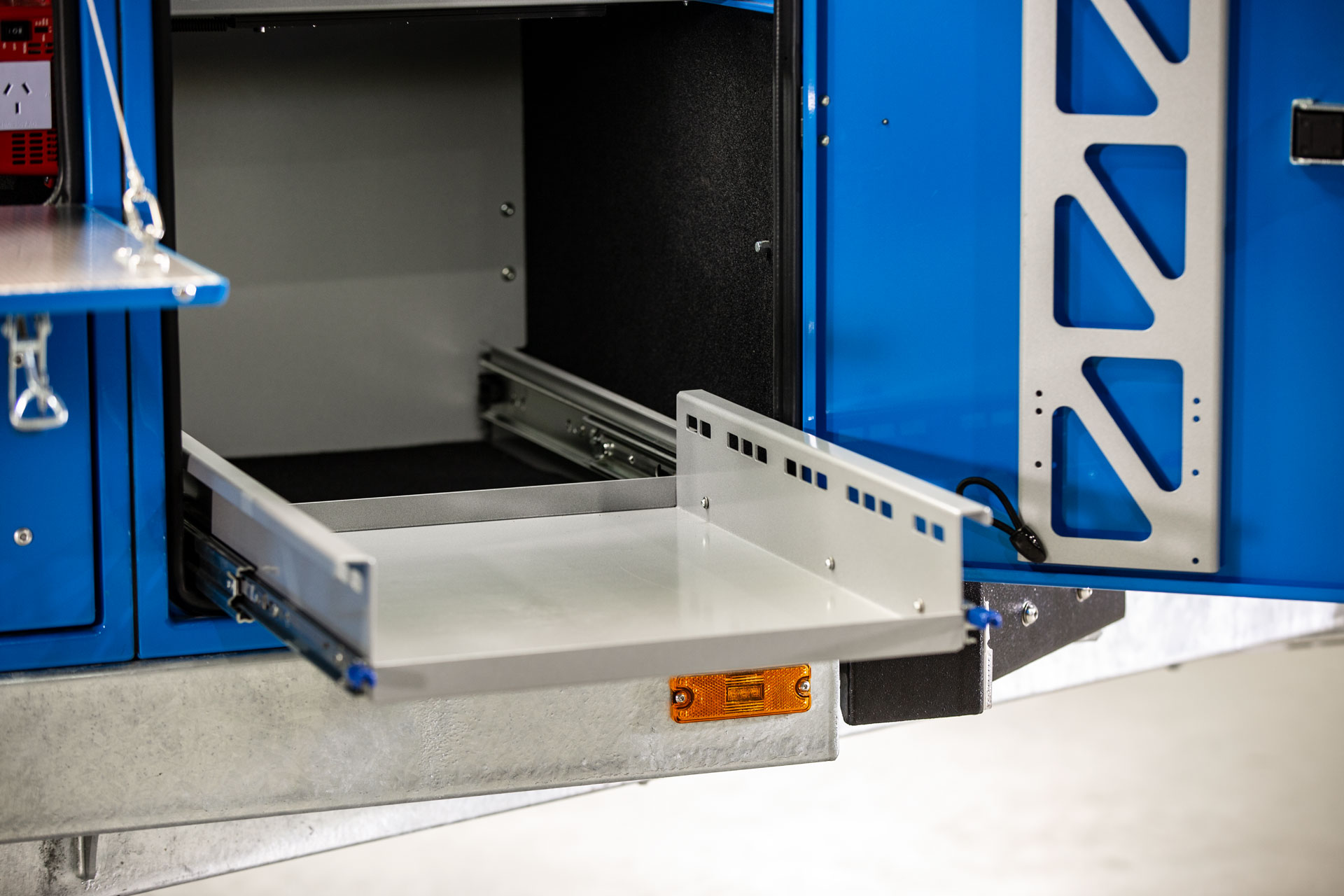

Utility Slide Out
Utility Slide Out, Right Hand Side
– OPTION –

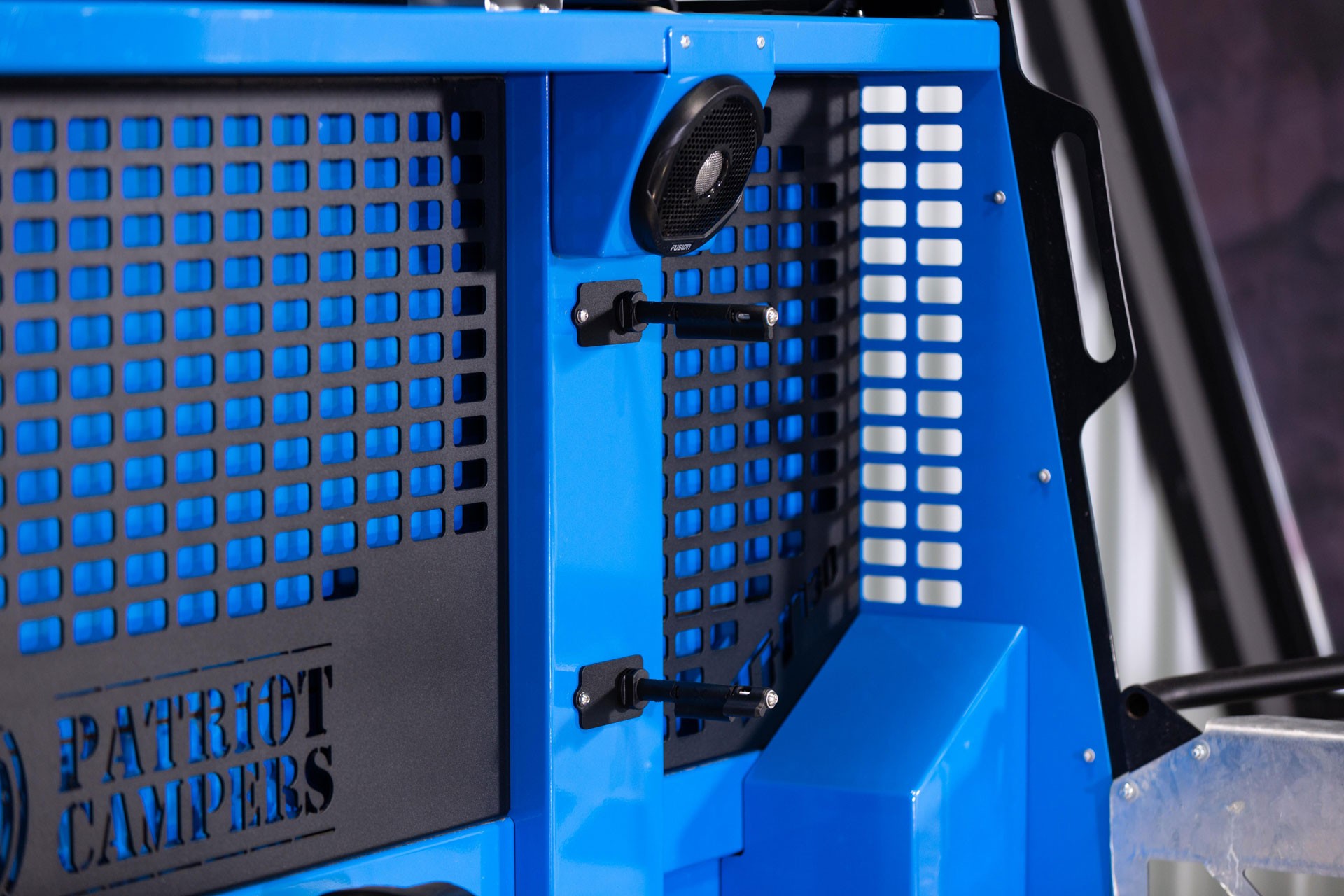

MAXTRAX Mounts
Easy Access To Your Maxtrax
– OPTION –
Utility Shelf
Located in the front box
– OPTION –

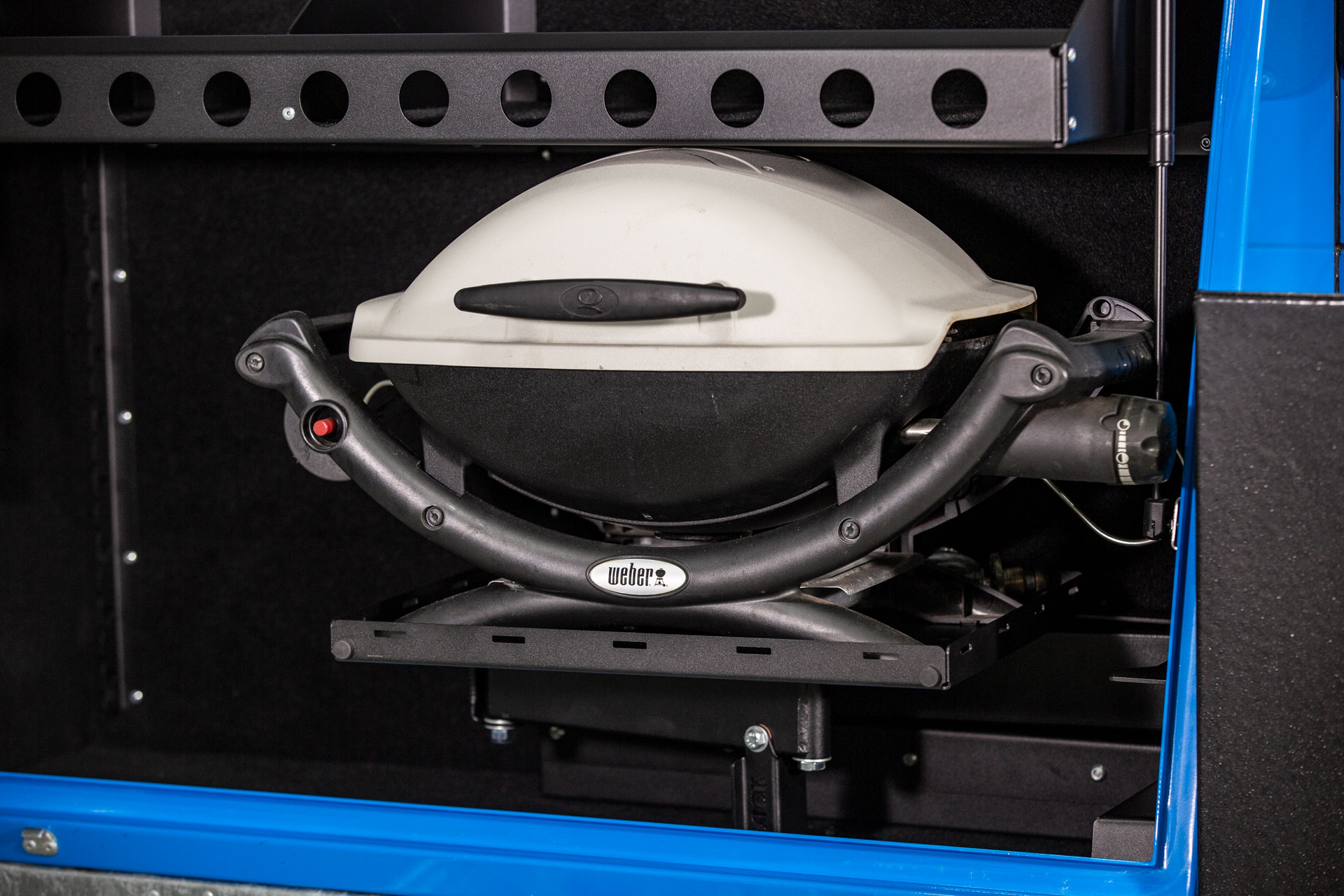

Weber Baby Q
Weber Baby Q (With 4 Tie-Downs)
– OPTION –

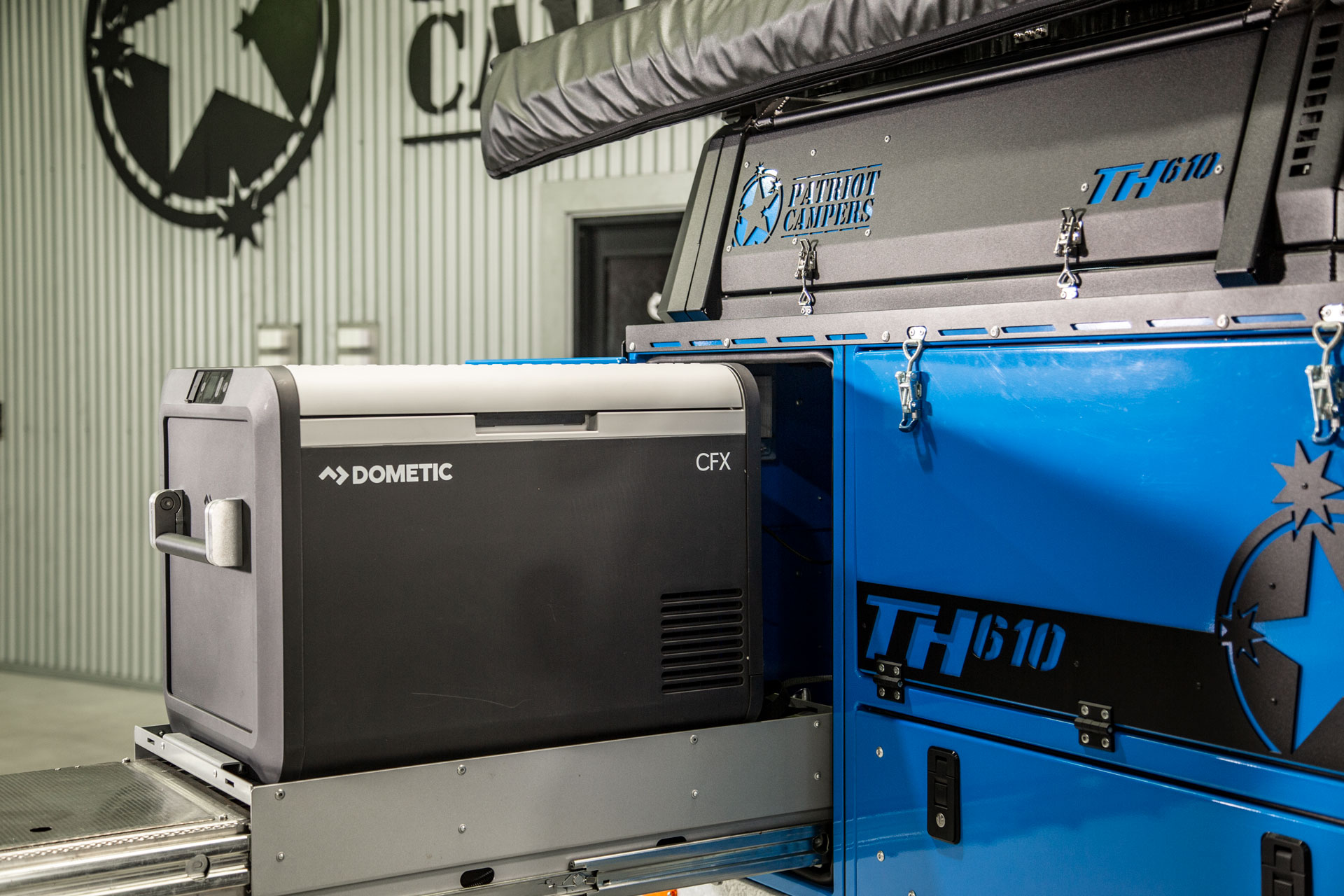

Fridge/Freezer
55L (14 Gals) Dometic Fridge
– OPTION –
*Water Tank Capacity may vary
Note: Images are for illustrative purposes only. Features and Options of each model will vary slightly in different locations due to differing compliance regulations and distribution requirements. Please contact your local dealer for further information.
