Laser-cut decals & alloy badges
STANDARDA return to laser-cut decals, paired with new cast-alloy badges. Recognisably Patriot, right down to the details.
$AUD57,900$USD54,900
Introductory pricing only. Ends soon
Forever Unstoppable
Thirteen years of designing, testing and touring brought us back to the trailer that started it all. The Gen3 X1 combines a structural aluminium body, all new Trinamic™ Core suspension and an integrated modular tent in a compact, lightweight camper. Proudly Australian made.
OFFICIAL REVEAL VIDEO
Four colours. New bodywork.

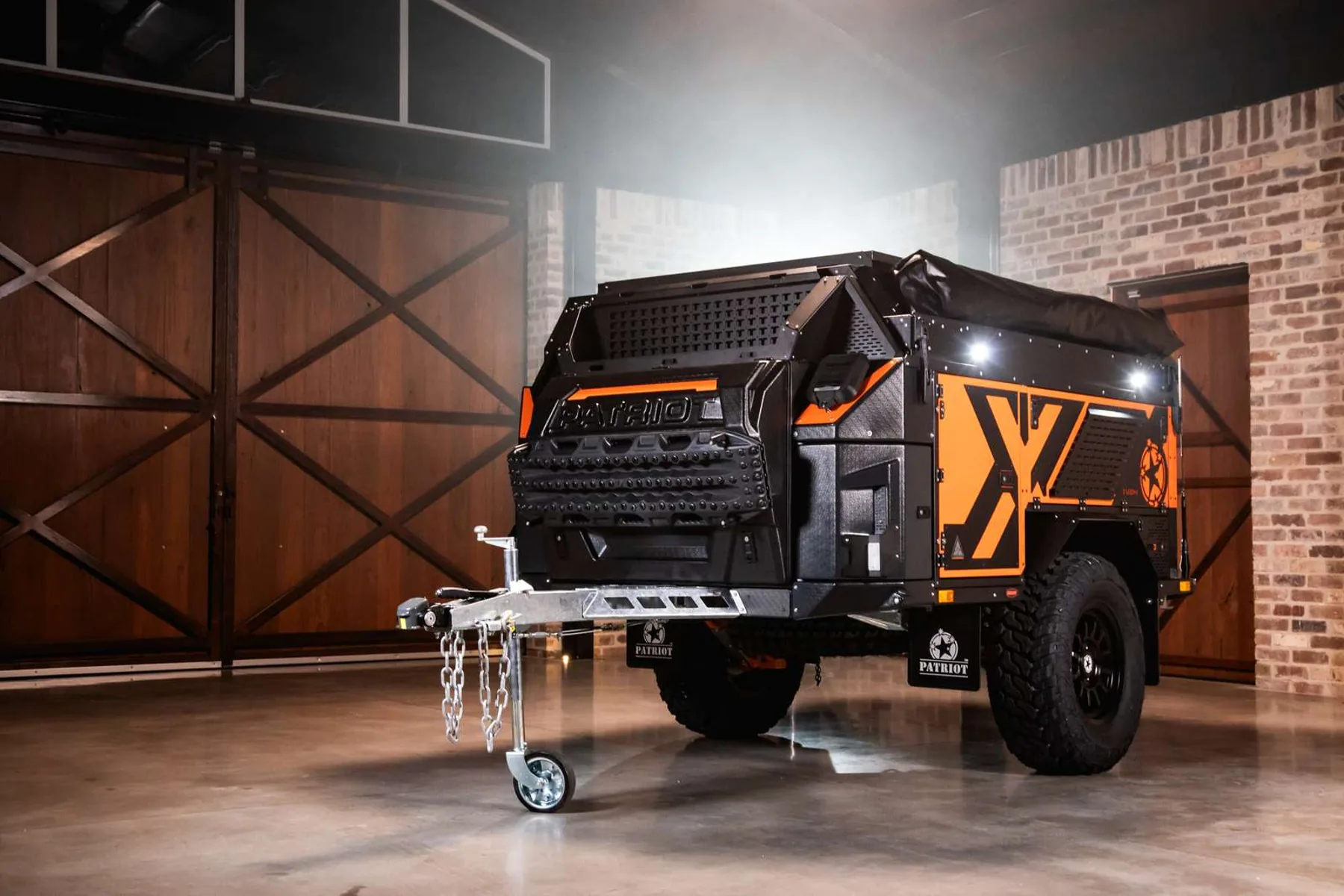

Styling
The familiar squared-off X1 silhouette returns with powersports-inspired bodywork, a wider stance and a composite front end. Choose Volcano, Arctic, Desert or Wildfire to suit your tow vehicle. All four colours are standard.
Composite Modular Front End
STANDARDThe embossed front panels can be replaced individually, without replacing the complete front end.
MOLLE panels
STANDARD REAR · OPTIONAL SIDERear MOLLE panels are standard. Optional side-mounted panels add mounting points for bags, tools and accessories.

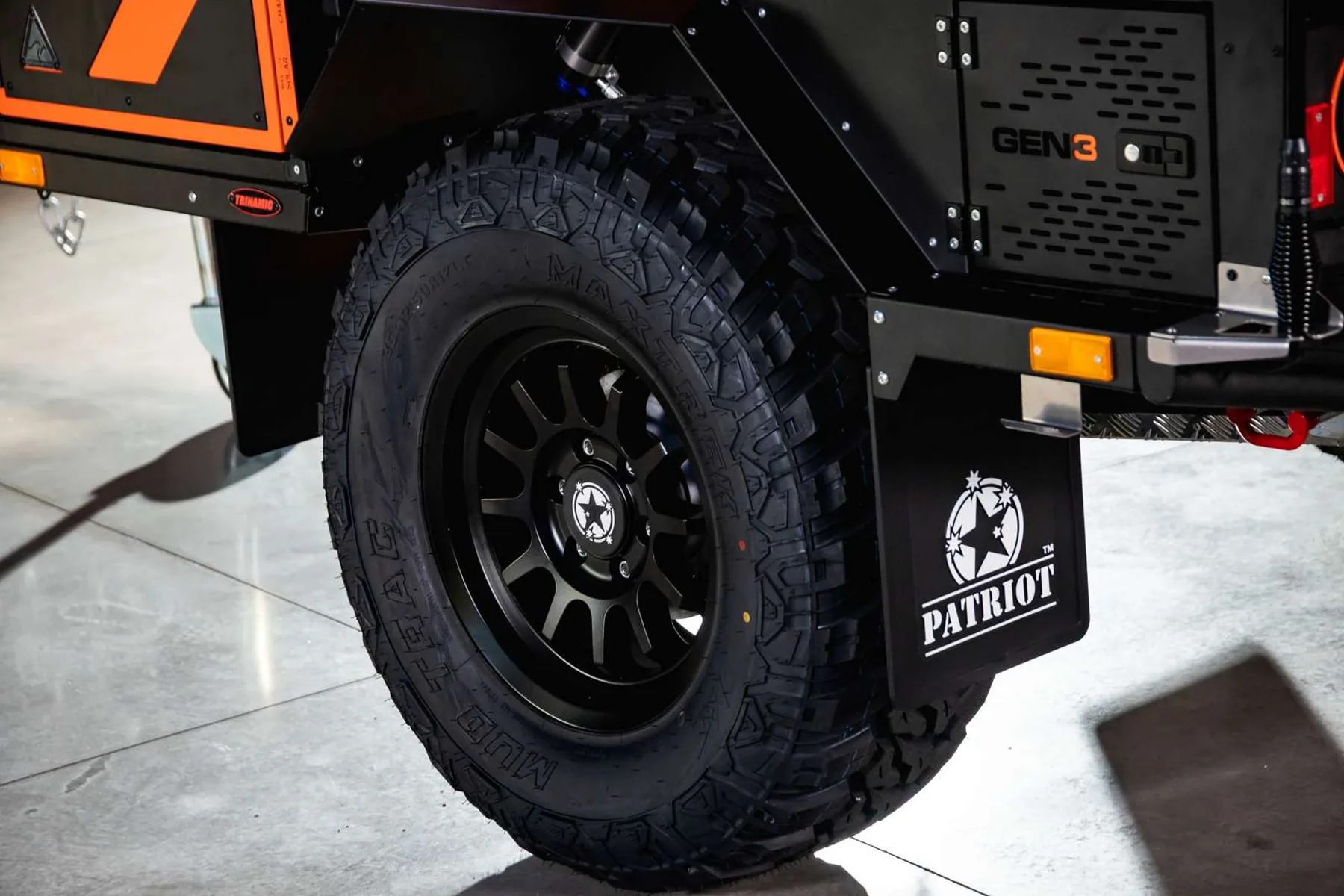

17” alloy wheels
STANDARD17 × 9 alloy wheels with 285/70R17 mud-terrain tyres.

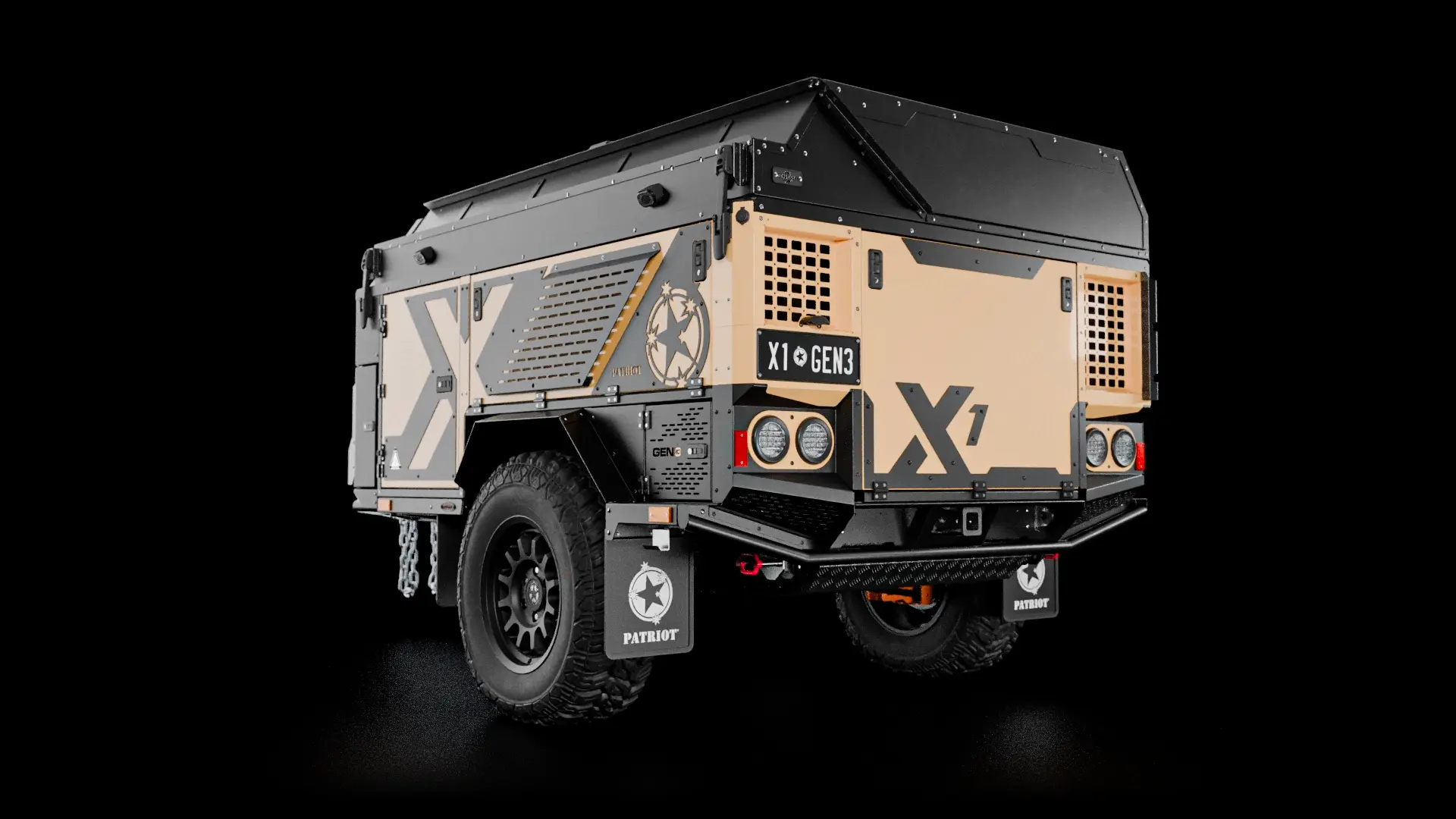

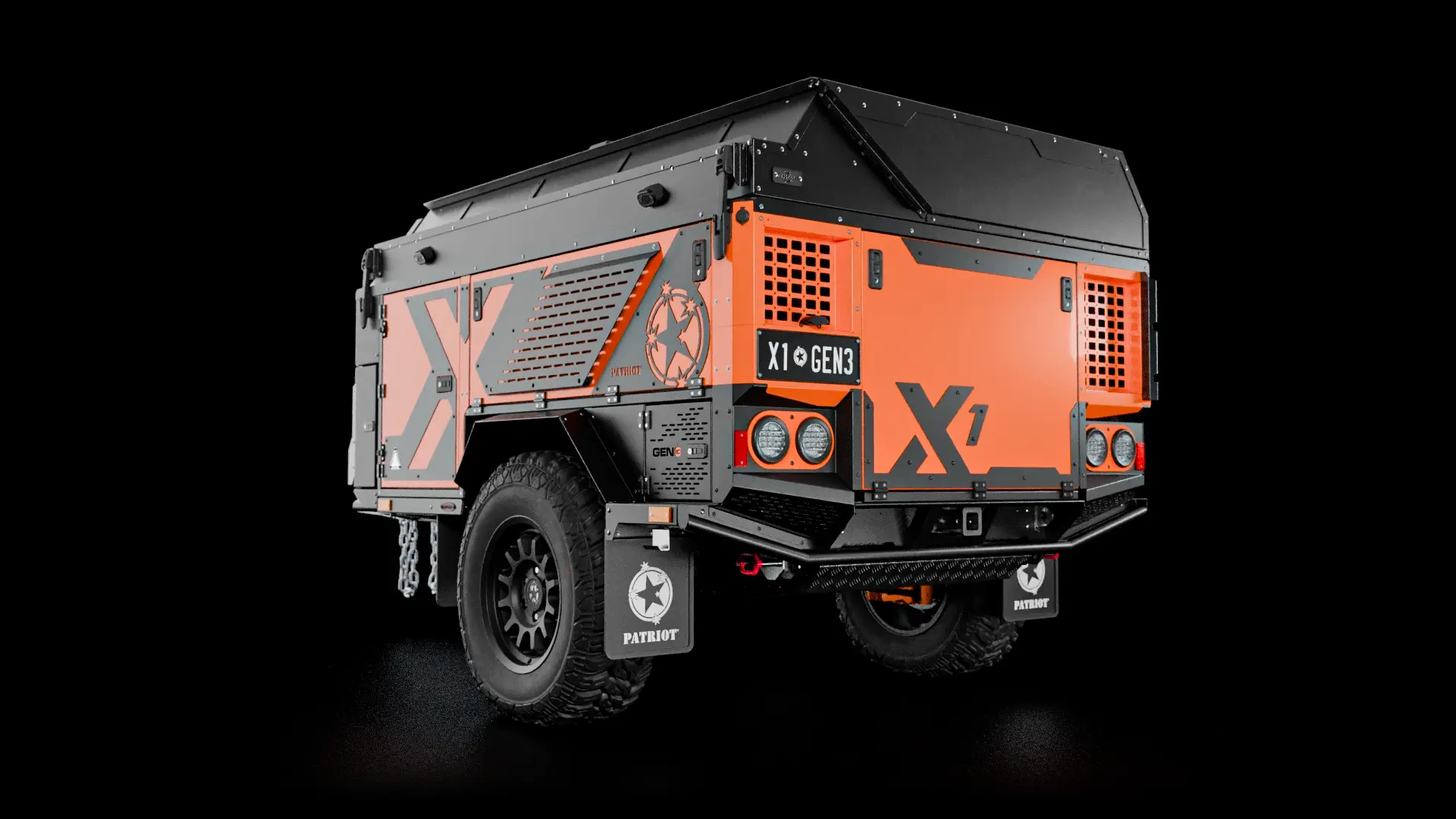

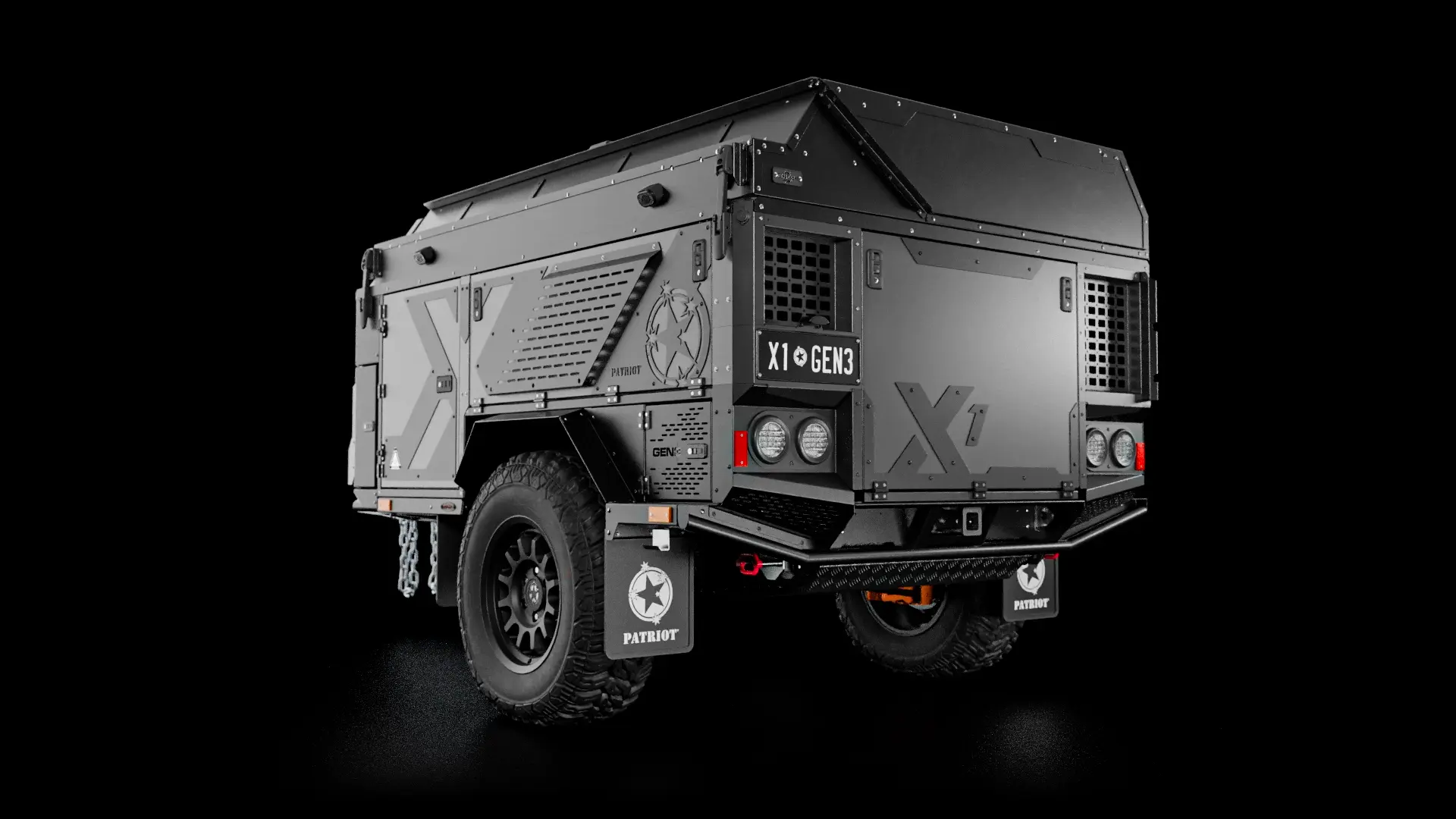

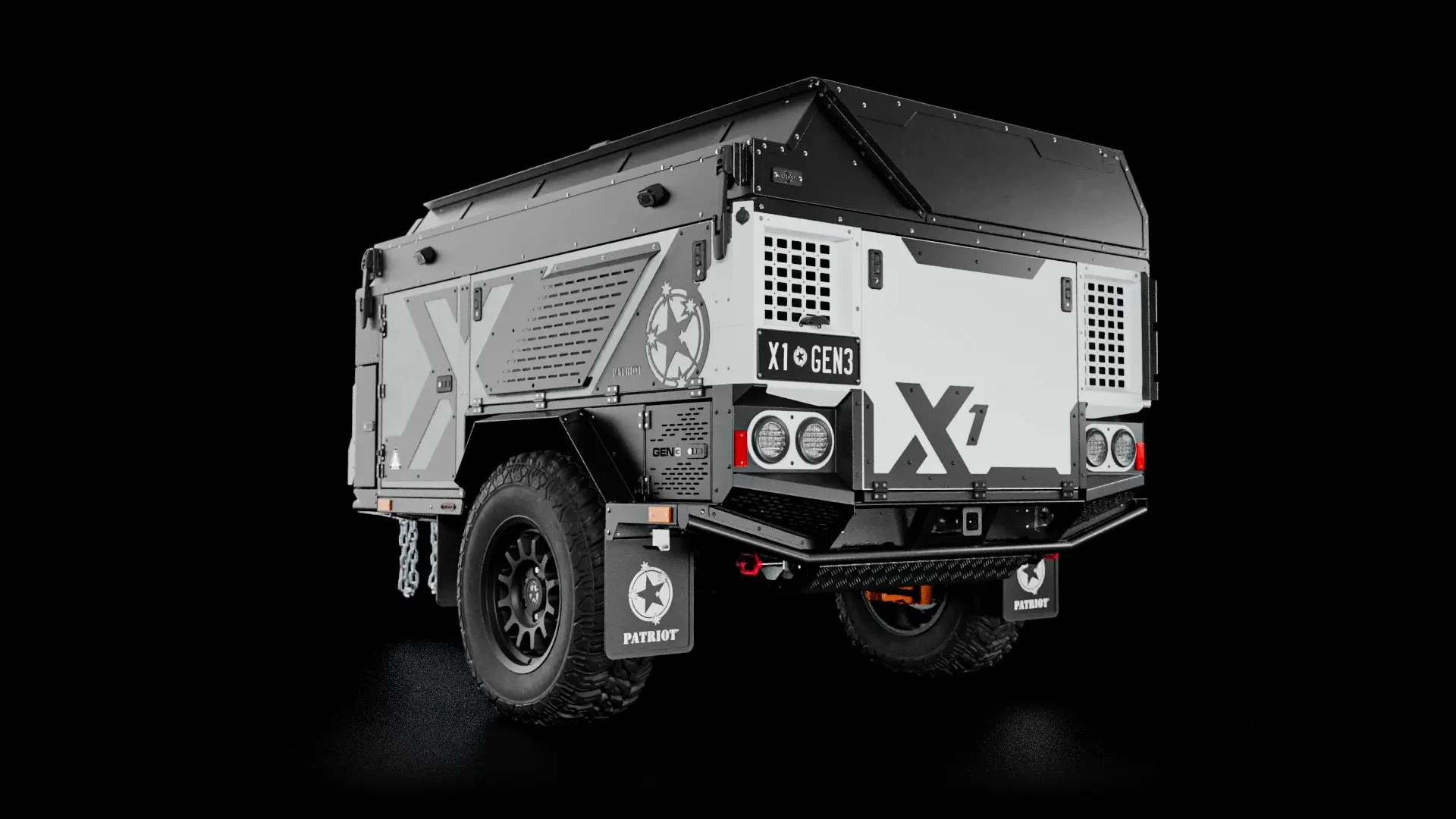

FOUR COLOURS
CHOOSE YOUR COLOUR
Australian designed and manufactured
Chassis & construction
The Gen3 X1 is designed as one integrated unit: body, chassis and suspension. The lightest Rigilite™ chassis yet supports a powder-coated structural aluminium body, with Aerojoin weldless assembly reducing the need for welded joints.

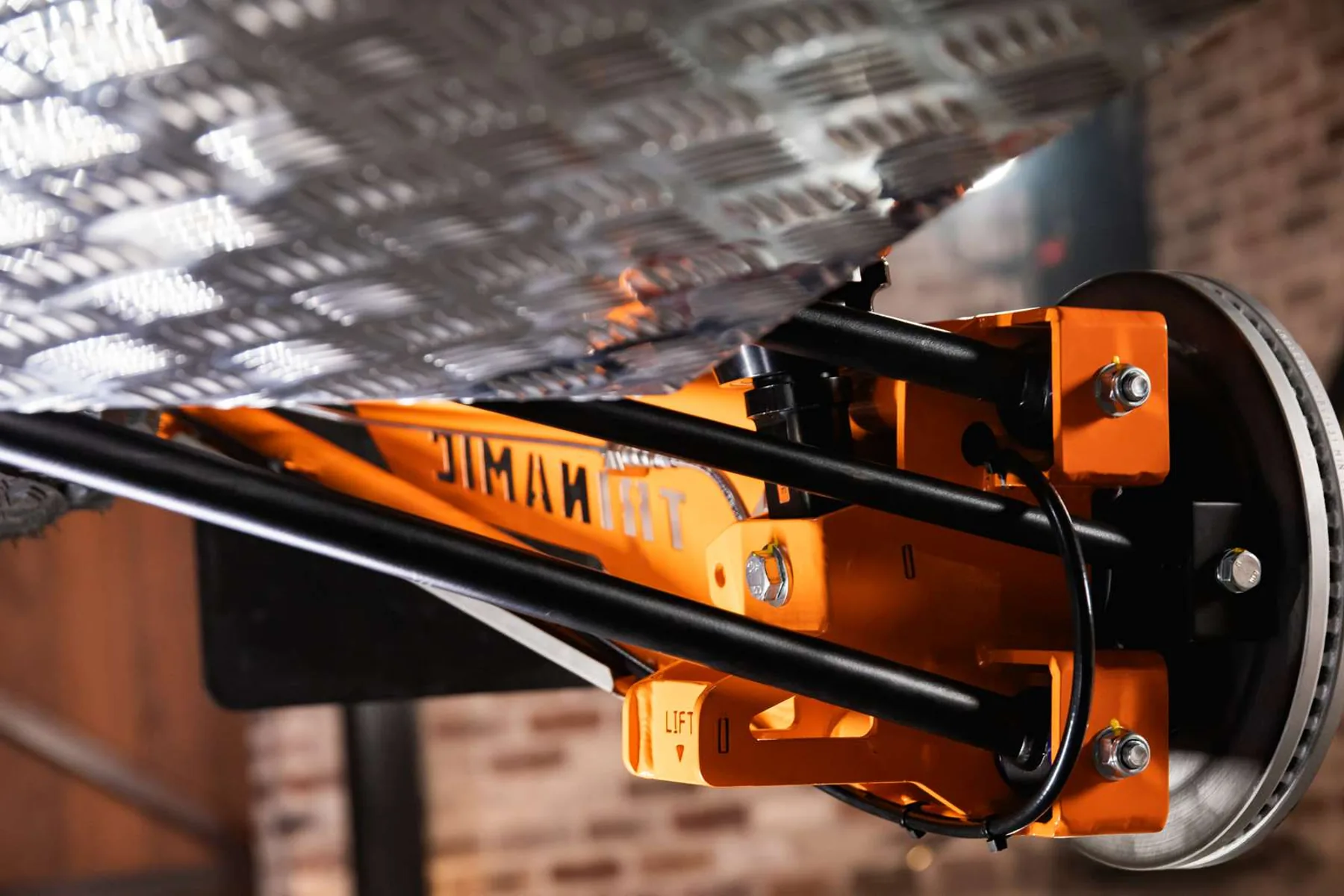

Our lightest chassis ever
STANDARDThe redesigned Rigilite™ chassis balances weight with strength. Finite element analysis (FEA) informed the design, with suspension integrated into the chassis.

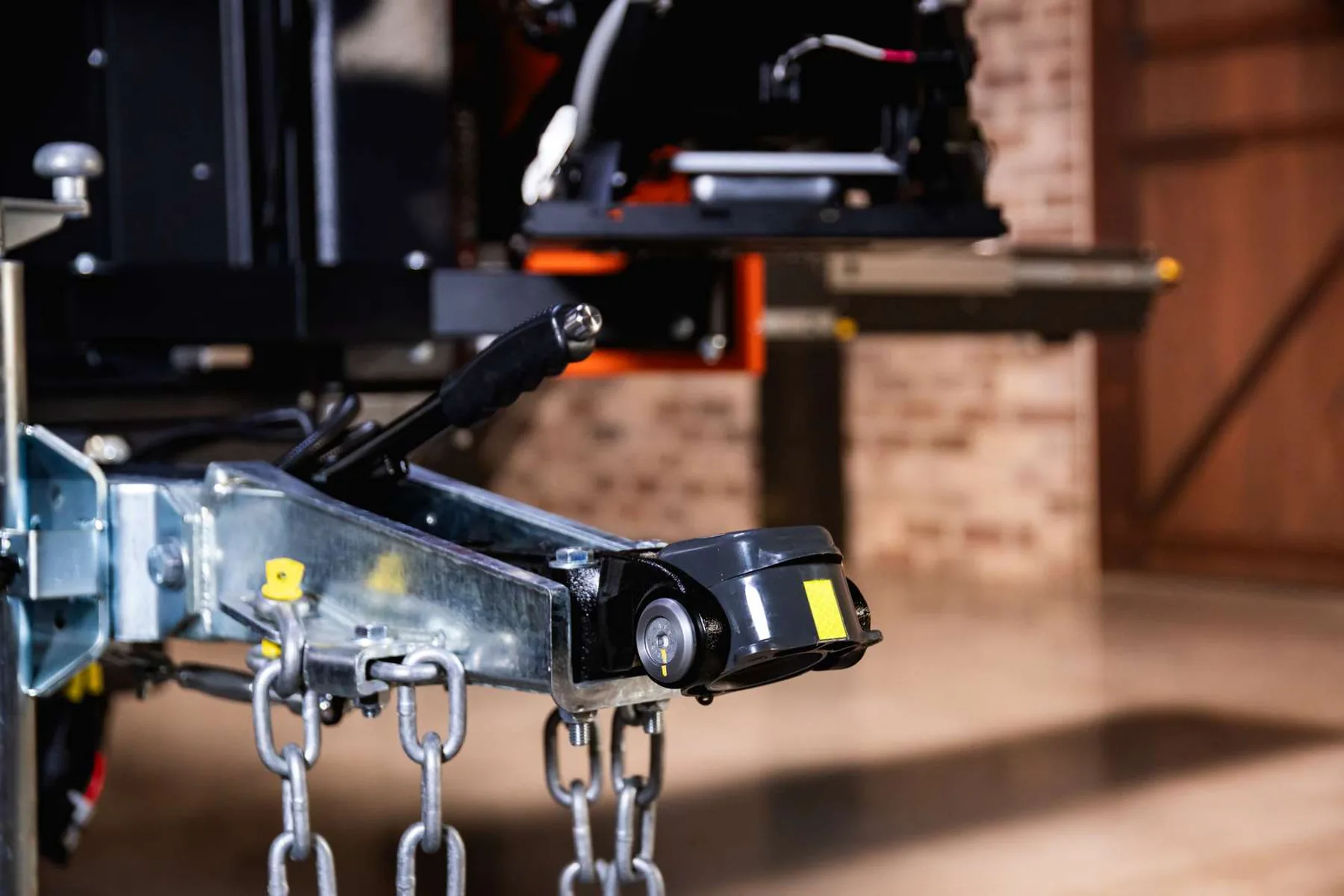

Cruisemaster DO35 hitch
STANDARDThe DO35 hitch allows articulation between the trailer and tow vehicle. A fixed swivel jockey wheel stays attached when it is folded into its travel position.
Underbody protection
STANDARDA steel rear scrub bar, pronounced chassis rails and underbody bash guards protect the underside. The spare wheel is mounted higher beneath the body to improve ground clearance.

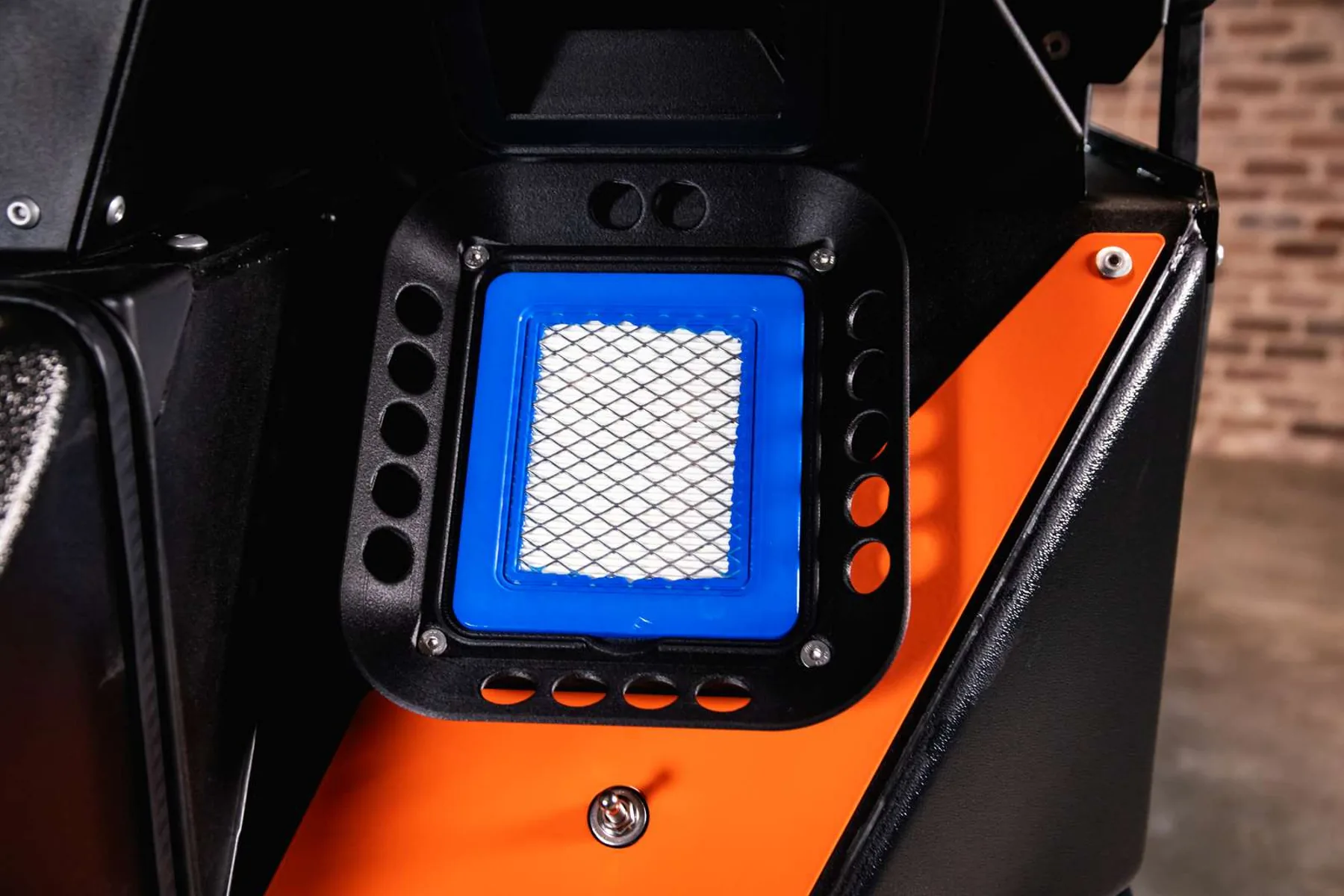

PCOR dust reduction system
STANDARDAn electric fan draws filtered air into the compartments to create positive pressure and reduce dust ingress. The filter is accessible for routine servicing.

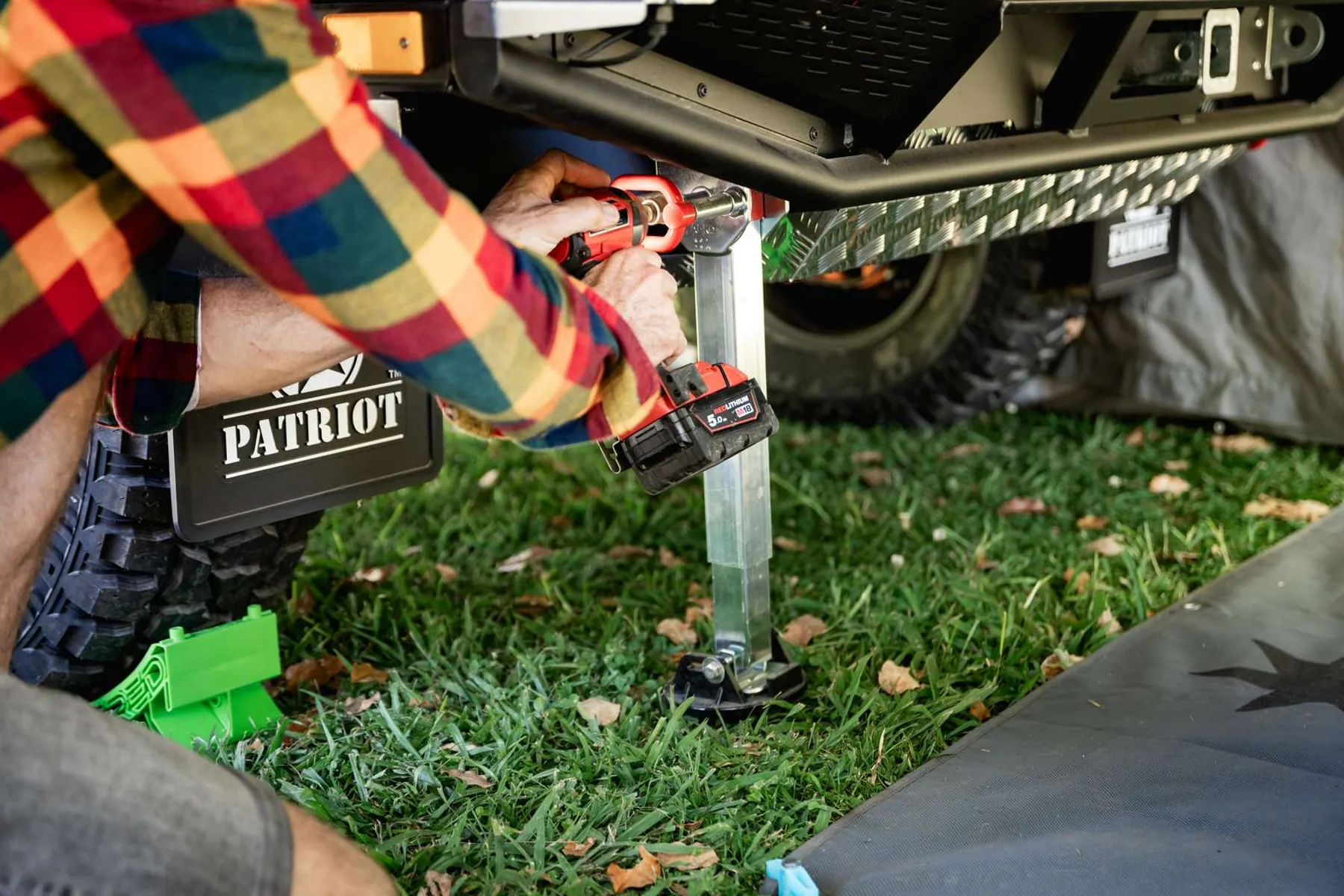

Rated Stabilising Legs
STANDARDTwin stabiliser legs let you level the trailer at camp without adjusting airbag suspension.

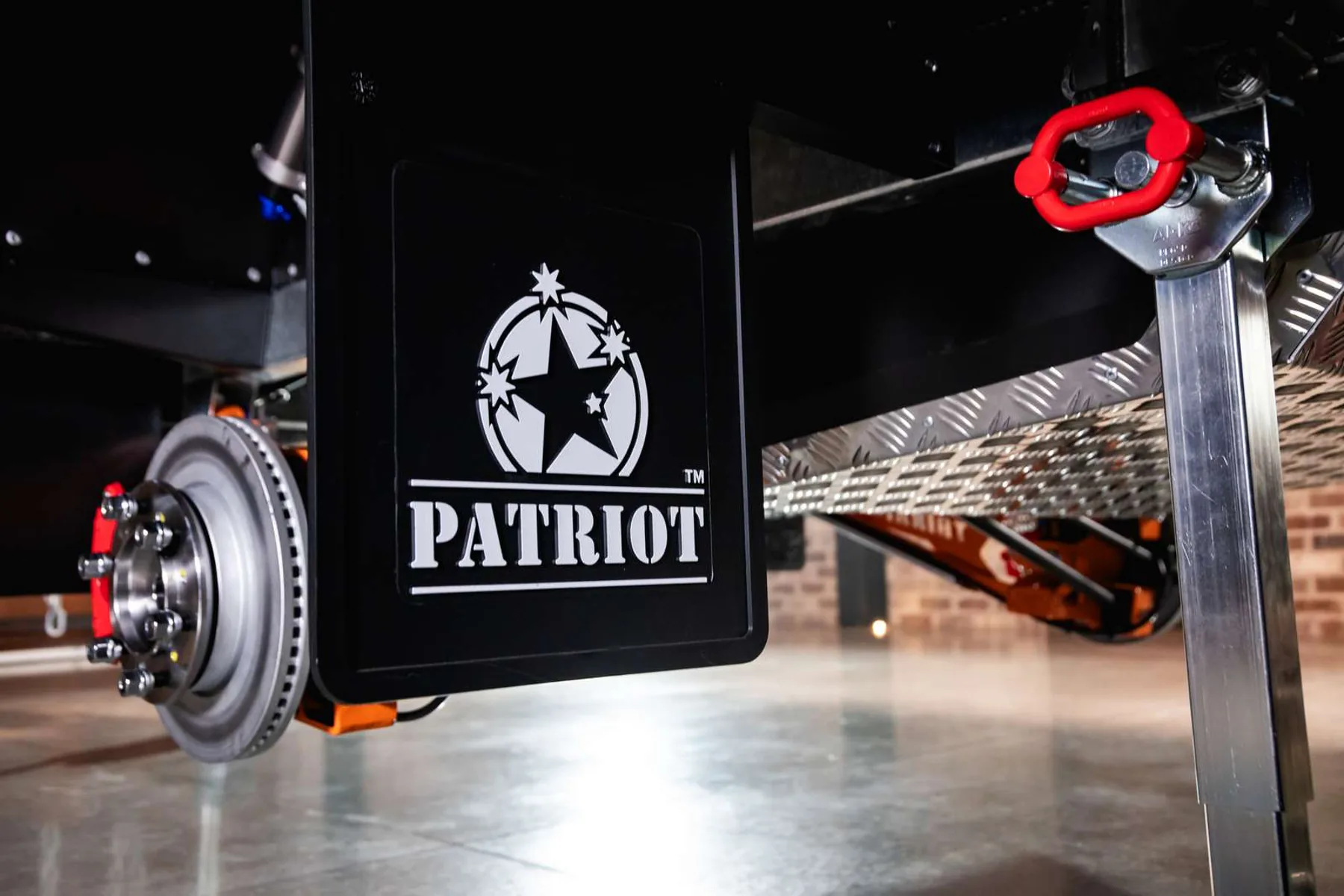

Recovery & carrying points
STANDARDTwin recovery points are integrated into the rear chassis. A separate rear hitch receiver accommodates compatible bike racks and accessory carriers.

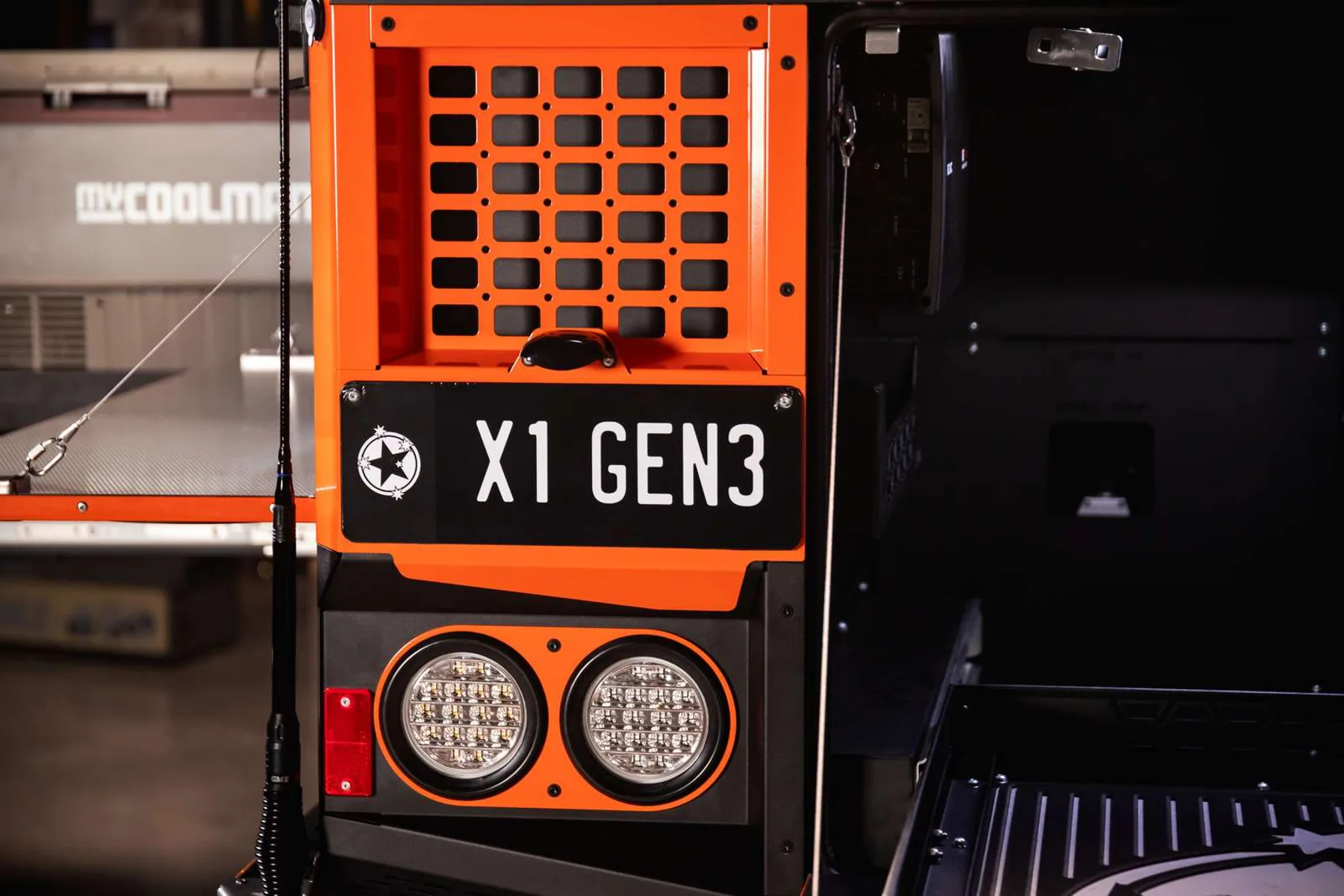

Compartment hardware
STANDARDLockable latches, simple hinges and door support cables keep everyday access straightforward. A double seal on the angled front box helps reduce dust ingress.
3.7 m long × 1.95 m wide
Compact design
The travel height is 1.9 m, with a 36° departure angle. Base tare is 895 kg (1,973 lb) and ATM is 1,495 kg (3,296 lb). That leaves 600 kg (1,323 lb) of base payload for options, water, gas and luggage.
- BASE TARE
- 895 kg / 1,973 lb
- ATM
- 1,495 kg / 3,296 lb
- DEPARTURE ANGLE
- 36°

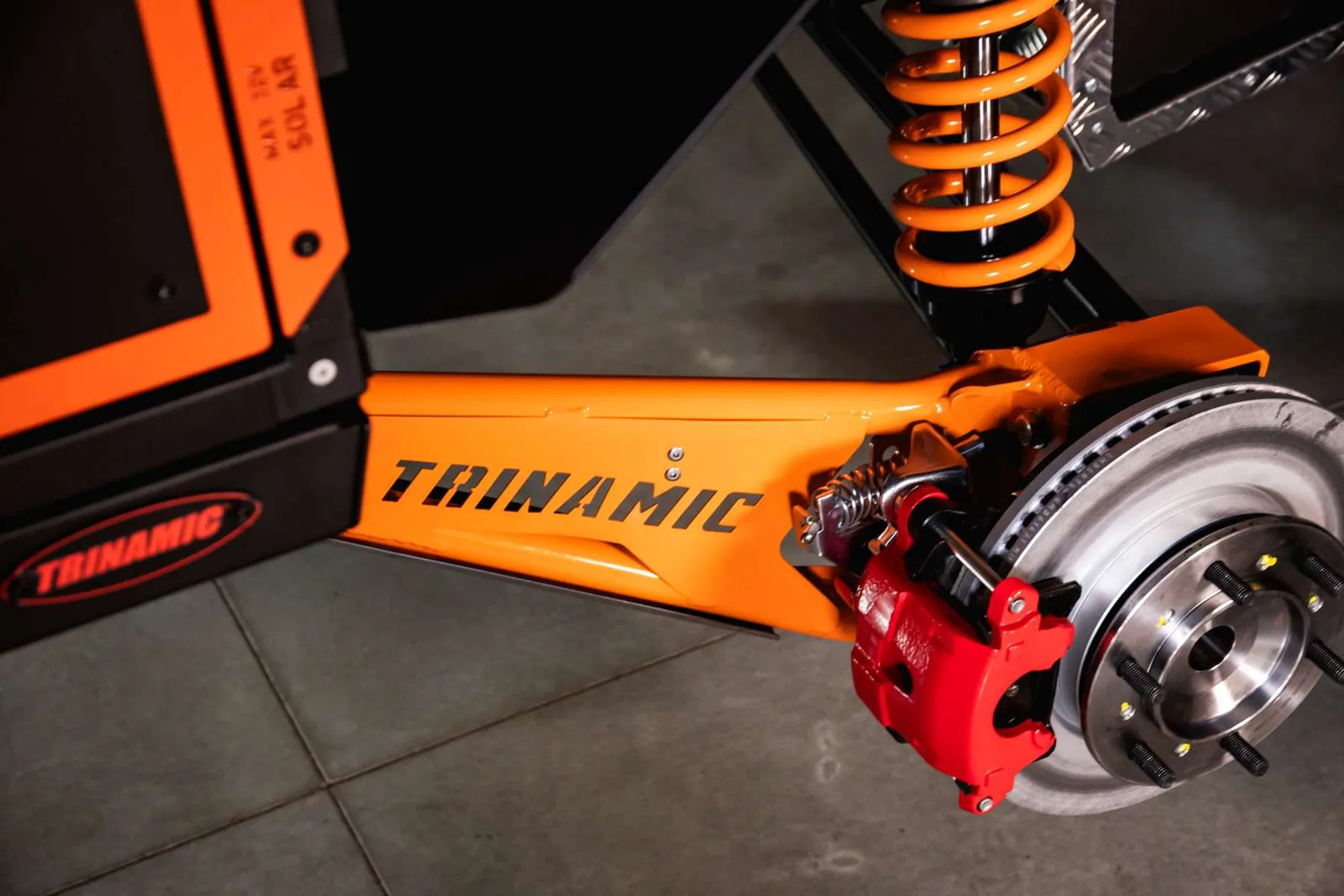

Suspension & ride
Trinamic™ Core is built around the X1’s lighter weight and lower centre of gravity. Its triangulated radius-arm layout reduces unsprung weight, with radius rods controlling toe and camber and 200 mm of suspension travel. Coilover shocks are standard.

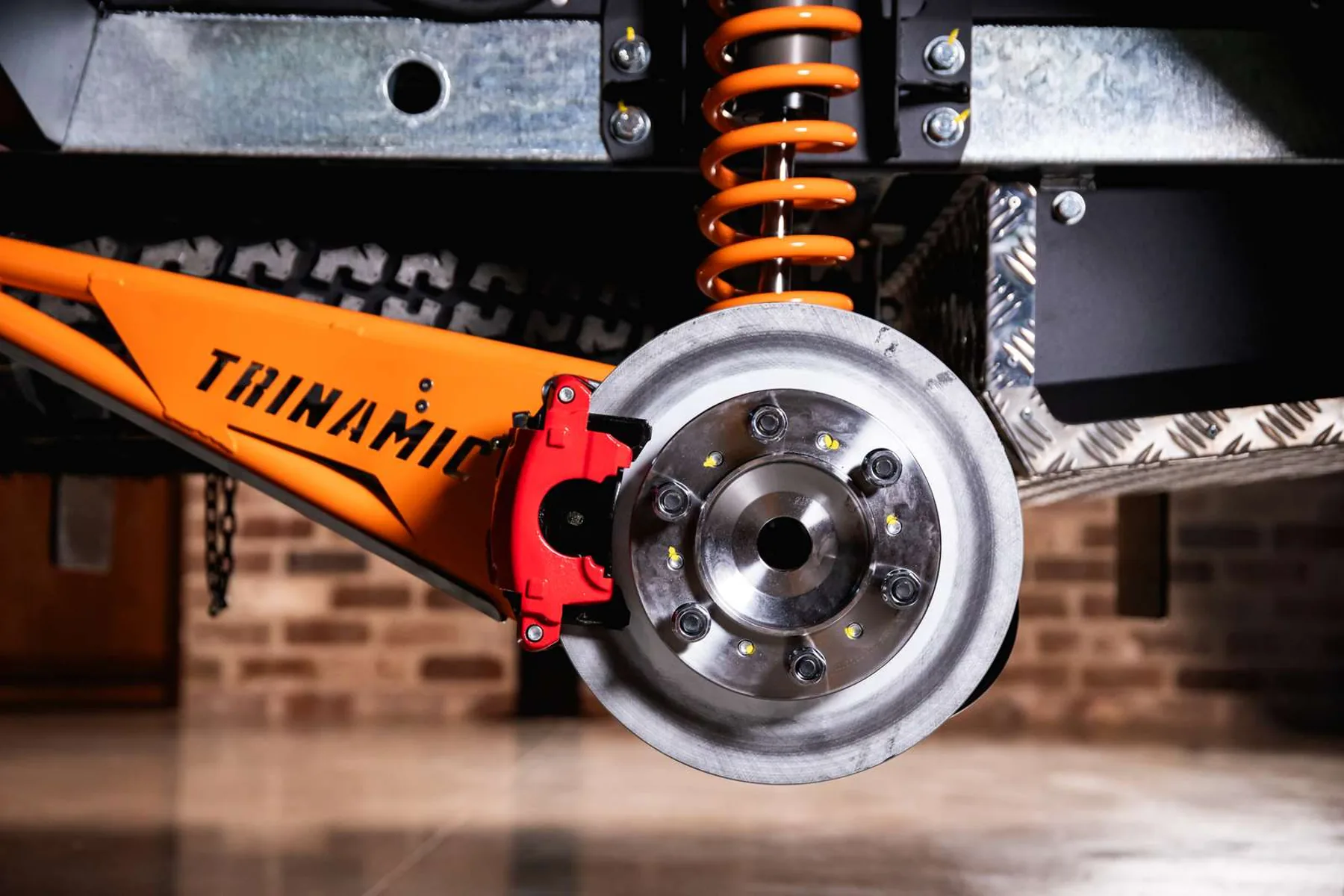

Disc brakes & mud-terrain tyres
STANDARDElectric-over-hydraulic braking operates 285 mm discs. Standard 285/70R17 mud-terrain tyres are mounted on 17 × 9 wheels. The body also accommodates compatible aftermarket 35-inch tyres.
Coil over shocks
STANDARDStandard coilover shocks work with the Trinamic™ Core radius-arm layout. Lower unsprung weight reduces the mass the shocks need to control over corrugations.
Formula F4R Remote Reservoir Shocks
OPTIONAL UPGRADEDeveloped through our partnership with Fulcrum and Formula. Adjustable damping lets you tune the shocks to your load and track conditions, while separate reservoirs help manage heat over sustained corrugations.

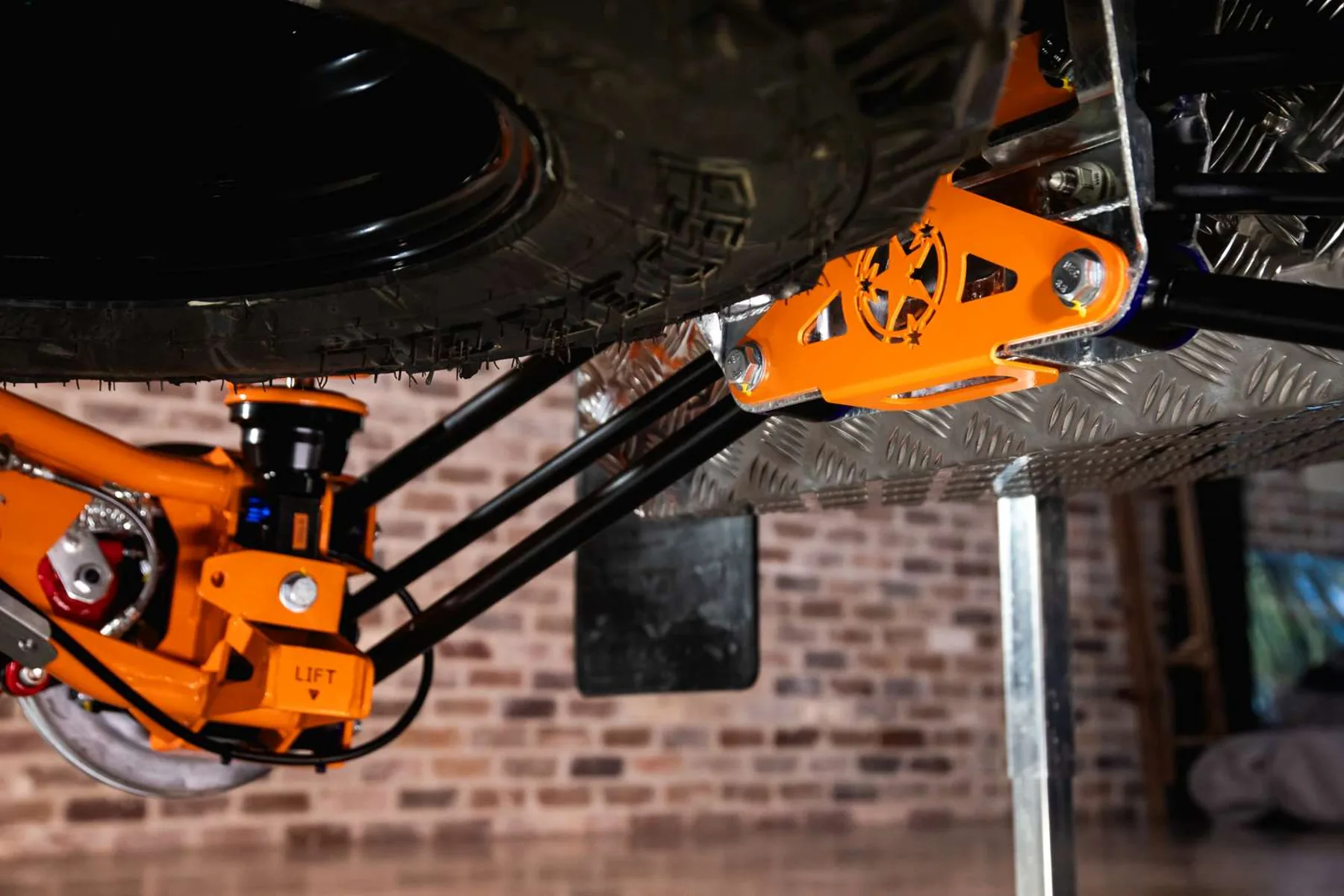

Spare wheel
STANDARDUnderbody spare-wheel storage keeps the spare outside the main compartments.

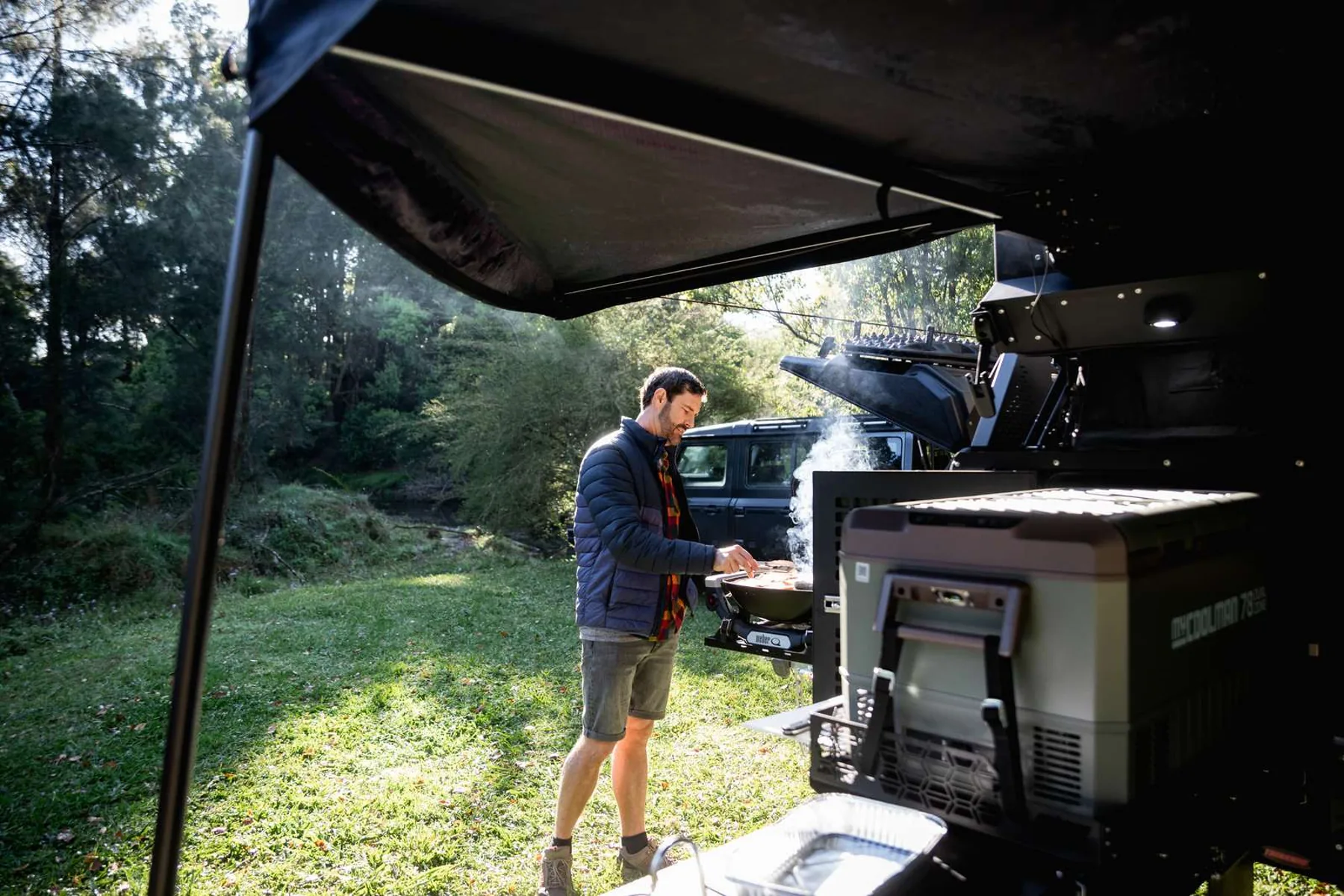

Living
There’s a place for everything. The L-shaped kitchen keeps preparation benches, the cooker, sink and pantry within reach of one position. Stainless-steel benchtops, dedicated utensil storage and a slide-out cutting board give you room to cook without using the fridge as a bench.
100L Water Tanks
STANDARDA 100L tank supplies pressurised water to the taps. A 10L electric hot-water system and external shower are standard, with an insulated tank to retain heat between uses.

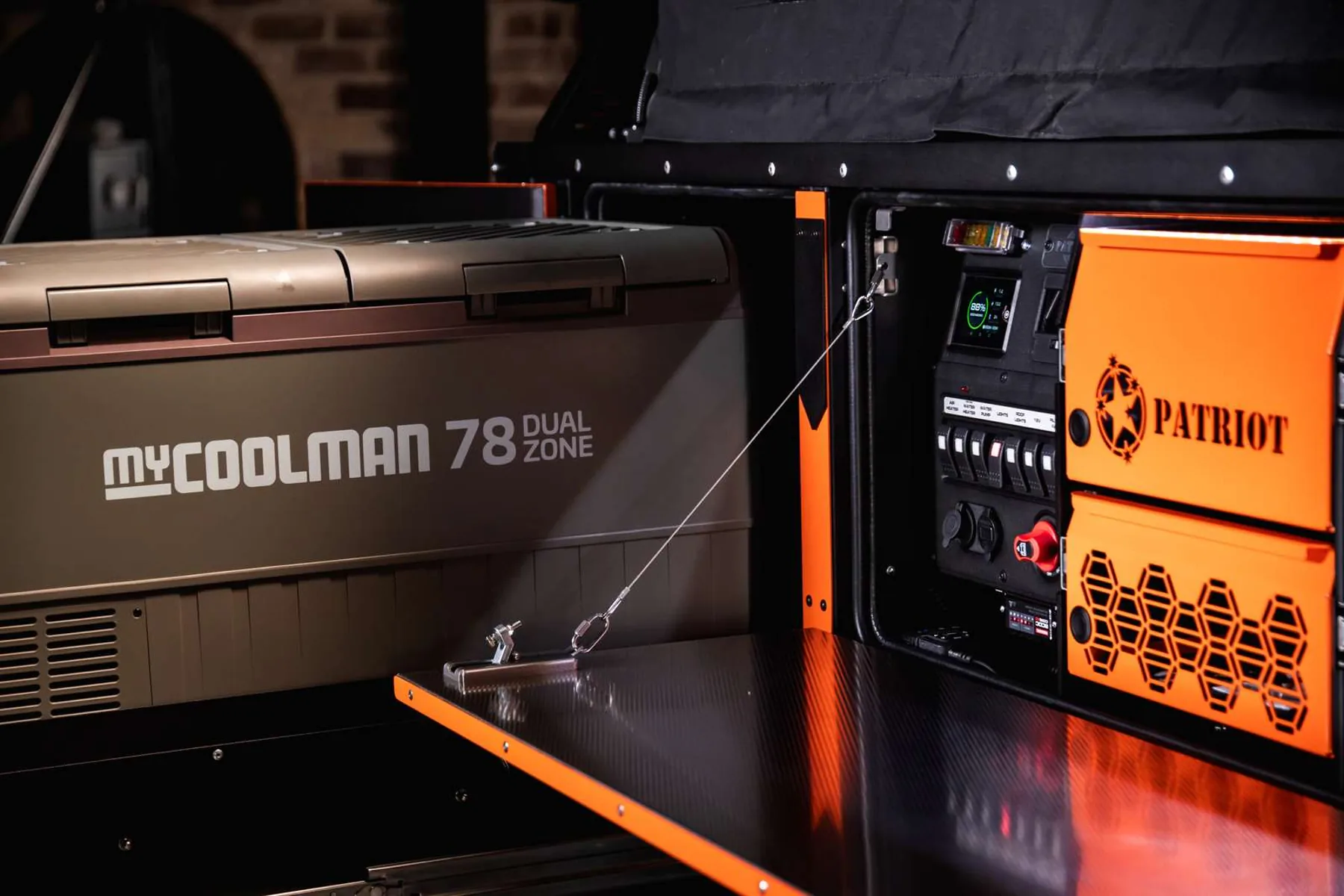

Fridge slide
STANDARD SLIDE · OPTIONAL FRIDGEA slide-out fridge tray sits beside the kitchen. Dometic 75L and myCOOLMAN 78L fridge/freezer options are available; market availability differs.

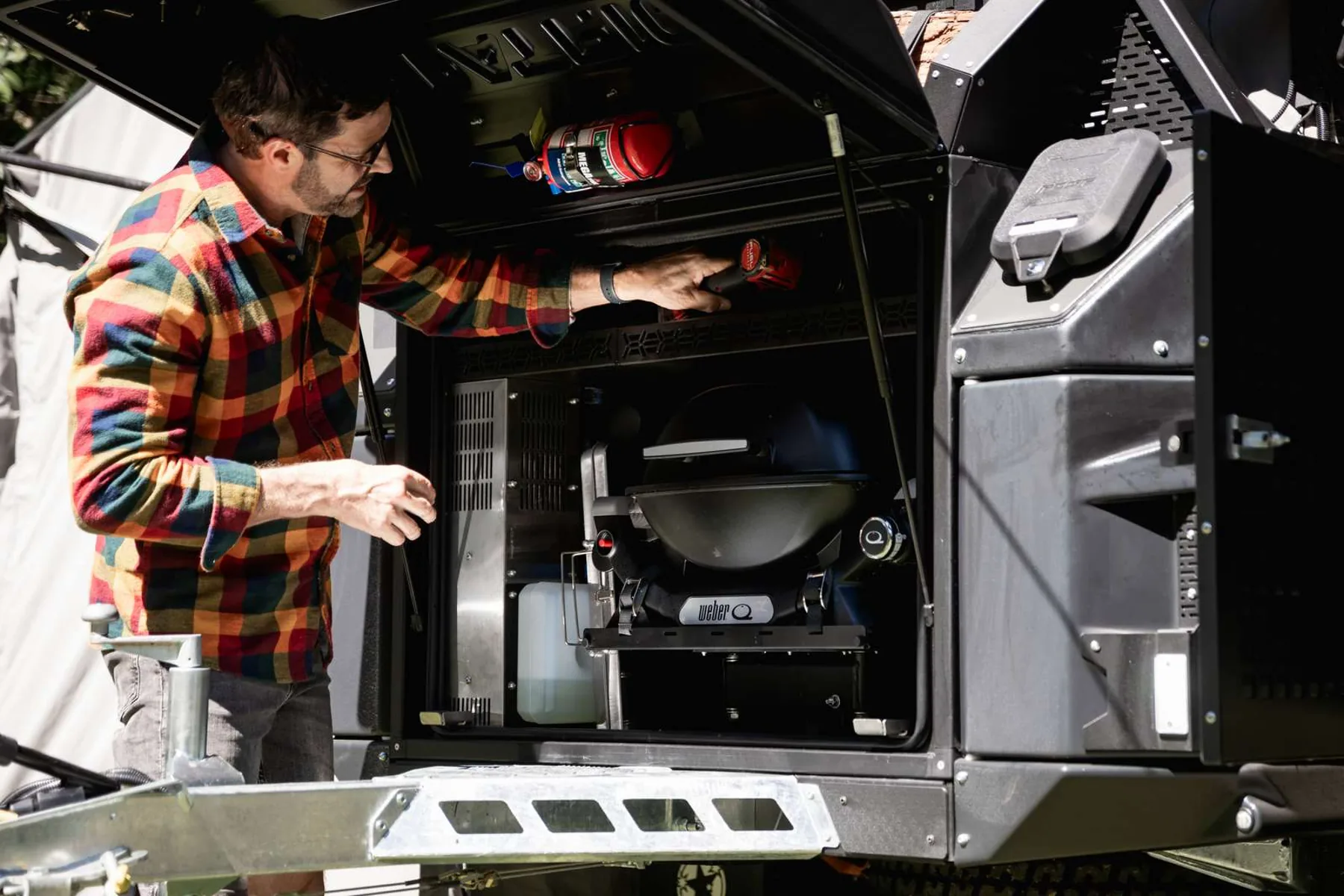

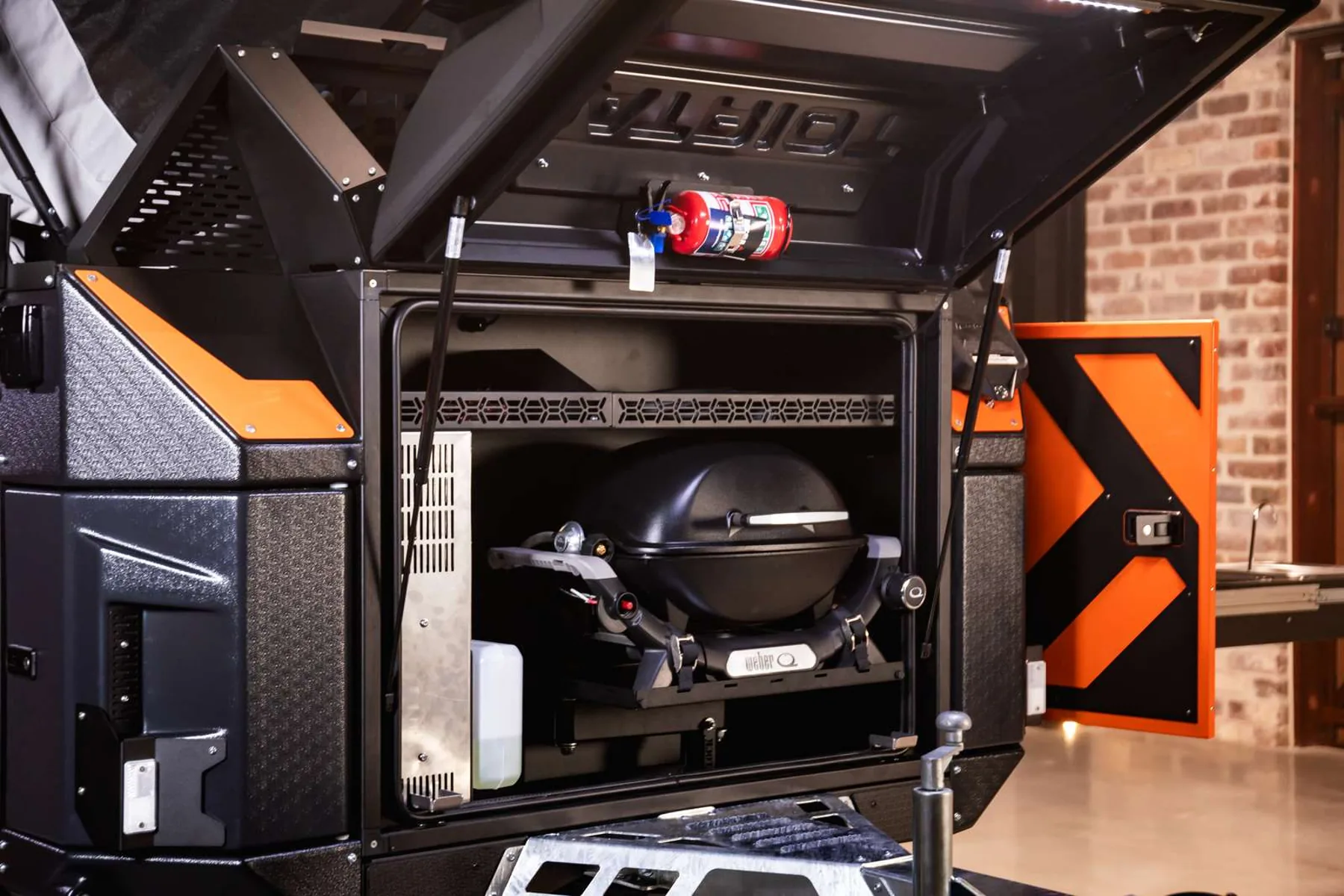

BBQ swing-away
OPTIONALThe optional swing-away brings a barbecue into the kitchen area. A Weber Q1000 is available separately and requires the swing-away.

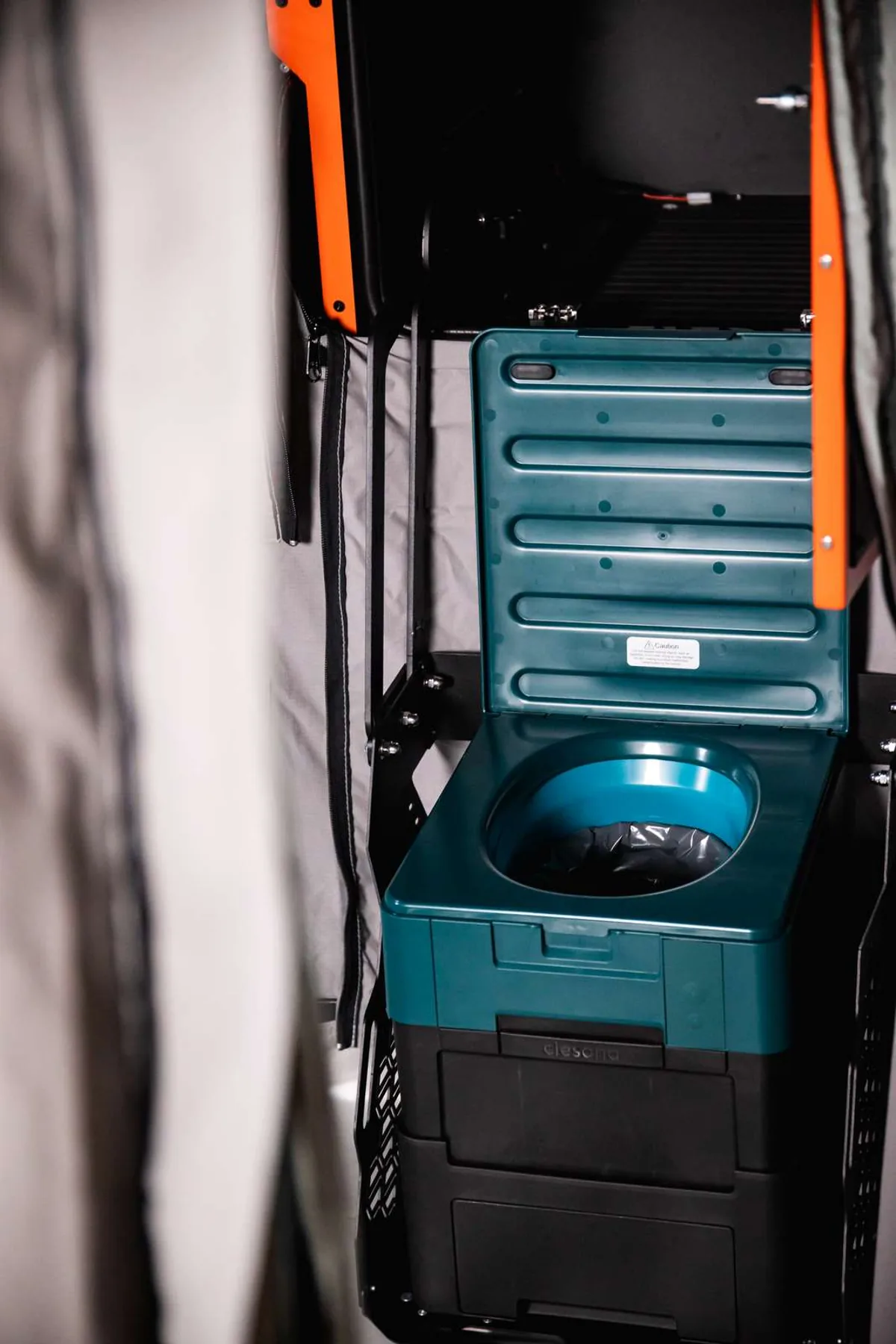

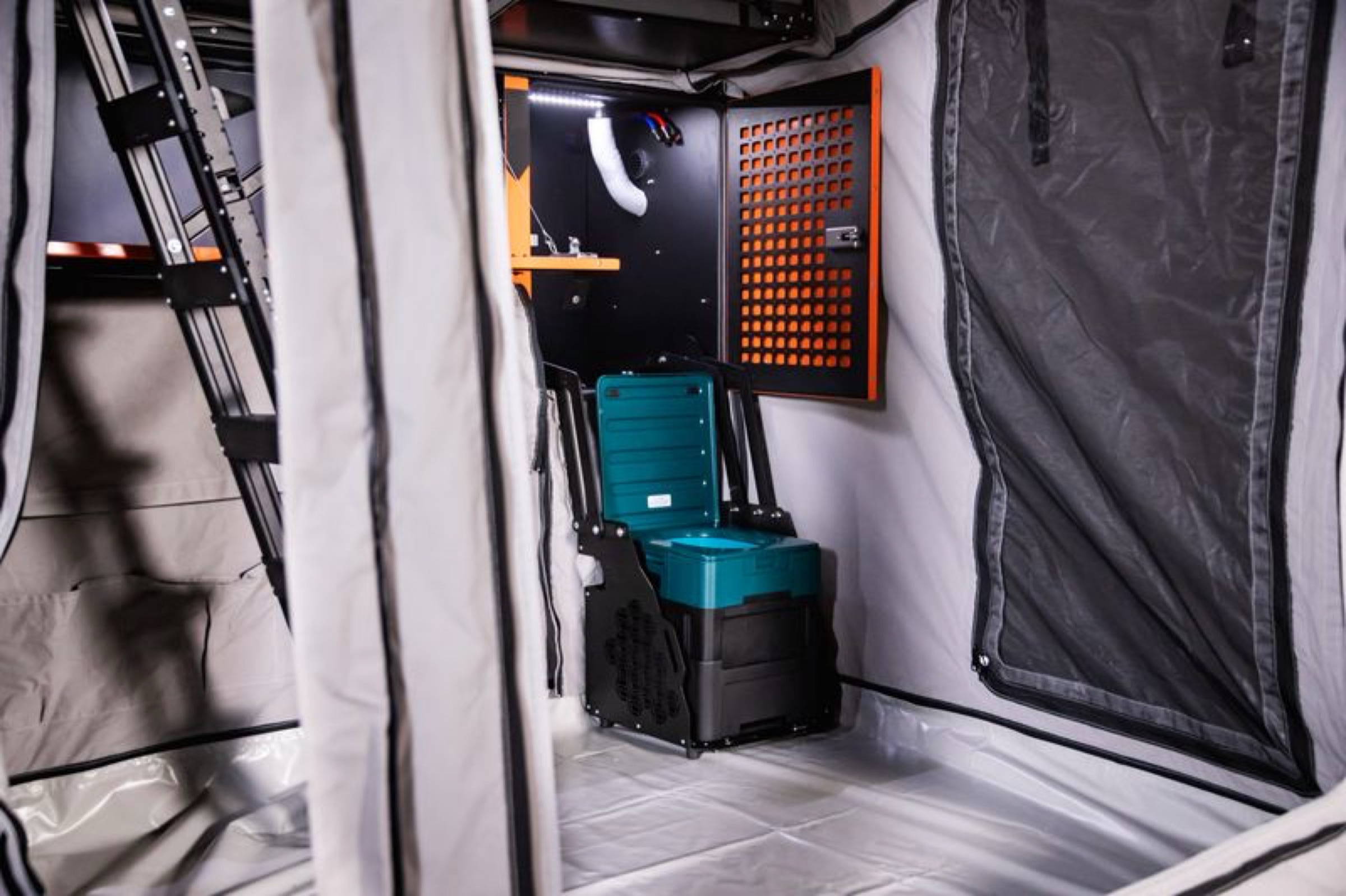

Toilet drop slide
OPTIONALThe optional slide lowers a compatible portable toilet from its storage compartment. Toilets are shown for illustration only and are not available from Patriot.
Kitchen storage
STANDARDPantry shelves, a spice rack, cutlery storage, two utensil compartments and a tea-towel rail keep the essentials beside the cooking area.
Preparation surfaces
STANDARDHard-wearing stainless-steel benchtops and a removable cutting board that slides out beneath the fridge tray give you a dedicated prep area.

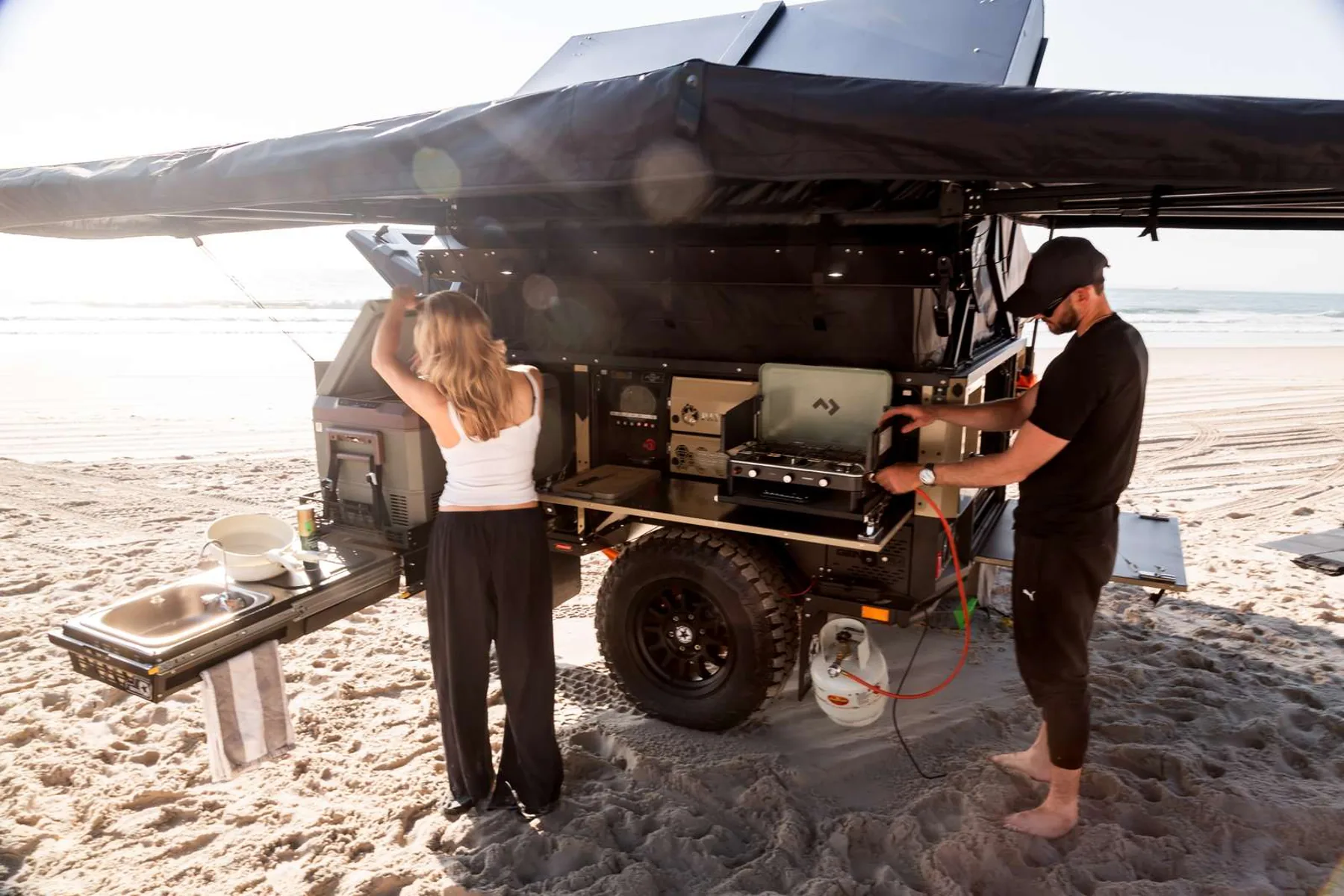

Cooker slide
STANDARDGas cooking is standard. The cooker slides out beneath the pantry, with a gas-bottle hook for use at camp.
Kitchen lighting
STANDARDRoof lighting illuminates the cooking area after dark, with the hardlid open or closed.
Water system
STANDARDA 100L tank supplies pressurised water to the taps. Built-in breathers help with filling, and the water gauge lets you check the supply.

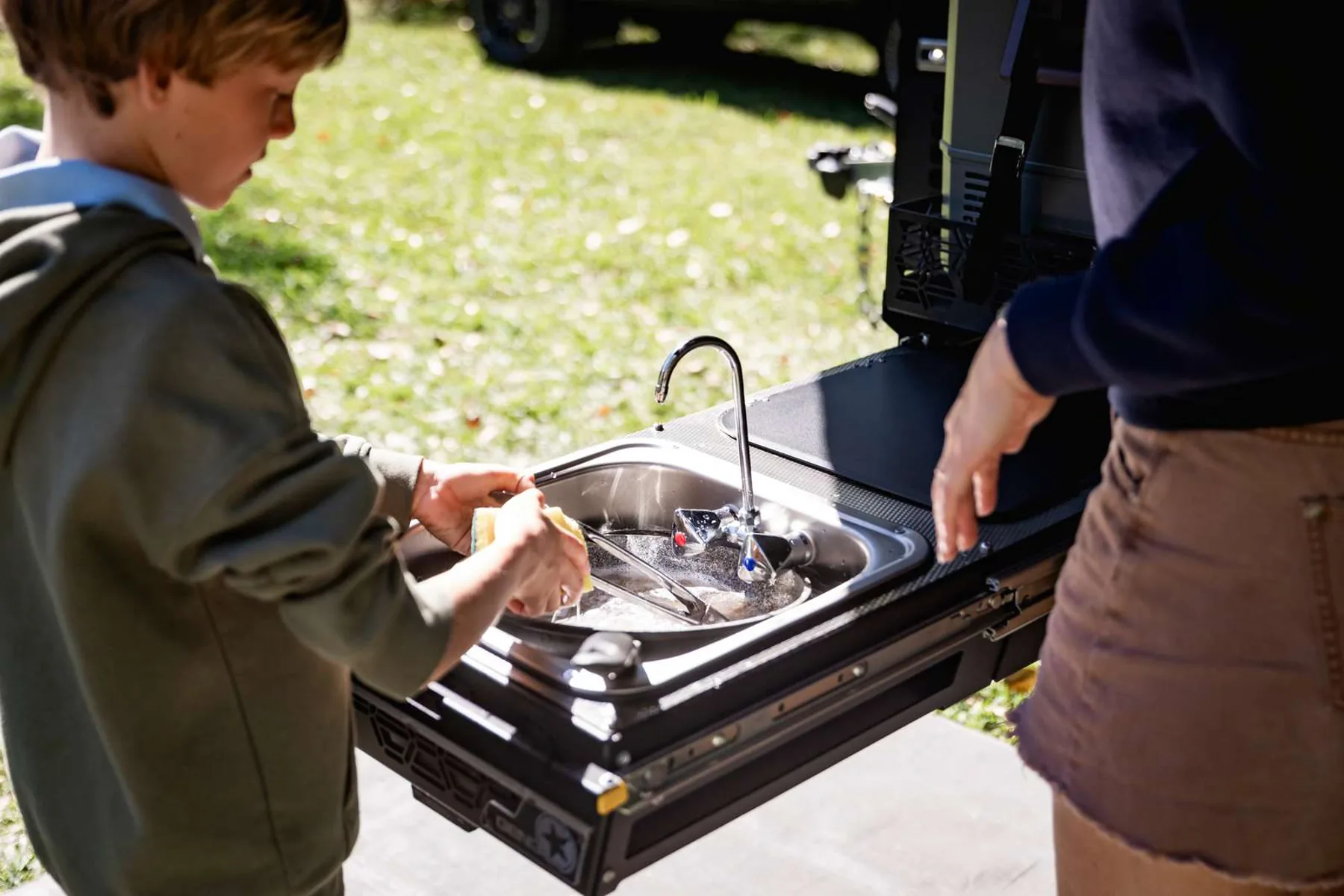

Hot water
STANDARDA 300W element heats the 10L storage tank. Insulation helps retain heat between uses, with an external shower for washing at camp.
Electric hardlid. Integrated sleeping area.

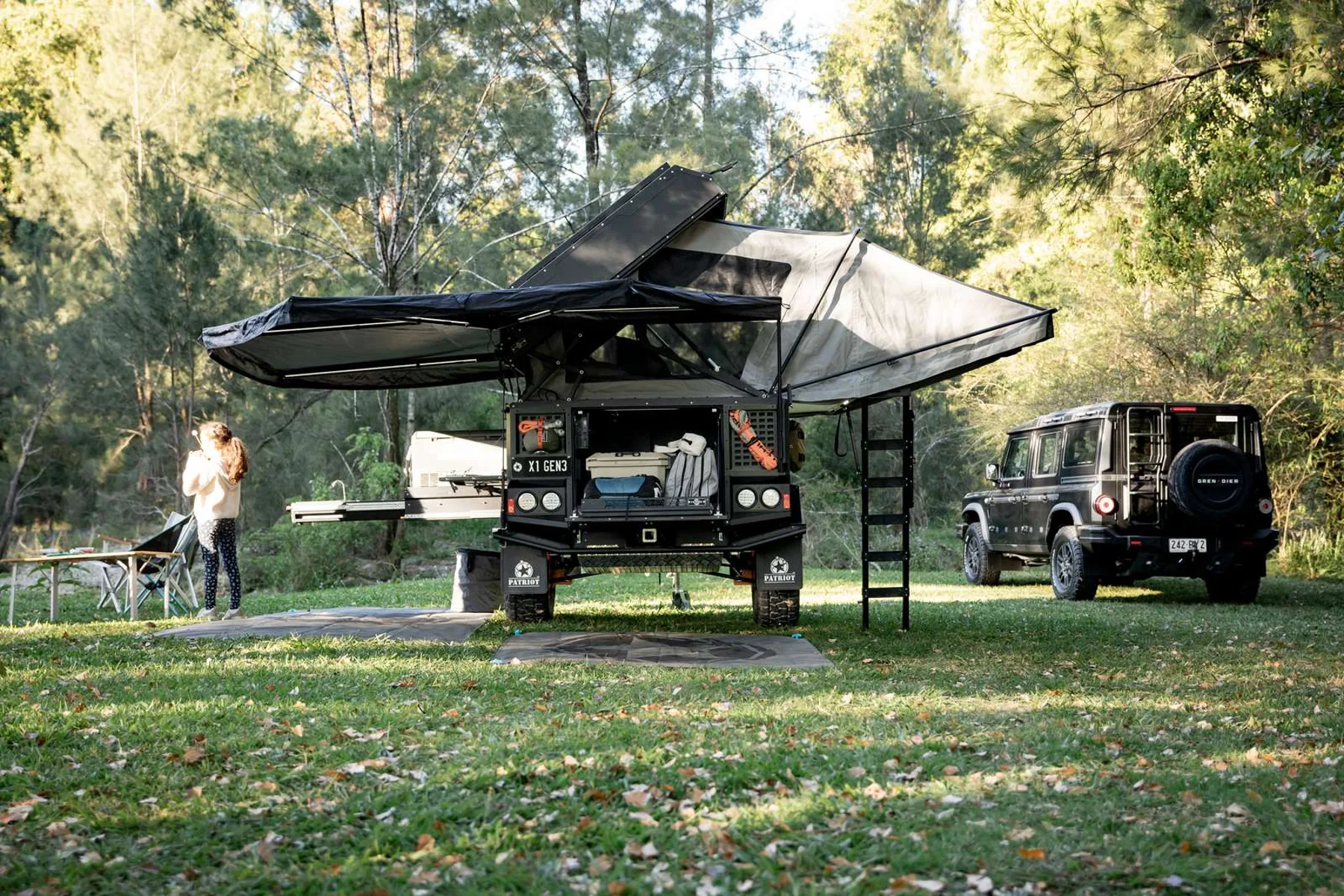

Tent & awning

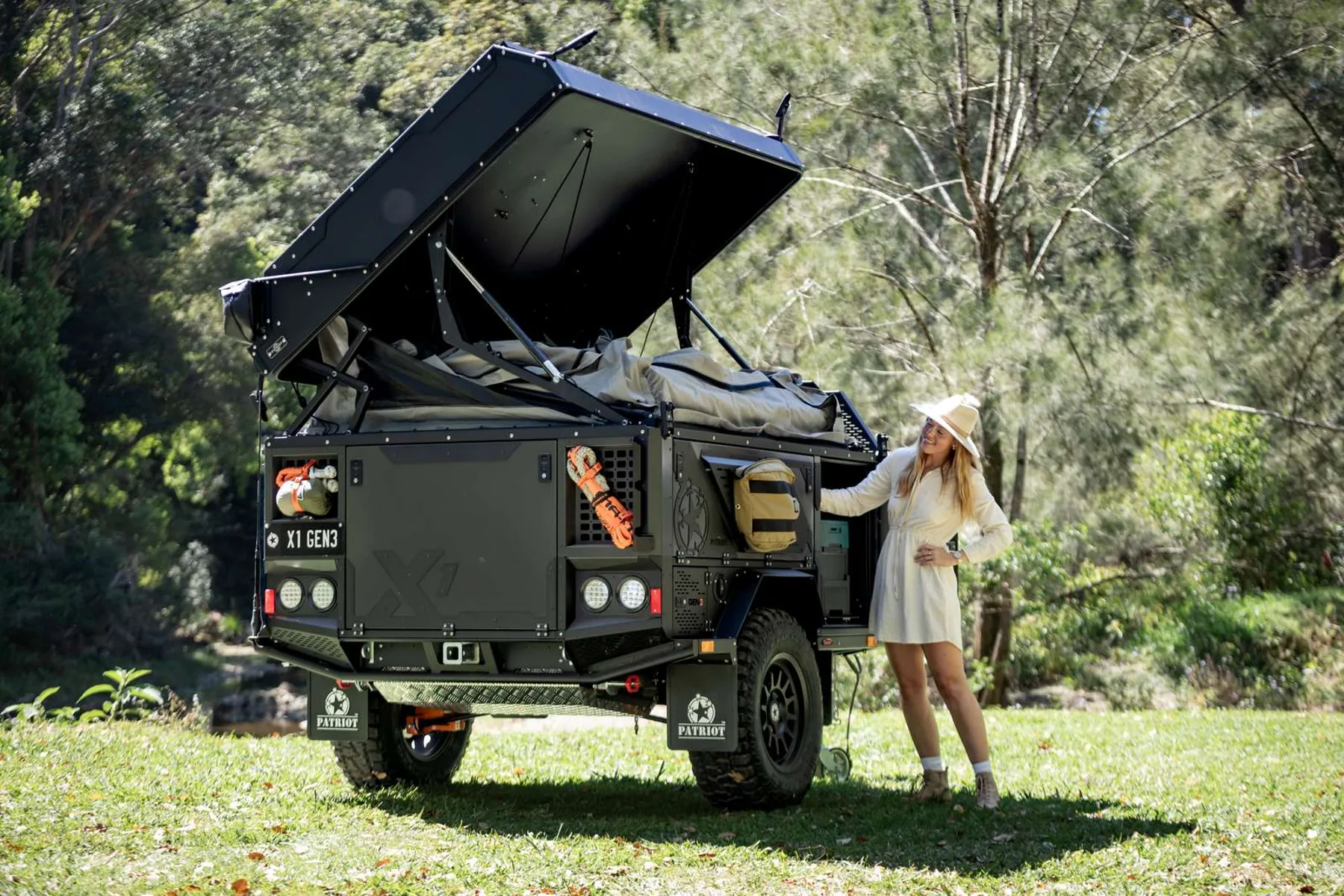

The Gen3 X1 combines an electric hardlid with an integrated modular tent. The lid opens without manual lifting and closes over the tent, mattress and bedding for travel. Add a Change Room or Multi-room as your camping setup grows.

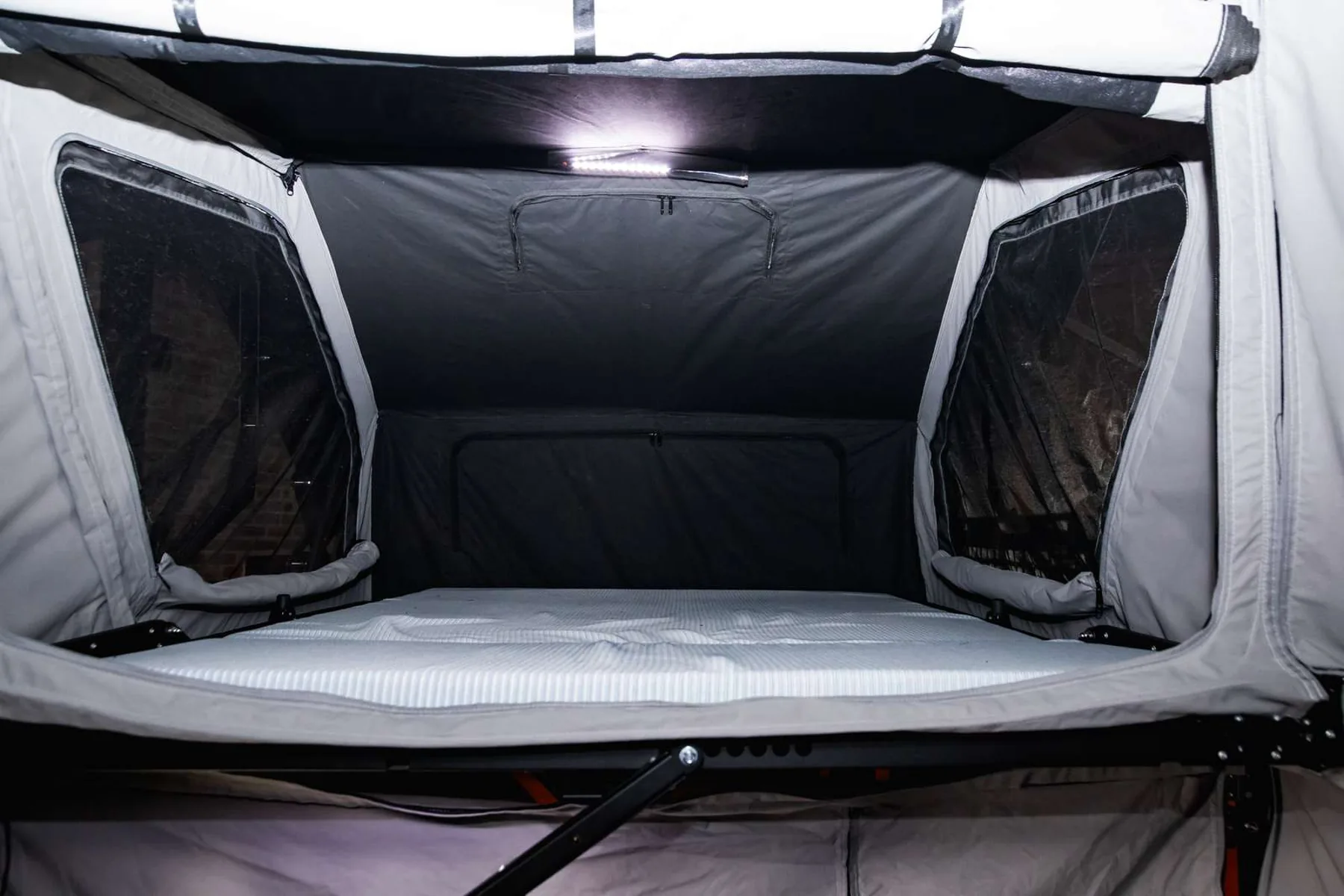

Queen-size bed
STANDARDThe 2030 × 1520 mm high-density foam mattress sits above a 6 mm anti-condensation mat. Ventilation panels and integrated lighting are built into the tent.

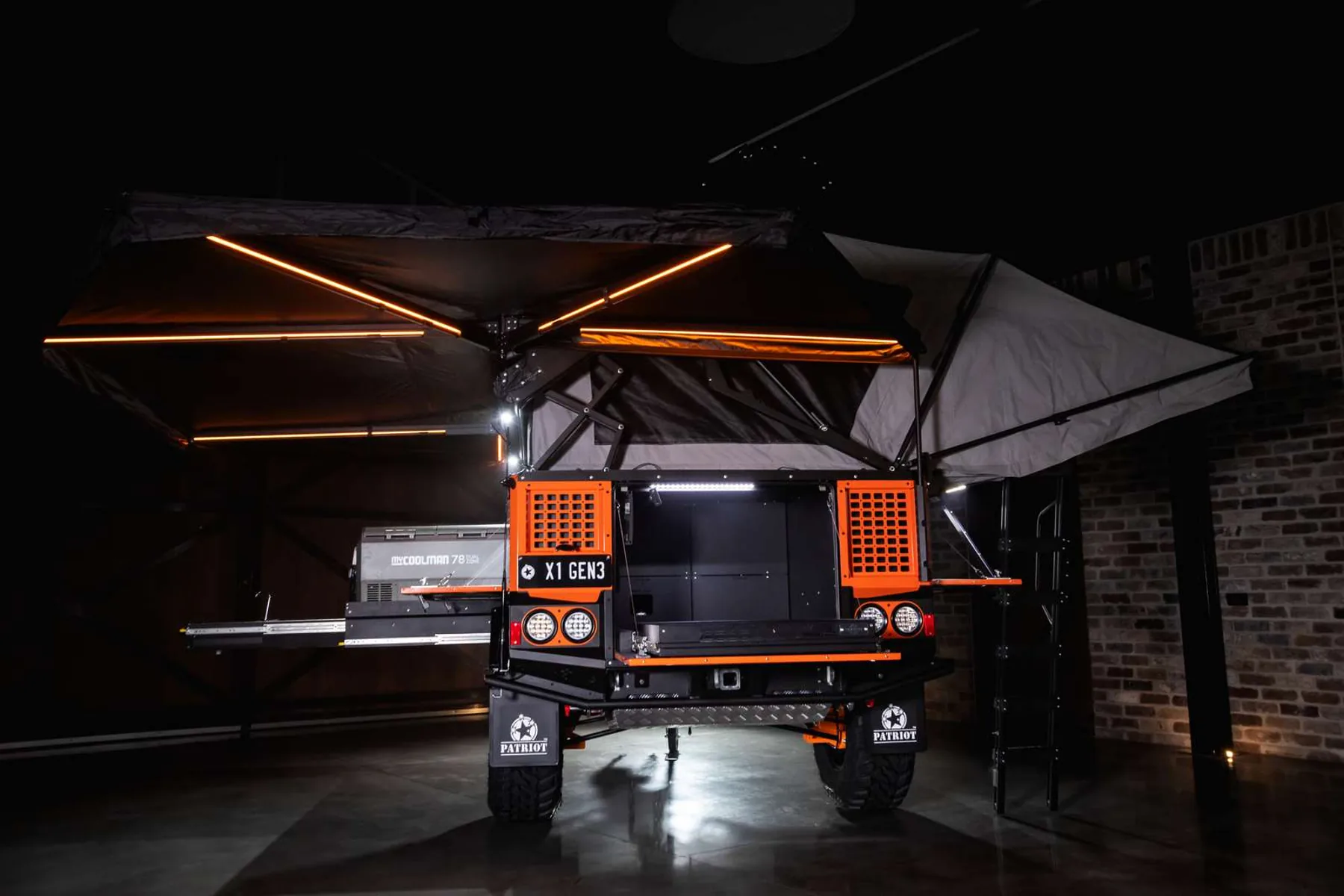

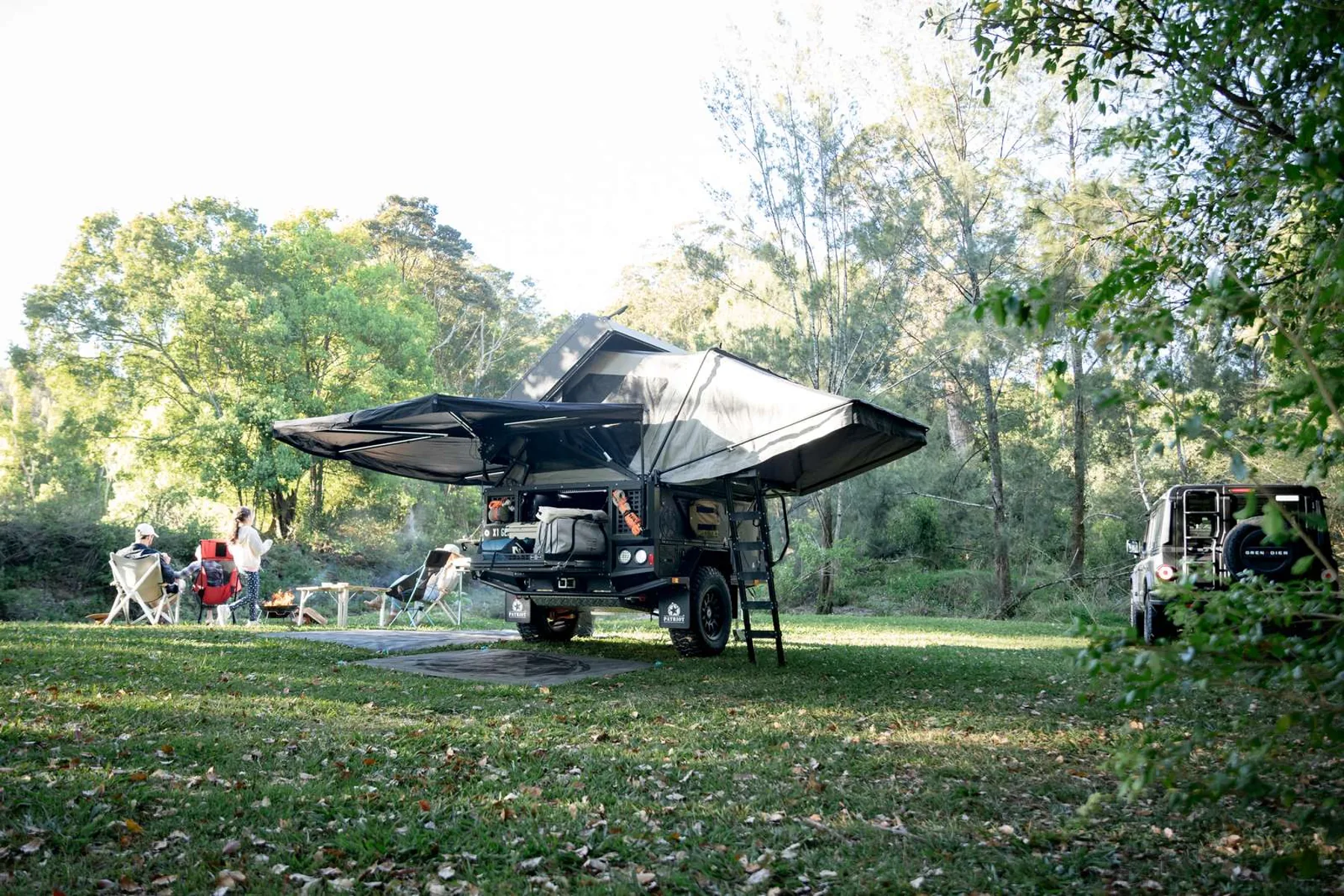

Freestanding 270° awning
STANDARDThe standard awning covers the kitchen and adjacent camp area. LED lights and fold-down support poles are integrated, with guy ropes for securing the awning.

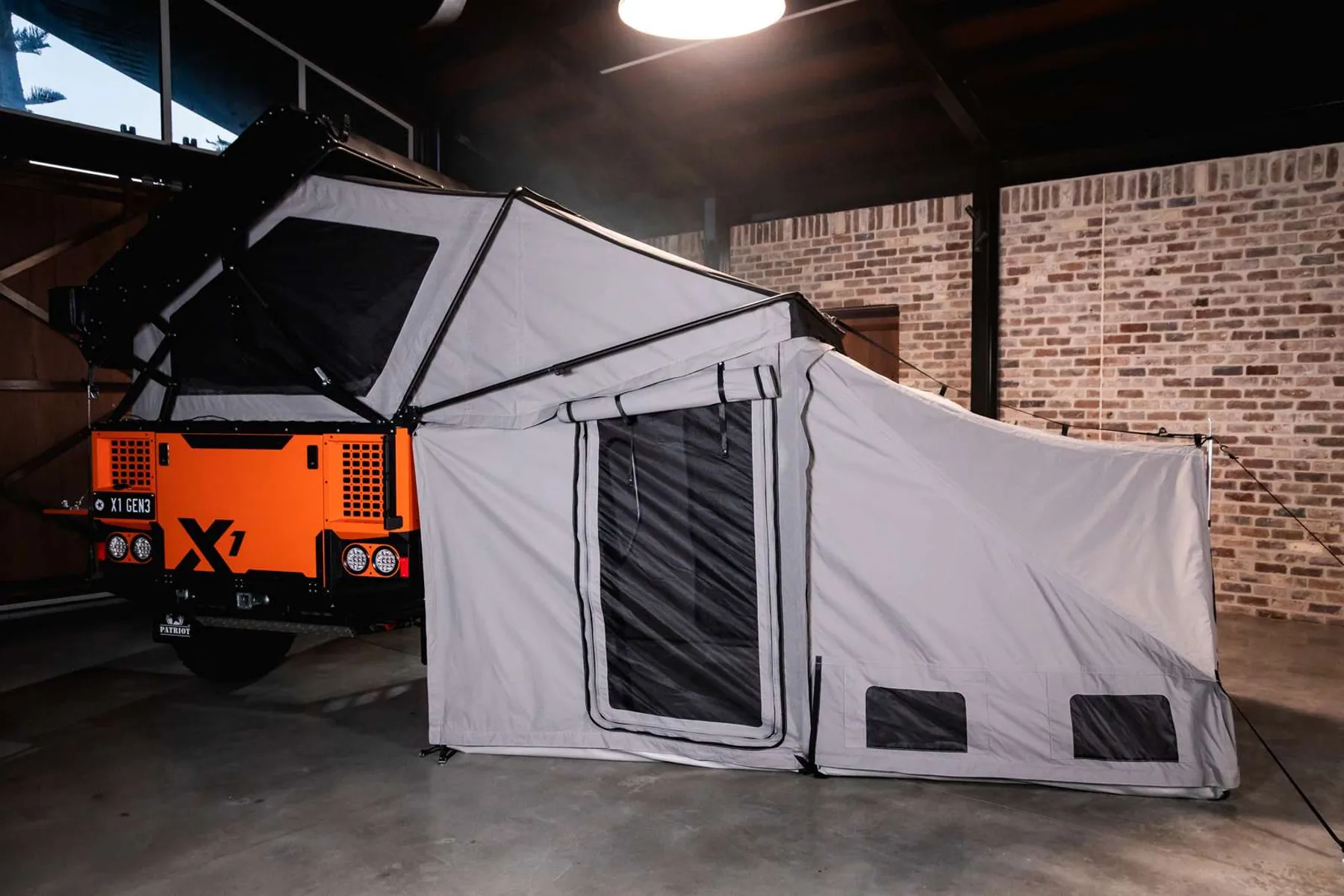

Tent construction
STANDARDTear-stop fabric and weather sealing protect the sleeping area. External bows and camlock-and-pulley ropes keep the supporting frame accessible during setup and pack-down.

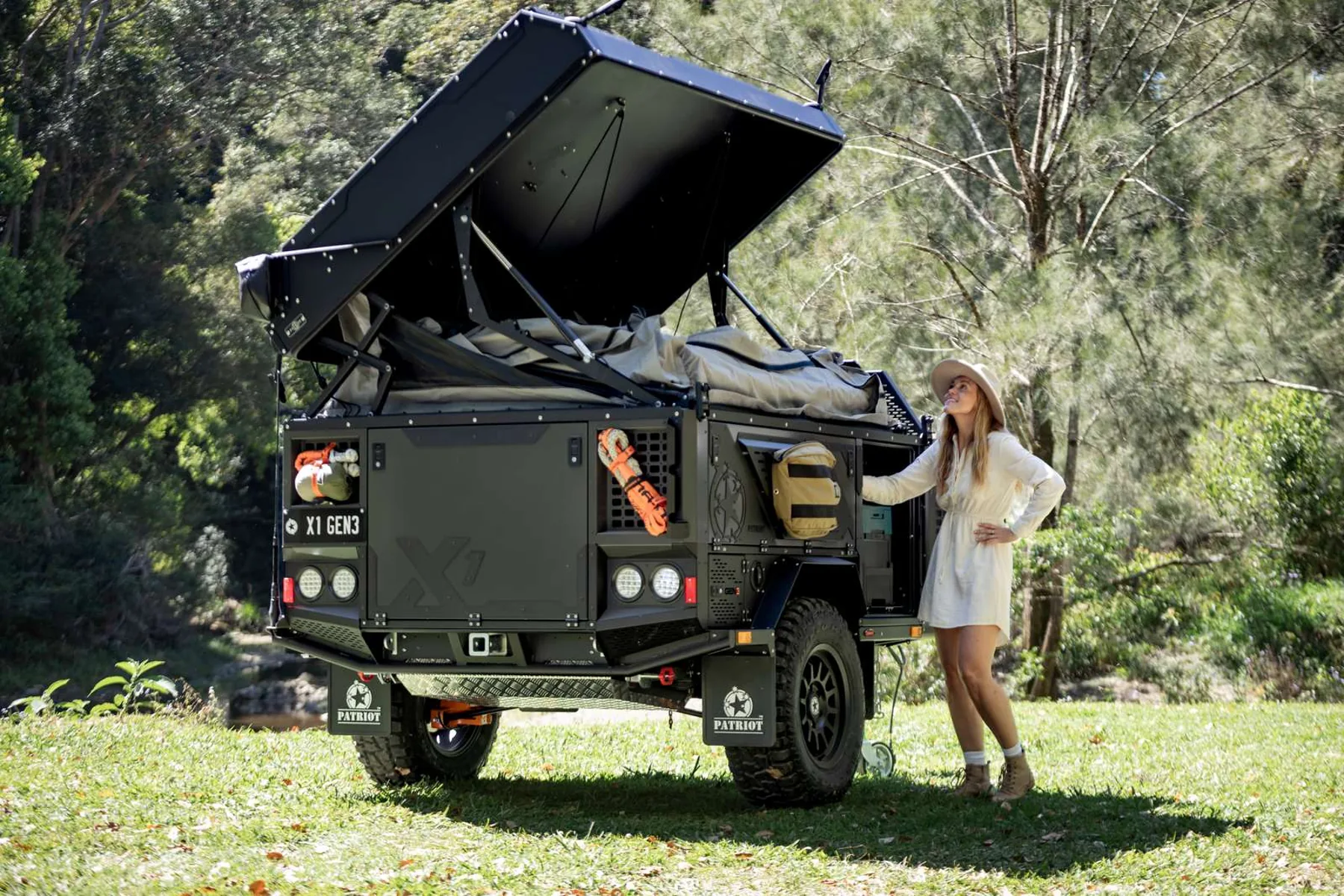

Hardlid control
STANDARDRaise and lower the structural aluminium hardlid electrically from the driver-side switch. The closed lid contains the tent, mattress and bedding for travel.
Sleeping area
STANDARDAn integrated staircase and handrail provide access to the bed. Internal pockets, lighting and accessory ports keep clothing, toiletries and devices within reach.

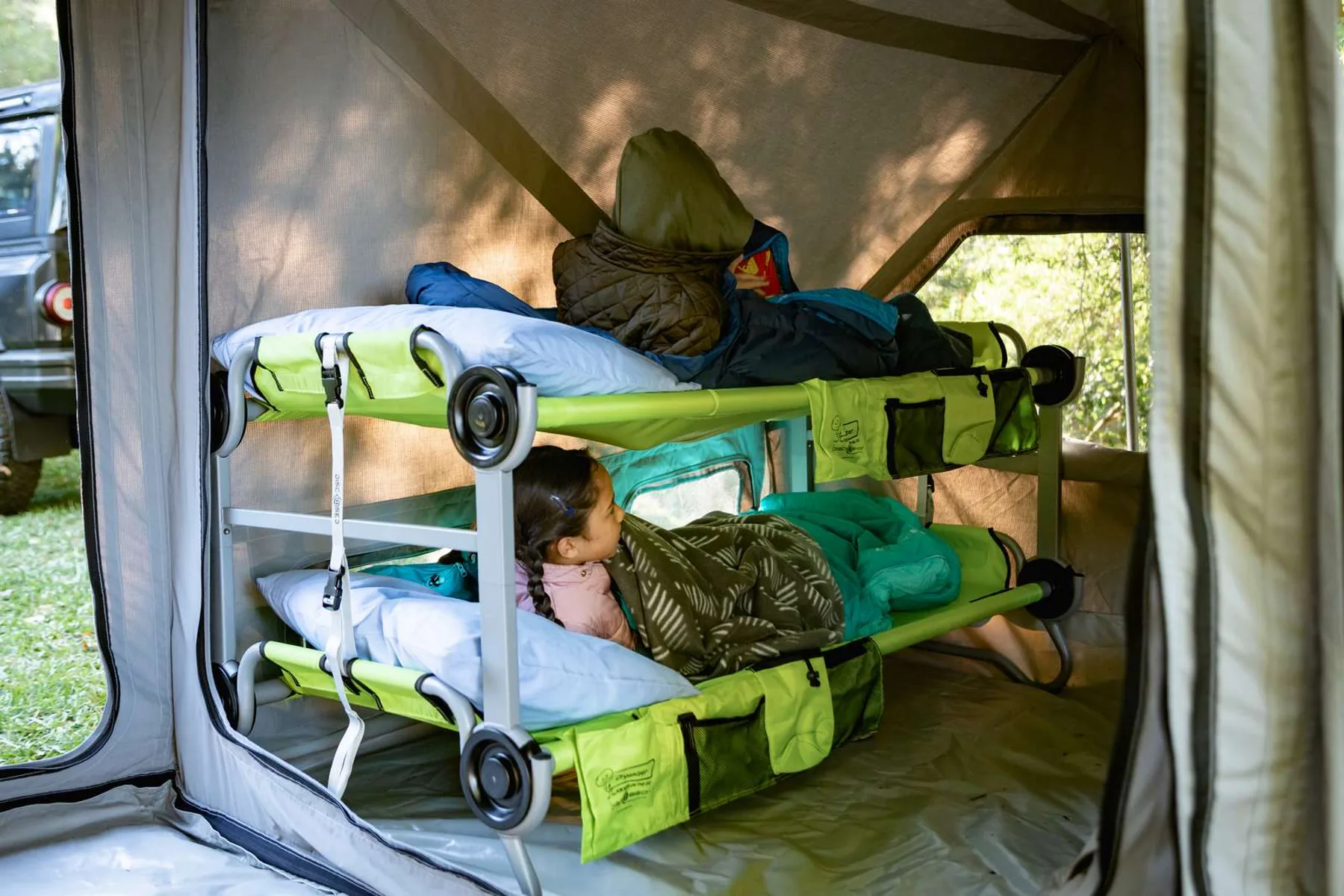

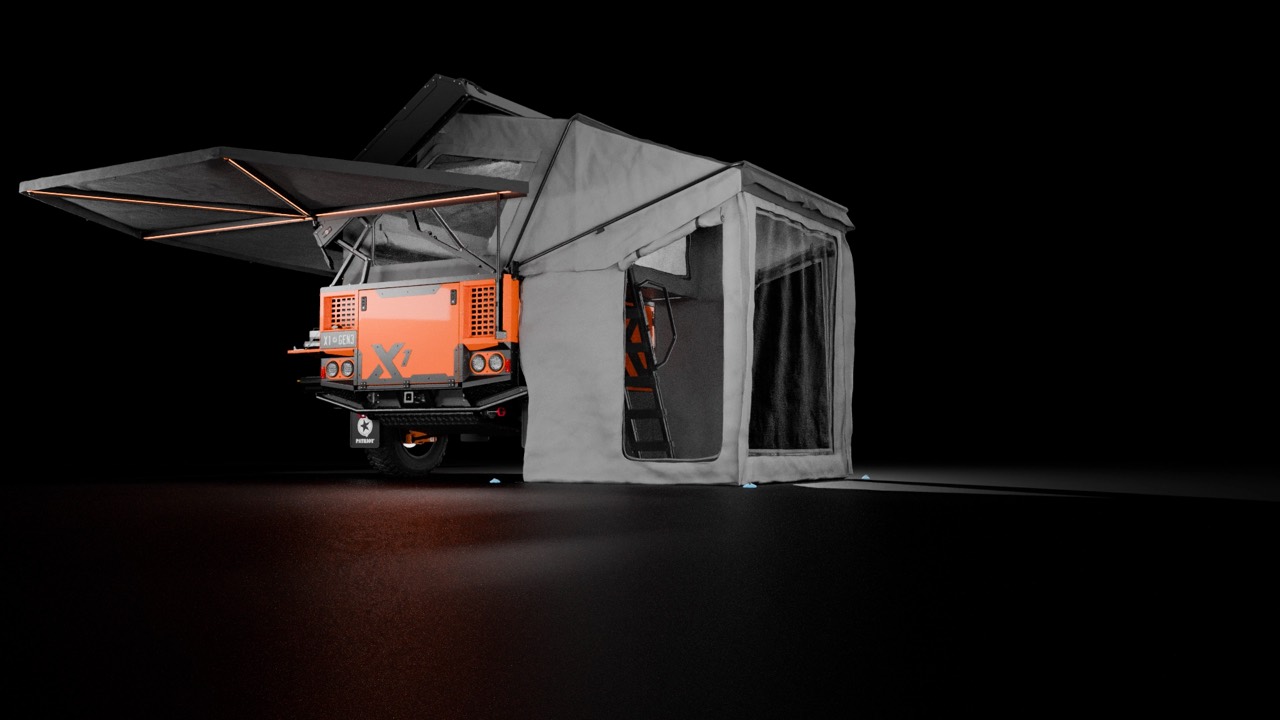

Room extensions
OPTIONALAdd a Change Room for privacy or a single-pole Multi-room for extra sleeping space. Both have PVC floors, and the Multi-room requires the Change Room.
Awning construction
STANDARDThe freestanding 270° awning shelters the kitchen and BBQ area. Fold-down poles are integrated into the arms, with guy ropes for securing the awning.

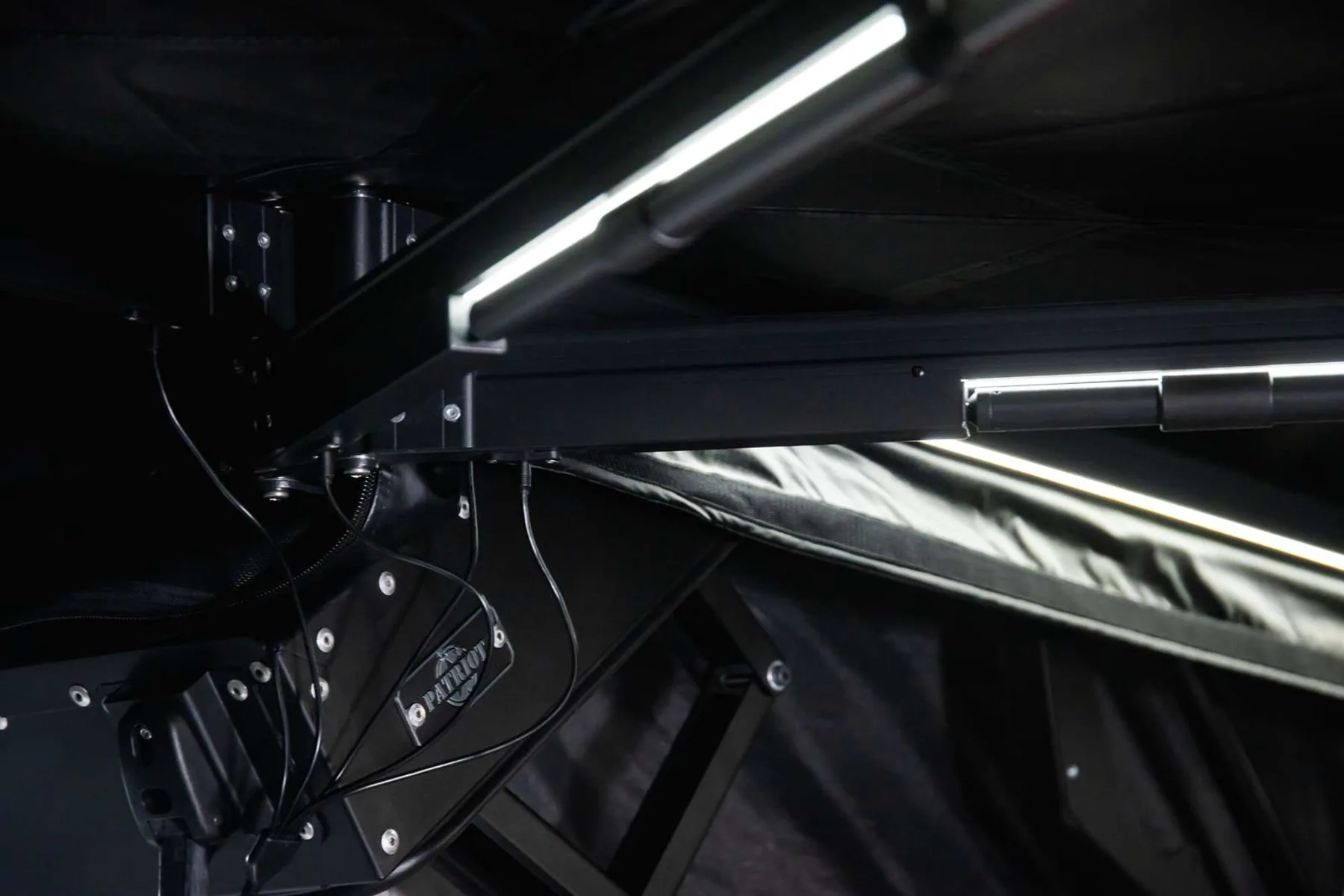

Awning lighting
STANDARDIntegrated 12V lighting has remote control, with cool and warm modes for cooking and relaxing beneath the awning.
Diesel air heater
OPTIONALWarm air is supplied to the sleeping area, with a control panel beside the bed for adjusting the temperature overnight. With high altitude mode for altitudes above 1500m.

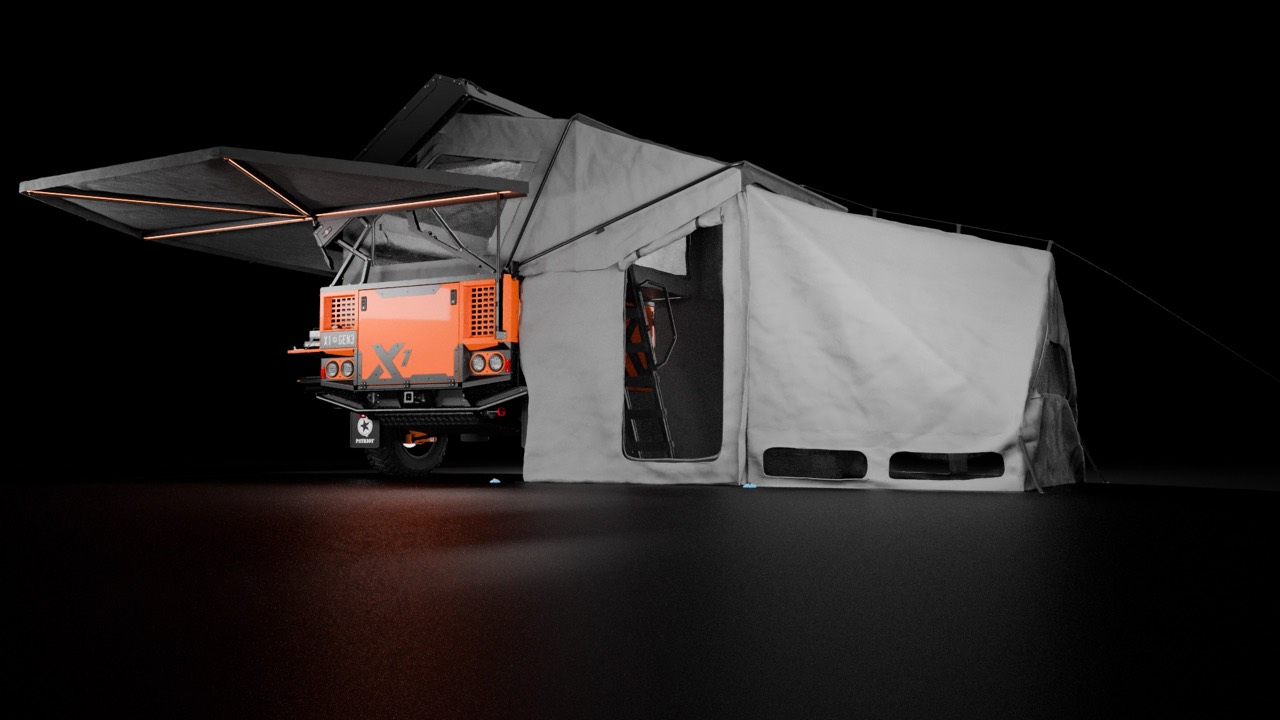

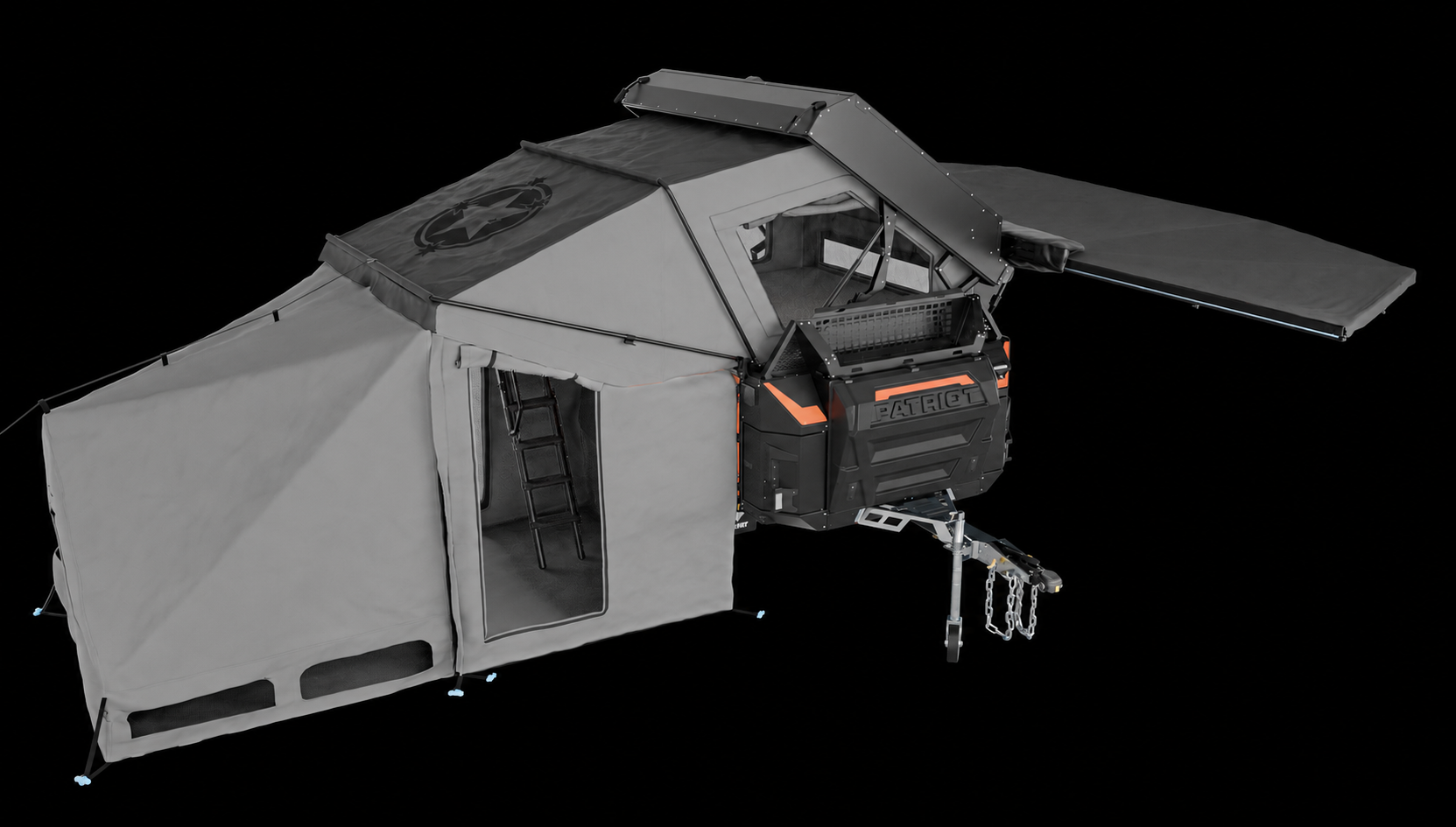

MODULAR TENT SYSTEM
Add a Change Room, then a Multi-room for extra sleeping space. Both have PVC floors. The Multi-room requires the Change Room.
Standard integrated tent and awning.
Approximately 2,000L across the camper
Storage
Every space. Every surface. Compartments, drawers and external mounting points make use of the X1’s compact footprint. A standard rear storage slide brings bulky gear within reach, while wet-storage boxes keep damp equipment separate from the internal compartments.

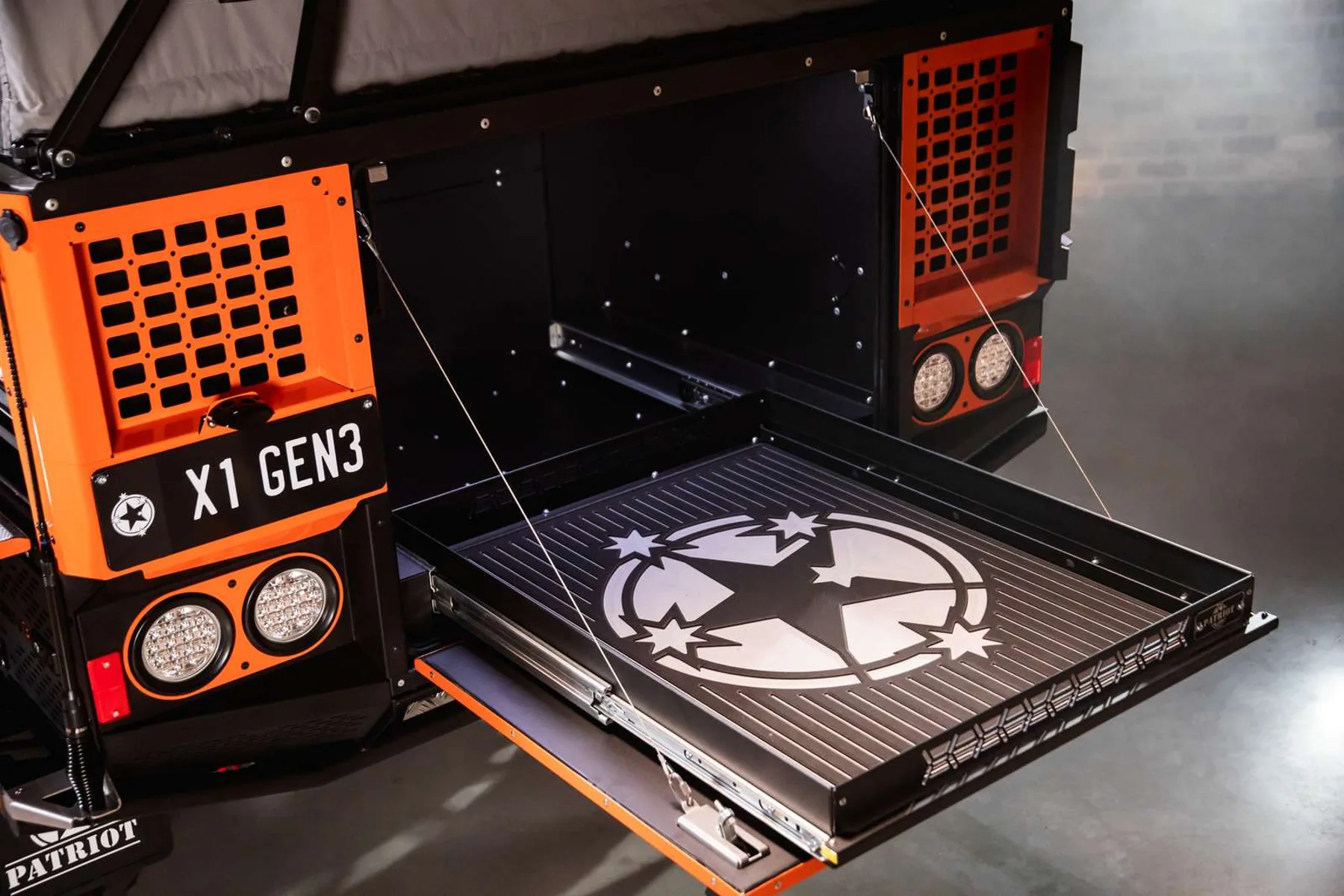

Rear storage slide
STANDARDThe rear storage slide is standard. It extends from the body for loading and access to bulky equipment.
Front wood rack
STANDARDThe front rack carries firewood outside the sealed compartments. Gas-bottle holders accommodate 4.5 kg / 9 lb bottles.

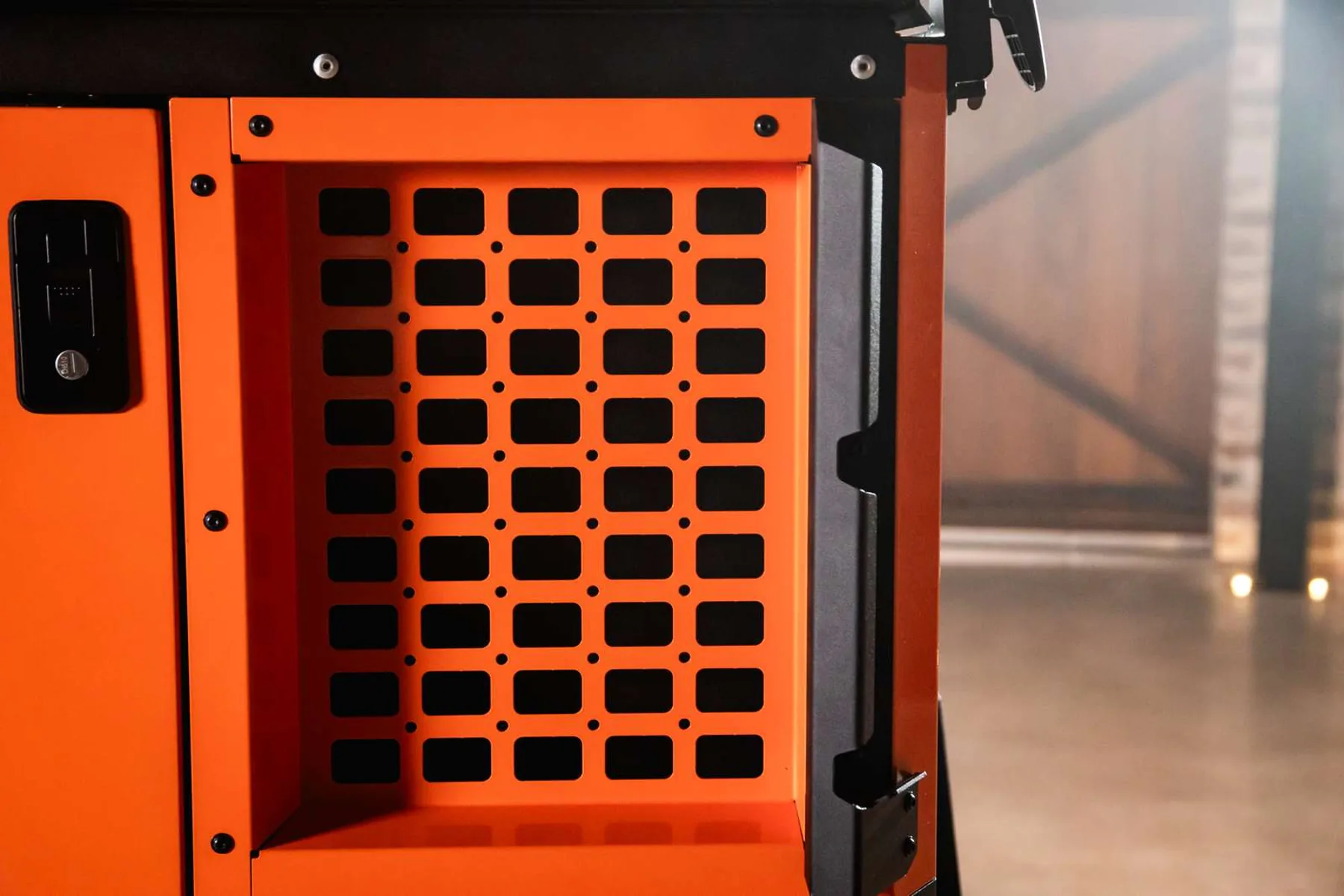

MOLLE mounting panels
STANDARD REAR · OPTIONAL SIDERear MOLLE panels are standard. Optional side-mounted panels add mounting points for bags, tools and accessories.

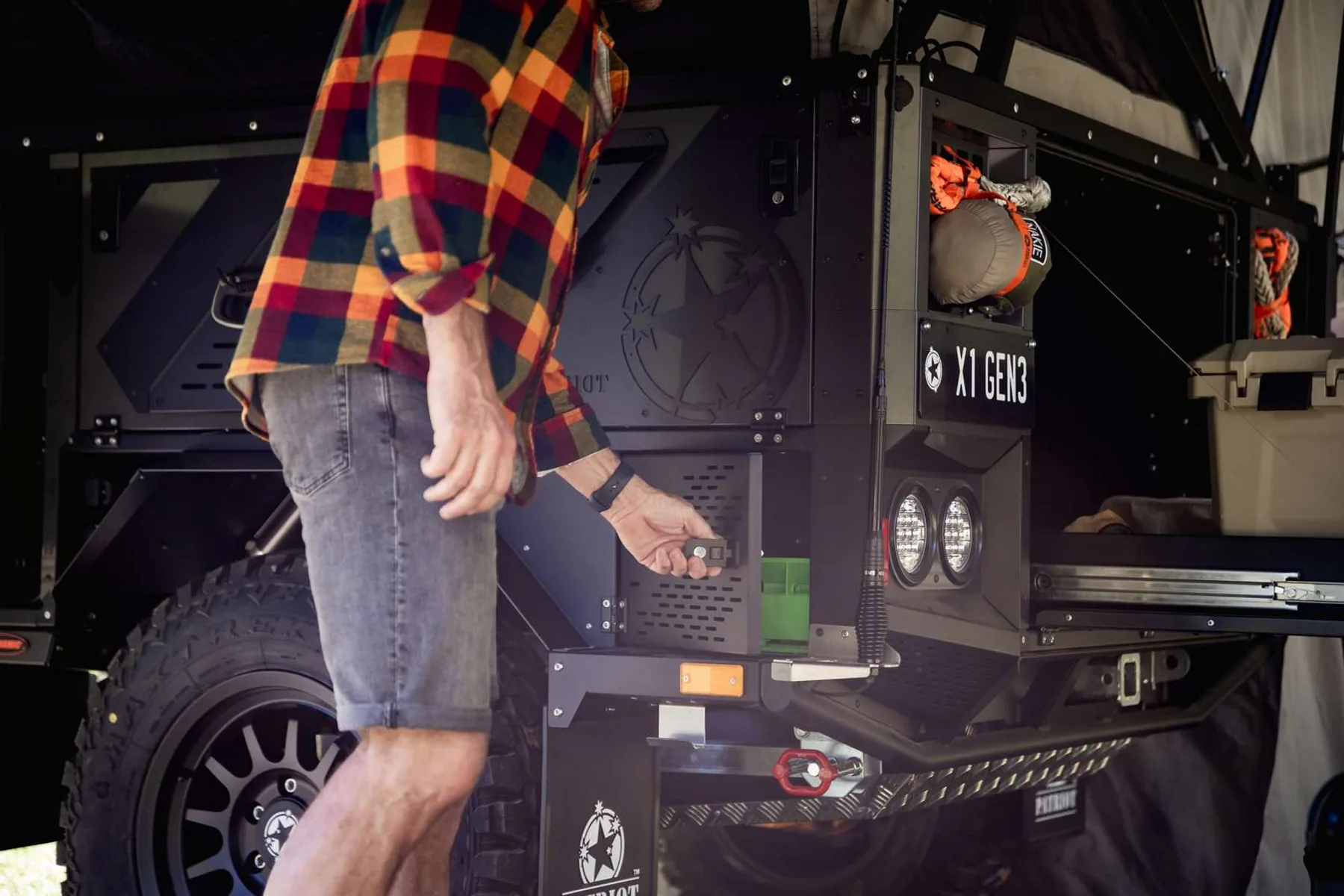

Wet-storage boxes
STANDARDKeep damp and dirty gear separate from food, clothing and other equipment in the internal compartments.

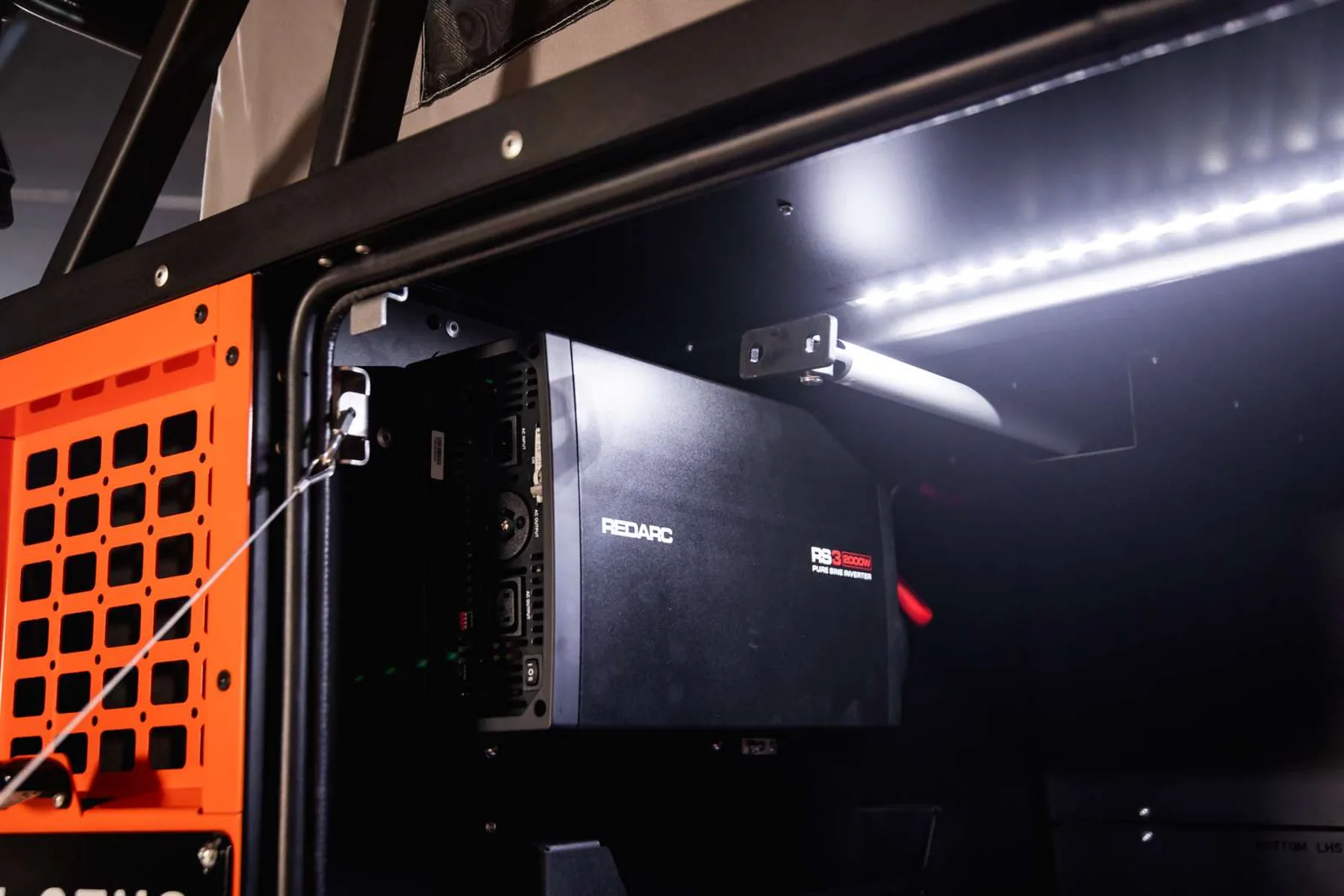

Compartment lighting
STANDARDManually operated LED lights let you find stored gear after dark without returning to the main control panel.

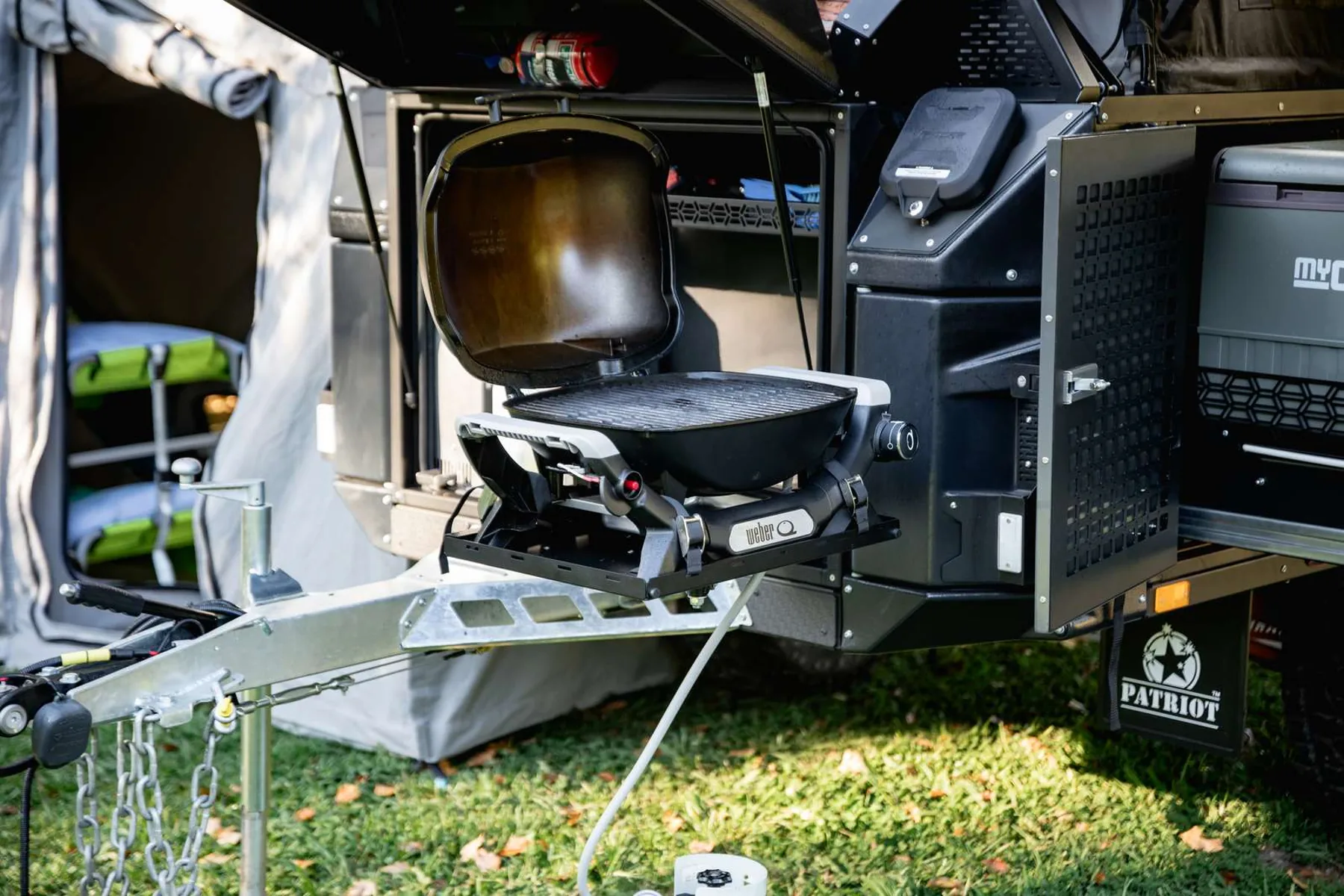

Gas-bottle holders
STANDARDDedicated holders keep 4.5 kg / 9 lb gas bottles within easy reach.

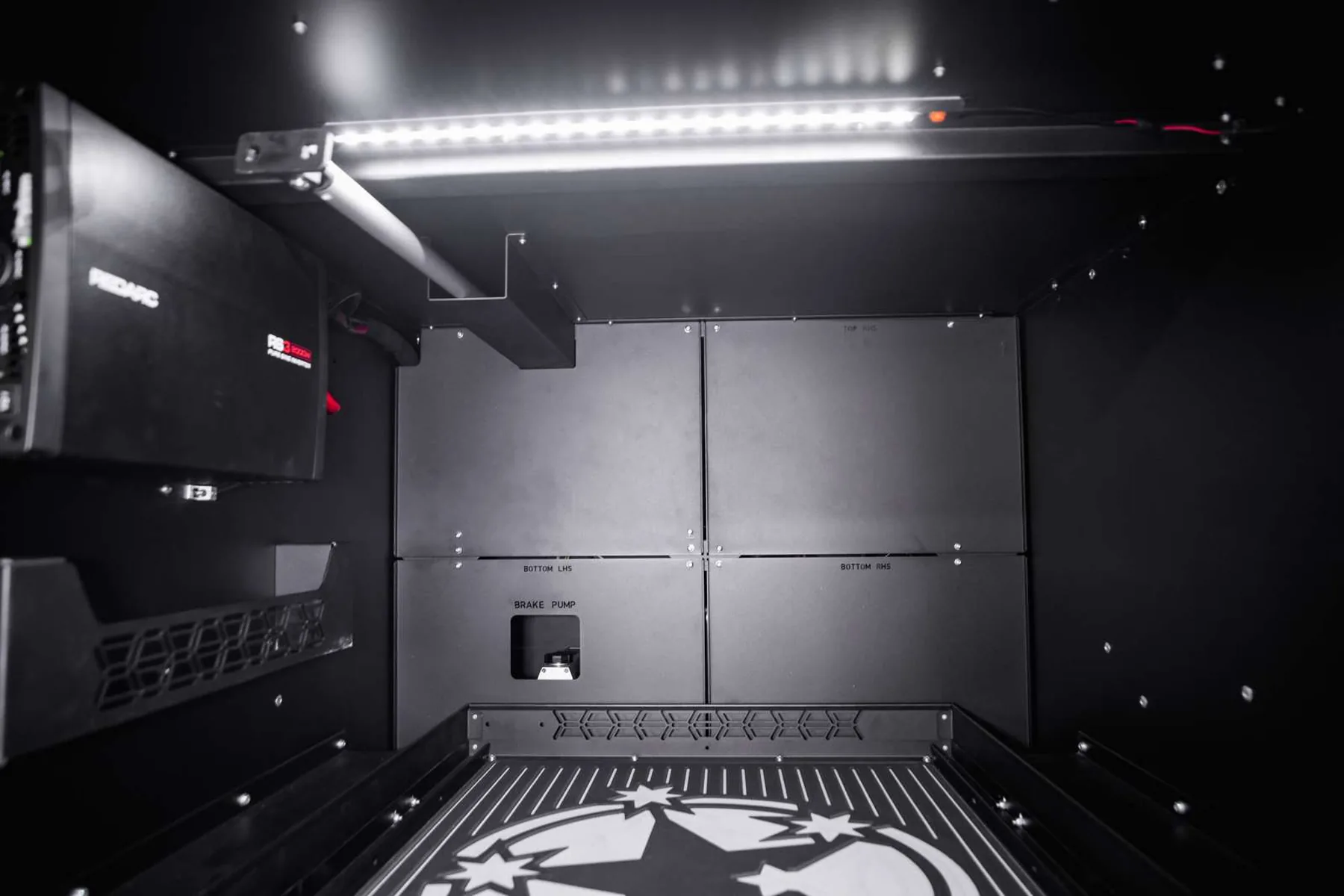

Marine Decking Mats
OPTIONALCushion compartment floors against scratches and impacts while helping stop stored gear from sliding around.
100 Ah lithium as standard
Power

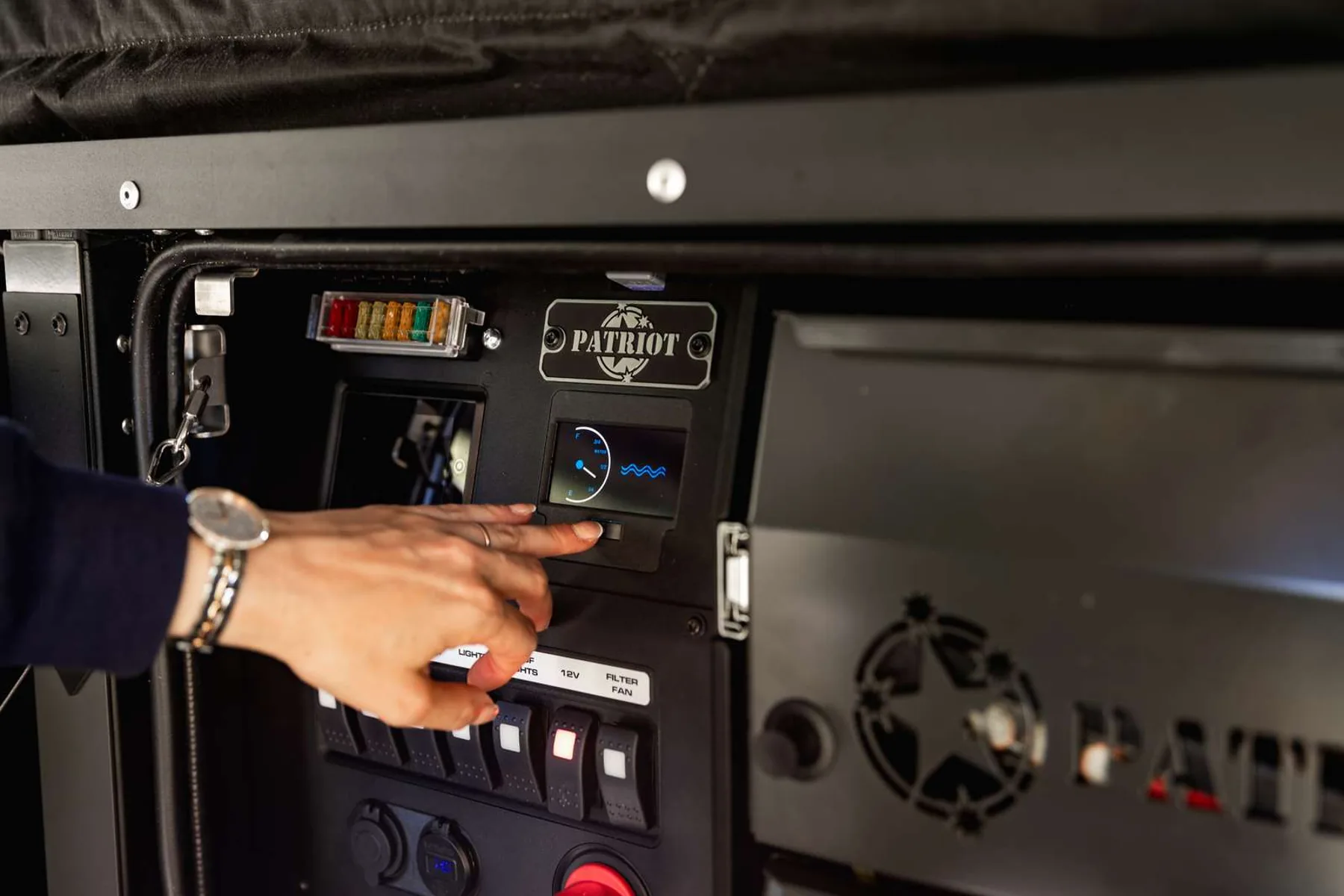

Direct controls, without a complicated interface. Physical rocker switches operate the electrical components, with gauges, fuses and the BCDC charger accessible in one place. A 100 Ah lithium smart battery is standard, with an optional second battery taking capacity to 200 Ah.
IQ100 battery monitoring
STANDARD · OPTIONAL BATTERY UPGRADEMonitor battery information and power use from the control panel. A 100 Ah lithium battery is standard; a second battery is optional.

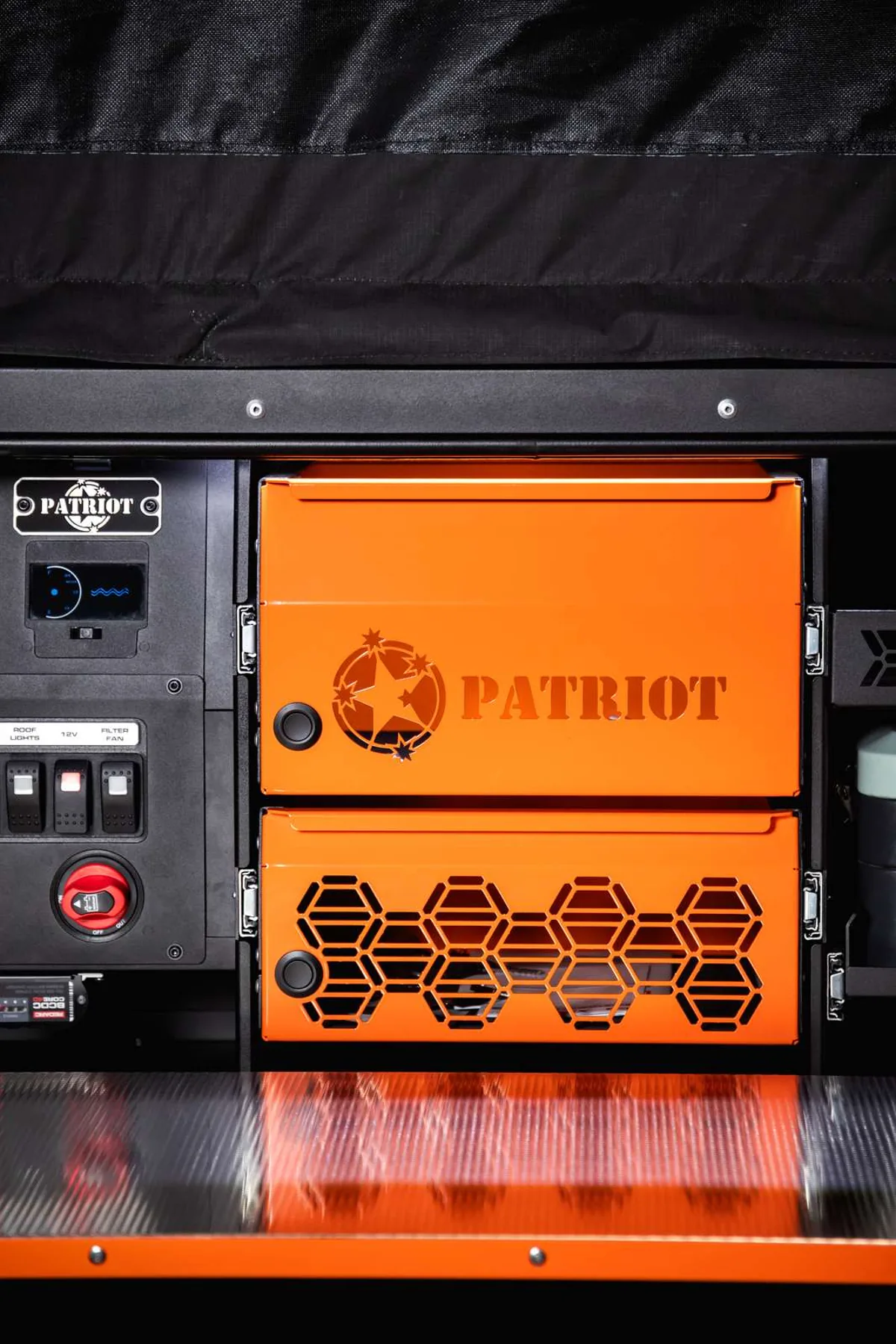

Direct controls. Accessible fuses.
STANDARDPhysical rocker switches keep everyday operation simple. Gauges, fuses and the BCDC charger are grouped at the control panel.
400W roof solar
OPTIONALTwo optional 200W roof panels provide 400W of solar capacity. A compatible external panel or blanket can connect for additional solar input at camp.
Battery capacity
STANDARD · OPTIONAL BATTERY UPGRADE100 Ah lithium as standard. Add a second 100 Ah battery for 200 Ah total capacity.

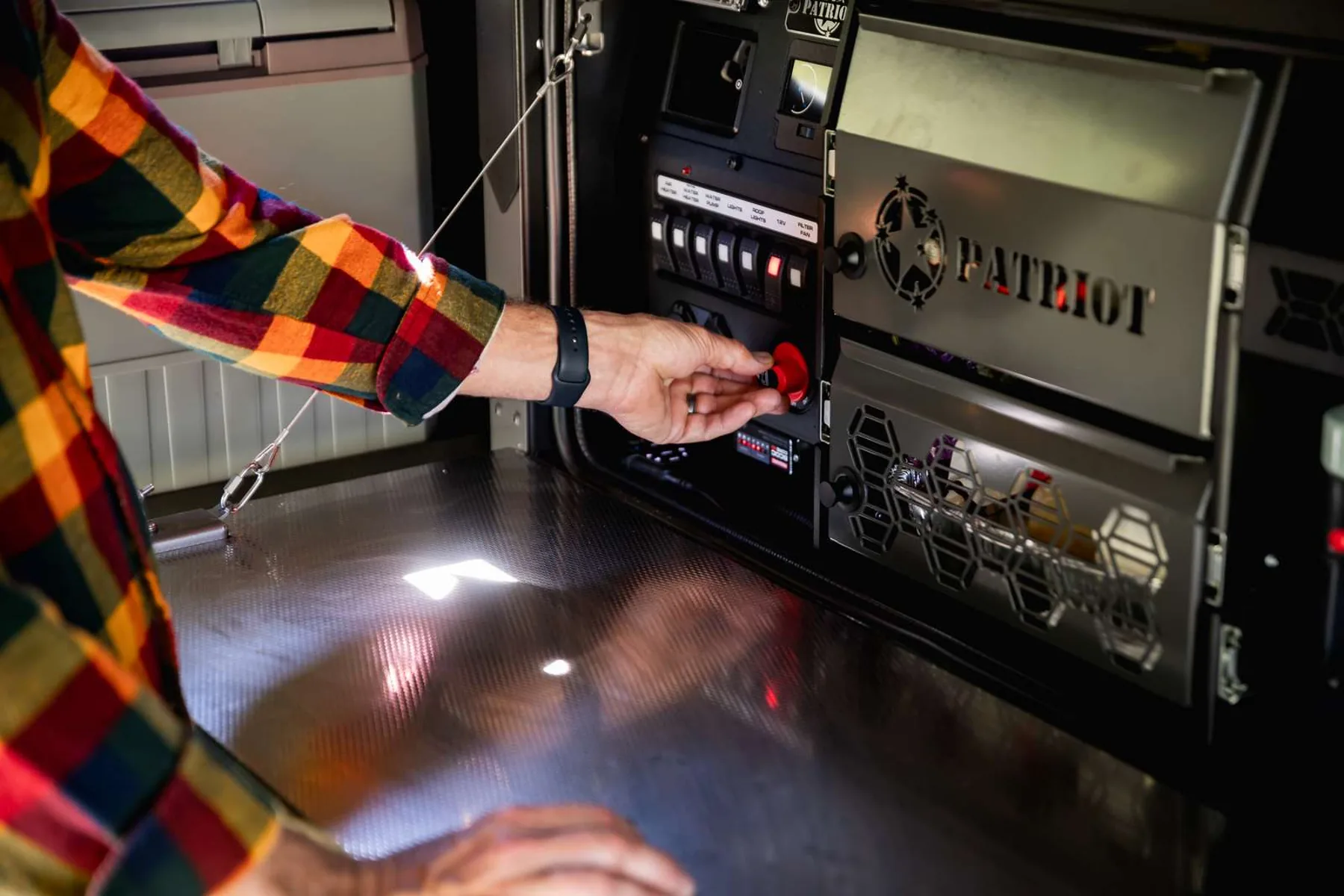

Charging
STANDARDREDARC BCDC1240D manages vehicle and solar charging. A supplied charger and charging connection support charging from external power.
Portable solar
STANDARD CONNECTION · OPTIONAL PANELExternal solar connection for a compatible portable panel or blanket.
Inverter options
OPTIONALAustralia: optional REDARC RS3 2000W. USA: optional REDARC RS2 1500W.

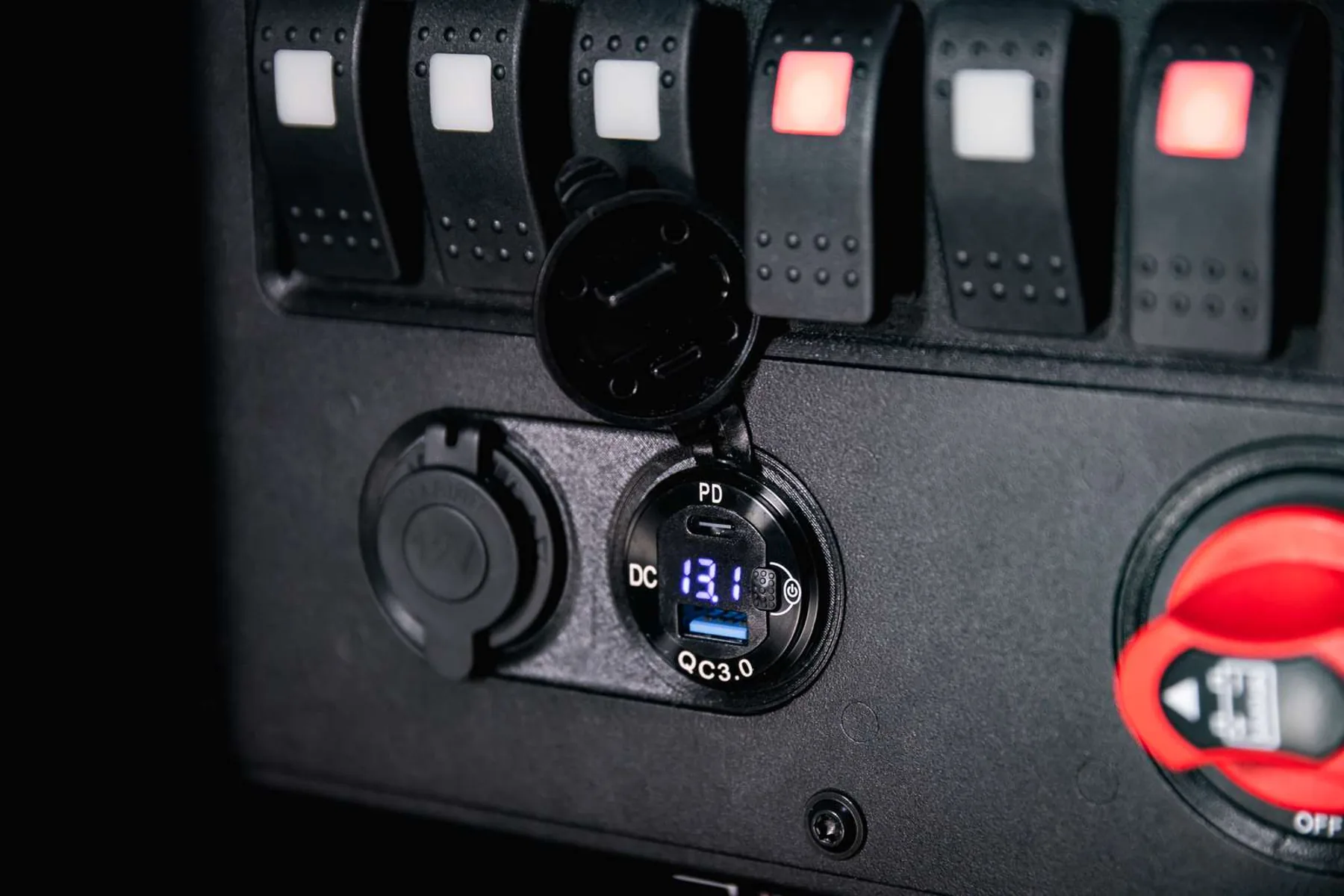

Cable routing
STANDARDAccess holes route extension leads out of the compartment.

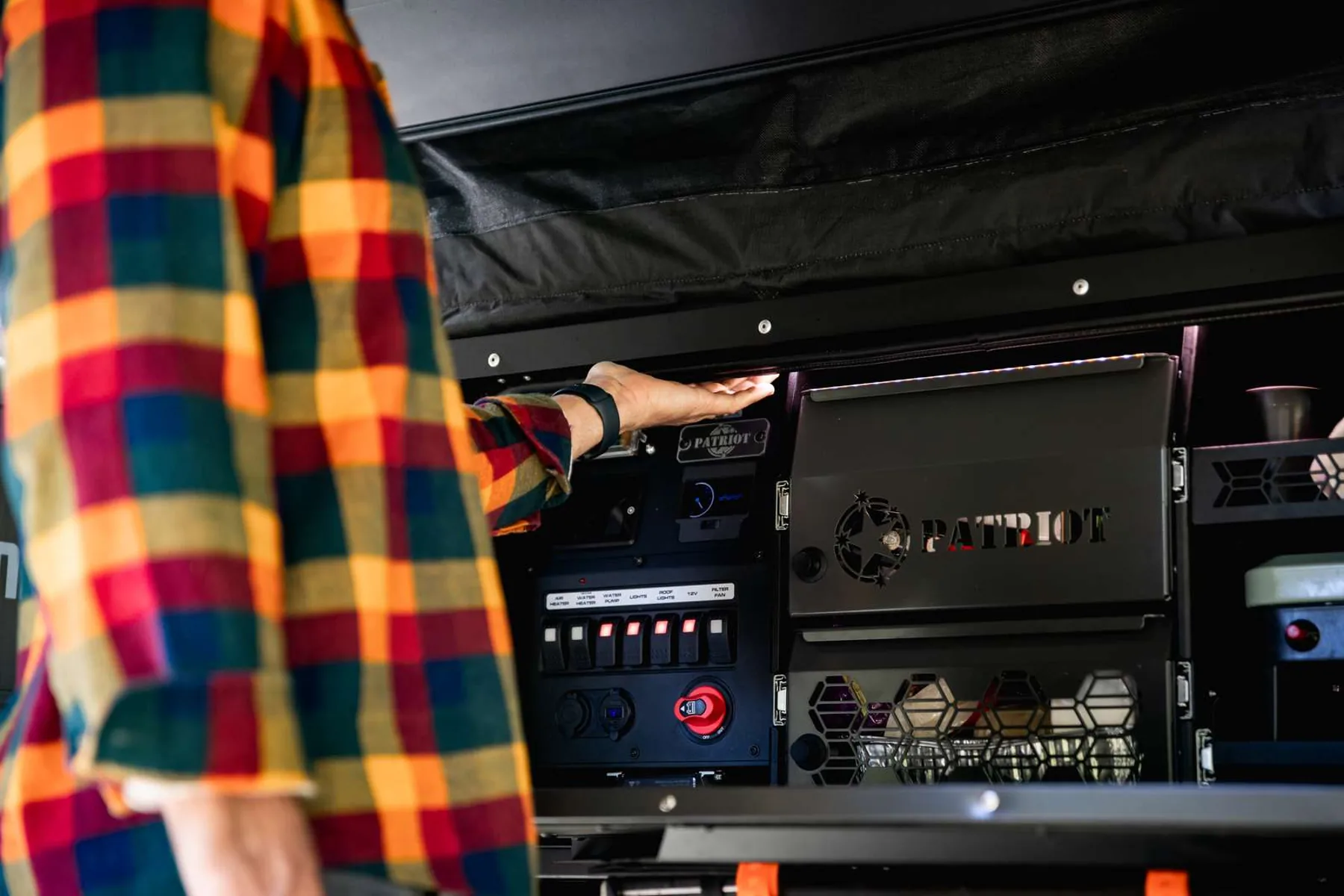

Service access
STANDARDControl-panel fuses and removable rear-storage covers provide access for servicing.
Choose the equipment. Track the weight.
Options
Everyone’s setup is different. Start with your tent configuration, then choose your fridge, power setup, storage and accessories. The configurator updates your build and estimated option weights as you go.
Room & heating upgrades
OPTIONALChange Room, dependent Multi-room and diesel air heater.

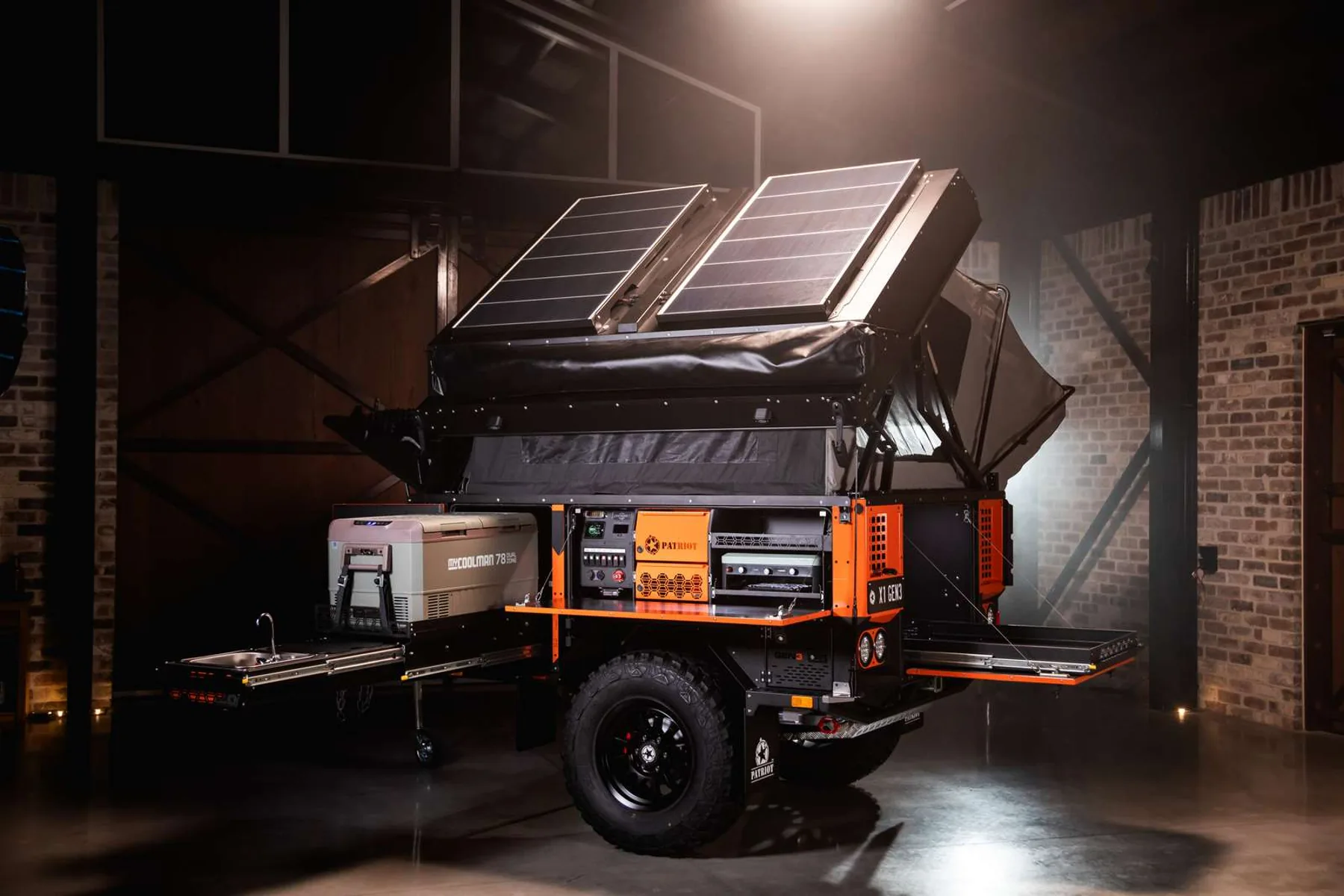

Power upgrades
OPTIONALAdditional 100 Ah battery, 400W roof solar and market-specific inverter.
Kitchen upgrades
OPTIONALFridge/freezer choices, BBQ swing-away and separately selected Weber Q1000. The Weber requires the swing-away.
Storage upgrades
OPTIONALSide-mounted MOLLE panels and Marine Decking Mats.
Toilet drop slide
OPTIONALOptional slide for a compatible portable toilet. Toilets are for illustration only and are not available from Patriot.

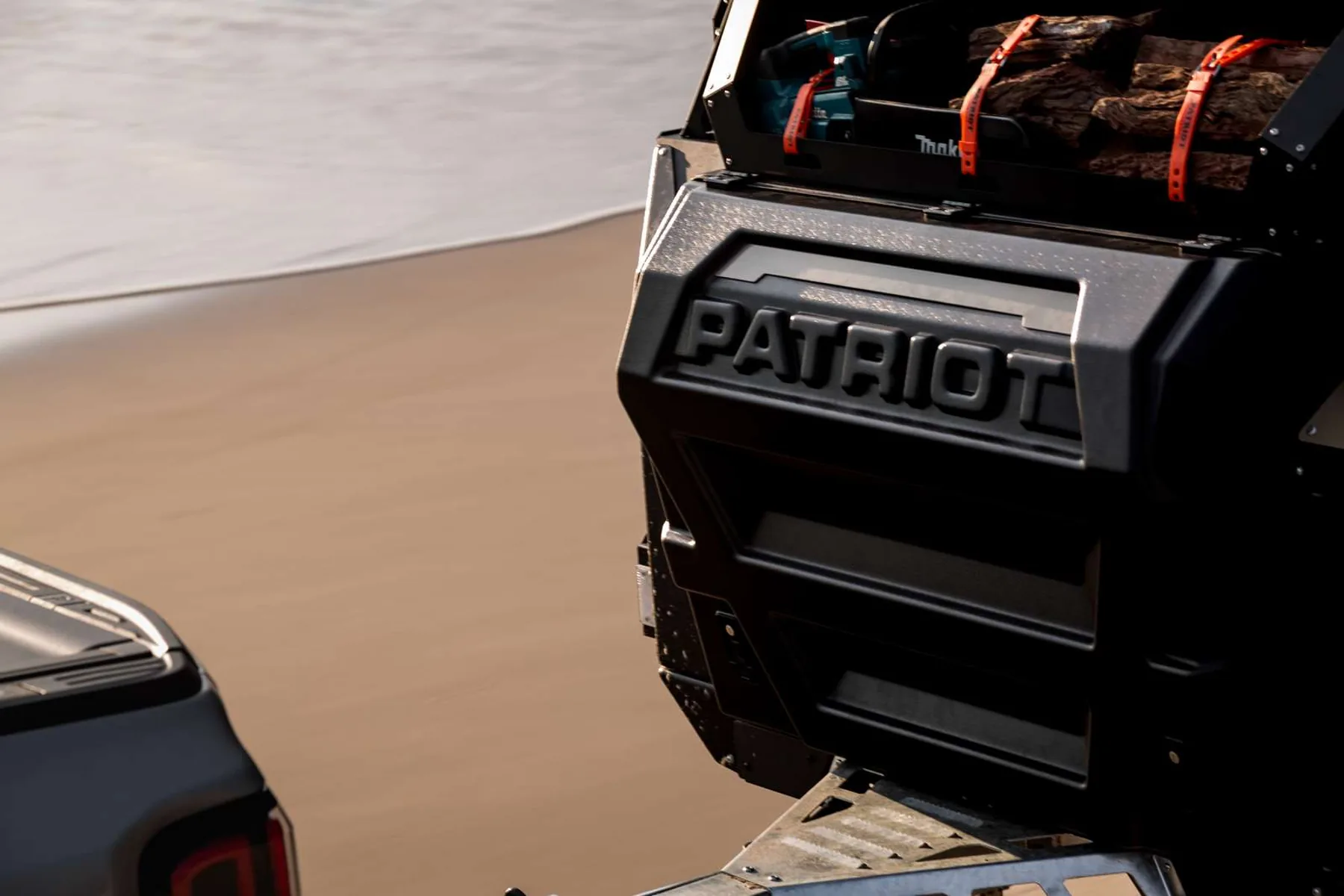

Recovery boards
OPTIONALOptional MAXTRAX pair with mount.

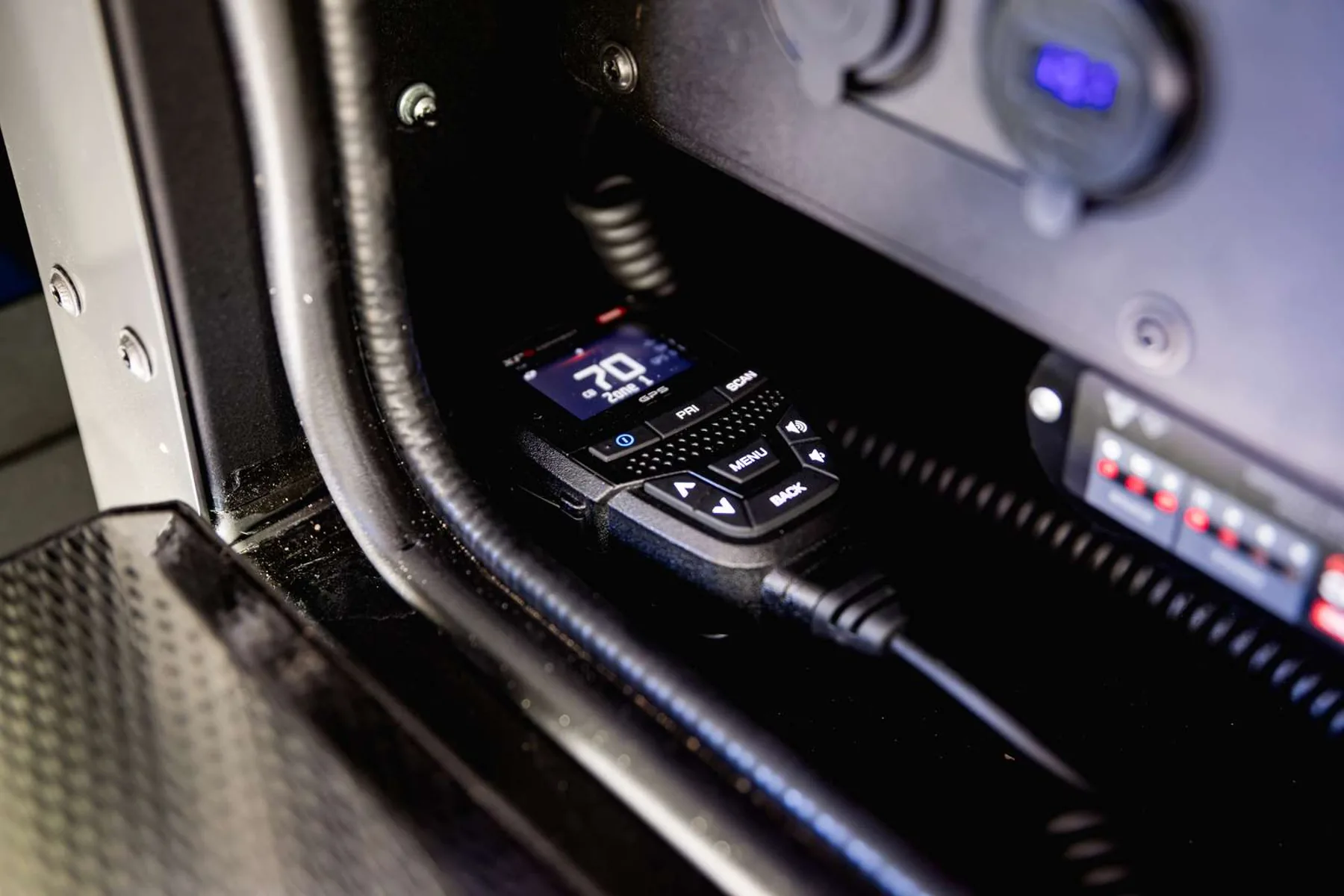

UHF communications
OPTIONALOptional GME XRS Touring Kit in the Australian configurator.

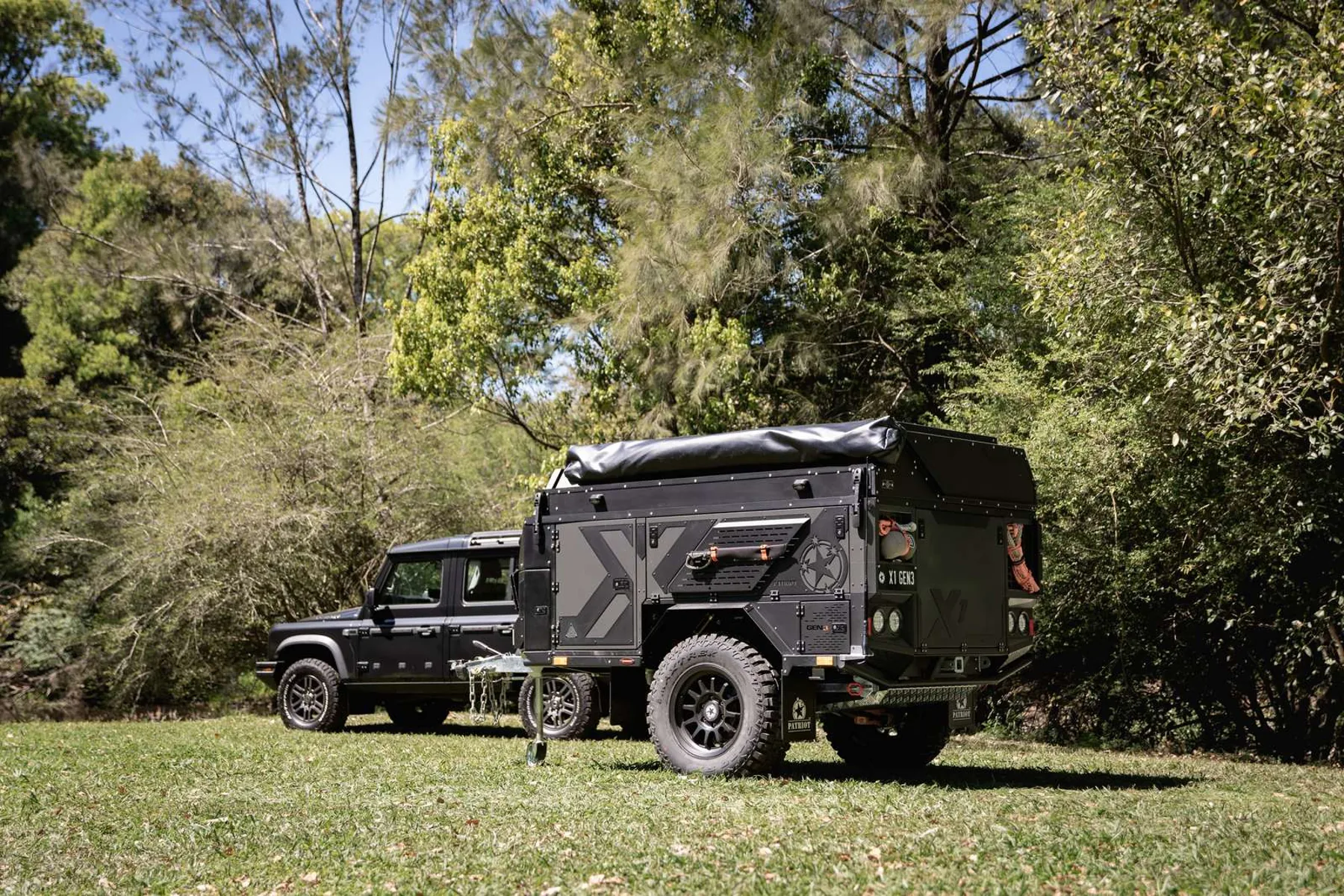

Build weight
CONFIGURATOR TOOLThe configurator estimates selected option weight and remaining payload as you build.
CONFIGURE YOUR GEN3 X1
Build your Gen3 X1.
$57,900 AUD
$54,900 USD
Introductory pricing only. Ends soon
Choose Volcano, Arctic, Desert or Wildfire, then select your optional equipment.
View pricing in the configurator.
Australian introductory base price. Optional equipment and on-road costs extra. Pricing and available options are shown in the configurator. Images show a mix of standard and optional equipment. Tare weight varies with fitted equipment.
