Laser-cut decals & alloy badges
STANDARDExterior detailing uses laser-cut decals and cast-alloy badges.
$AUD57,900$USD54,900
Introductory pricing only. Ends soon
Forever Unstoppable
The Gen3 X1 re-imagines the trailer that started it all. Combining innovative structural aluminium construction, all new Trinamic™ Core suspension never-before-seen on a camper trailer and an integrated, modular tent system the X1 is truly the next generation of offroad, lightweight camper trailers.
OFFICIAL REVEAL VIDEO

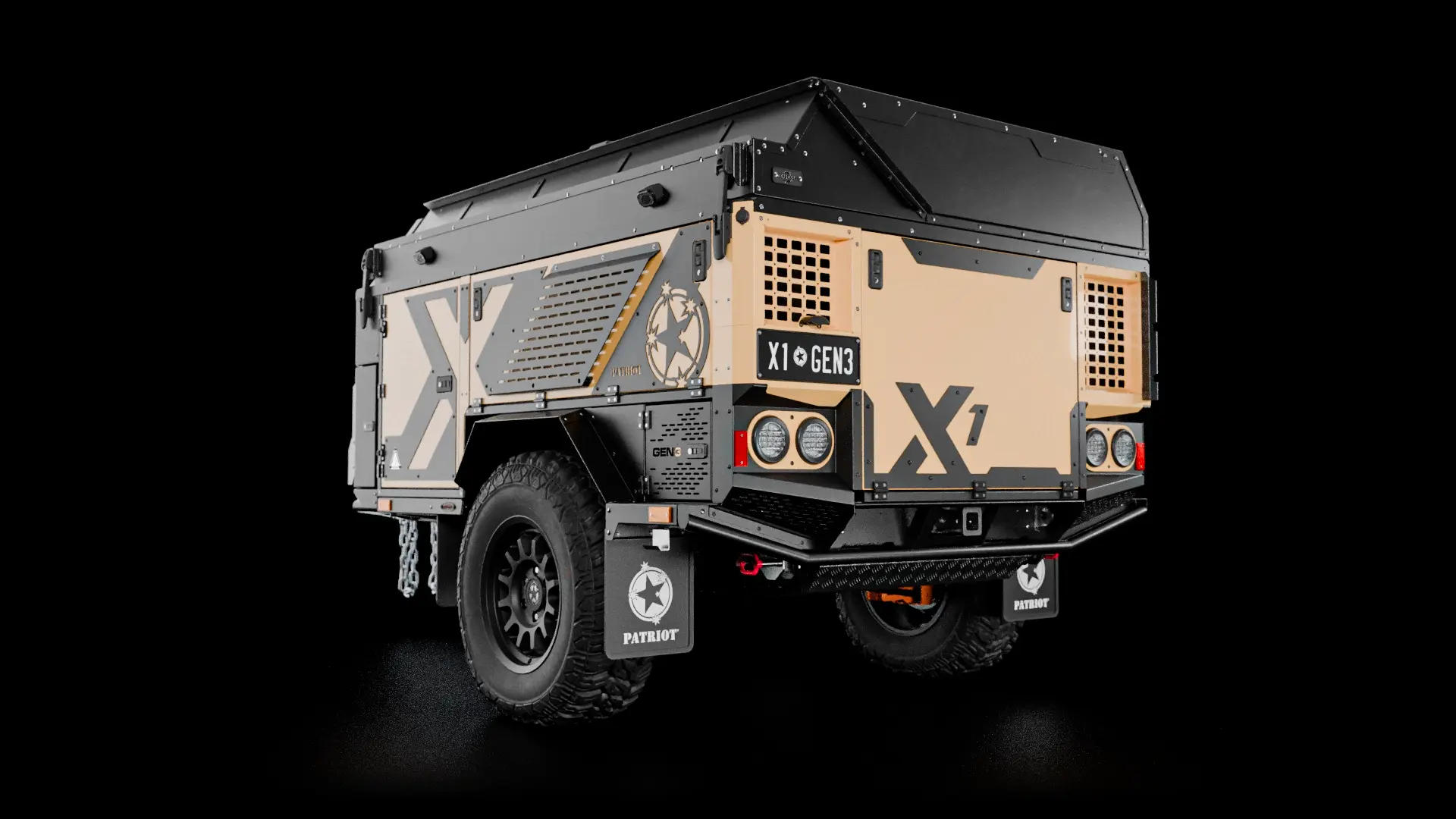

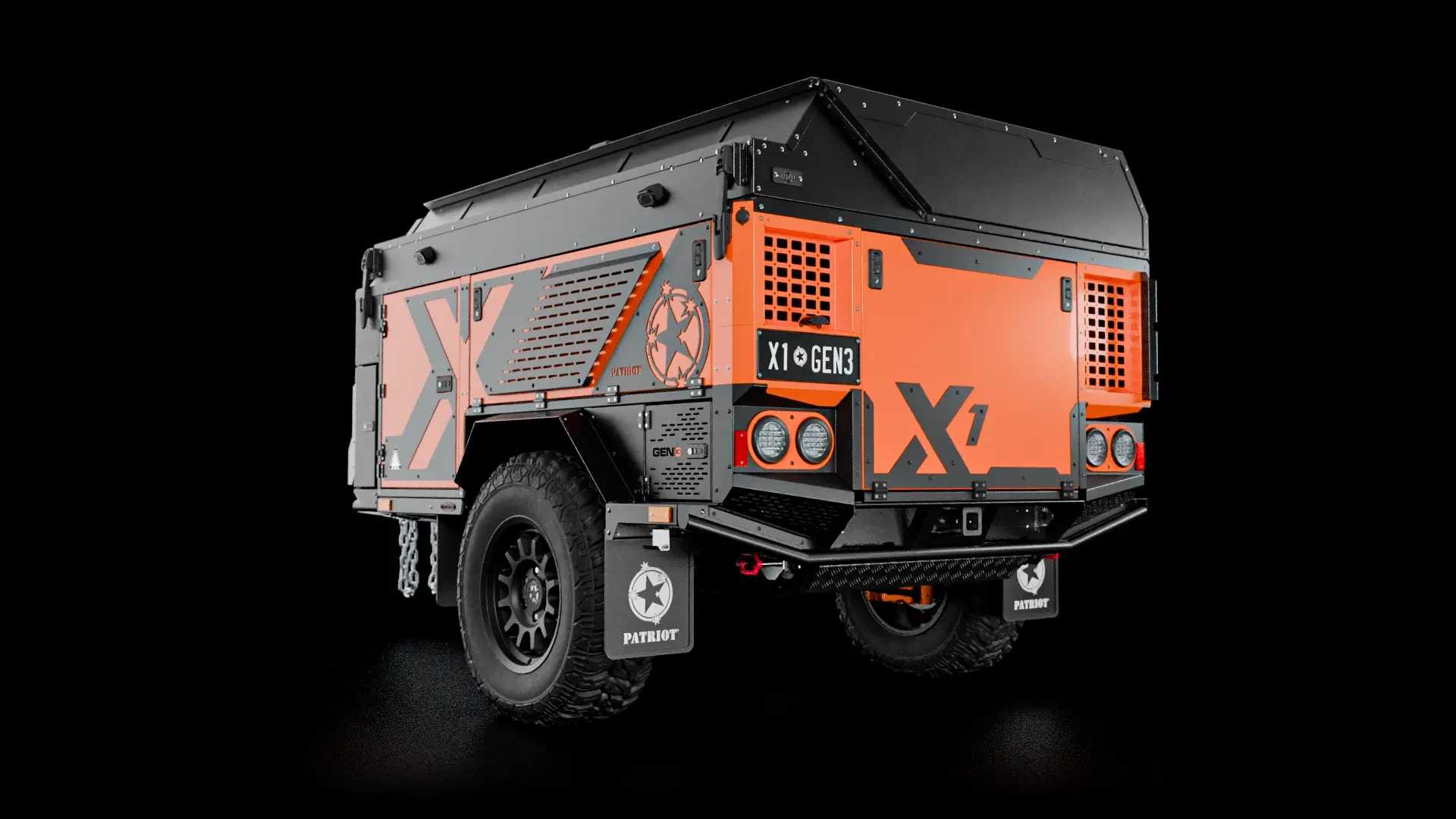

Four colours. New bodywork.
Styling

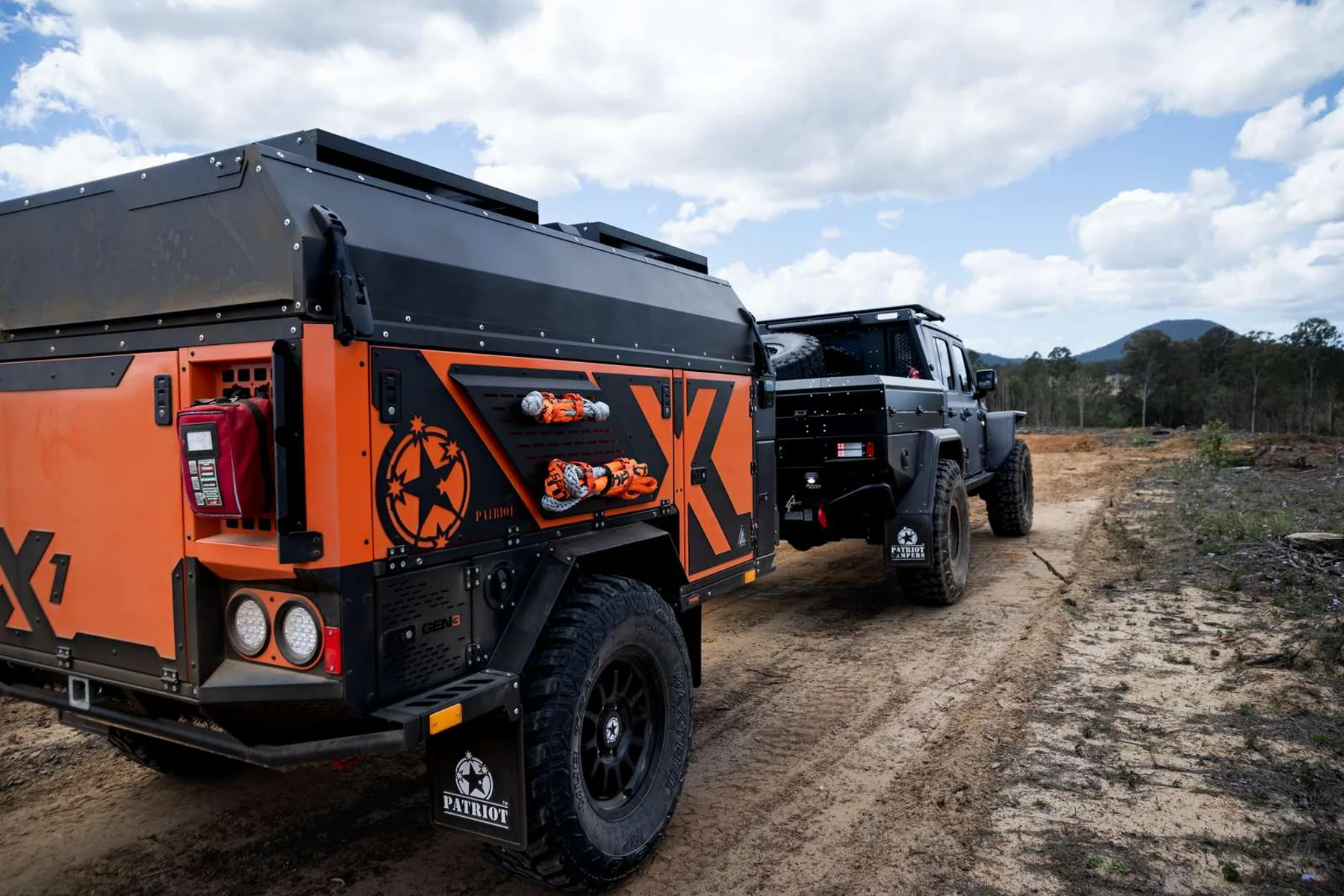

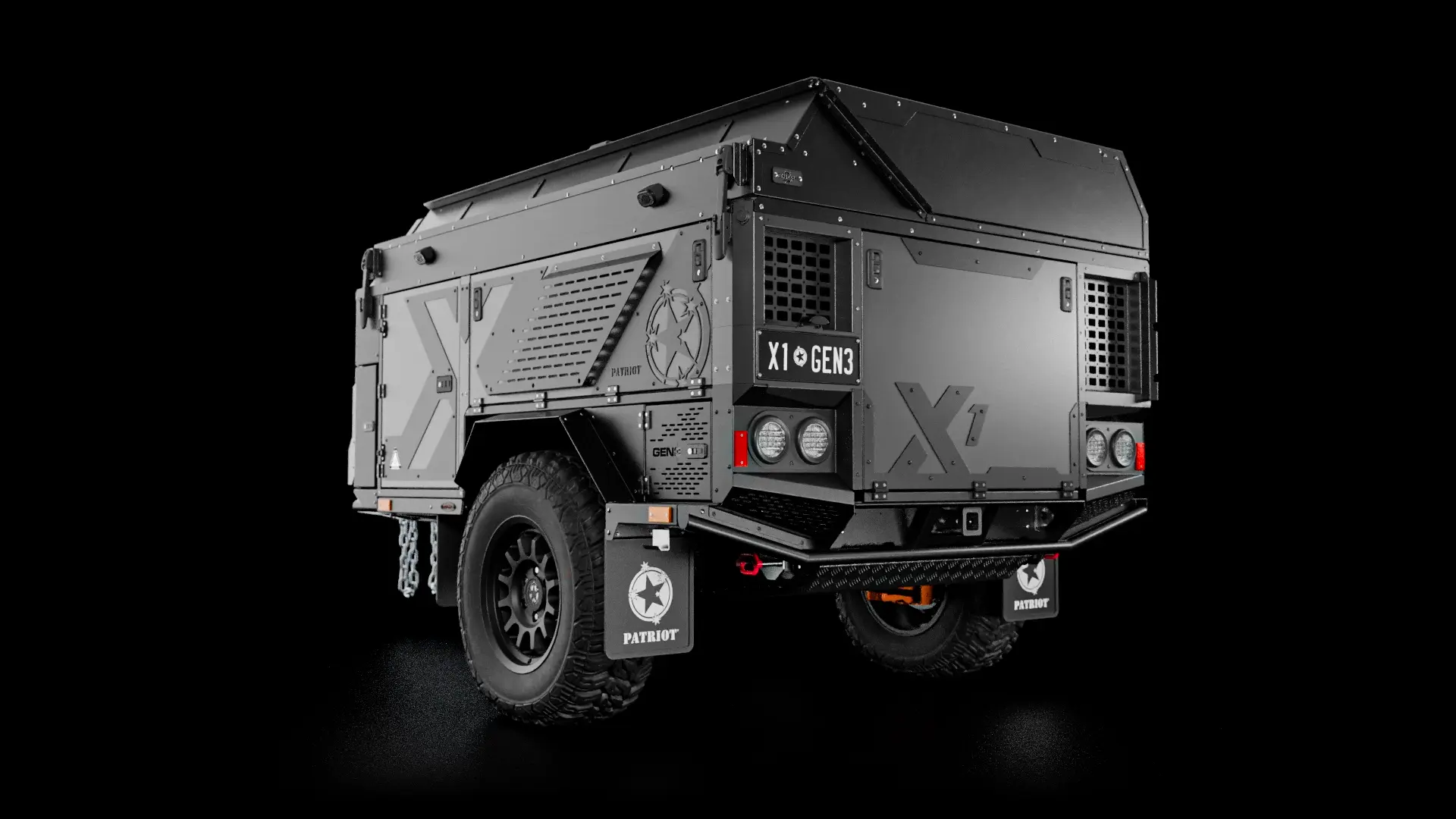

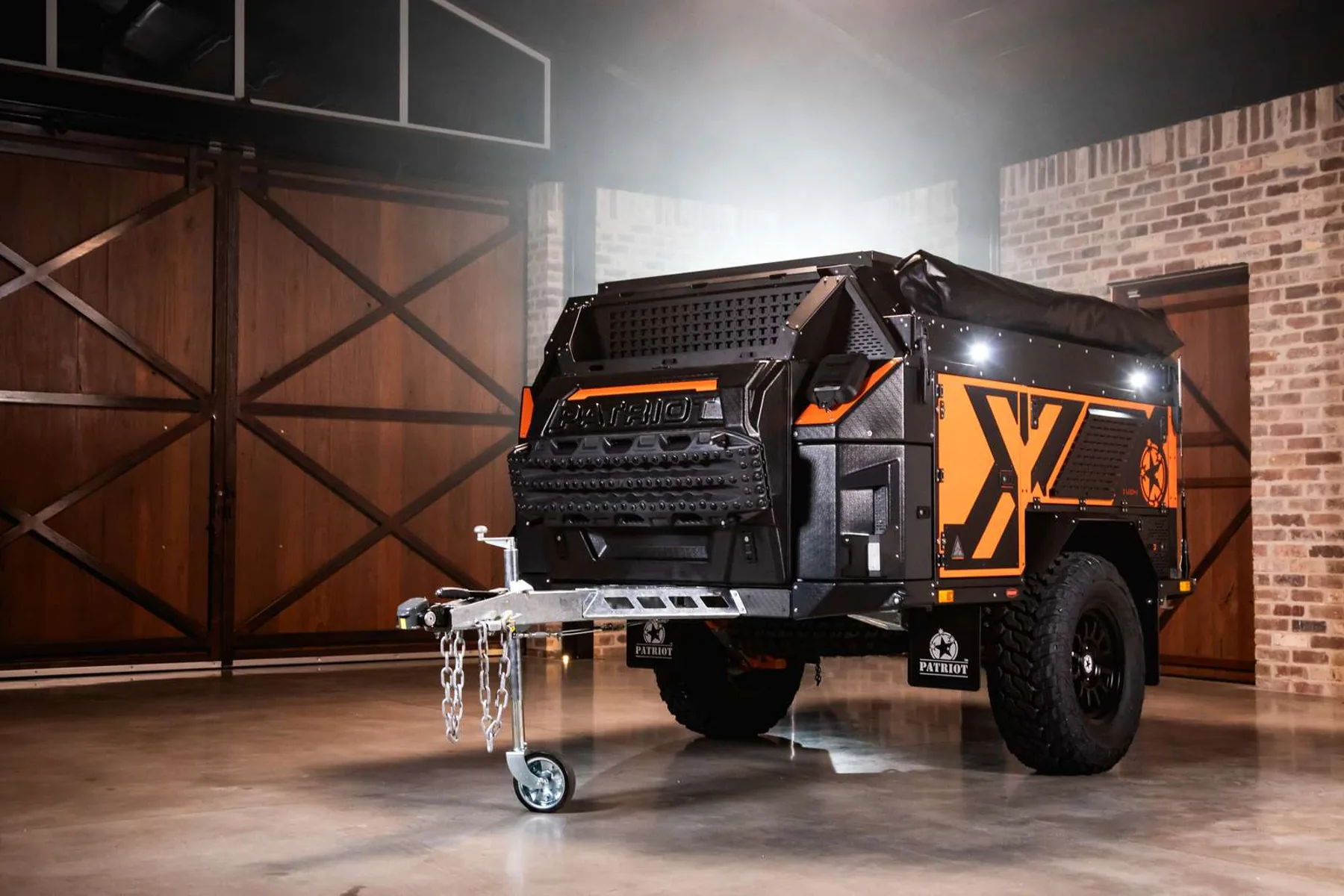

Volcano, Arctic, Desert or Wildfire. The Gen3 X1 has flared guards, laser-cut decals and cast-alloy badges. All four colours are standard.

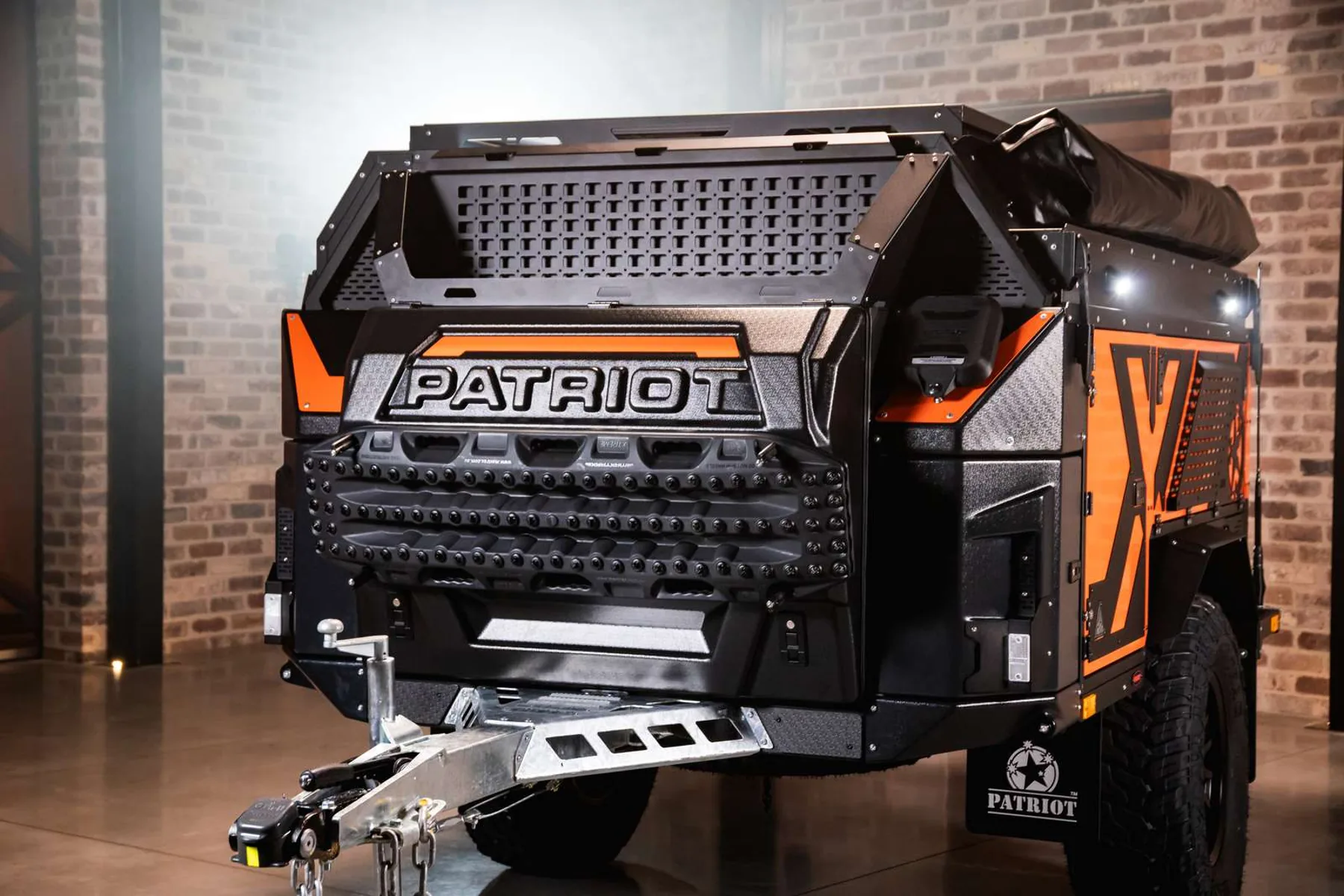

Composite Modular Front End
STANDARDThe embossed front panels can be replaced individually, without replacing the complete front end.

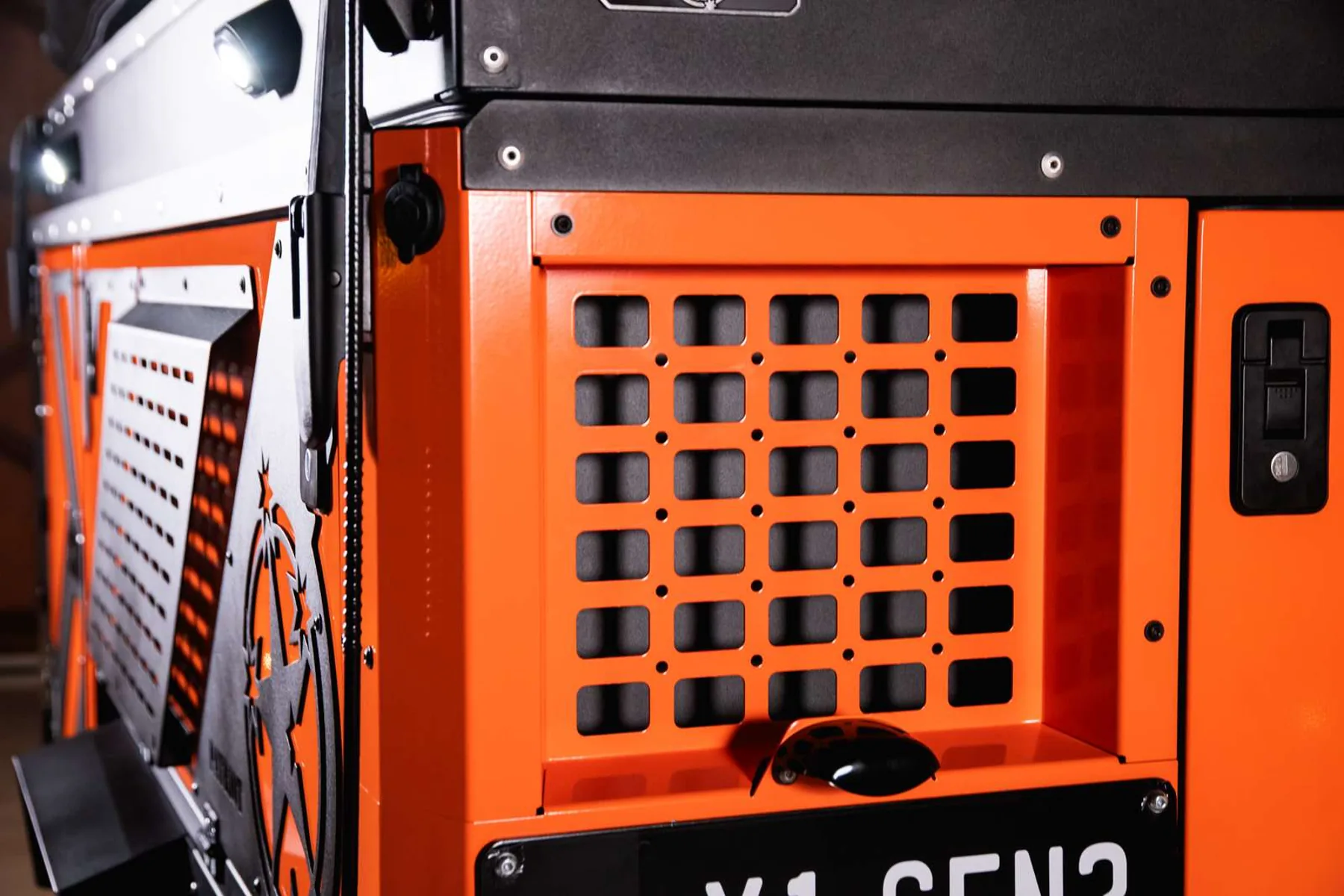

MOLLE panels
STANDARD REAR · OPTIONAL SIDERear MOLLE panels are standard. Optional side-mounted panels add mounting points for bags, tools and accessories.

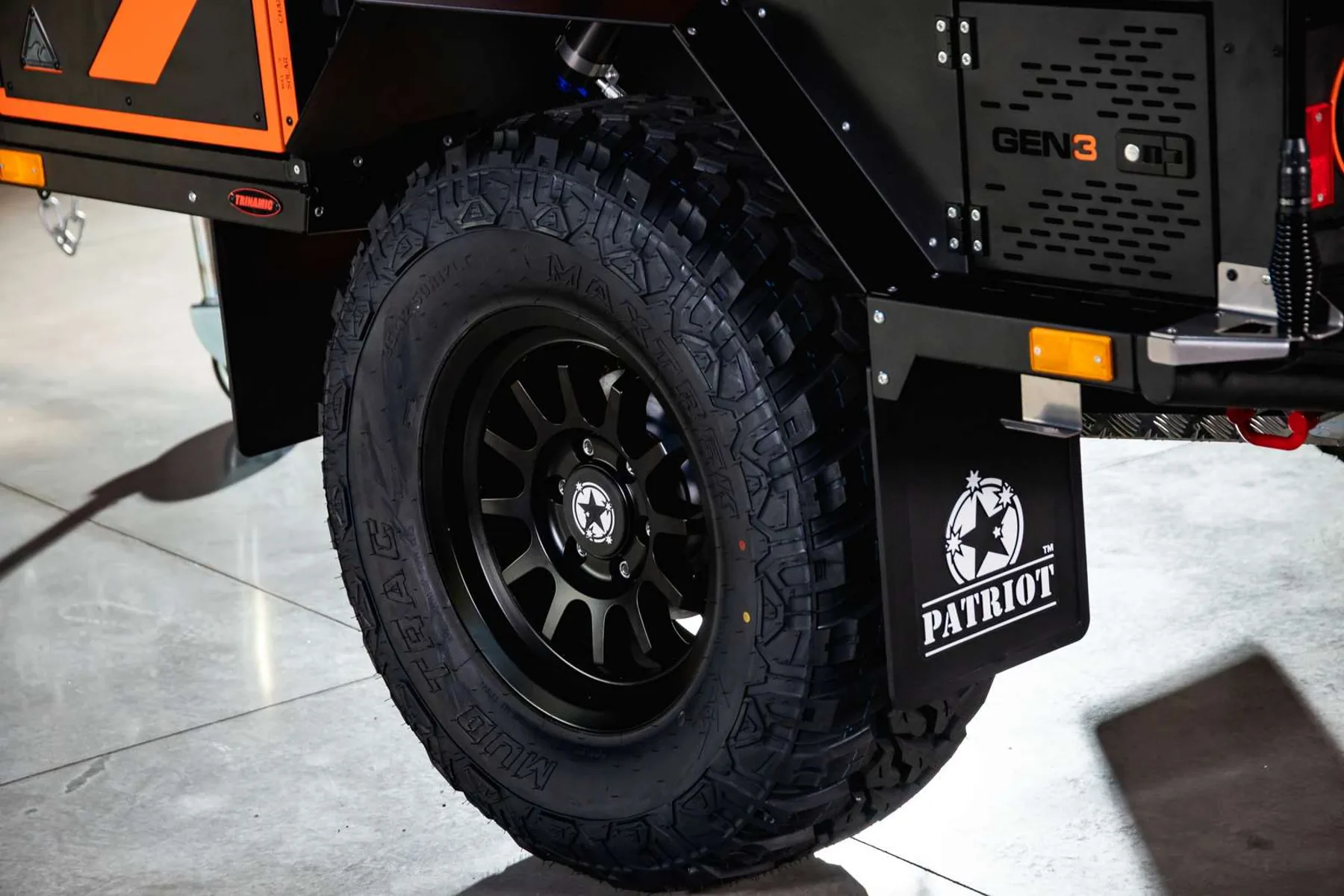

17” alloy wheels
STANDARD17 × 9 alloy wheels with 285/70R17 mud-terrain tyres.

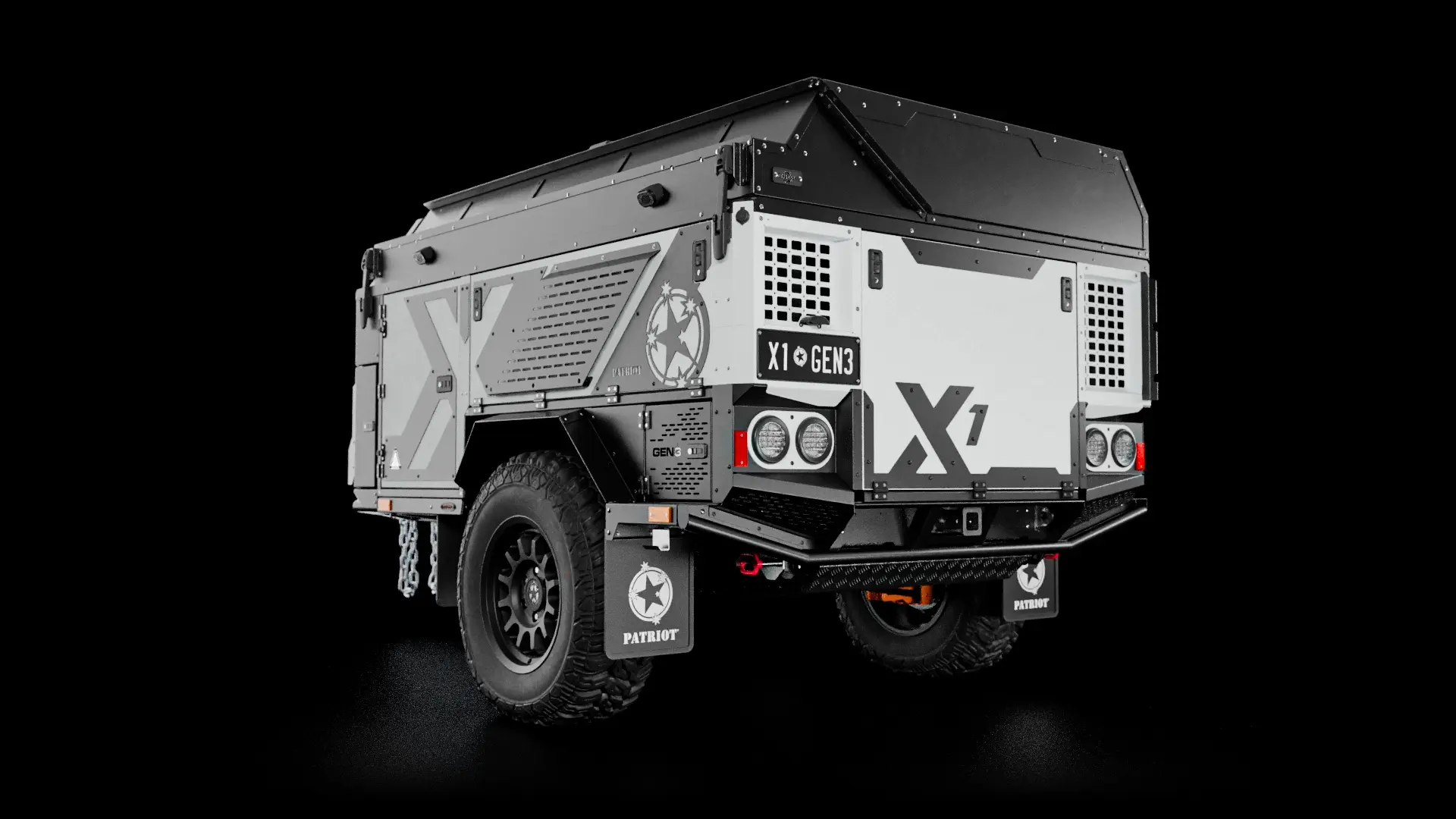

FOUR COLOURS
CHOOSE YOUR COLOUR
Australian designed and manufactured
Chassis & construction
A hot-dipped galvanised Rigilite™ chassis supports the powder-coated structural aluminium body. Aerojoin weldless body construction and composite panels keep the body weight down.

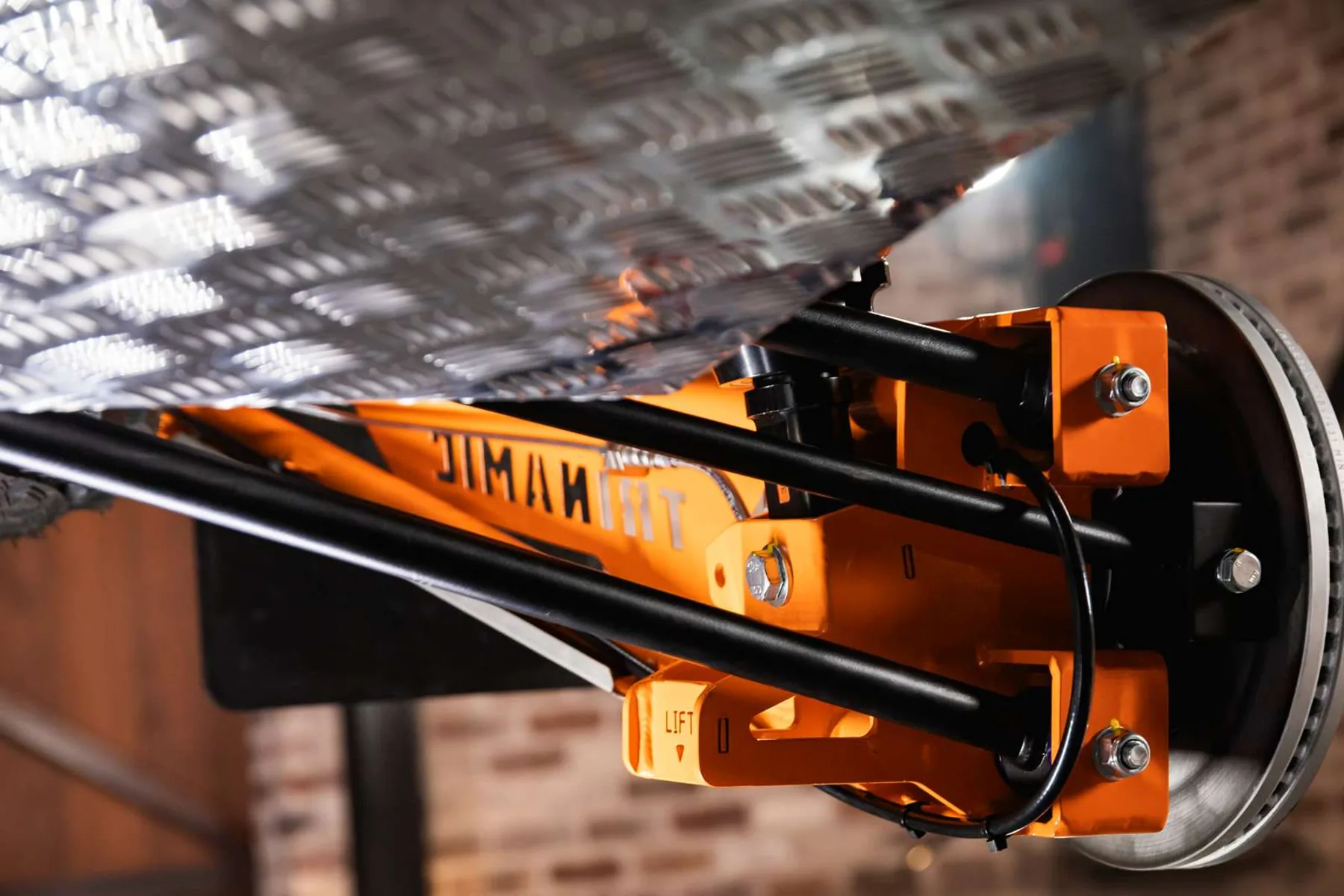

Our lightest chassis ever
STANDARDThe redesigned Rigilite™ chassis balances weight with strength. Finite element analysis (FEA) informed the design, with suspension integrated into the chassis.

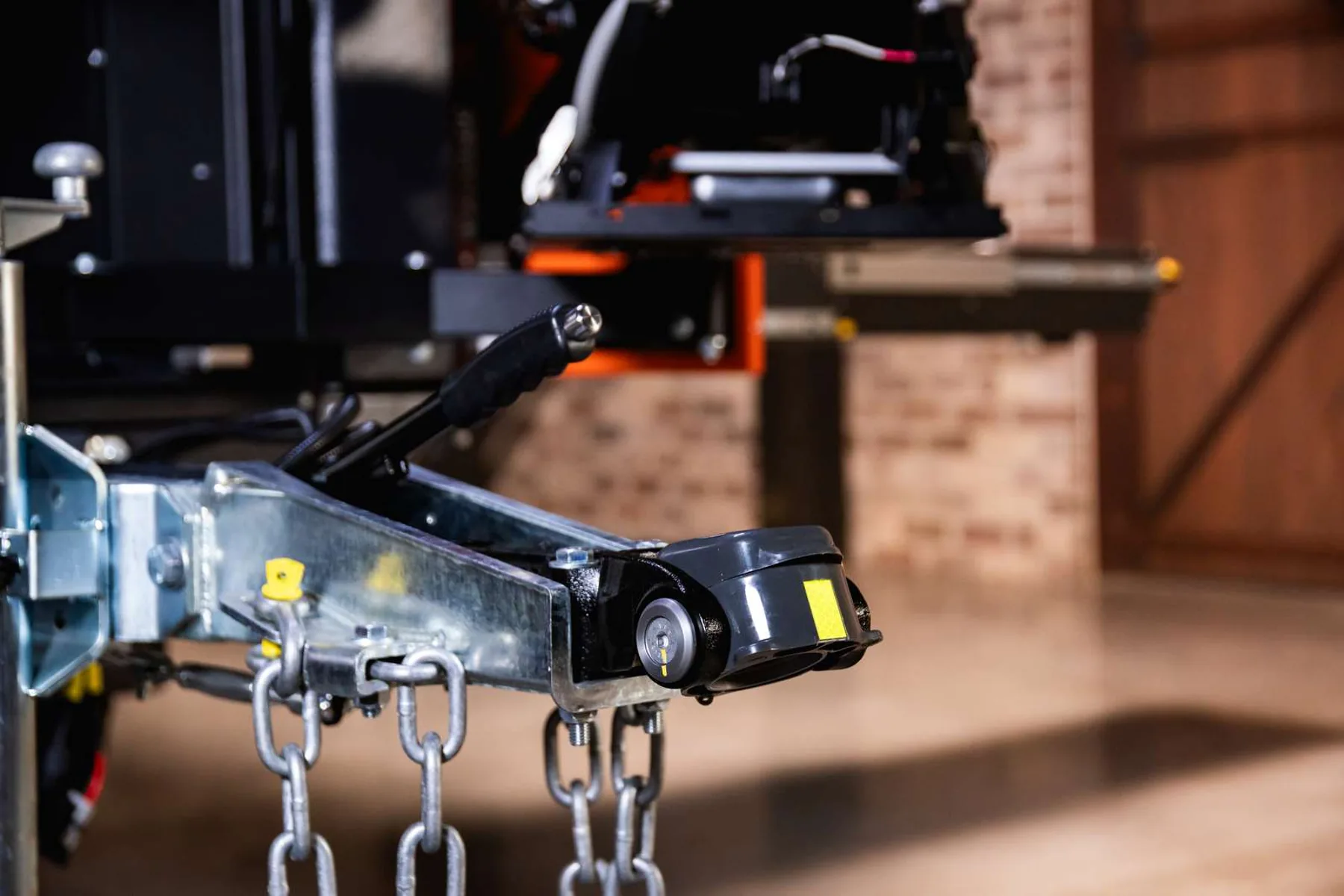

Cruisemaster DO35 hitch
STANDARDThe DO35 hitch allows articulation between the trailer and tow vehicle. A fixed swivel jockey wheel stays attached when it is folded into its travel position.
Underbody protection
STANDARDA steel rear bar, stainless-steel suspension guards and aluminium bash guards protect the underside. The spare wheel is mounted beneath the body.

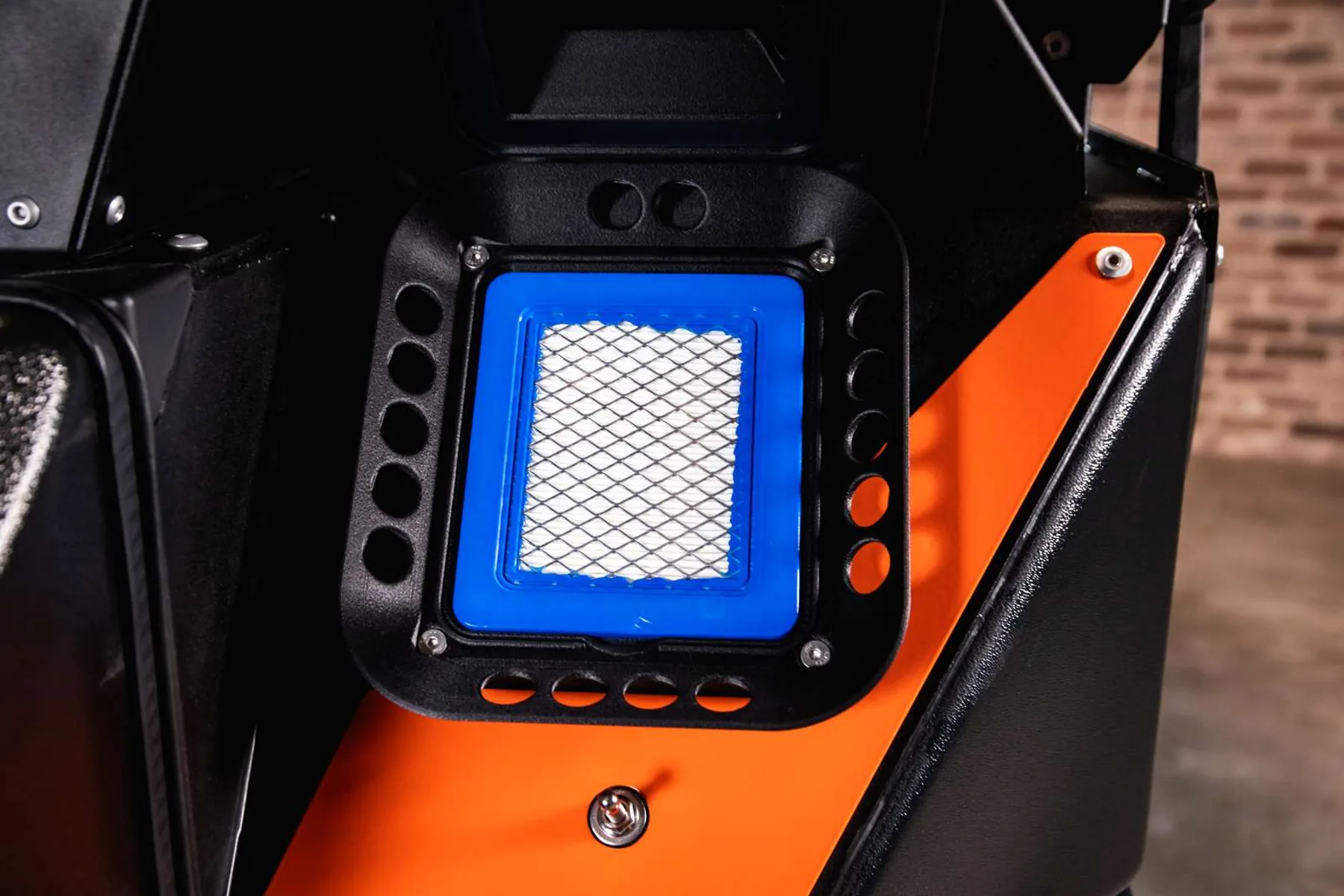

PCOR dust reduction system
STANDARDAn electric fan draws filtered air into the compartments to create positive pressure and reduce dust ingress. The filter is accessible for routine servicing.
Rated Stabilising Legs
STANDARDLevel your trailer at camp with rated stabilising legs.

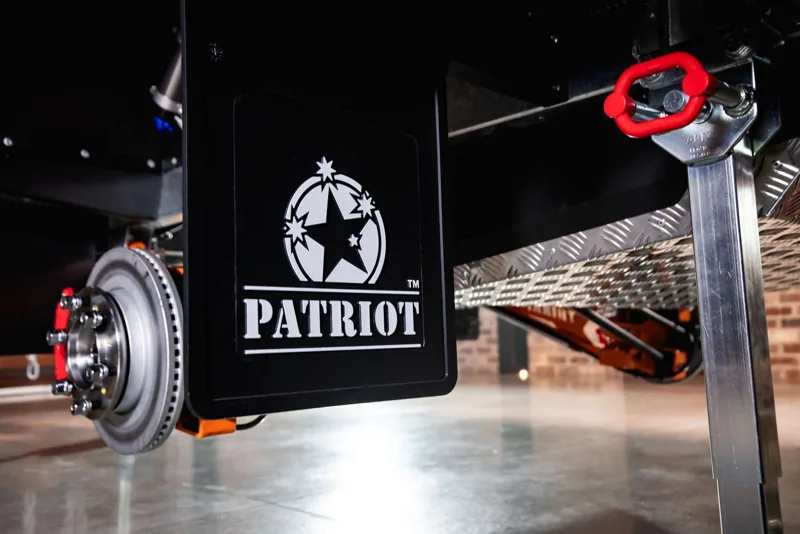

Recovery & carrying points
STANDARDDedicated recovery points and a rear hitch receiver for compatible accessory carriers.

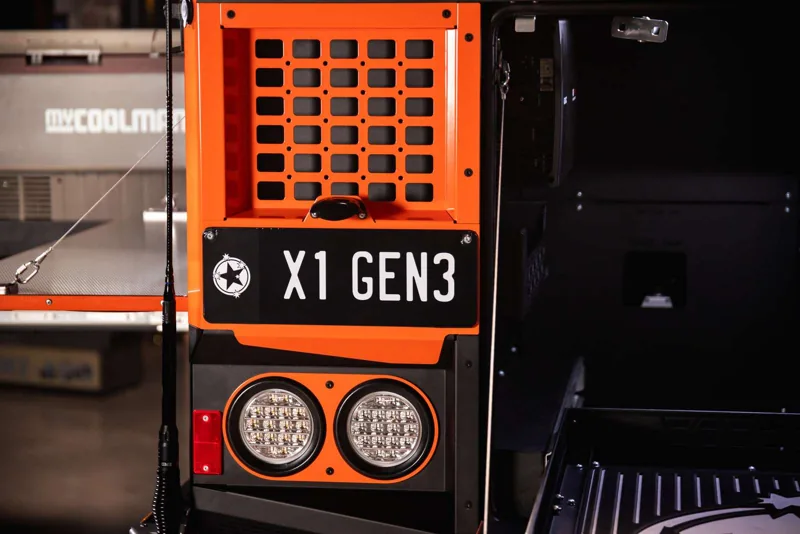

Compartment hardware
STANDARDHinged doors with support cables and latches.
3.7 m long × 1.95 m wide

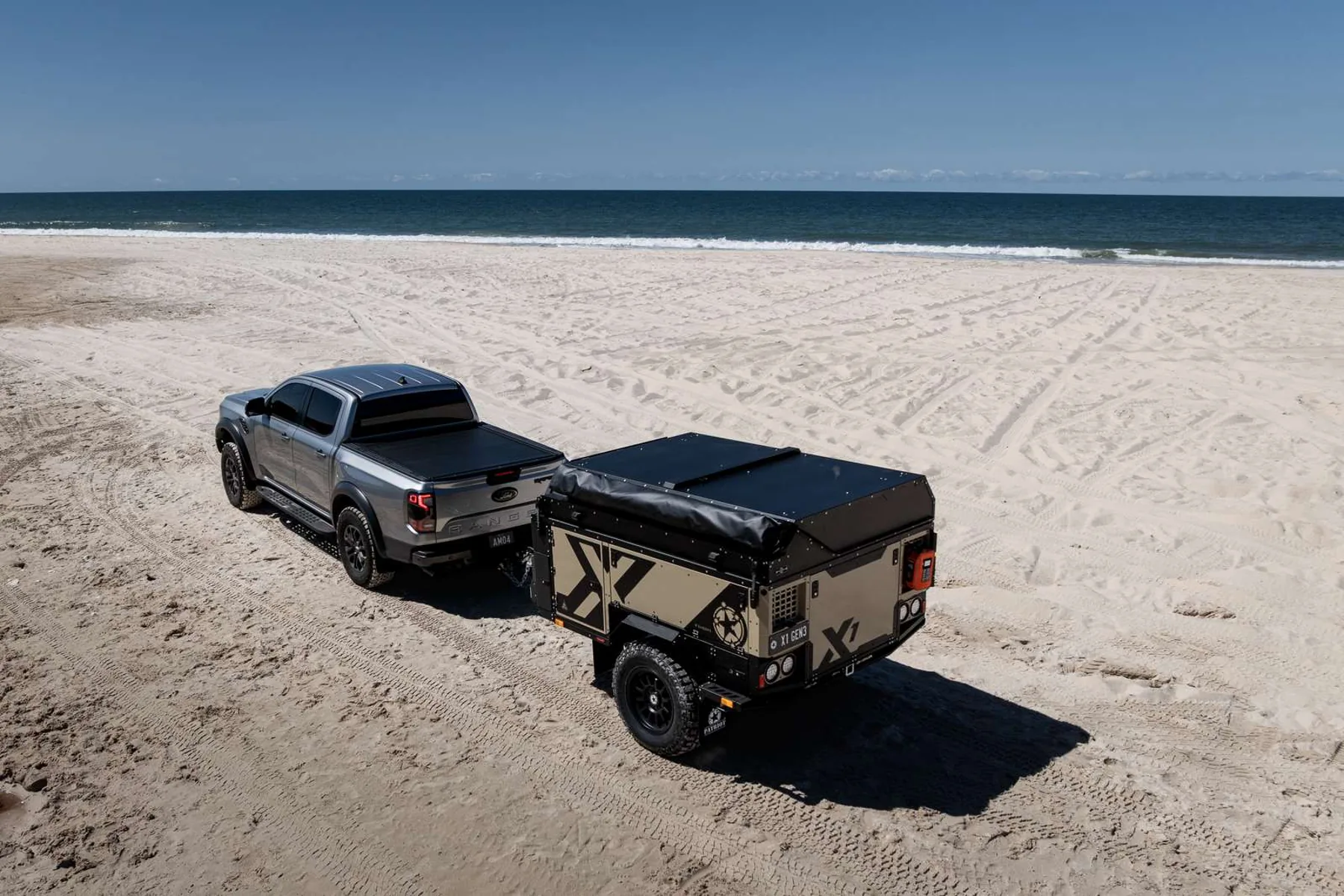

Compact design
The travel height is 1.9 m, with a 36° departure angle. Base tare is 895 kg (1,973 lb) and ATM is 1,495 kg (3,296 lb). That leaves 600 kg (1,323 lb) of base payload for options, water, gas and luggage.
- BASE TARE
- 895 kg / 1,973 lb
- ATM
- 1,495 kg / 3,296 lb
- DEPARTURE ANGLE
- 36°

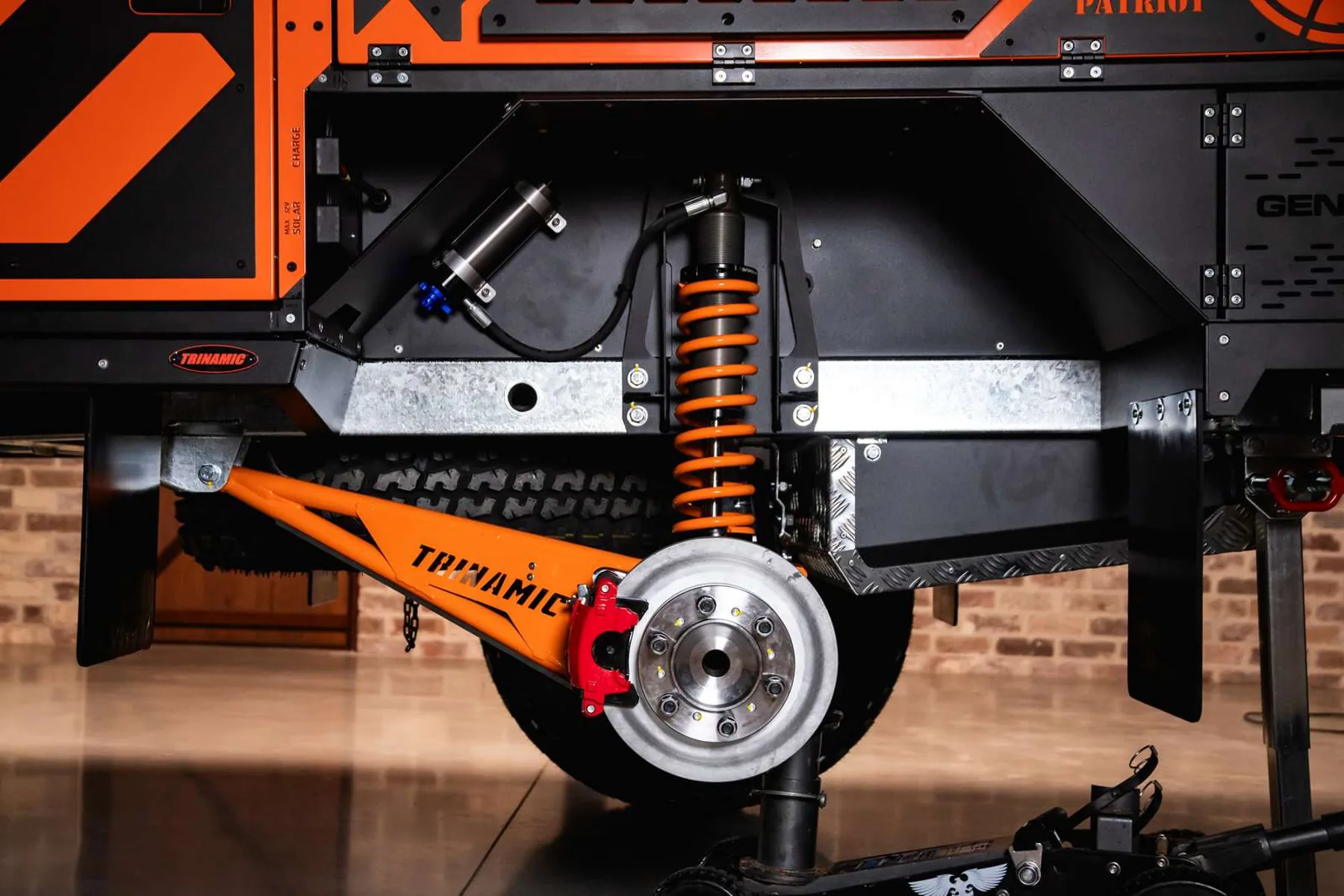

Suspension & ride

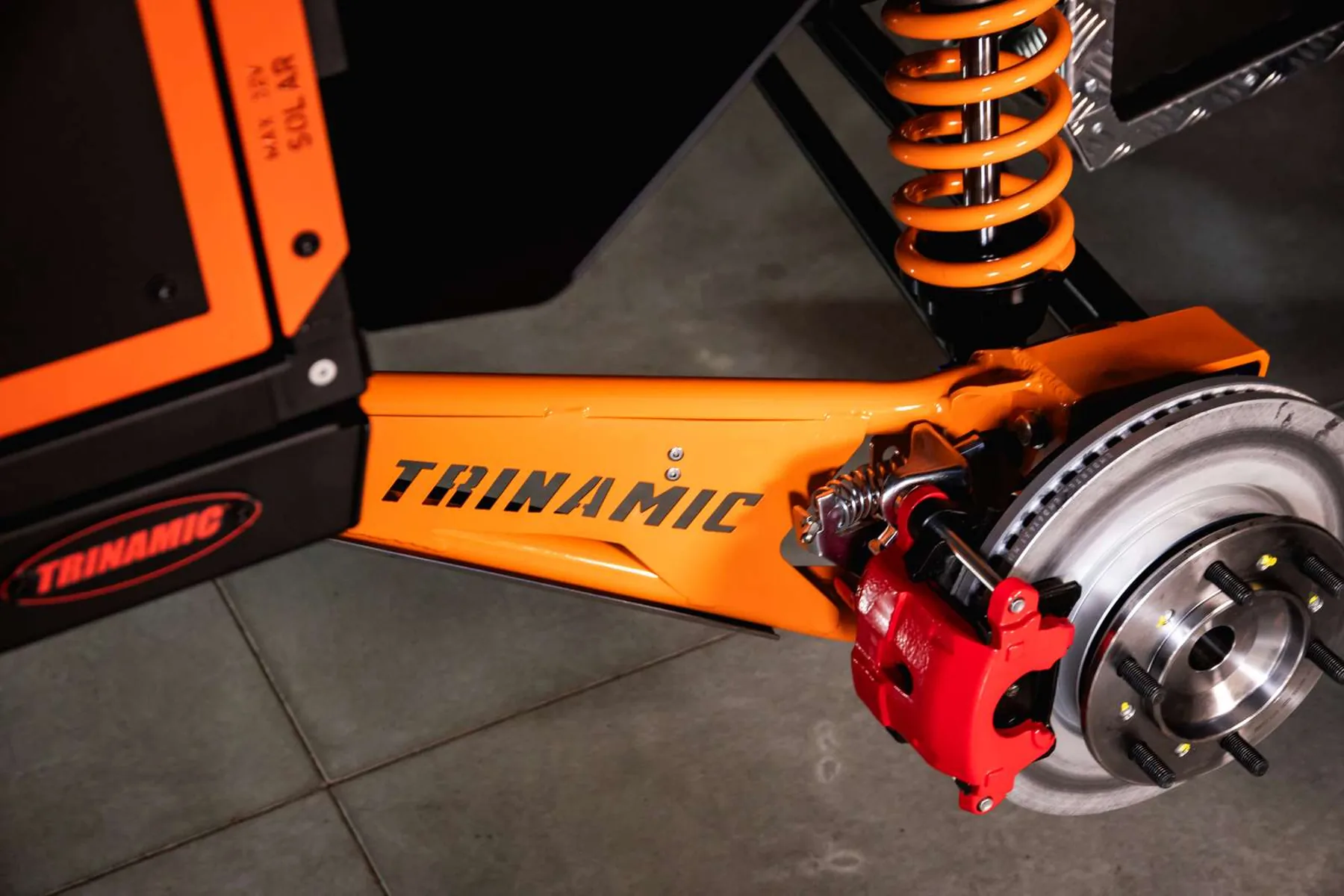

Trinamic™ Core uses a triangulated radius-arm layout with 200 mm of suspension travel. Three radius rods locate the wheel, with toe and camber adjustment for wheel alignment. Coilover shocks are standard.
Disc brakes & mud-terrain tyres
STANDARDElectric-over-hydraulic braking operates 285 mm discs. Standard 285/70R17 mud-terrain tyres are mounted on 17 × 9 wheels. The body also accommodates compatible aftermarket 35-inch tyres.
Coil over shocks
STANDARDCoilover shocks are standard with the Trinamic™ Core suspension system.

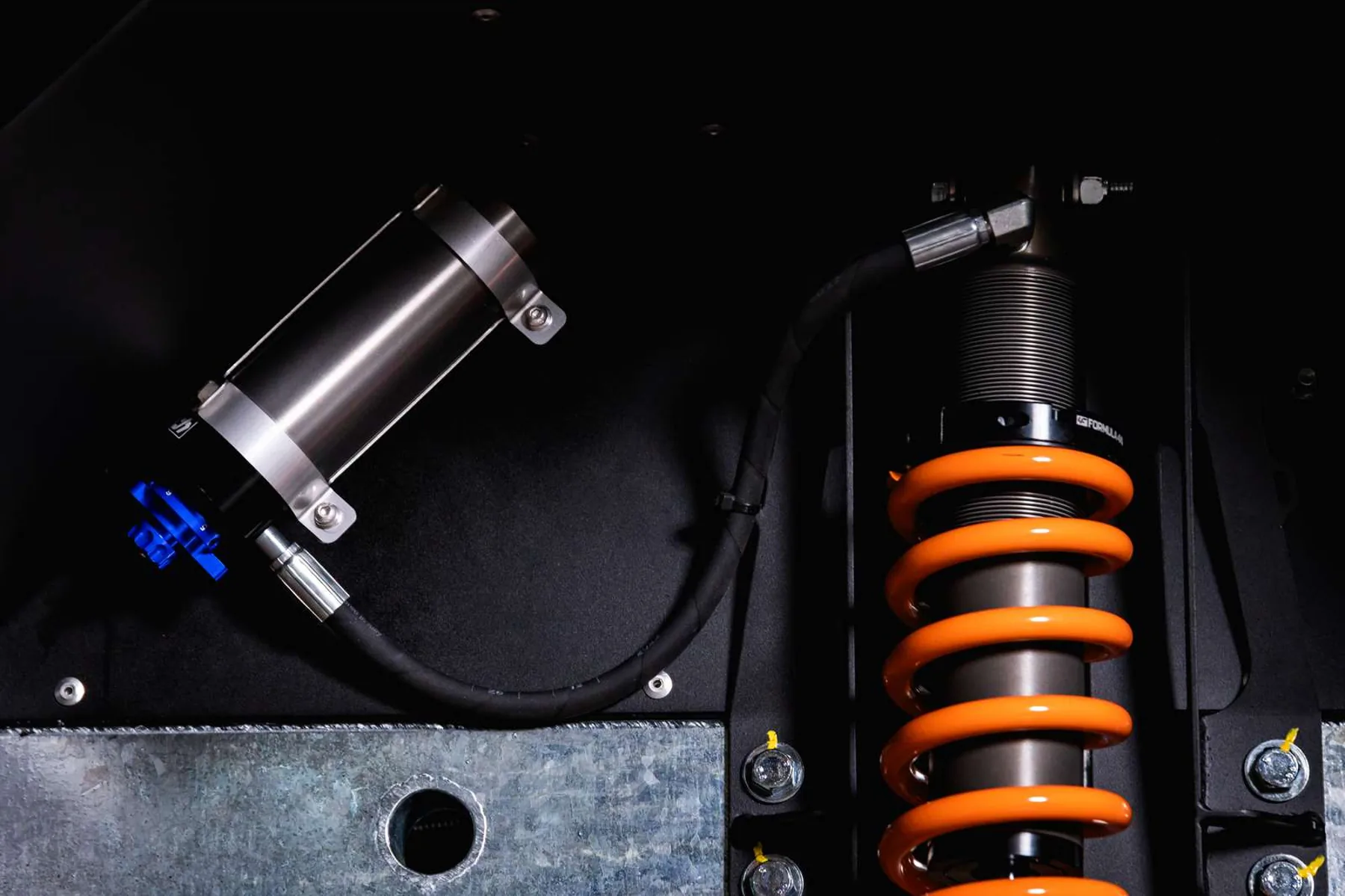

Formula F4R Remote Reservoir Shocks
OPTIONAL UPGRADEFormula F4R remote-reservoir shocks, through our partnership with Fulcrum and Formula. A separate reservoir holds additional shock fluid and helps manage heat during repeated suspension movement.
Disc brakes
STANDARDElectric-over-hydraulic braking with 285 mm discs.
Spare wheel
STANDARDUnderbody spare-wheel storage keeps the spare outside the main compartments.

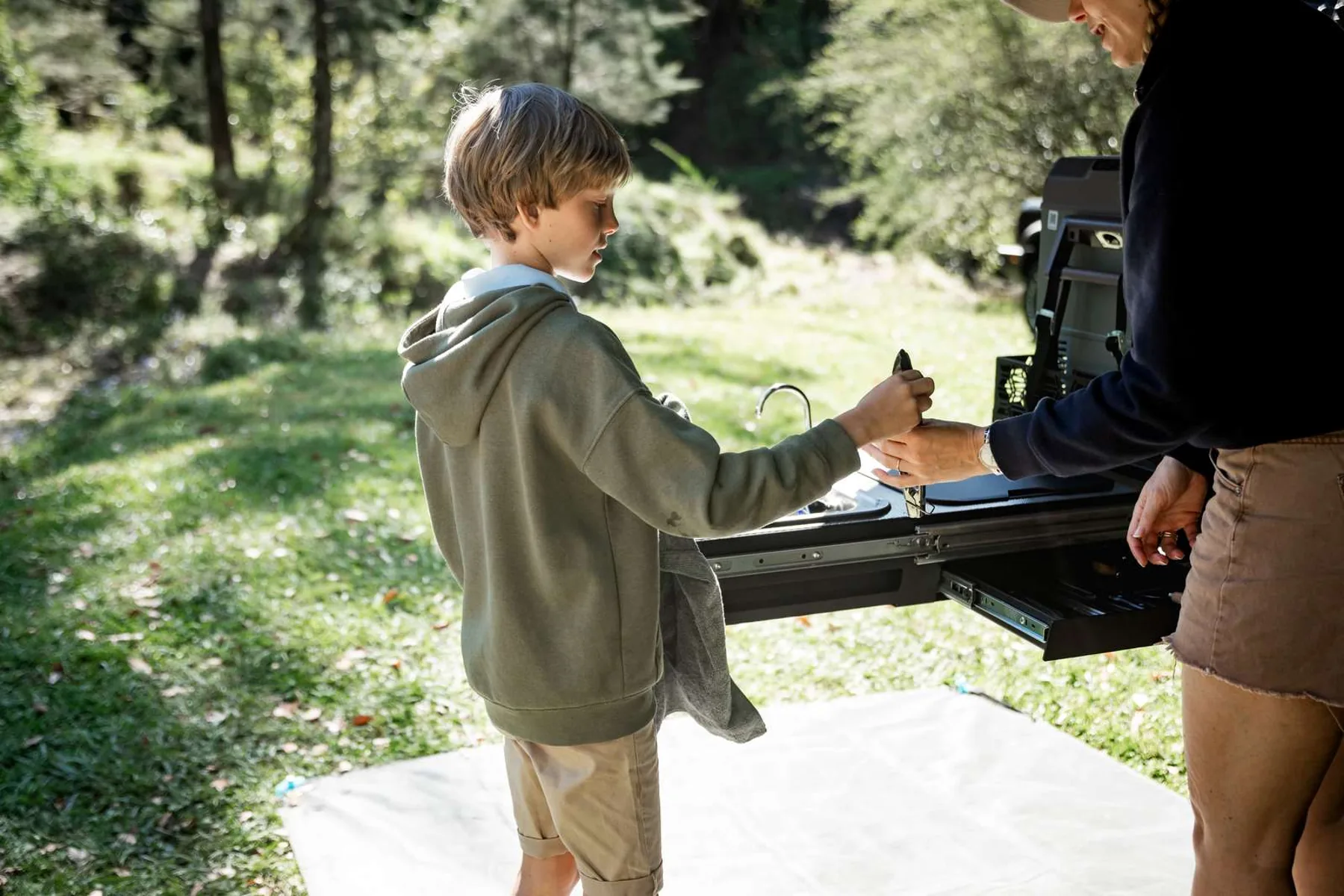

Living
The L-shaped kitchen brings the cooker, sink, preparation space and pantry together on one side of the camper. Stainless-steel benchtops, cutlery storage, a spice rack and a slide-out cutting board keep the cooking area organised.

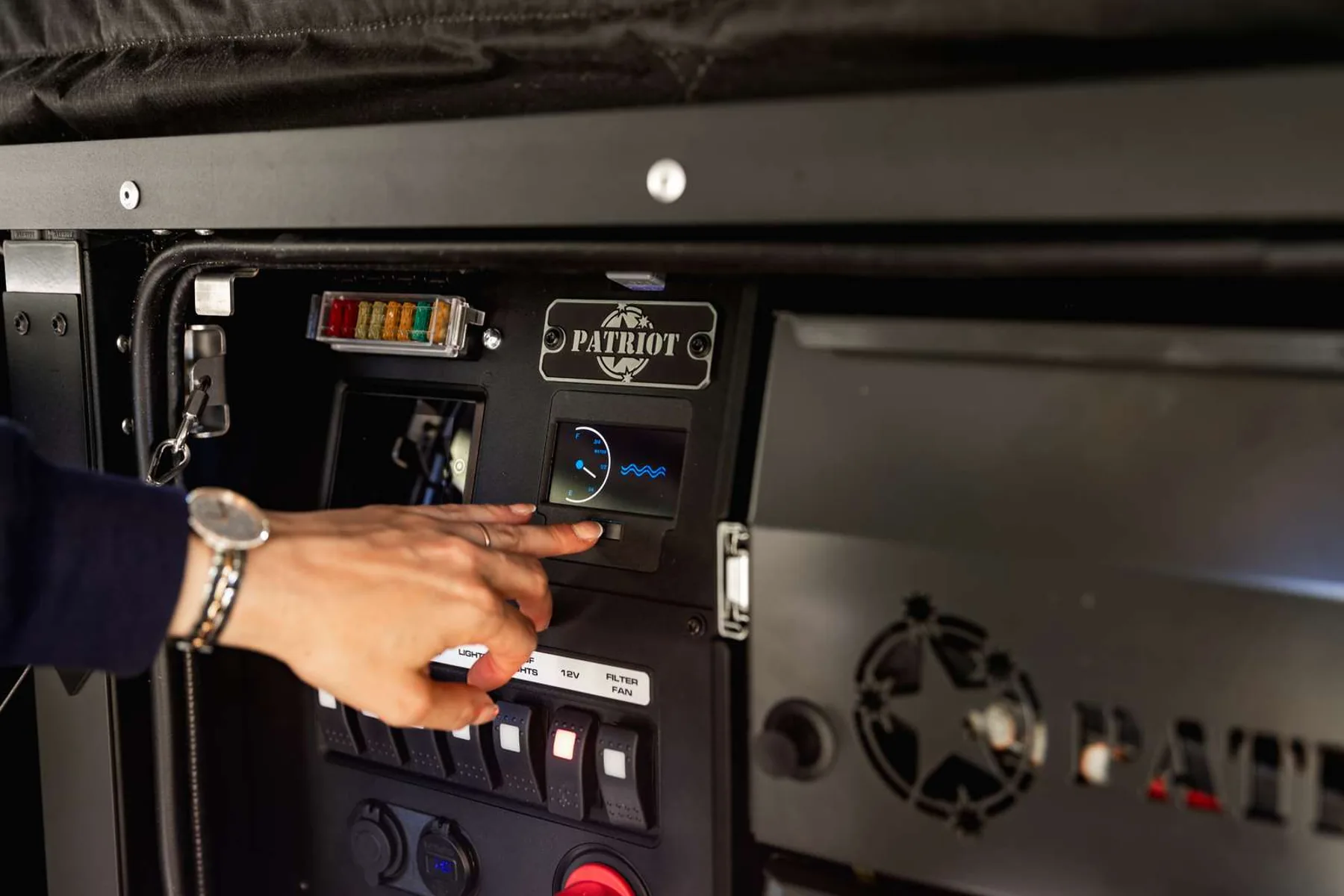

Water & hot water
STANDARDA 100 L water tank supplies the system. A 10 L electric hot-water unit and external shower are standard. The water pump is mounted inside the camper with access to its filter.

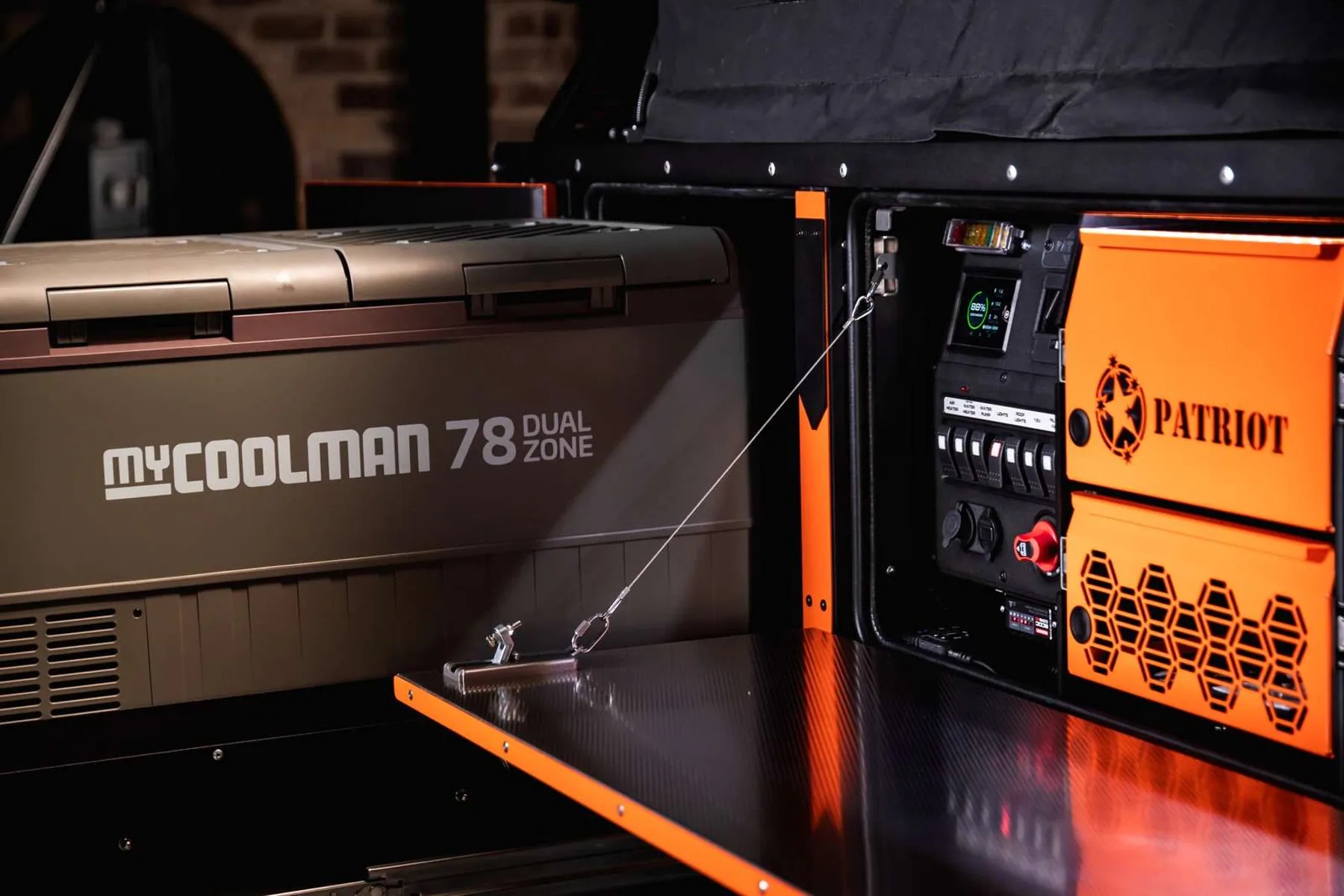

Fridge slide
STANDARD SLIDE · OPTIONAL FRIDGEA slide-out fridge tray sits beside the kitchen. Dometic 75 L and myCOOLMAN 78 L fridge/freezer options are available; market availability differs.

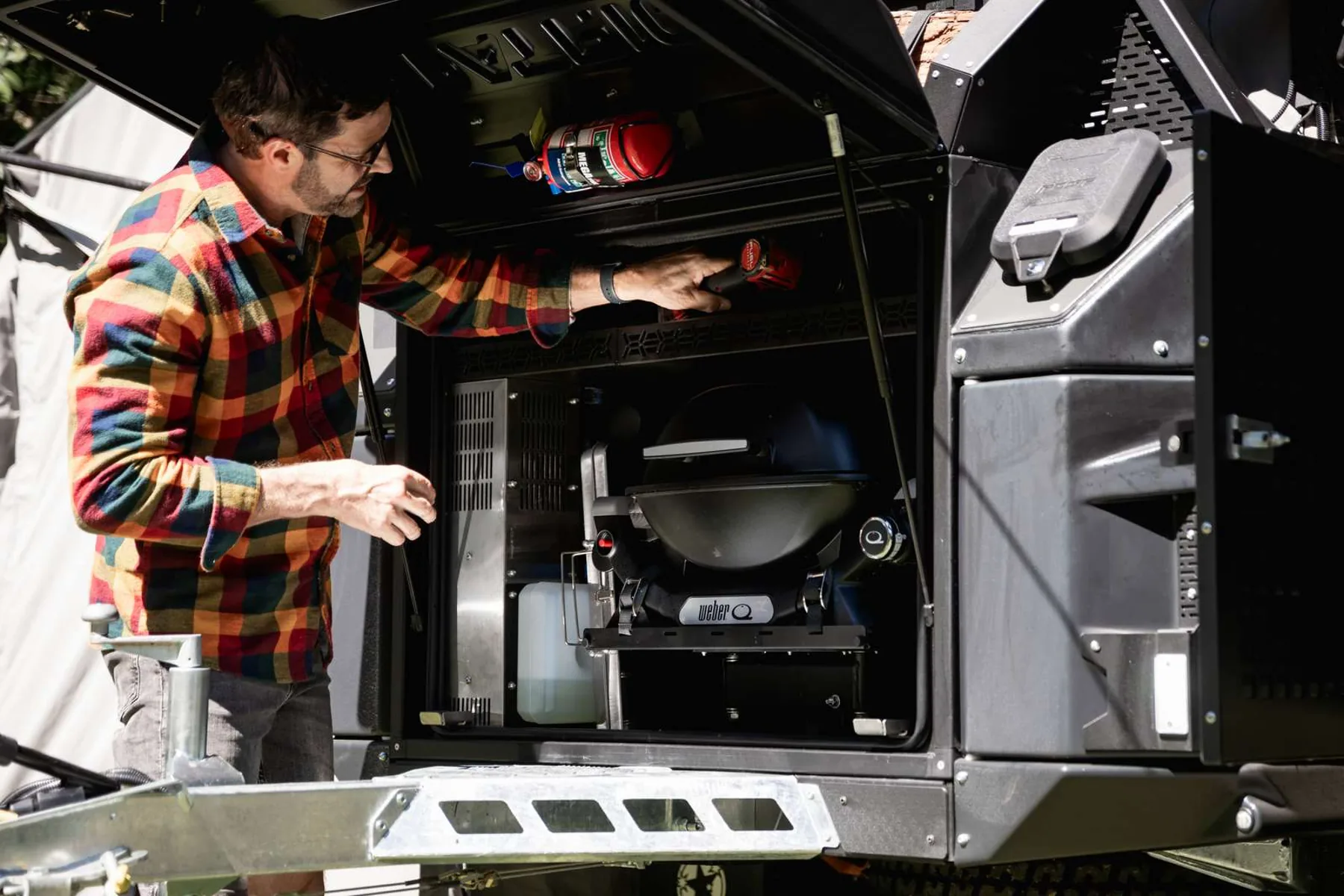

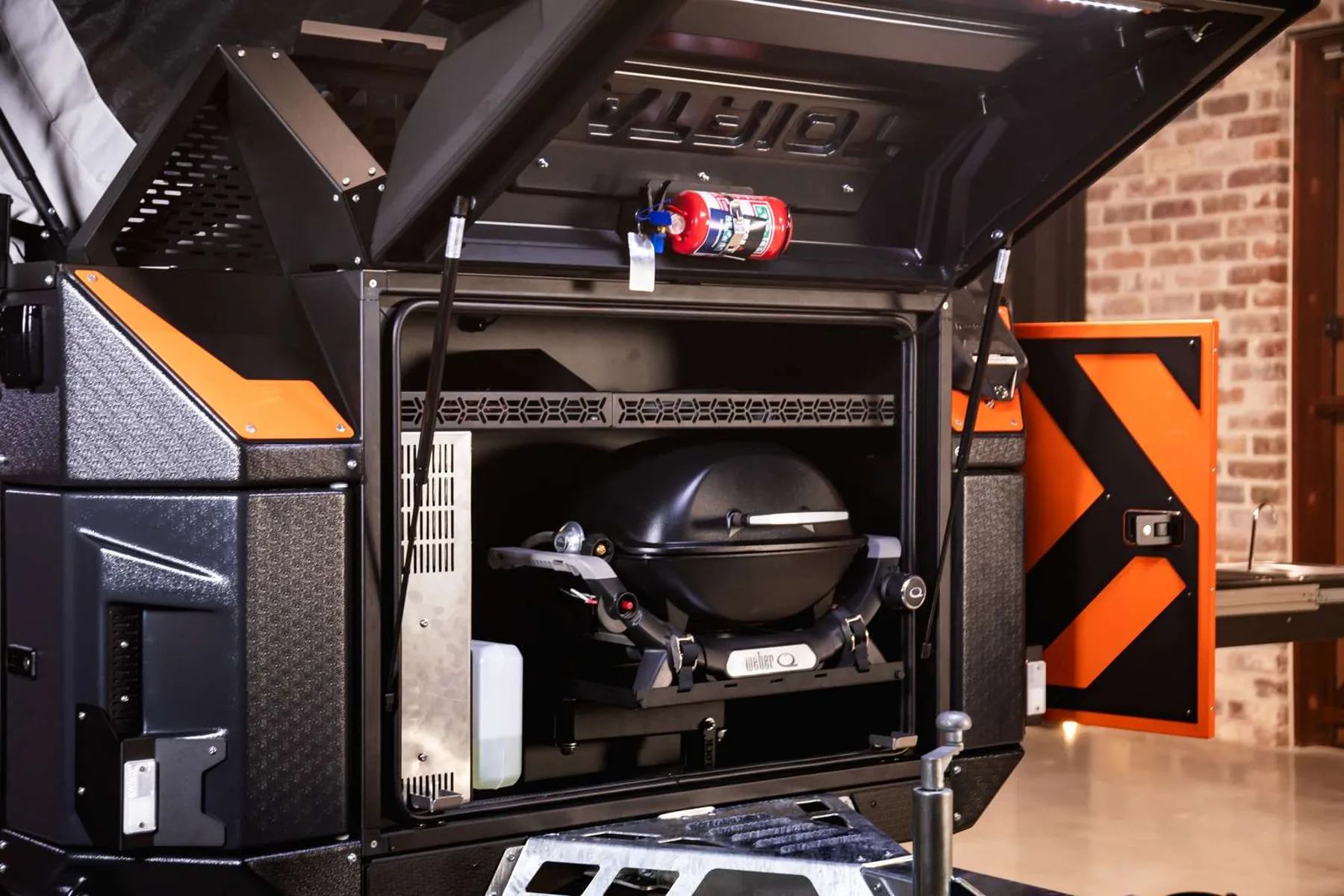

BBQ swing-away
OPTIONALThe optional swing-away brings a barbecue into the kitchen area. A Weber Q1000 is available separately and requires the swing-away.

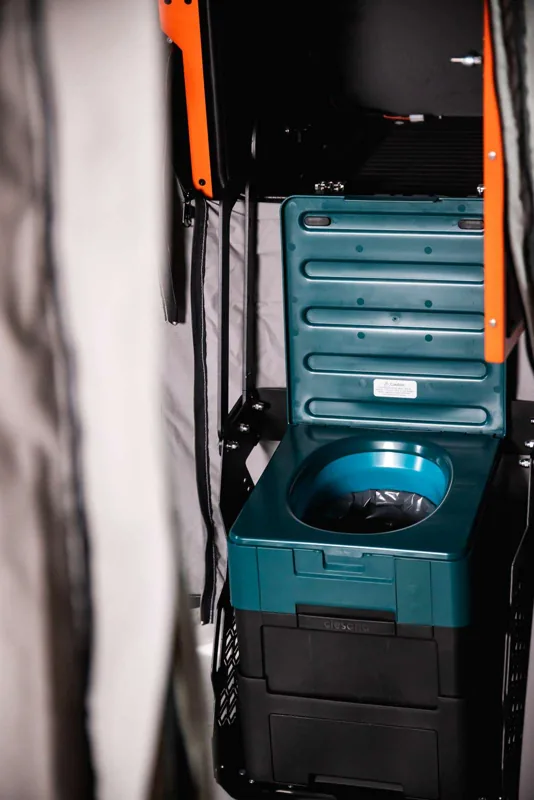

Toilet drop slide
OPTIONALThe optional slide lowers a compatible portable toilet from its storage compartment. Toilets are shown for illustration only and are not available from Patriot.
Kitchen storage
STANDARDPantry shelves, spice rack, cutlery storage, utensil pocket and tea-towel rail.

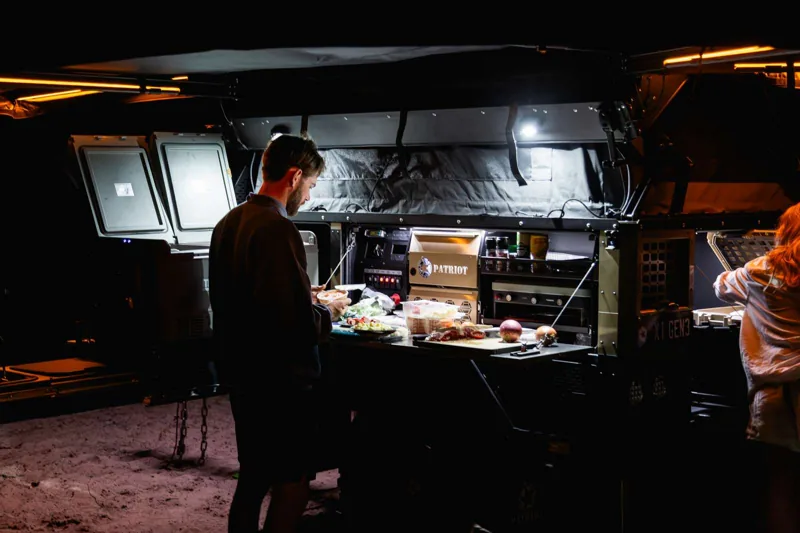

Preparation surfaces
STANDARDStainless-steel benchtops and a cutting board that slides out beneath the fridge tray.

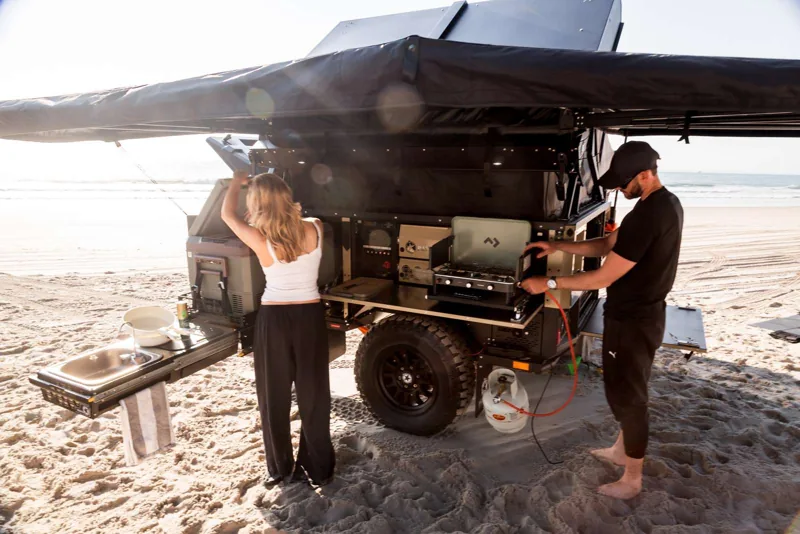

Cooker slide
STANDARDGas-strut-assisted cooker slide and a gas-bottle hook for use at camp.

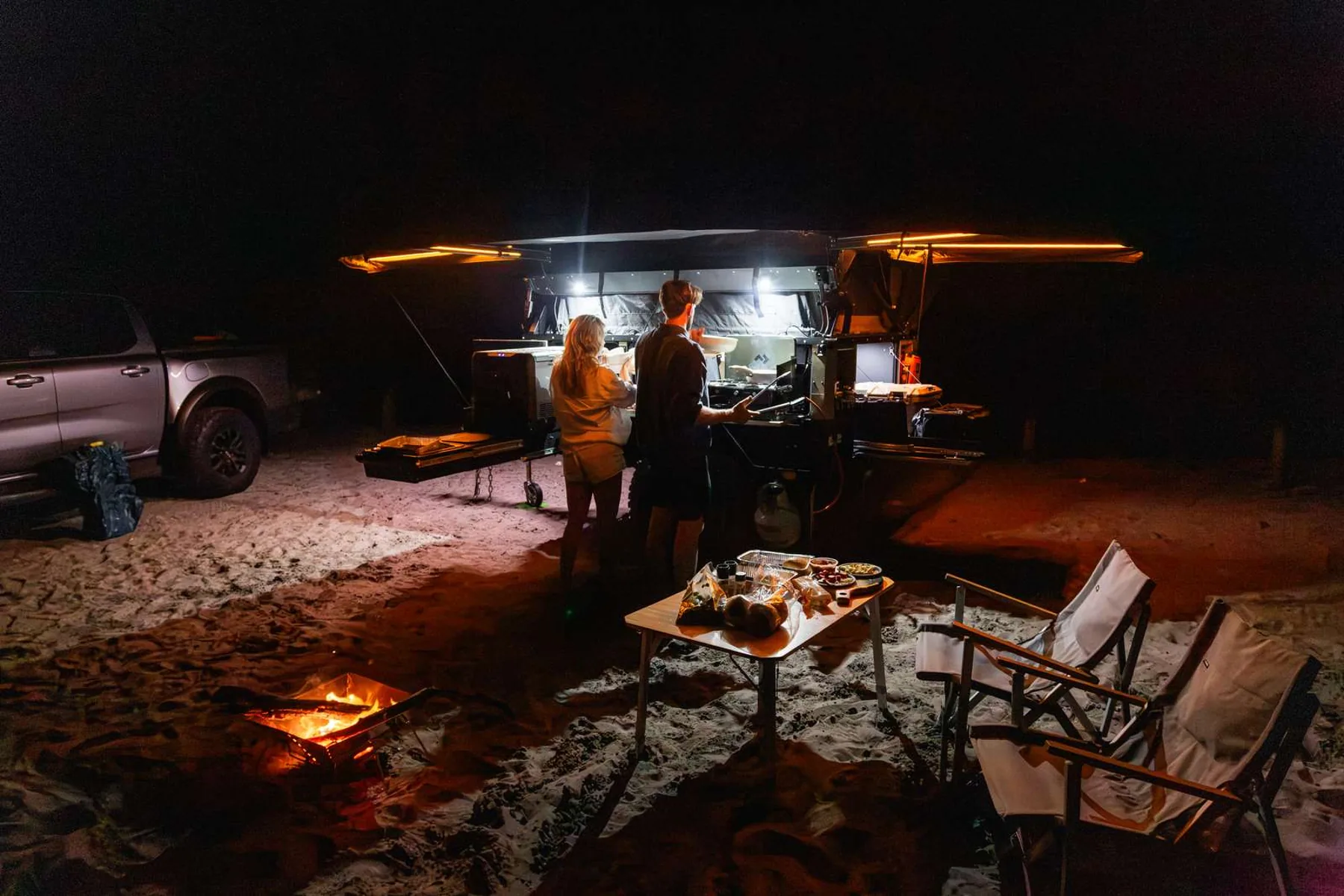

Kitchen lighting
STANDARDRoof lights illuminate the kitchen with the hardlid open or closed.
Water system
STANDARD100 L tank with breathers. Internally mounted water pump with an accessible filter.
Hot water
STANDARD10 L electric storage water heater with a 300W element, plus an external shower.

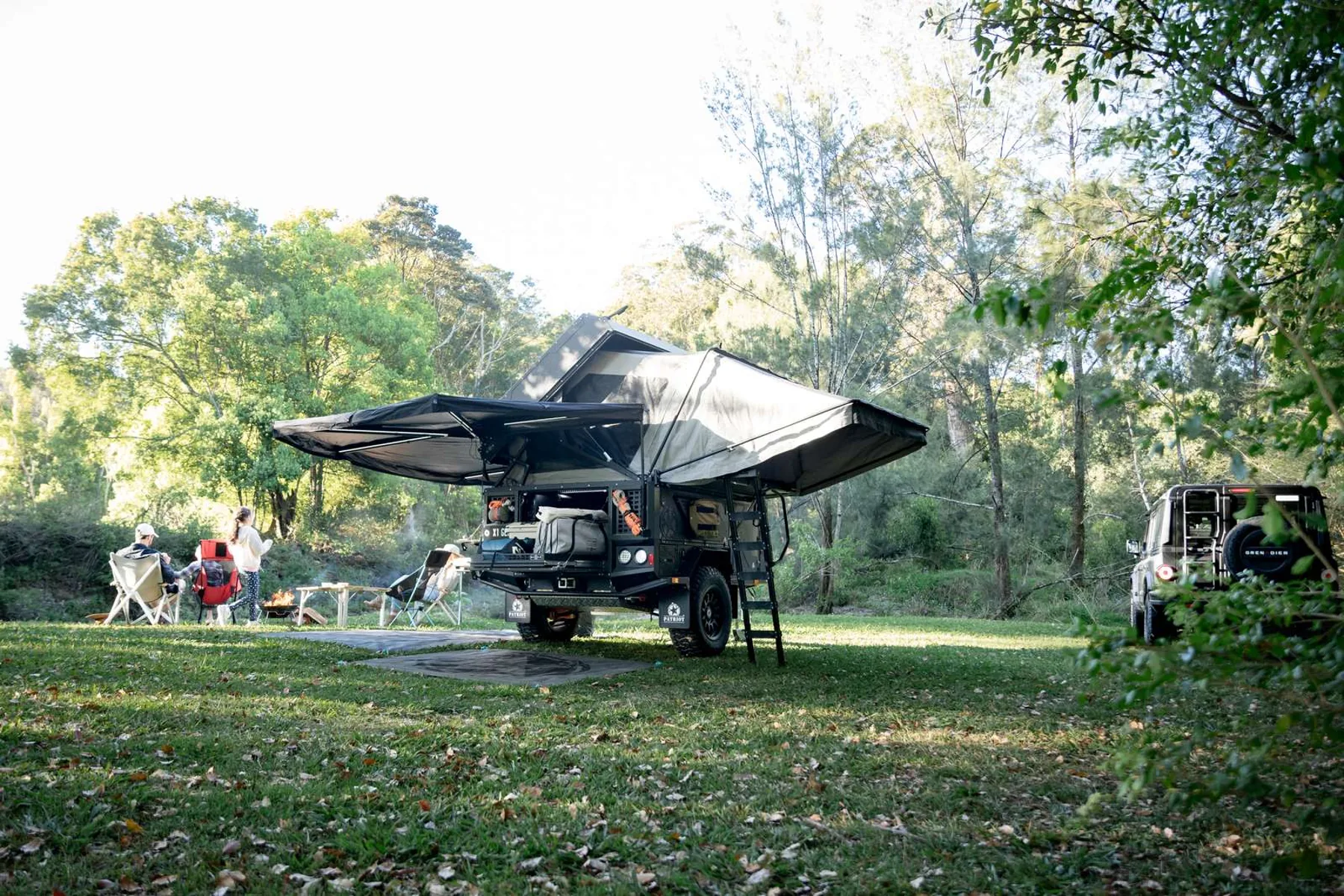

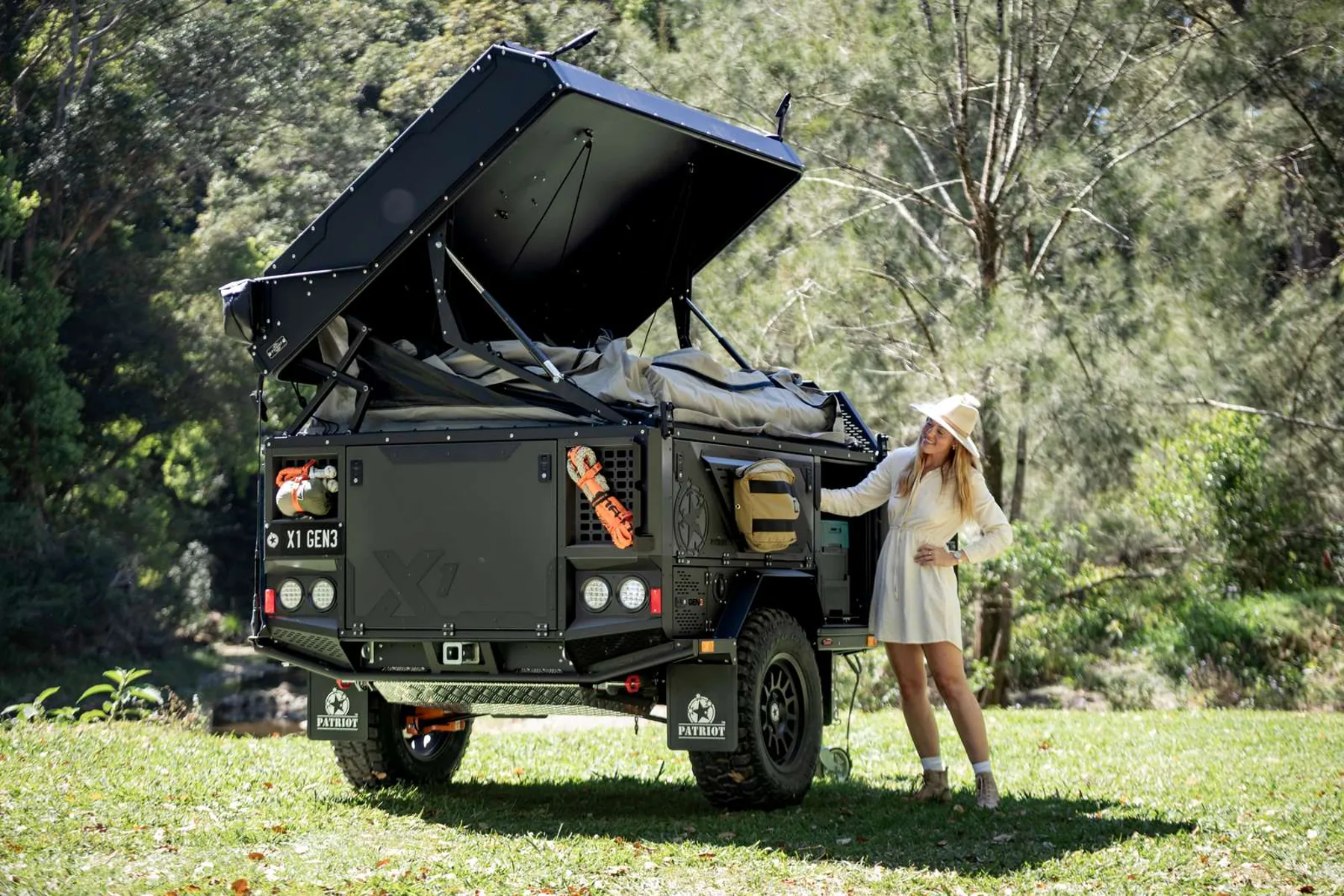

Electric hardlid. Integrated sleeping area.

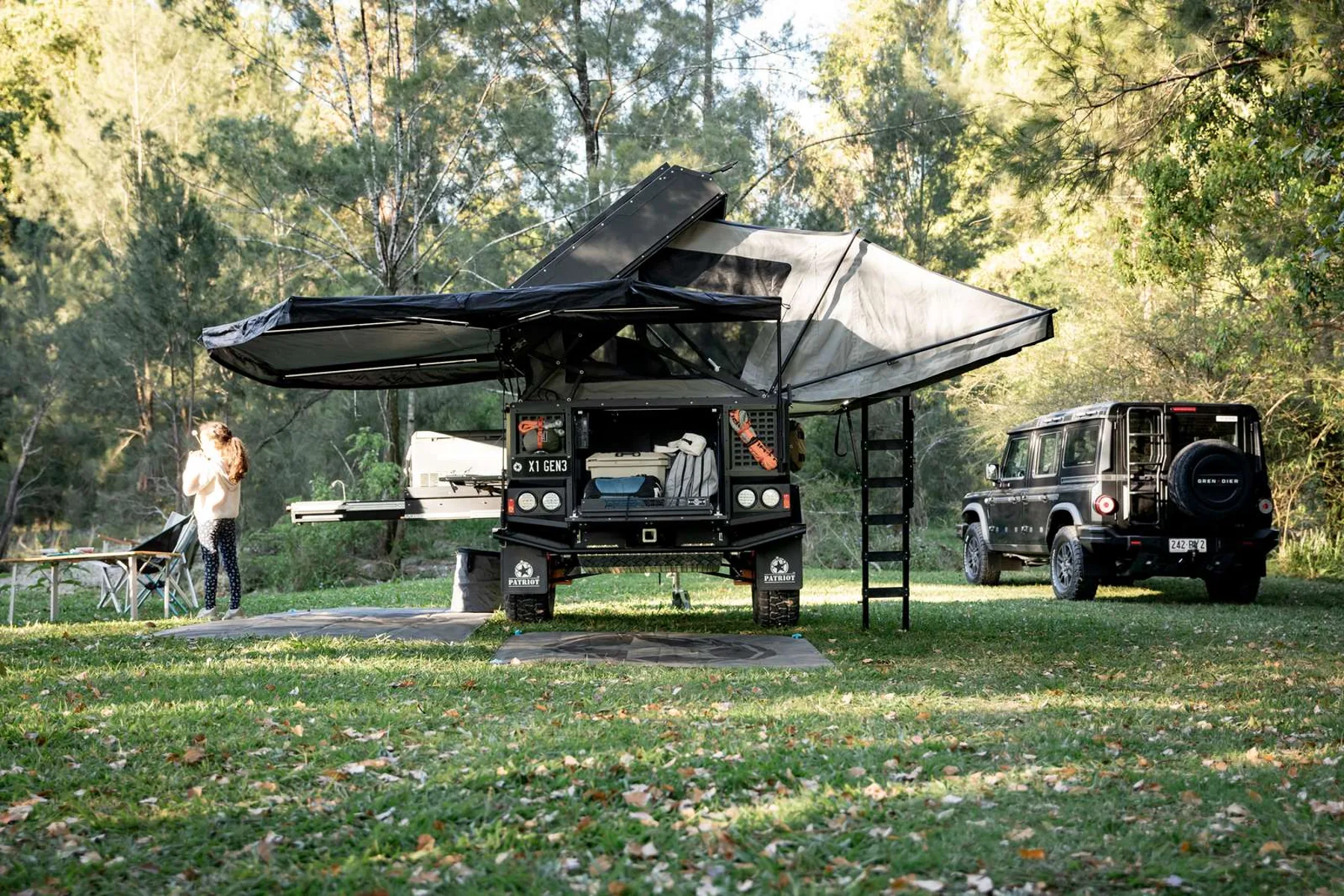

Tent & awning
The structural aluminium hardlid raises and lowers electrically, enclosing the tent and bedding for travel. External bows and camlock-and-pulley ropes support and tension the tent during setup.

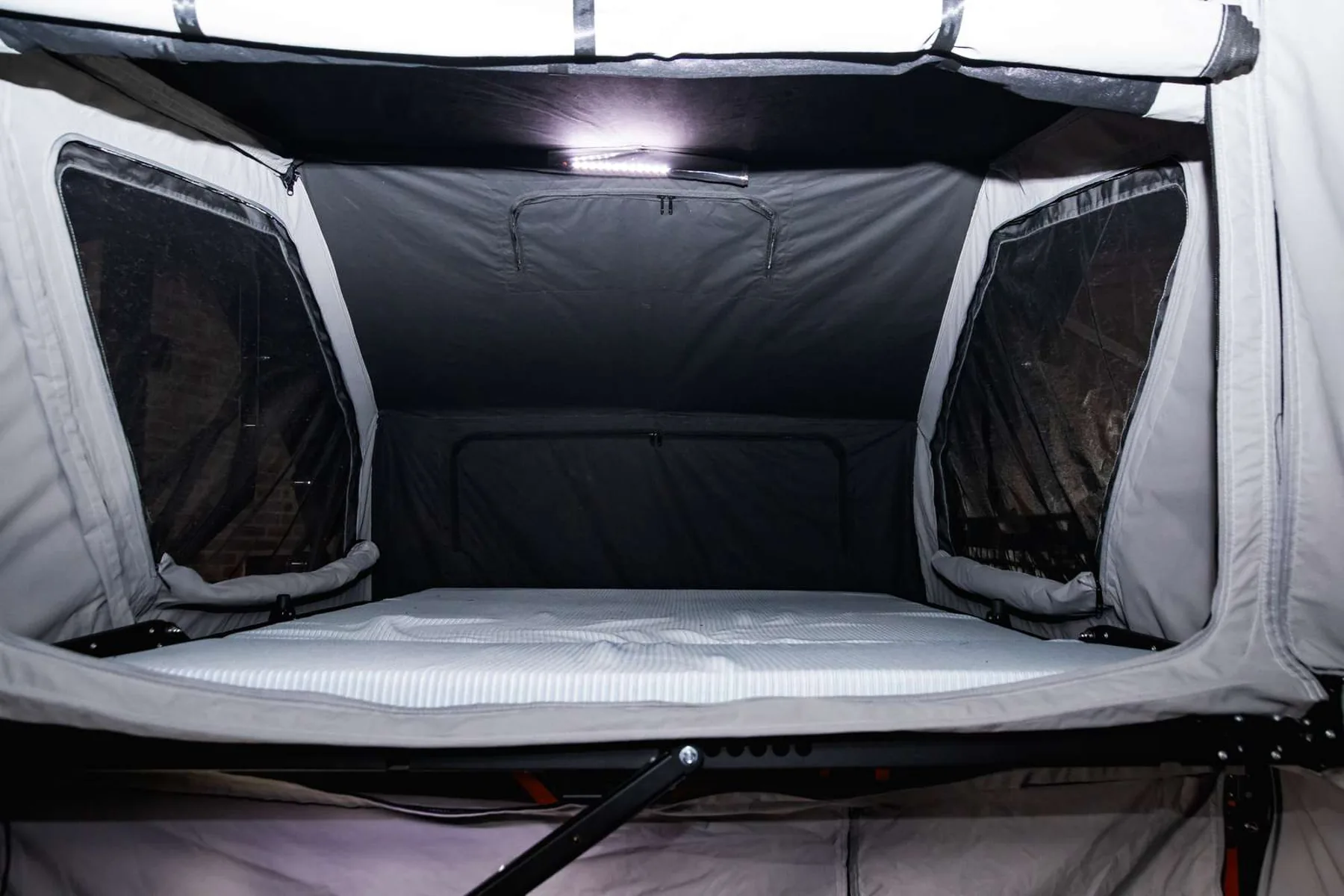

Queen-size bed
STANDARDThe 2030 × 1520 mm high-density foam mattress sits above a 6 mm anti-condensation mat. Ventilation panels and integrated lighting are built into the tent.

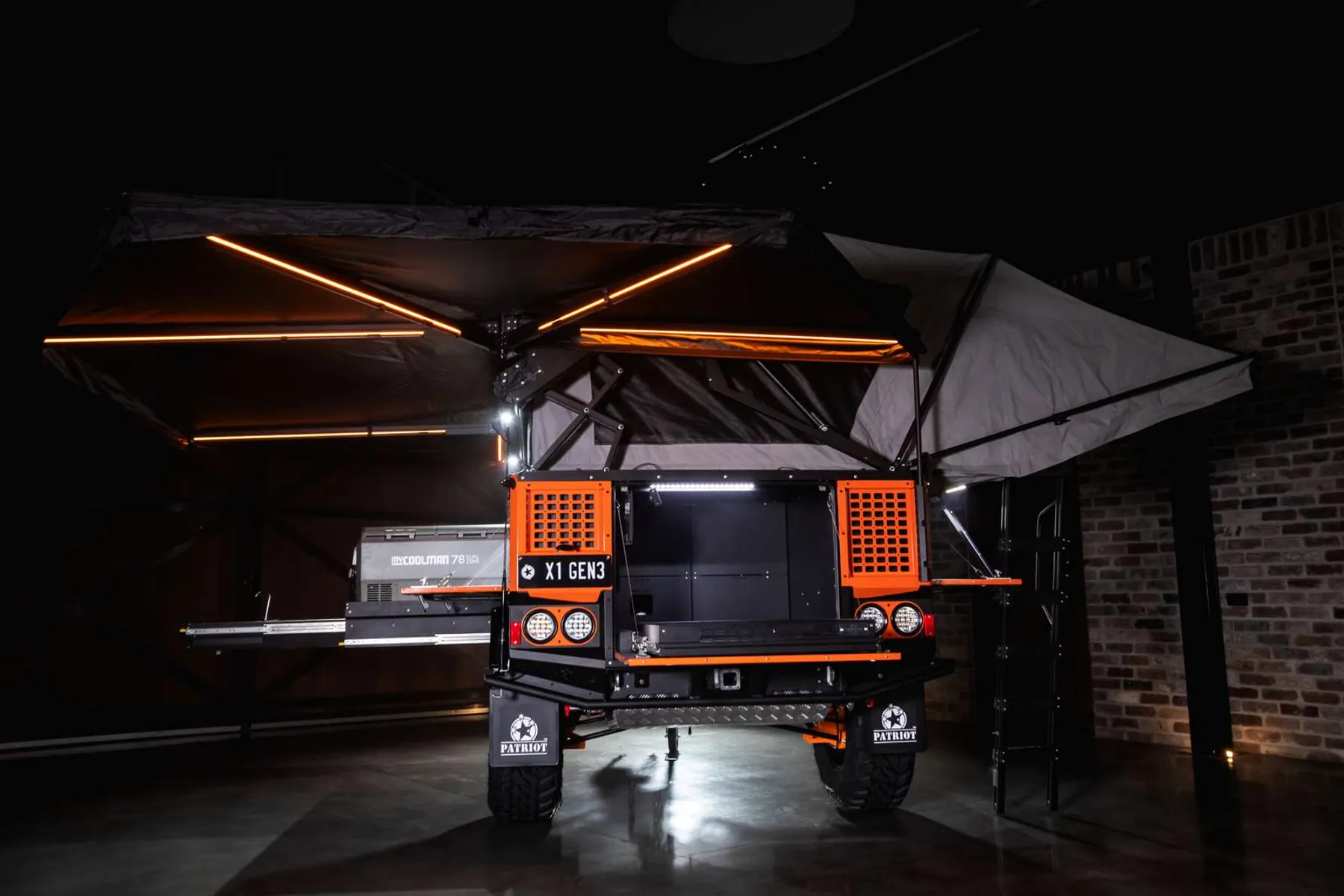

Freestanding 270° awning
STANDARDThe standard awning covers the kitchen and adjacent camp area. LED lights and fold-down support poles are integrated, with guy ropes for securing the awning.
Tent construction
STANDARDTear-stop polyester fabric, weather sealing and an access panel. External bows and camlock-and-pulley ropes support setup and tensioning.
Hardlid control
STANDARDElectric raise and lower, operated from a driver-side switch. Canvas and bedding are enclosed beneath the lid for travel.
Sleeping area
STANDARD2030 × 1520 mm high-density foam mattress, 6 mm anti-condensation mat, ventilation panels and integrated lighting.
Room extensions
OPTIONALOptional Change Room and Multi-room Add-ons have PVC floors. The Multi-room provides space for additional beds or bunks and requires the Change Room.

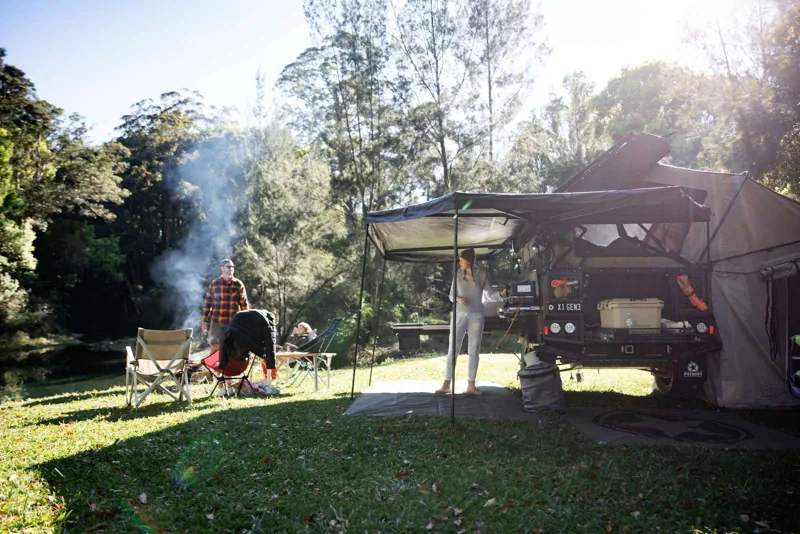

Awning construction
STANDARDFreestanding 270° polyester awning with integrated fold-down poles, ratchet guy ropes and attachment points.
Awning lighting
STANDARDIntegrated 12V downlights with remote control.

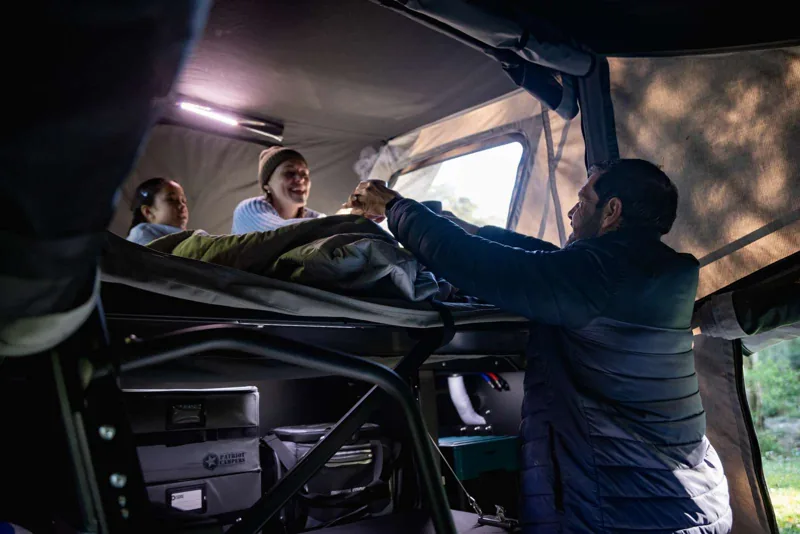

Diesel air heater
OPTIONALOptional heating for the sleeping area.
MODULAR TENT SYSTEM
Add a Change Room, then a Multi-room for extra sleeping space. Both have PVC floors. The Multi-room requires the Change Room.
Standard integrated tent and awning.
Approximately 2,000 L across the camper
Storage
The rear storage slide is standard. Compartments, drawers, wet-storage boxes and external carrying areas separate bulky equipment from food, utensils and damp gear. LED compartment lighting provides access after dark.

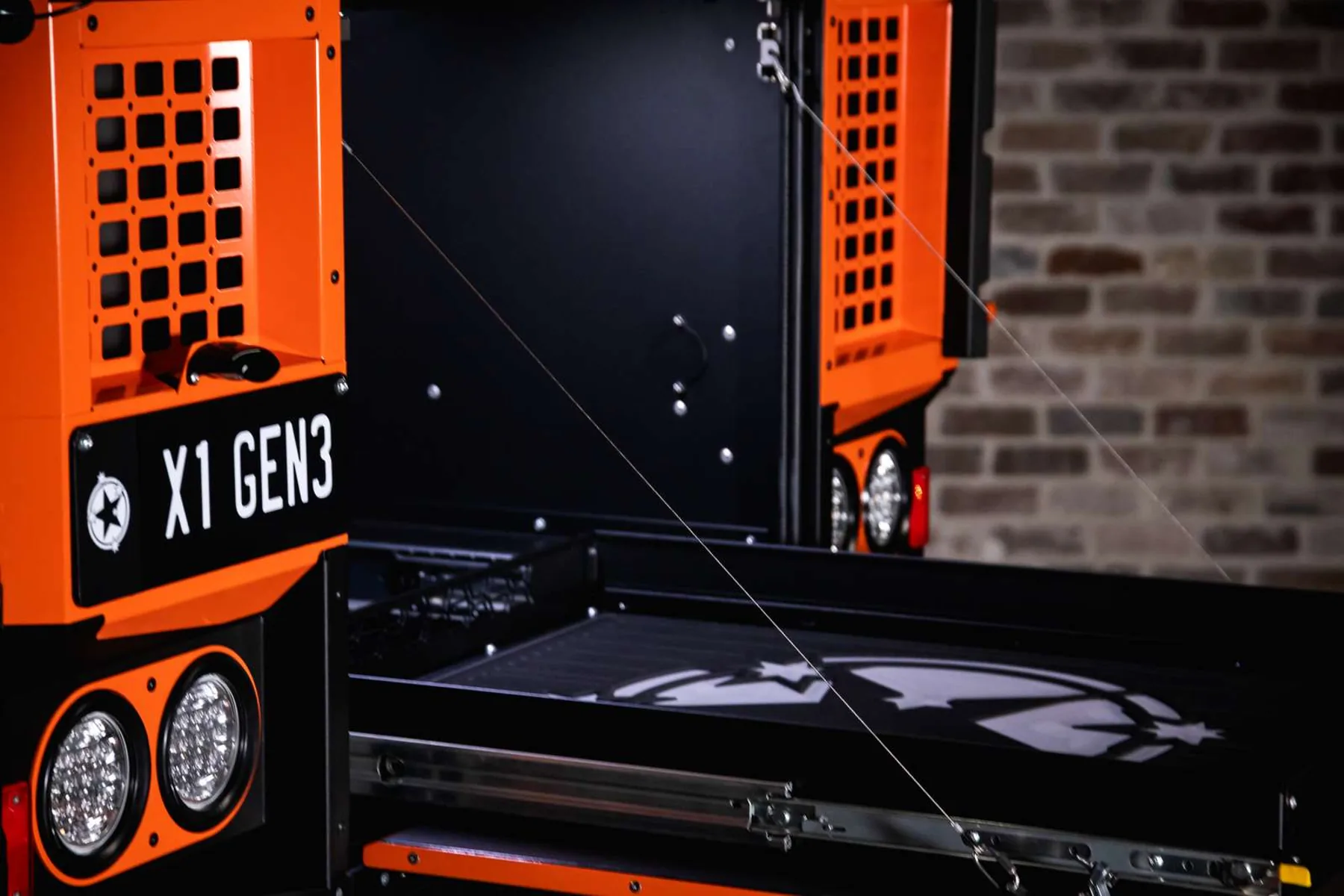

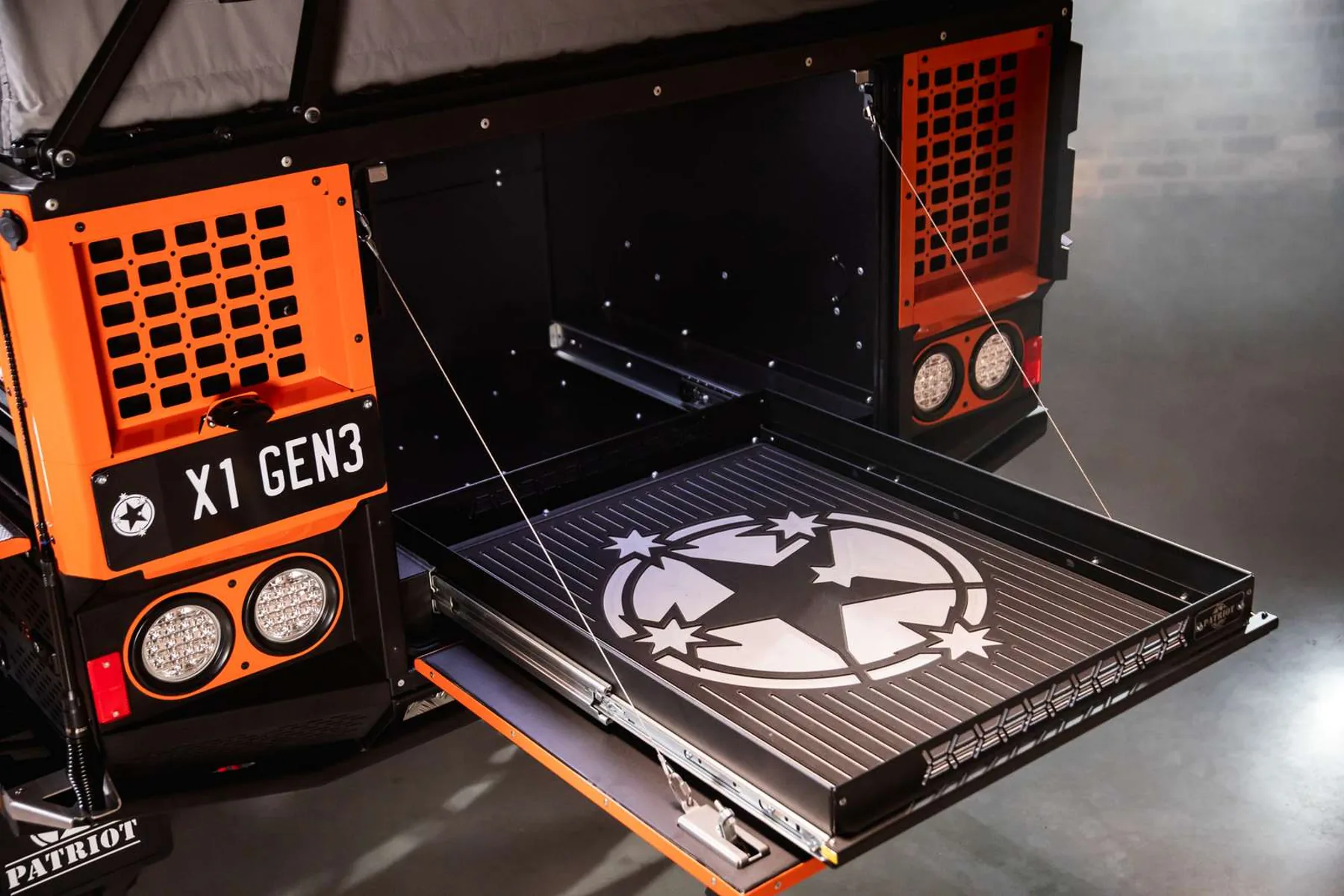

Rear storage slide
STANDARDThe rear storage slide is standard. It extends from the body for loading and access to bulky equipment.

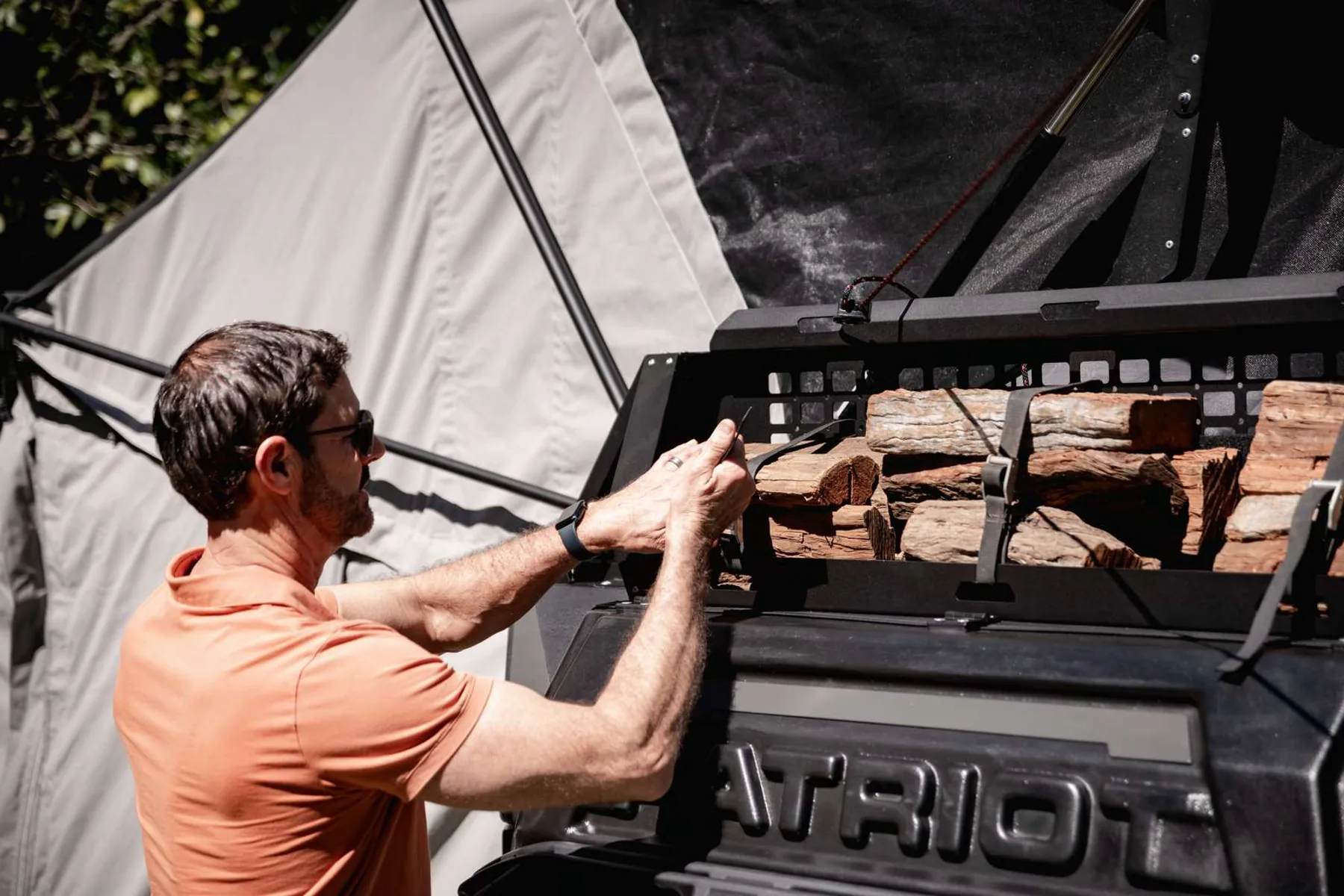

Front wood rack
STANDARDThe front rack carries firewood outside the sealed compartments. Gas-bottle holders accommodate 4.5 kg / 9 lb bottles.
MOLLE mounting panels
STANDARD REAR · OPTIONAL SIDERear MOLLE panels are standard. Optional side-mounted panels add mounting points for bags, tools and accessories.

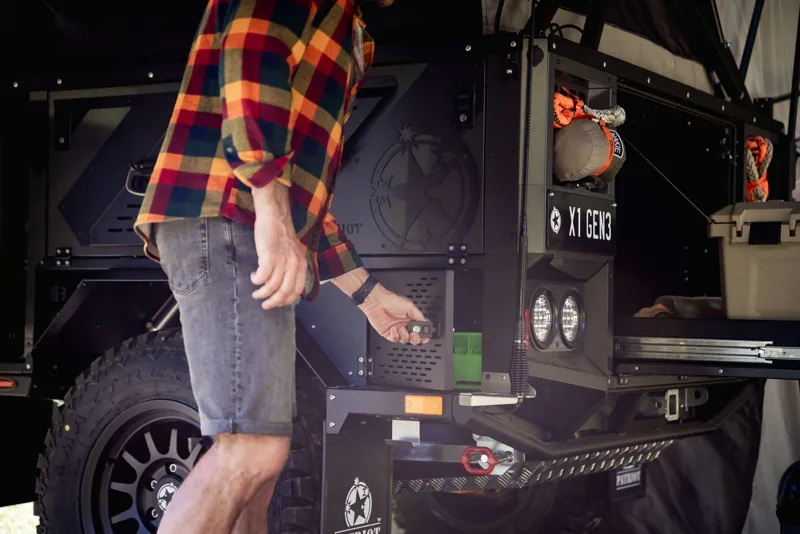

Wet-storage boxes
STANDARDSeparate storage for damp equipment.
Compartment lighting
STANDARDManually operated LED lights inside the storage compartments.
Gas-bottle holders
STANDARDHolders accommodate 4.5 kg / 9 lb bottles.

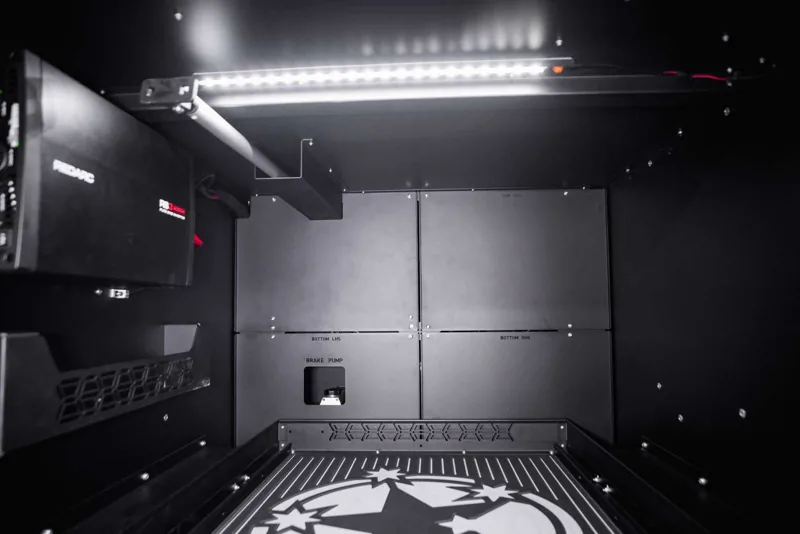

Marine Decking Mats
OPTIONALOptional compartment mats help protect floors from scratches and impacts and reduce movement of stored items.
100 Ah lithium as standard
Power
A 100 Ah lithium smart battery, IQ100 battery monitoring and REDARC BCDC1240D charge management are standard. The BCDC manages charging from the tow vehicle and compatible solar input. A second 100 Ah battery increases storage to 200 Ah.

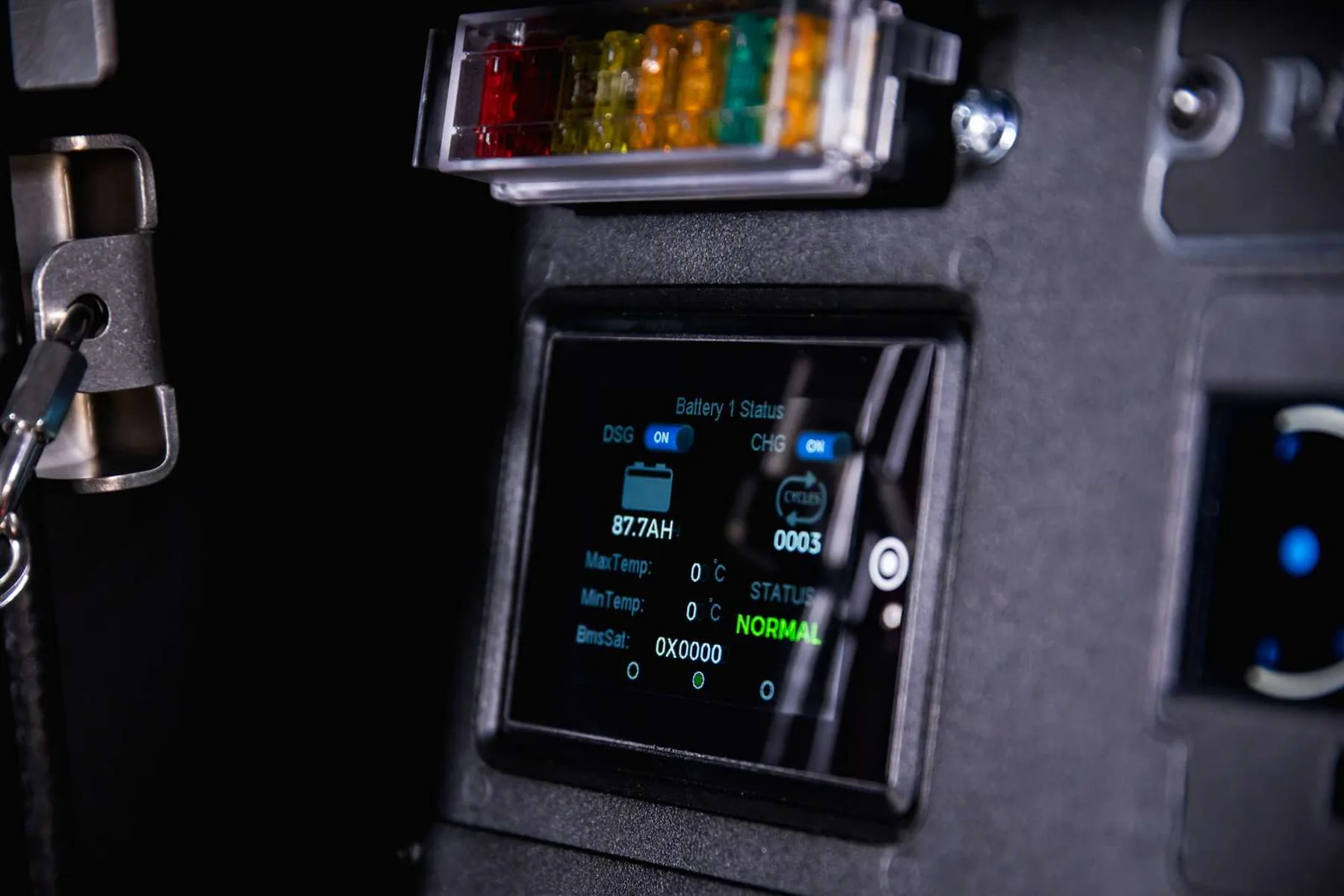

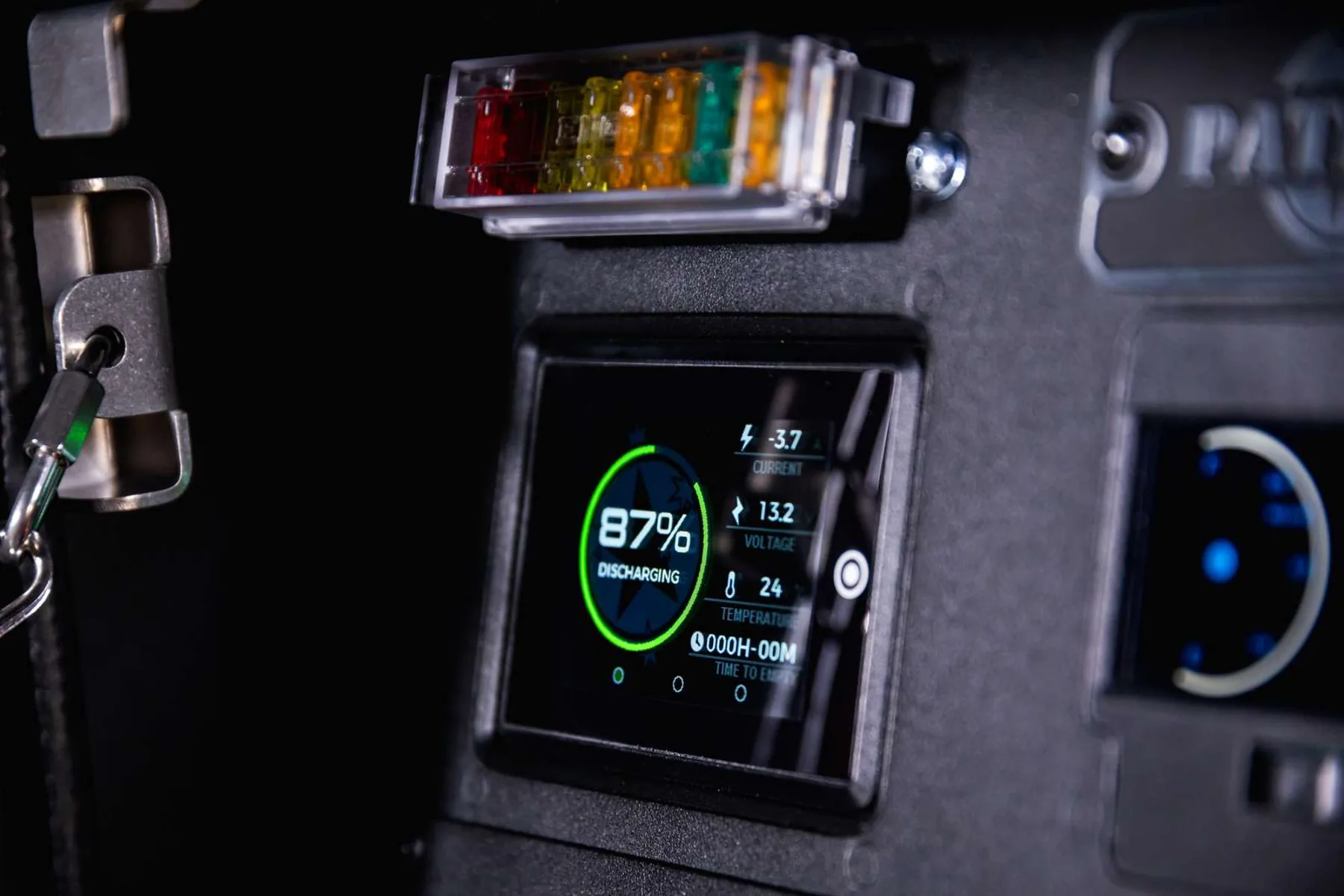

IQ100 battery monitoring
STANDARD · OPTIONAL BATTERY UPGRADEMonitor battery information and power use from the control panel. A 100 Ah lithium battery is standard; a second battery is optional.

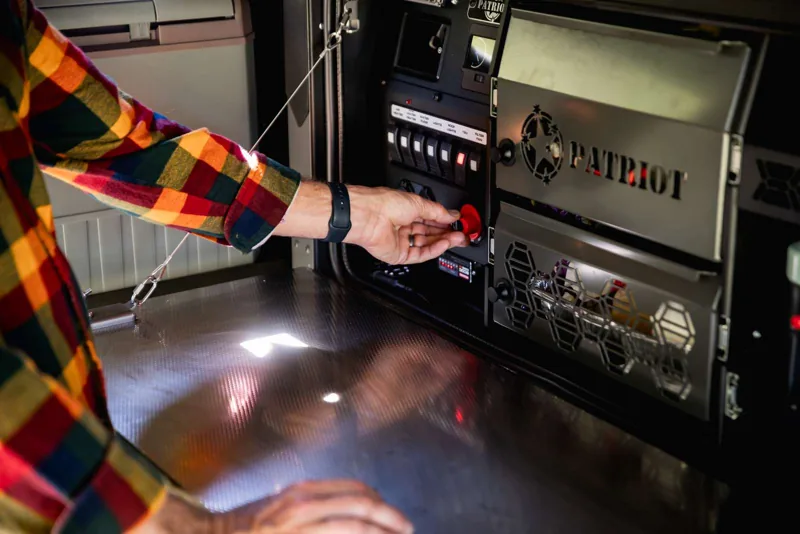

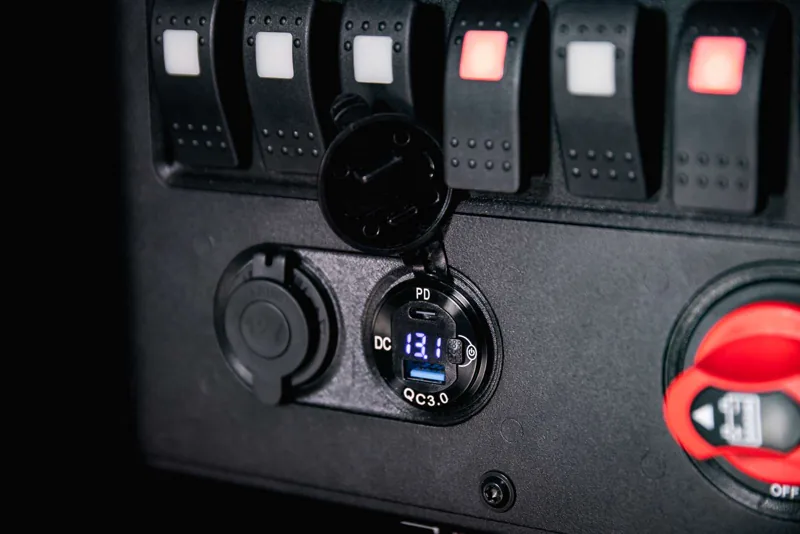

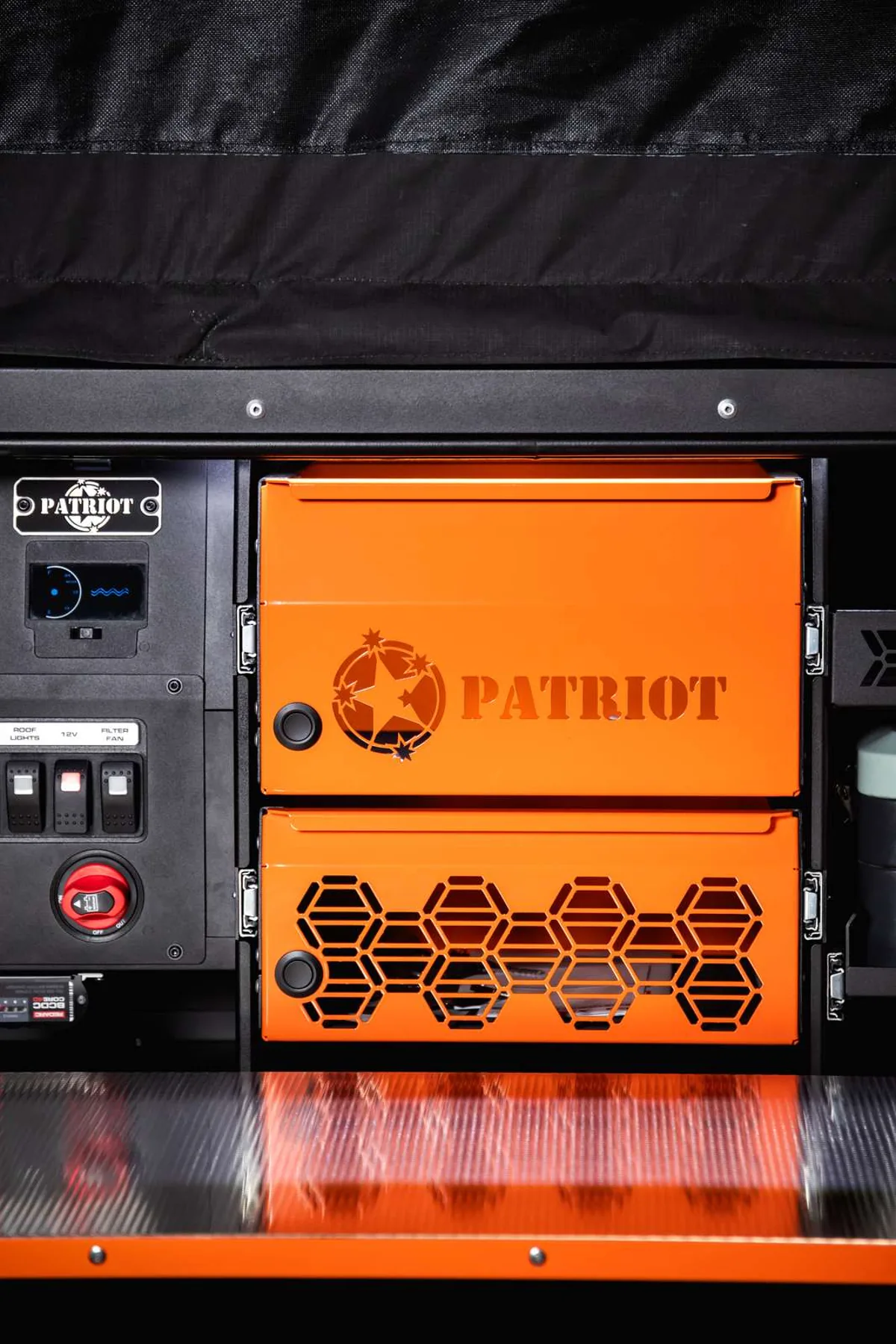

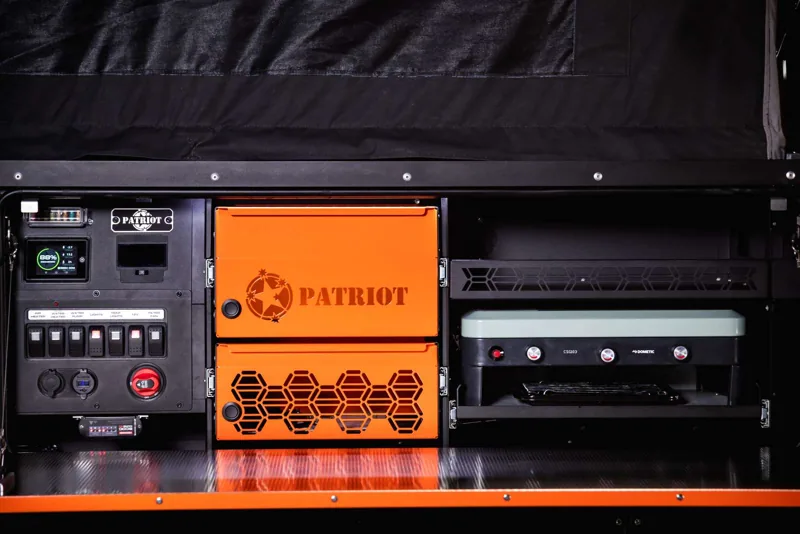

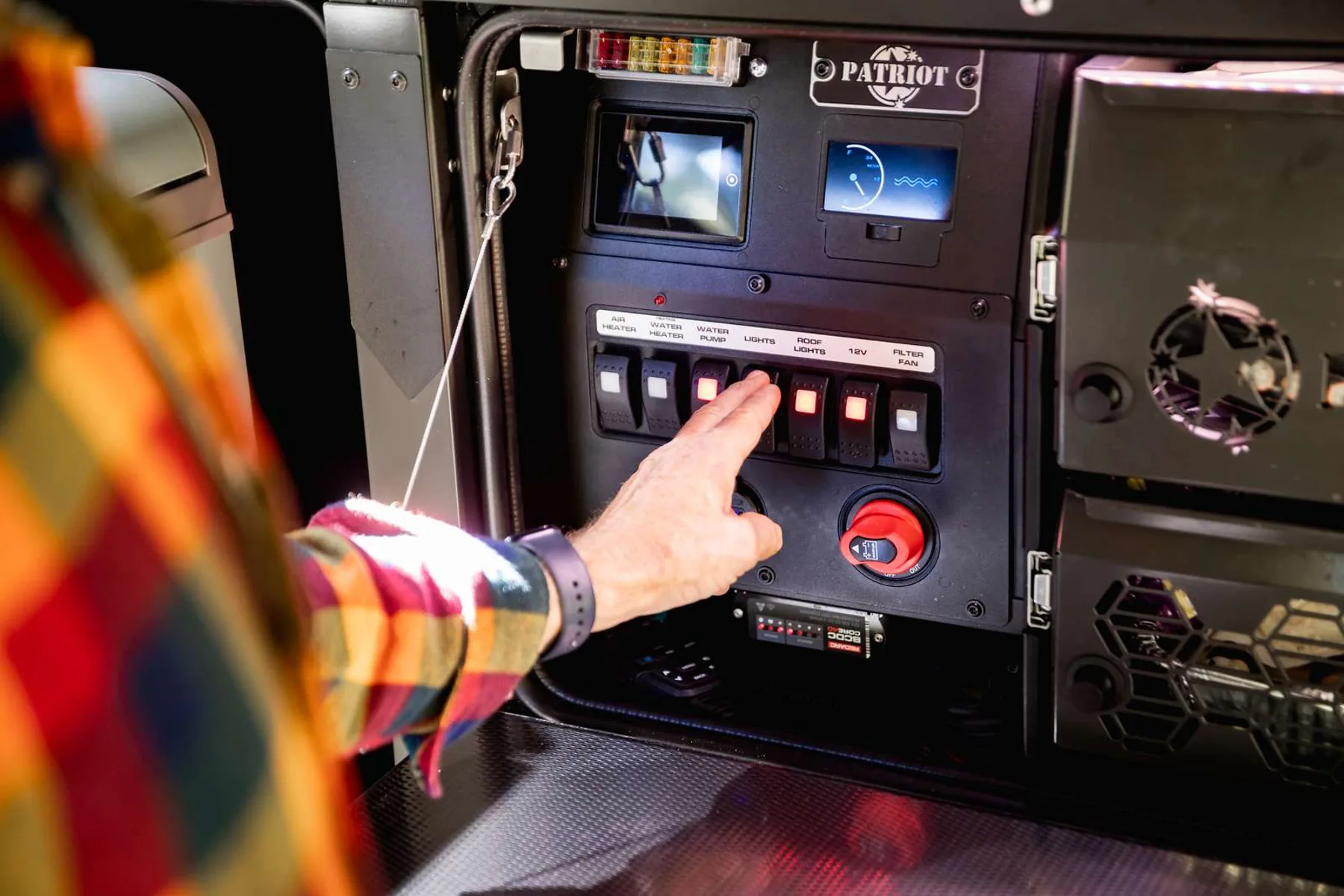

Direct controls. Accessible fuses.
STANDARDPhysical switches operate the camper’s electrical functions. Fuses are accessible at the control panel, and removable rear covers provide service access.

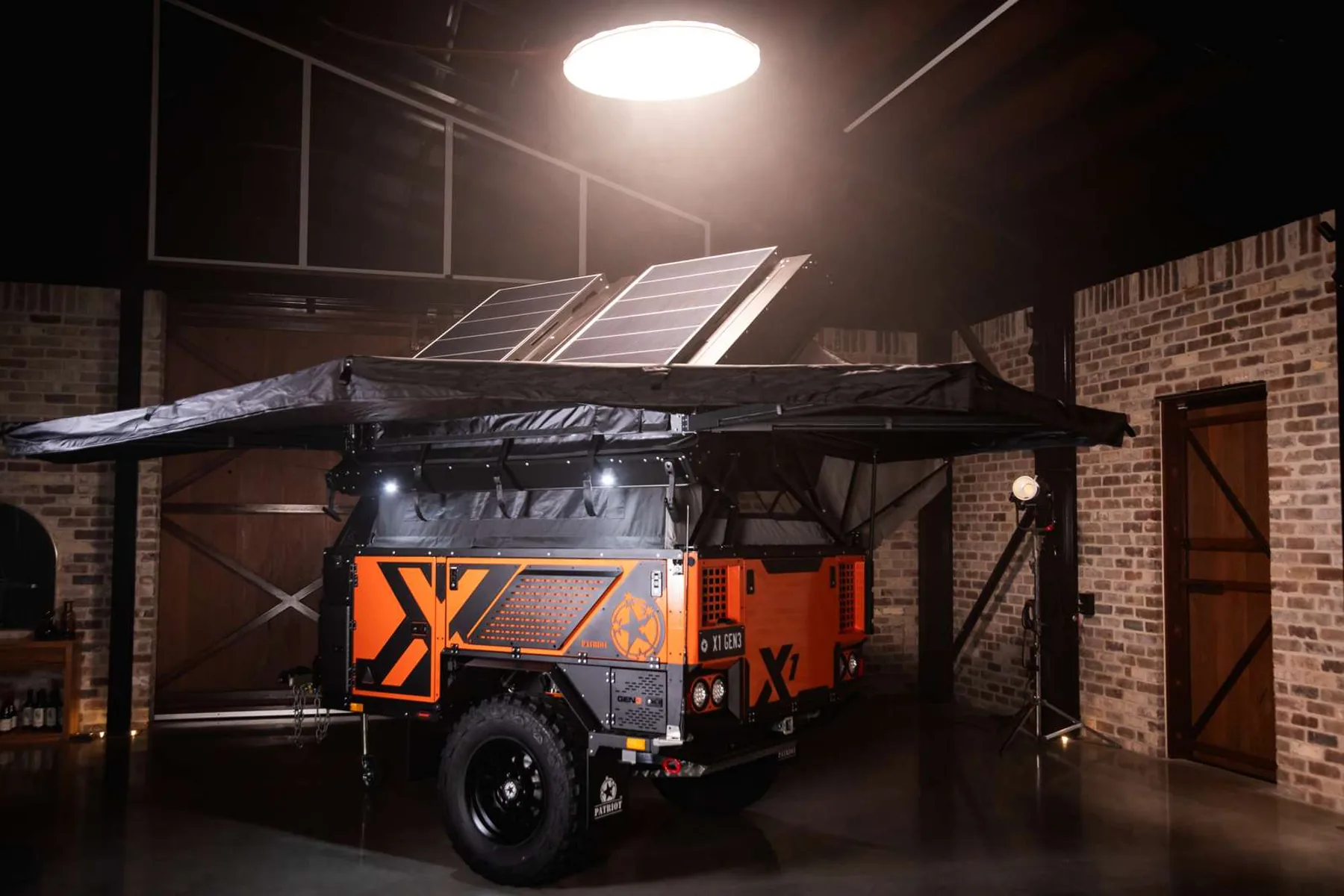

400W roof solar
OPTIONALThe optional roof-mounted system uses two 200W panels. Solar is not included in the standard specification. Inverter options are market-specific and shown in the configurator.
Battery capacity
STANDARD · OPTIONAL BATTERY UPGRADE100 Ah lithium as standard. Add a second 100 Ah battery for 200 Ah total capacity.
Charging
STANDARDREDARC BCDC1240D manages vehicle and solar charging. A supplied charger and charging connection support charging from external power.
Portable solar
STANDARD CONNECTION · OPTIONAL PANELExternal solar connection for a compatible portable panel or blanket.
Inverter options
OPTIONALAustralia: optional REDARC RS3 2000W. USA: optional REDARC RS2 1500W.
Cable routing
STANDARDAccess holes route extension leads out of the compartment.

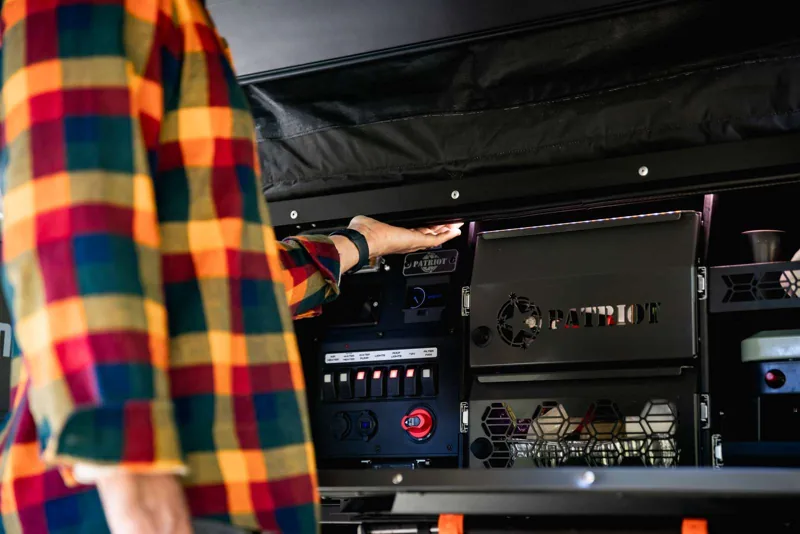

Service access
STANDARDControl-panel fuses and removable rear-storage covers provide access for servicing.
Choose the equipment. Track the weight.
Options
Select room extensions, diesel air heating, additional battery capacity, roof solar, fridge options, a BBQ swing-away or a toilet drop slide. The configurator shows pricing and estimated option weights as you build.
Room & heating upgrades
OPTIONALChange Room, dependent Multi-room and diesel air heater.
Power upgrades
OPTIONALAdditional 100 Ah battery, 400W roof solar and market-specific inverter.
Kitchen upgrades
OPTIONALFridge/freezer choices, BBQ swing-away and separately selected Weber Q1000. The Weber requires the swing-away.
Storage upgrades
OPTIONALSide-mounted MOLLE panels and Marine Decking Mats.
Toilet drop slide
OPTIONALOptional slide for a compatible portable toilet. Toilets are for illustration only and are not available from Patriot.
Recovery boards
OPTIONALOptional MAXTRAX pair with mount.

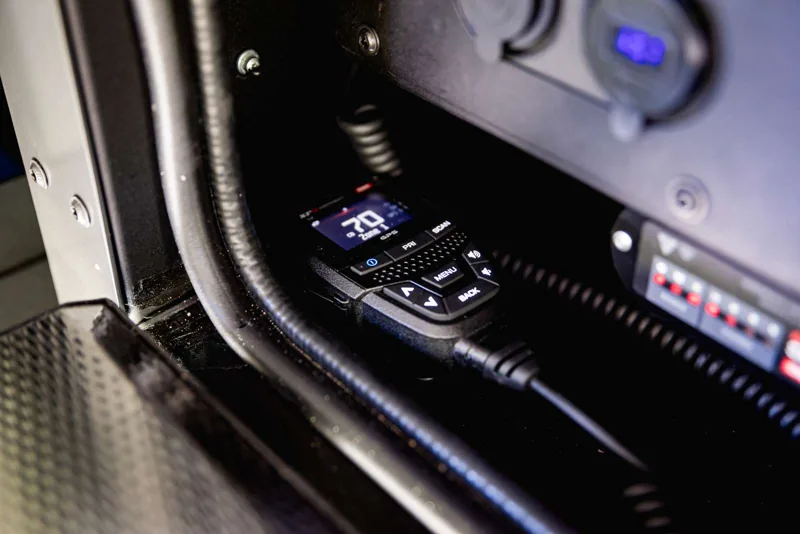

UHF communications
OPTIONALOptional GME XRS Touring Kit in the Australian configurator.
Build weight
CONFIGURATOR TOOLThe configurator estimates selected option weight and remaining payload as you build.
CONFIGURE YOUR GEN3 X1
Build your Gen3 X1.
$57,900 AUD
$54,900 USD
Introductory pricing only. Ends soon
Choose Volcano, Arctic, Desert or Wildfire, then select your optional equipment.
View pricing in the configurator.
Australian introductory base price. Optional equipment and on-road costs extra. Pricing and available options are shown in the configurator. Images show a mix of standard and optional equipment. Tare weight varies with fitted equipment.
